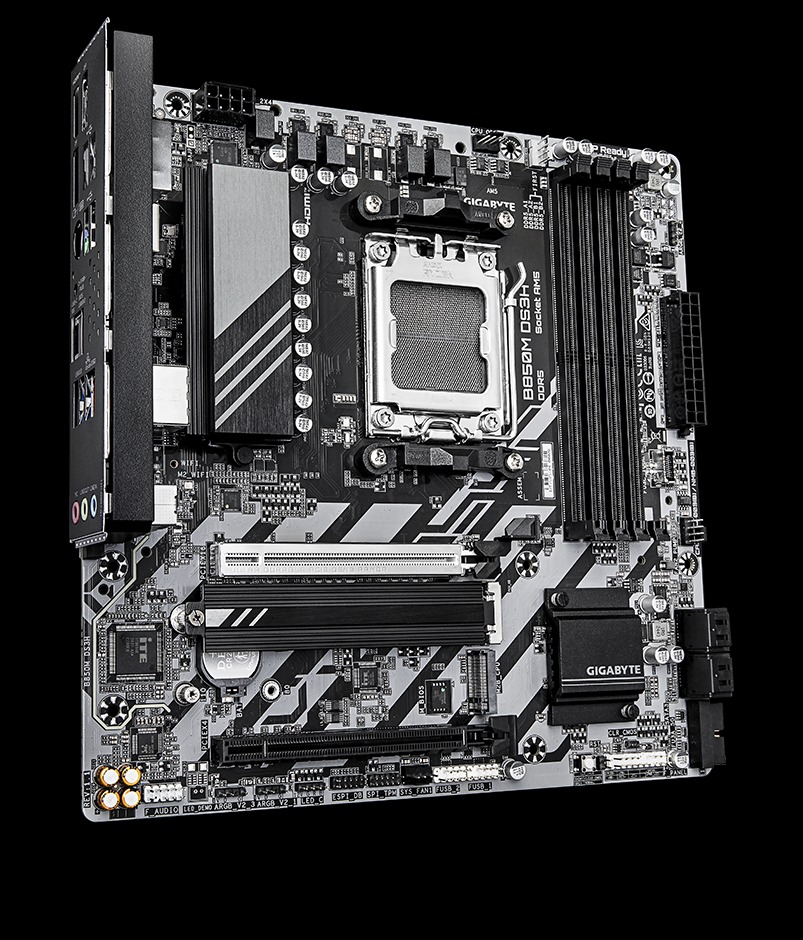

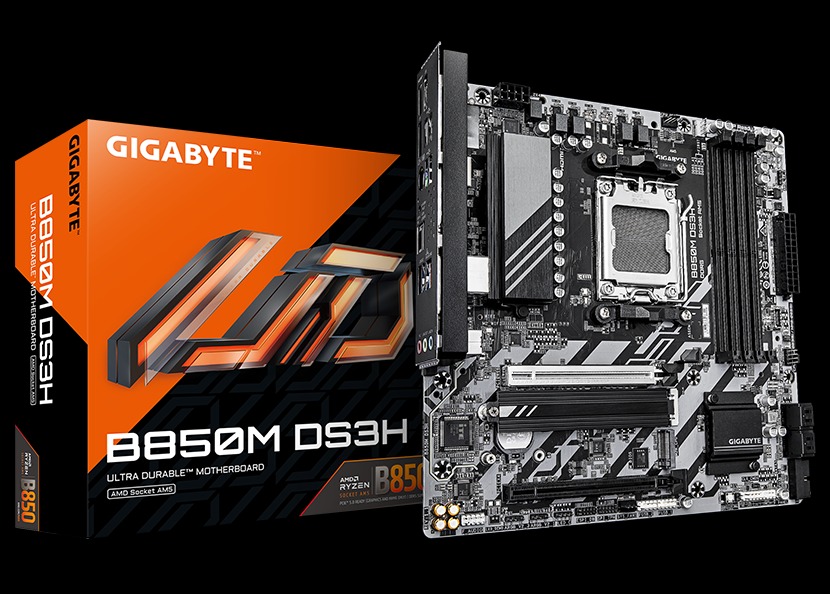

B850M DS3H (rev.1.1)

Description

OVERVIEW

Performance :

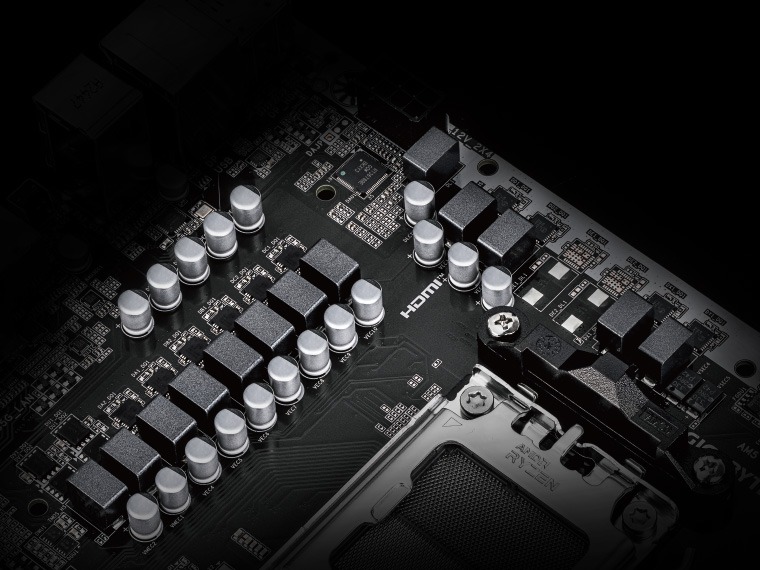

• 8*+2+2 Twin Digital VRM Design

  • 6-Layer PCB
  • Mid-Loss PCB
  • 2X Copper PCB
  • Premium Choke and Capacitor
  *4+4 Phases parallel power design

• Socket AM5 Supports AMD Ryzen™ Series Processors

• UD Power Connector

  • 24 pin ATX Power Connector
  • 8 pin CPU with UD Solid Pin

• 4 x DIMMs, Dual Channel DDR5

• 2 x M.2 Slots

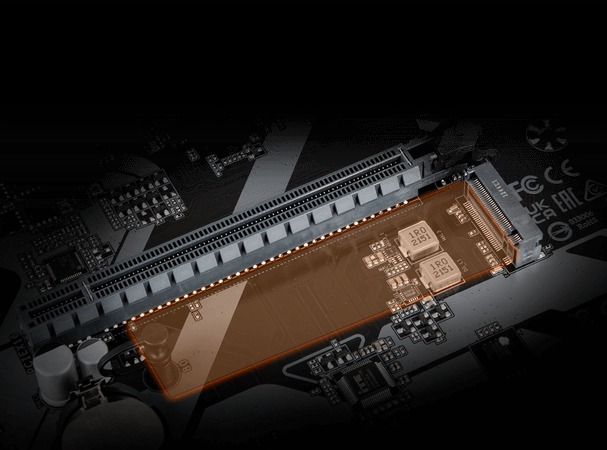

  • 1 x PCIe 5.0 M.2 Slot
  • 1 x PCIe 4.0 M.2 Slot

• Full-length PCIe slots

  • 1 x PCIe 5.0 x16 with PCIe UD Slot
  • 1 x PCIe 3.0 x4 slot

Thermal :

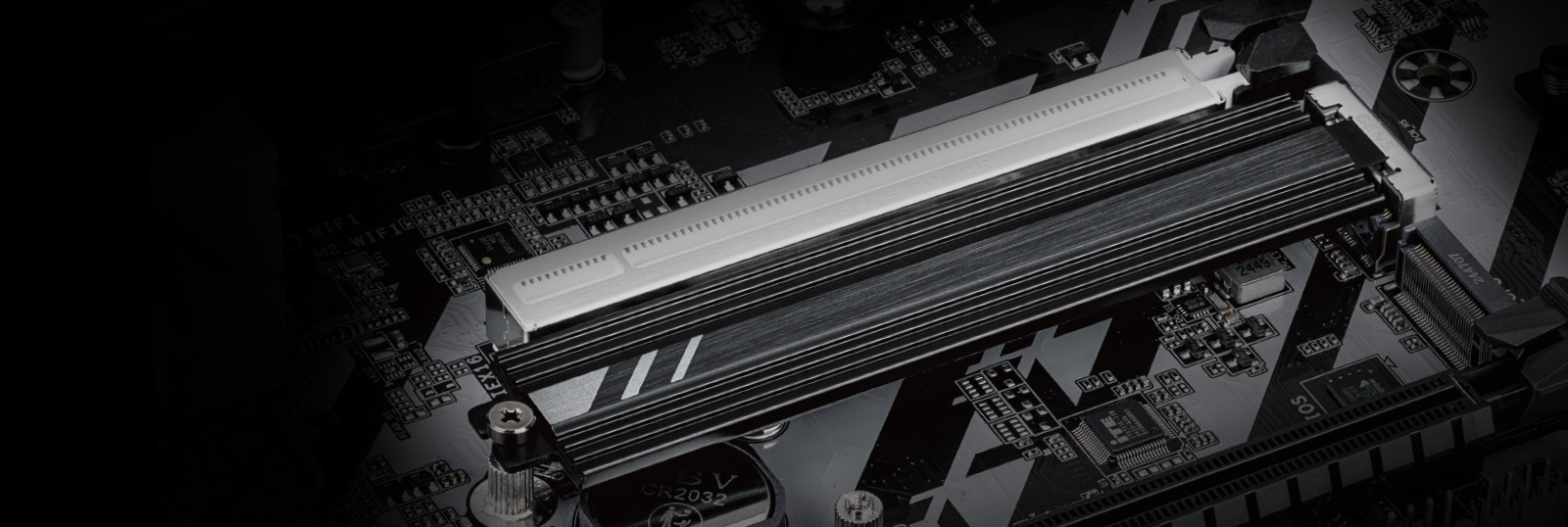

• M.2 Thermal Guard

• Smart Fan 6

  • Total 4*PWM/DC Fan Headers
  • Dual Fan Curve Mode

Connectivity :

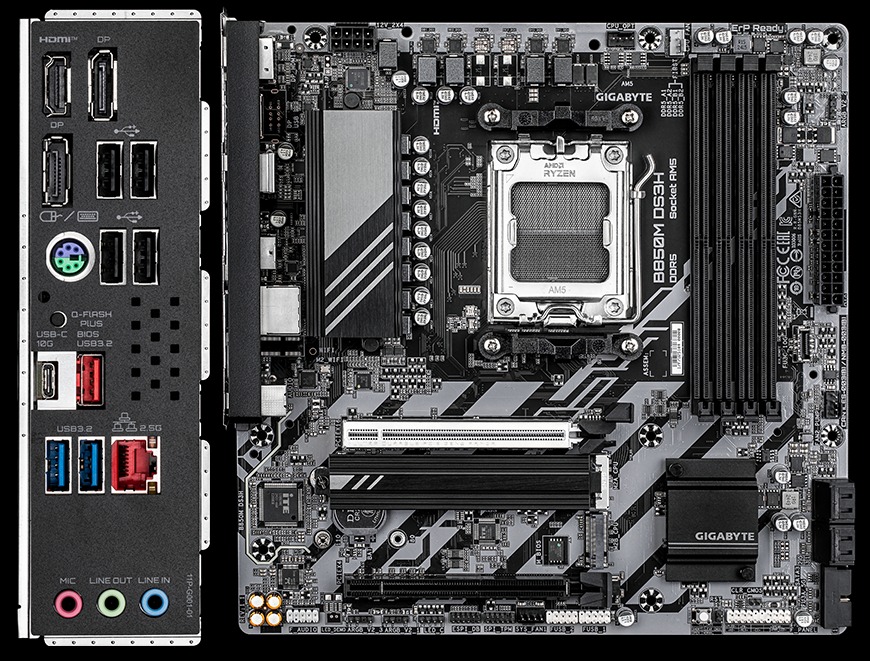

• 2 x Displayports

• 1 x HDMI

• 4 x USB 2.0

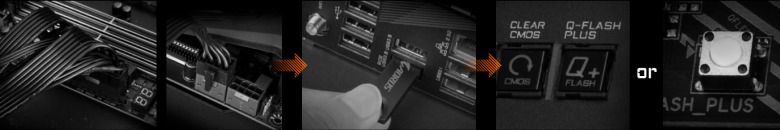

• Q-FLASH PLUS Button

• 1 x USB 3.2 Gen 2

• 1 x USB 3.2 Gen 2 Type-C®

• 2 x USB 3.2 Gen 1

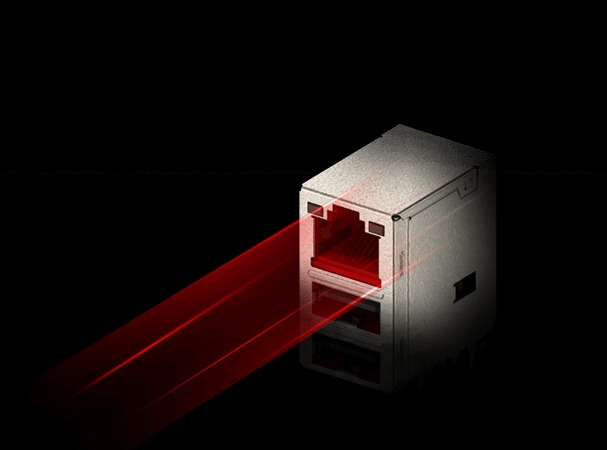

• 2.5 GbE LAN

• Front USB-C 10Gb/s

• 4 x SATA 6Gb/s

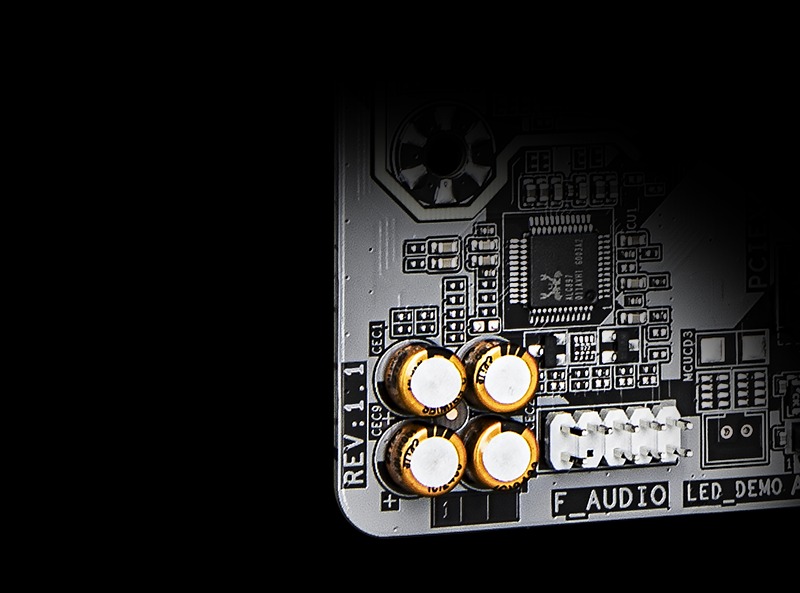

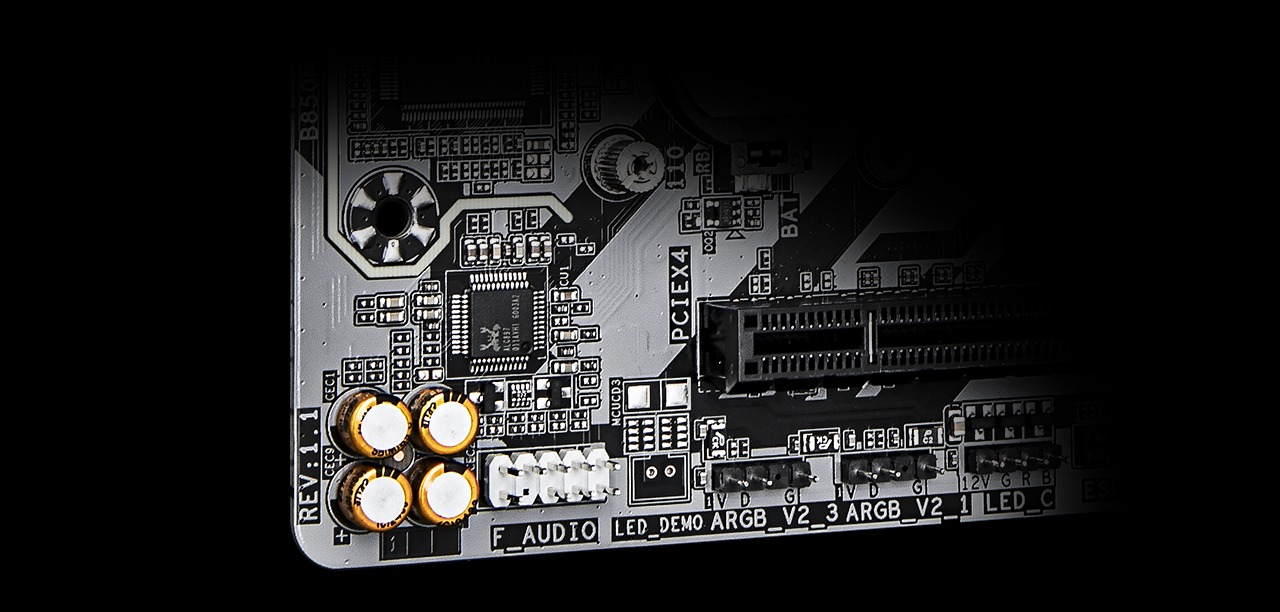

• Hi-Fi Audio

  • 8-CH HD Audio
  • High-End Audio Capacitor

• RGB FUSION

  • 3 x Addressable LED Header
  • 1 x RGB LED Header

• Pre-installed I/O shield

DIY Friendly :

• M.2 EZ-Latch Plus

• PCIe EZ-Latch

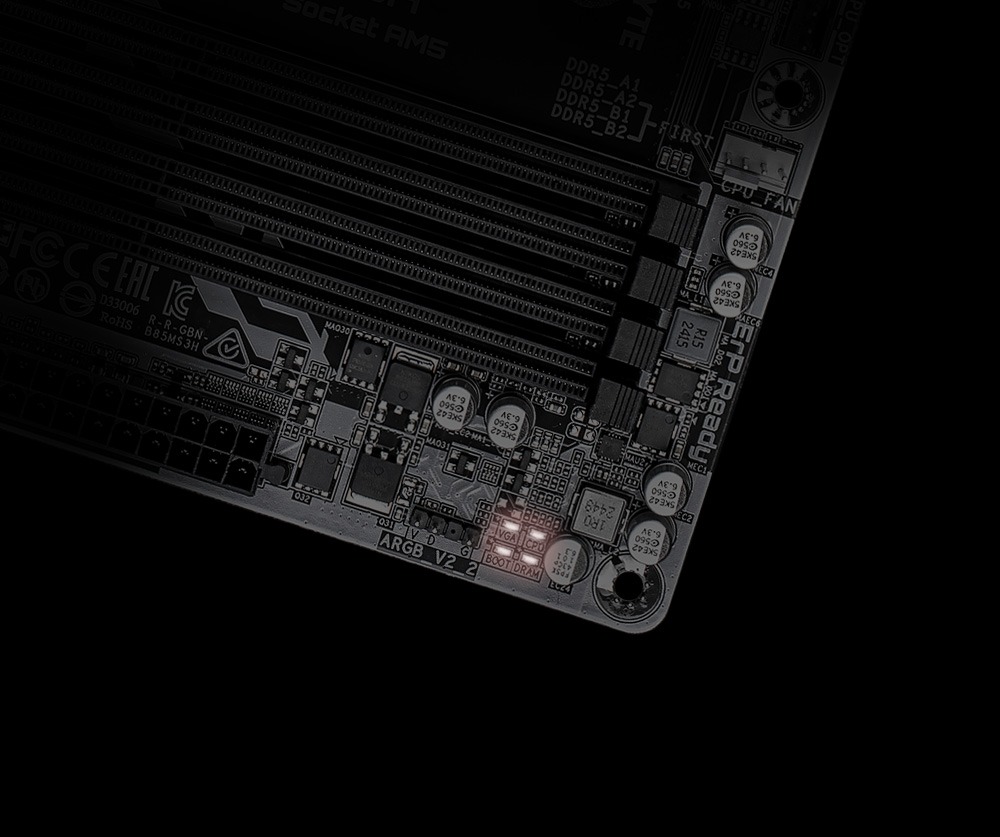

• EZ-Debug Zone

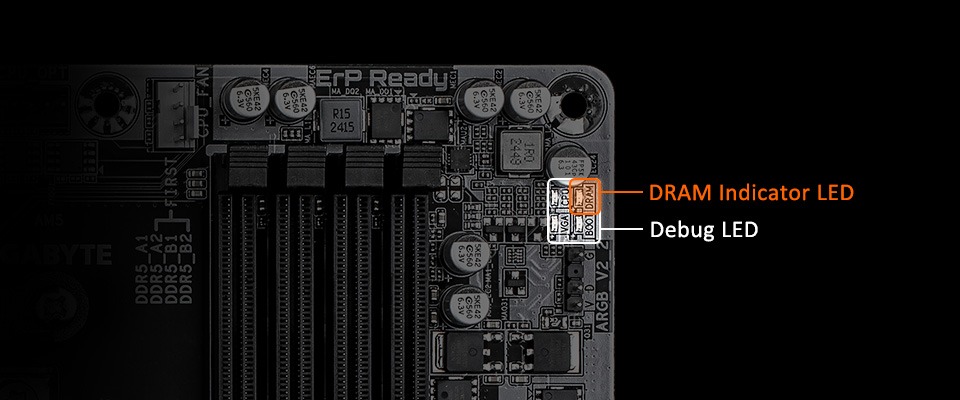

  • Debug LEDs

Key Features

• X3D Turbo Mode : Unleash new era gaming performance
• AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital twin 8+2+2 phases VRM solution
• Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
• EZ-Latch : PCIe x16 Slot with Quick Release Design
• M.2 EZ-Latch Plus : screwless installation for M.2 SSDs
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 slot
• M.2 Thermal Guard : To Ensure M.2 SSD Performance
• Fast Networking : 2.5GbE LAN
• Extended Connectivity : 2*DP, HDMI
