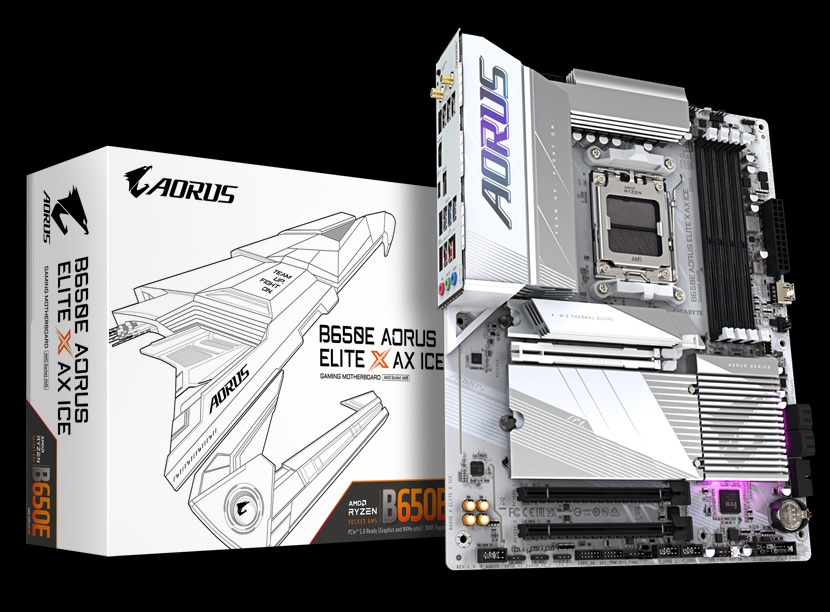

B650E AORUS ELITE X AX ICE (rev.1.2)

Description

OVERVIEW

Performance :

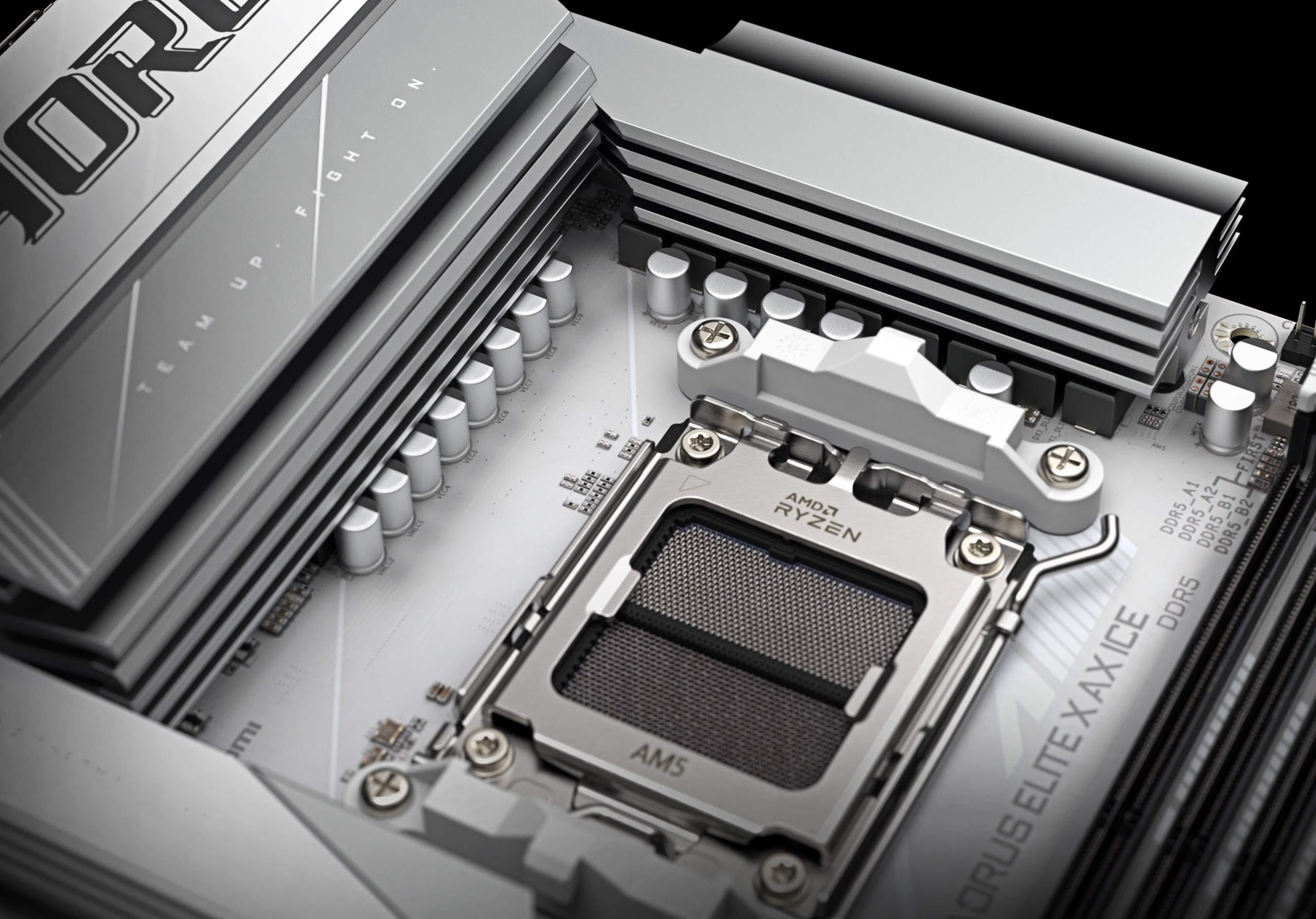

• 12+2+2 Twin Digital VRM Design

  • 6-Layer PCB
  • Mid-Loss PCB
  • 2X Copper PCB
  • Premium Choke and Capacitor
  *6+6 phases parallel power design

• Full-length PCIe slots

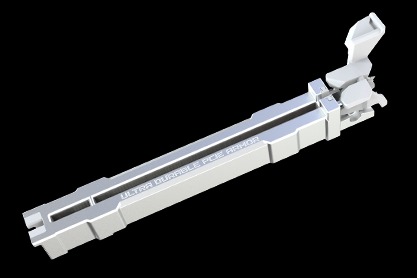

  • 1 x PCIe 5.0 x16 with PCIe UD Slot X
  • 2 x PCIe 3.0 x1 Slot

• UD Power Connector

  • 24 pin ATX Power Connector
  • 8+4 pin CPU with UD Solid Pin

• Socket AM5 Supports AMD
  Ryzen™ Series Processors

• 4 x DIMMs, Dual Channel DDR5

• 3 x M.2 Slots

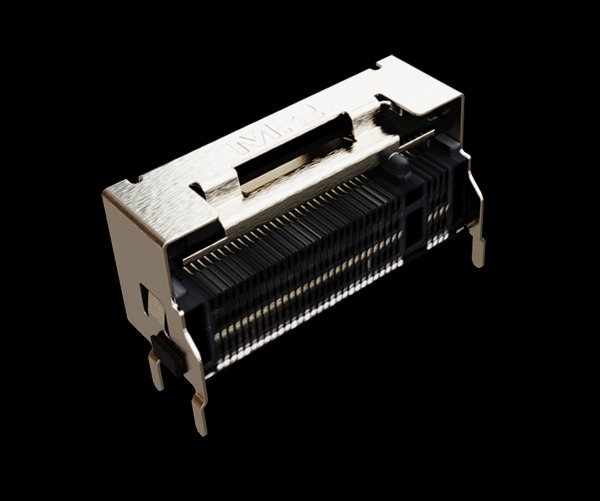

  • 1 x Gen 5 M.2 UD Slot
  • 2 x Gen 4 M.2 Slots

Thermal :

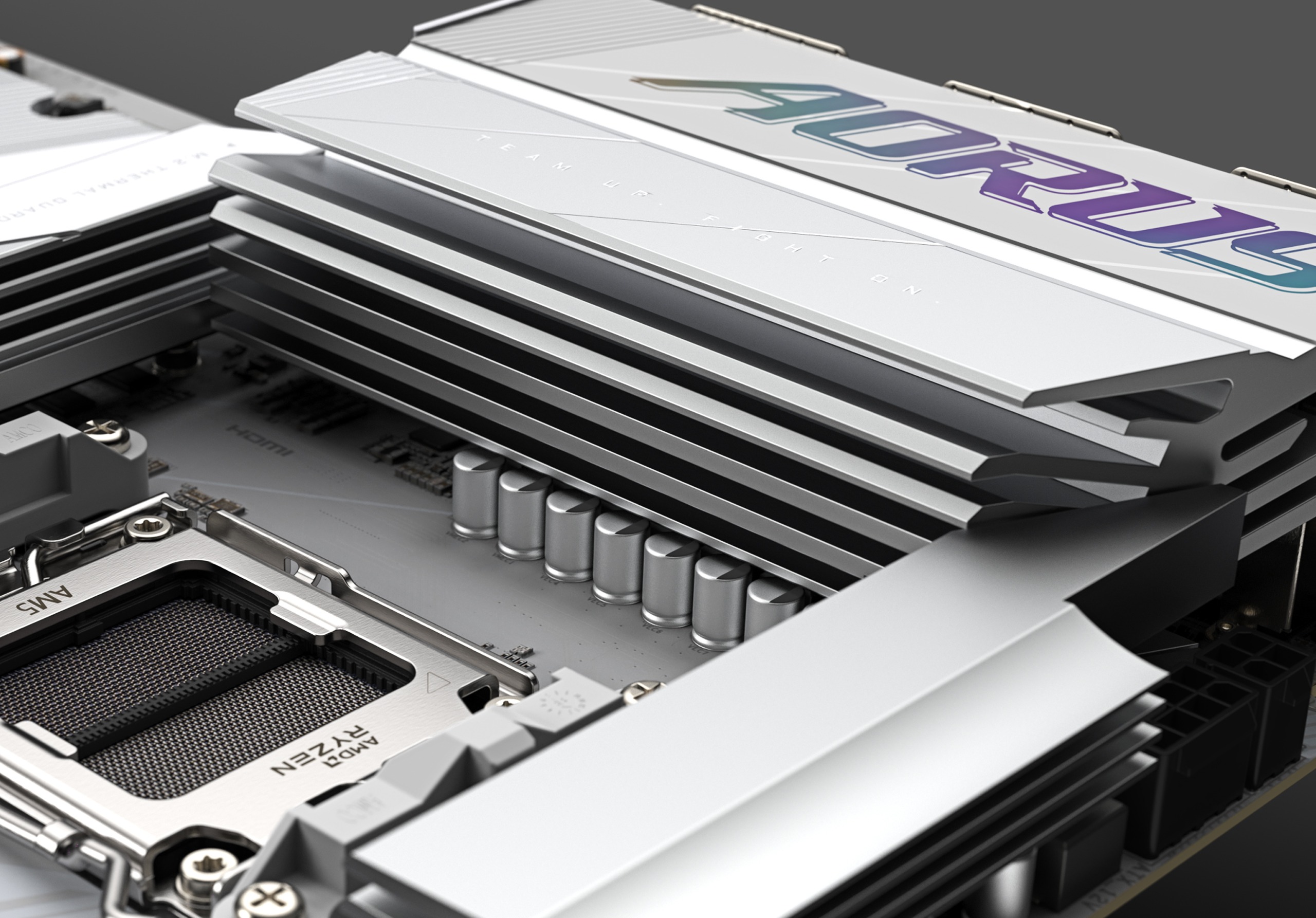

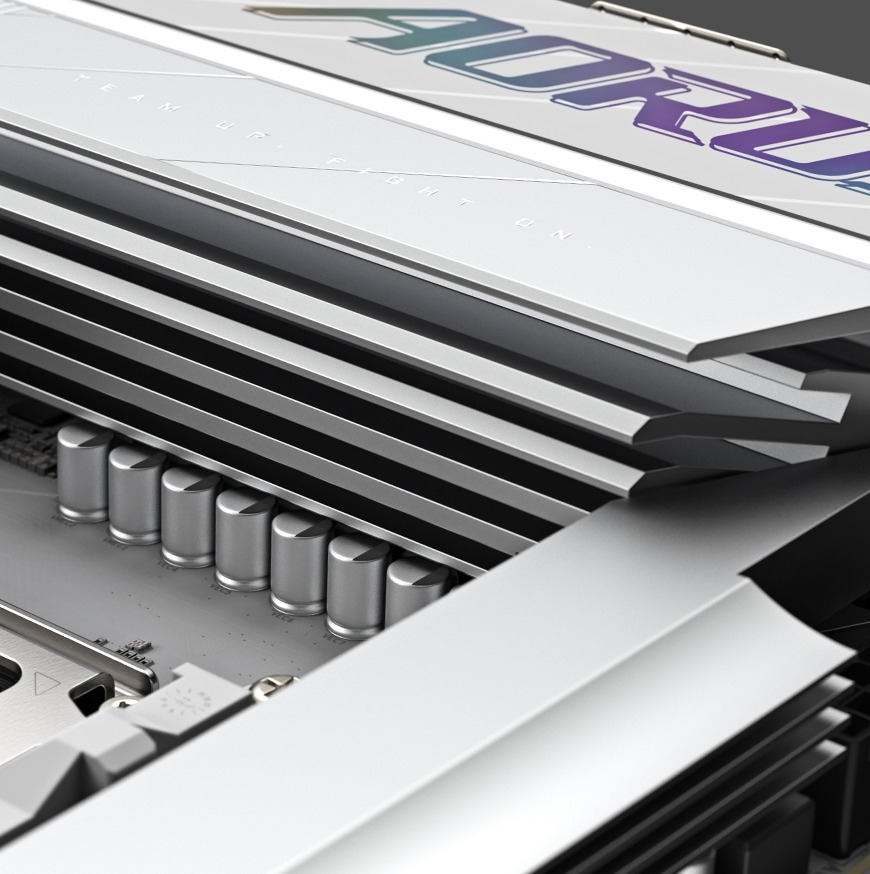

• VRM Thermal Armor Advanced

  • 6 mm Heatpipe
  • 7 W/mk Thermal Pad
  • Integrated IO Shield

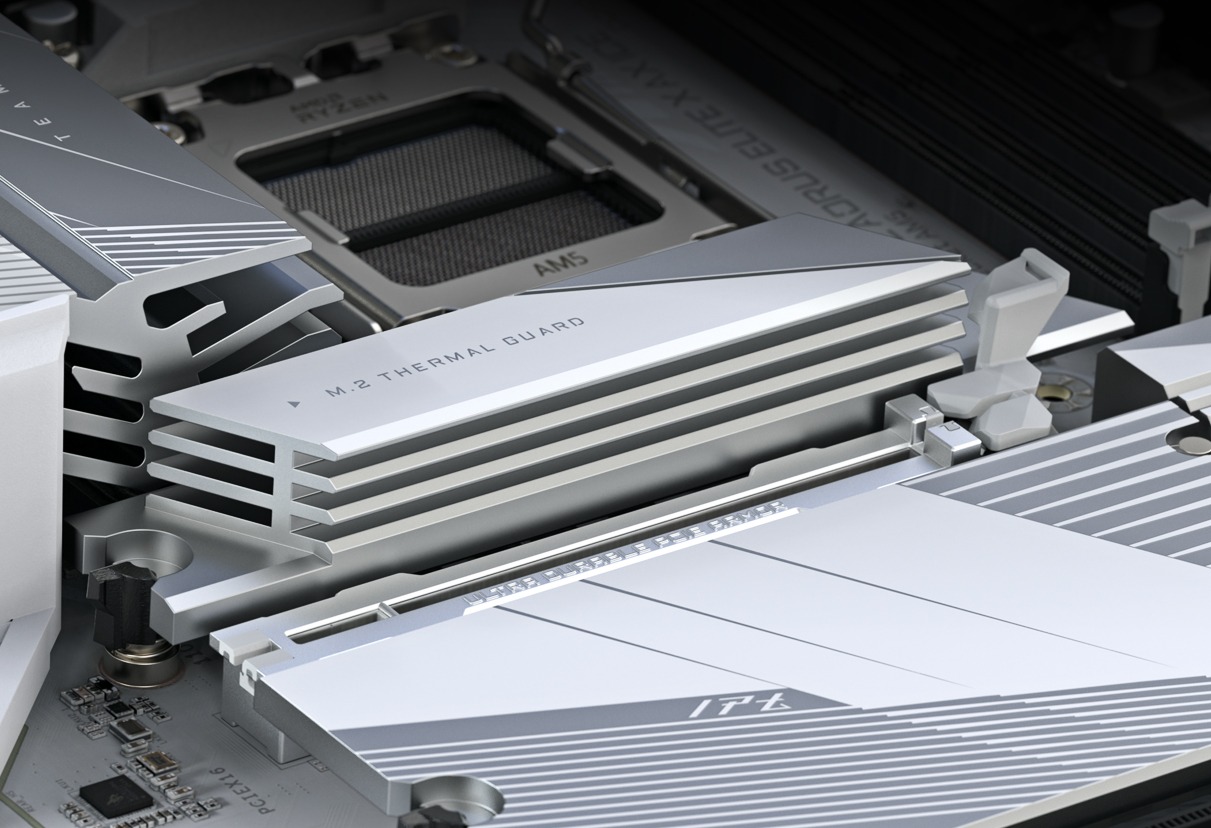

• M.2 Thermal Guard XL

• M.2 Thermal Guard Ext.

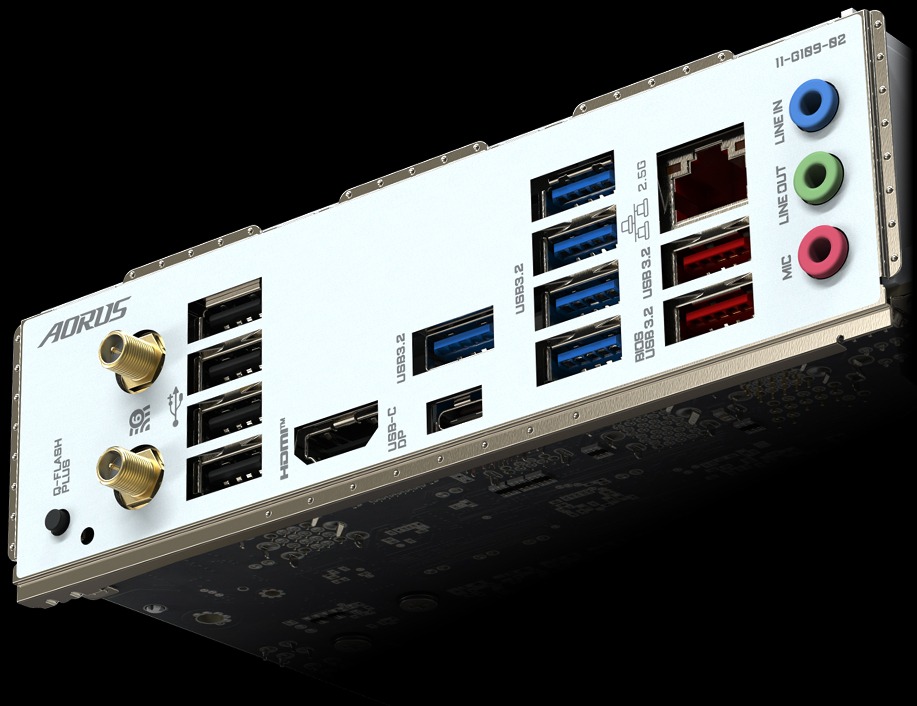

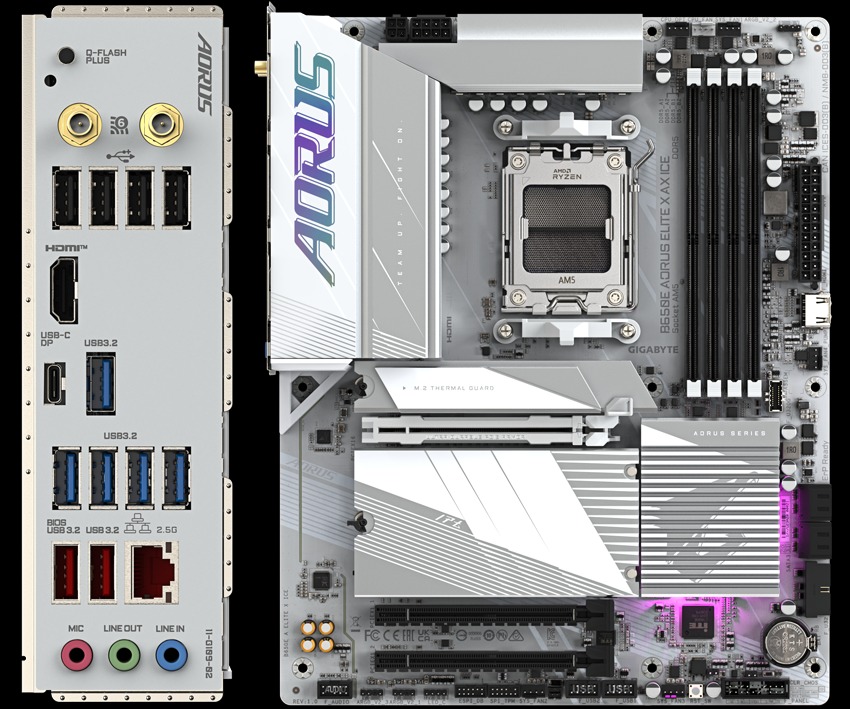

Connectivity :

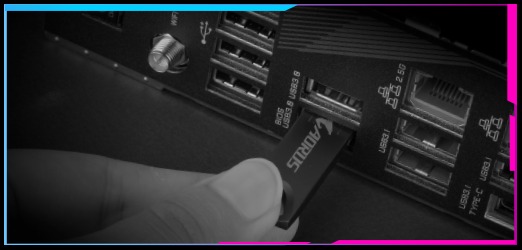

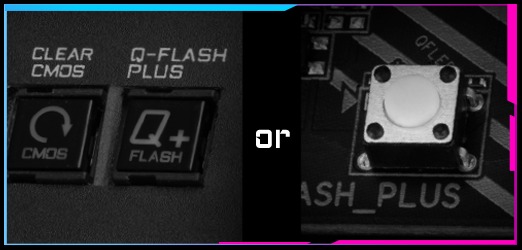

• Q-FLASH Plus

• Wi-Fi 6E with Ultra-high gain Antenna

• 4 x USB 2.0

• HDMI

• USB-C® 10Gb/s
  (Maximum speed up to 40Gb/s.
  Actual support may vary by CPU.)

• 5 x USB 3.2 Gen 1

• 2 x USB 3.2 Gen 2

• 2.5 GbE LAN

• RGB Fusion

  • 3 x Addressable LED Headers
  • 1 x RGB LED Header

• Front USB-C® 20Gb/s

• Sensor Panel Link(HDMI)

• 4 x SATA 6Gb/s

• Unleash precision in gaming audio

  • ALC897
  • Audiophile Grade Capacitors

DIY Friendly :

• M.2 EZ-Latch Click &
  M.2 EZ-Latch Plus

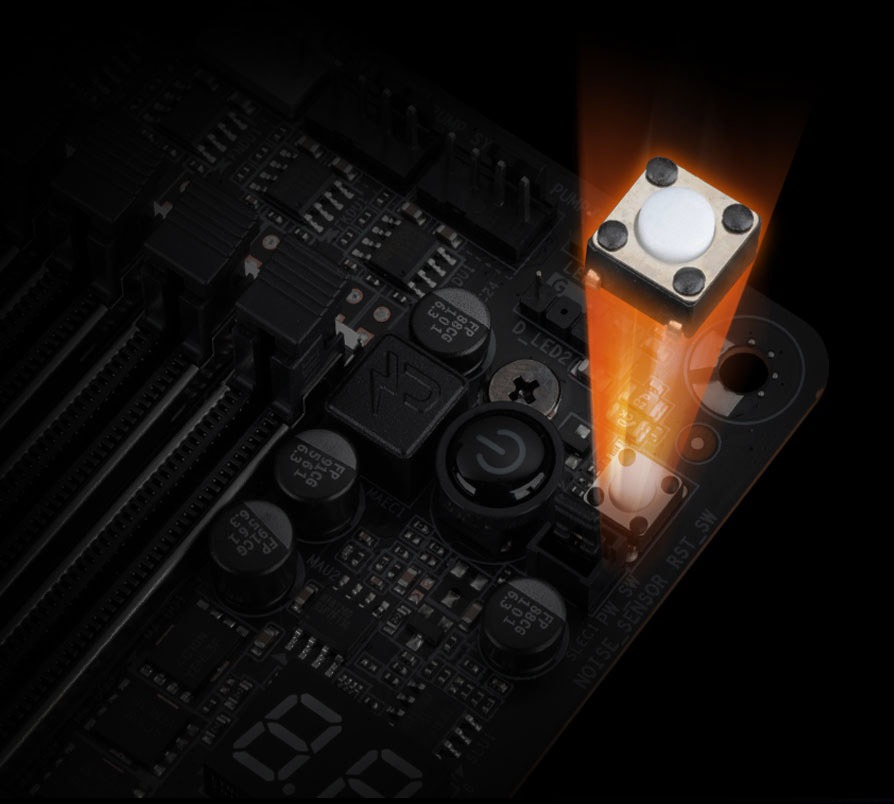

• Multi-Key

  • RGB Switch
  • Direct to BIOS
  • Safe Mode

• PCIe EZ-Latch



• Sensor Panel Link(HDMI)

Key Features

• AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors
• Digital twin 12+2+2 phases VRM solution
• Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
• PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
• EZ-Latch Click：M.2 heatsinks with screwless design
• EZ-Latch Plus：M.2 slots with Quick Release & Screwless Design

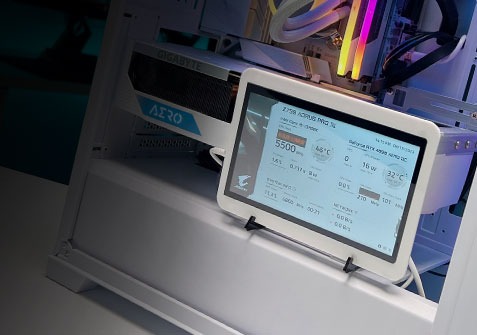

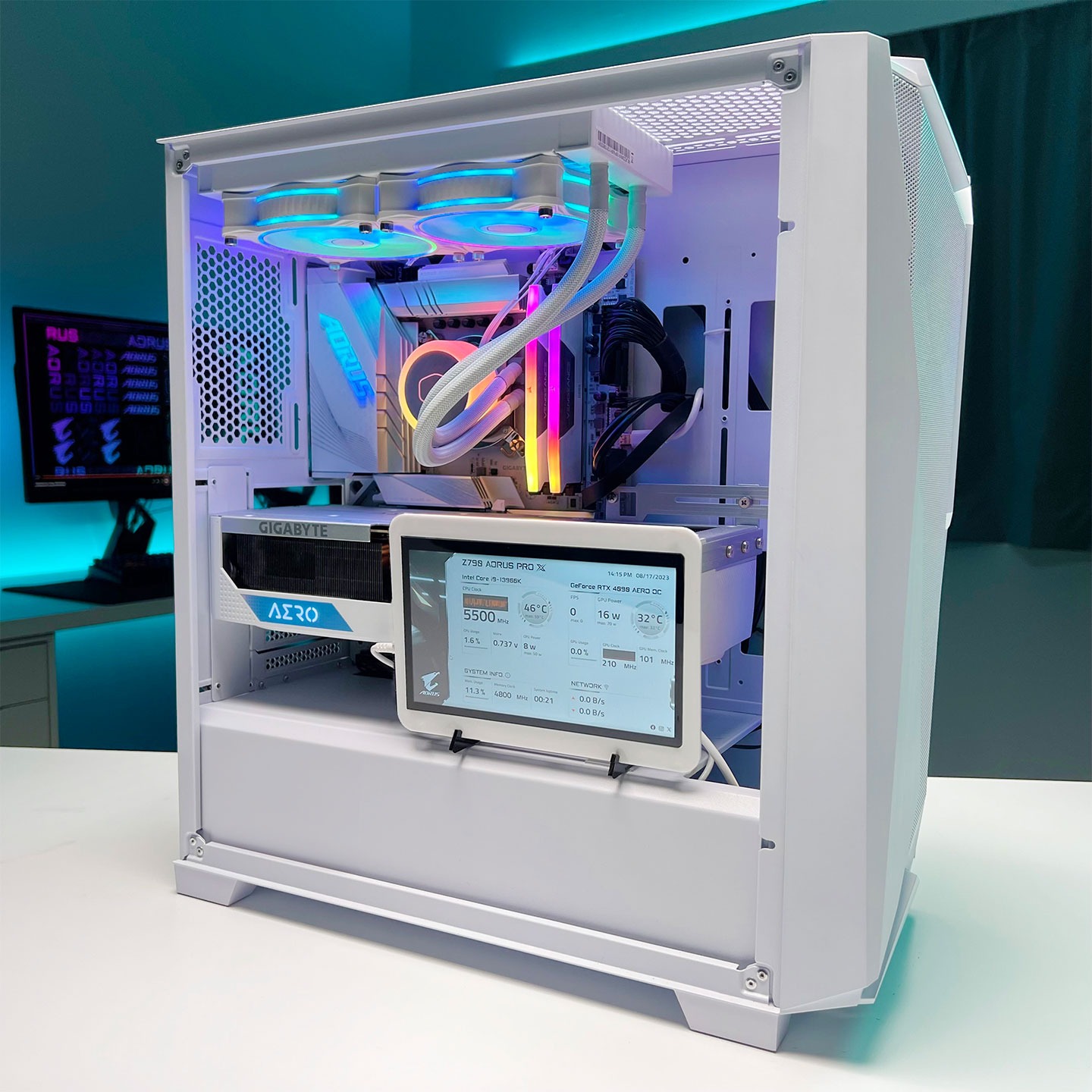

• Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
• UC BIOS：User-Centred intuitive UX with Quick Access function
• Ultra-Fast Storage：3*M.2 slots, including 1* PCIe 5.0 x16
• Efficient Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard XL
• Fast Networking：2.5GbE LAN & Wi-Fi 6E with Ultra-high gain antenna
• Extended Connectivity：HDMI, Rear USB-C® support up to 40Gb/s, Front USB-C® 20Gb/s
• Reliable Audio：8-Ch HD Audio & Audiophile Grade Capacitors
