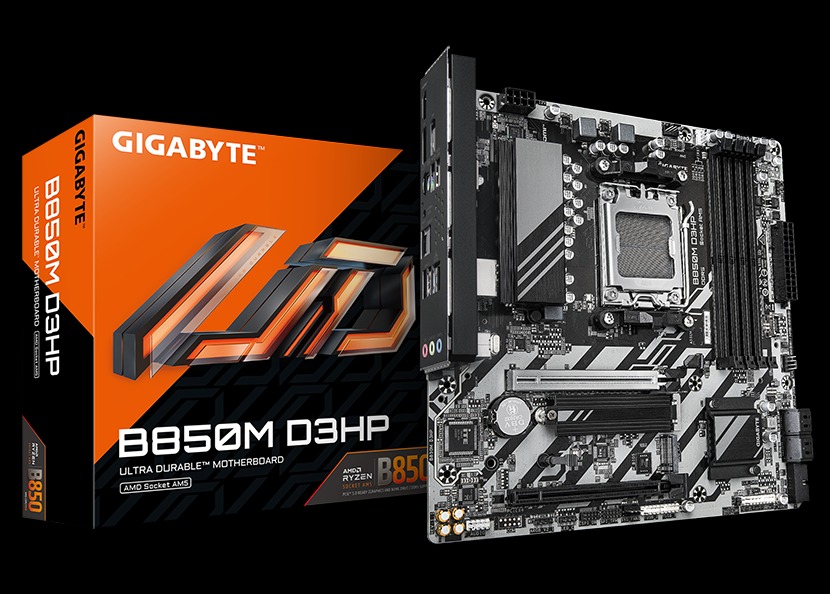

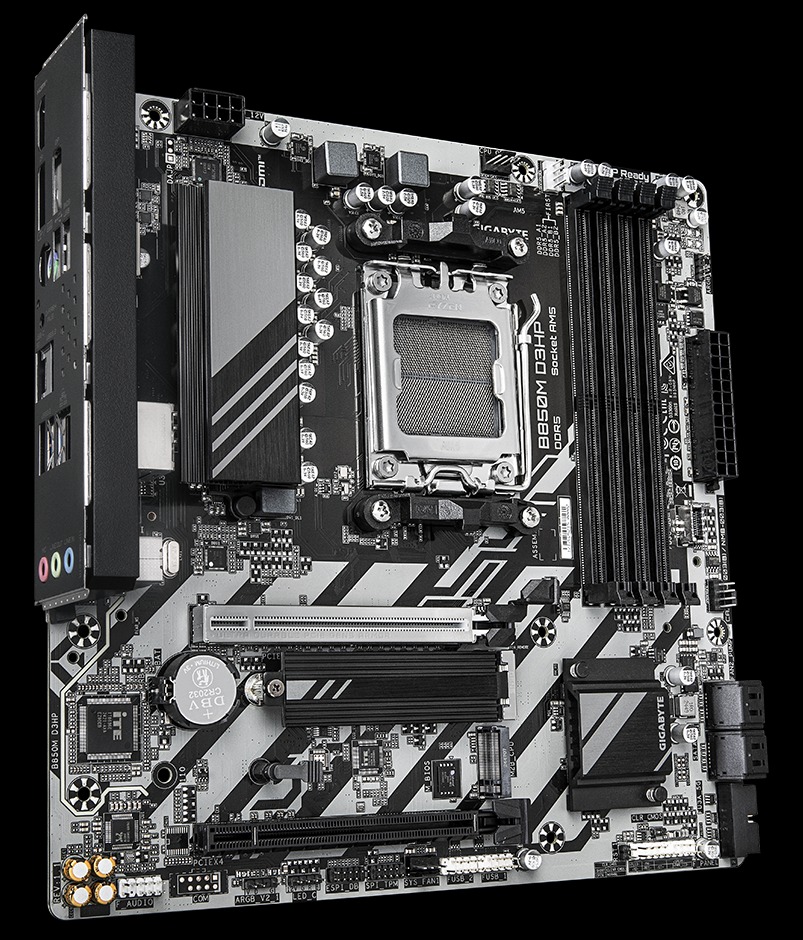

B850M D3HP (rev.1.1)

Description

OVERVIEW

Performance :

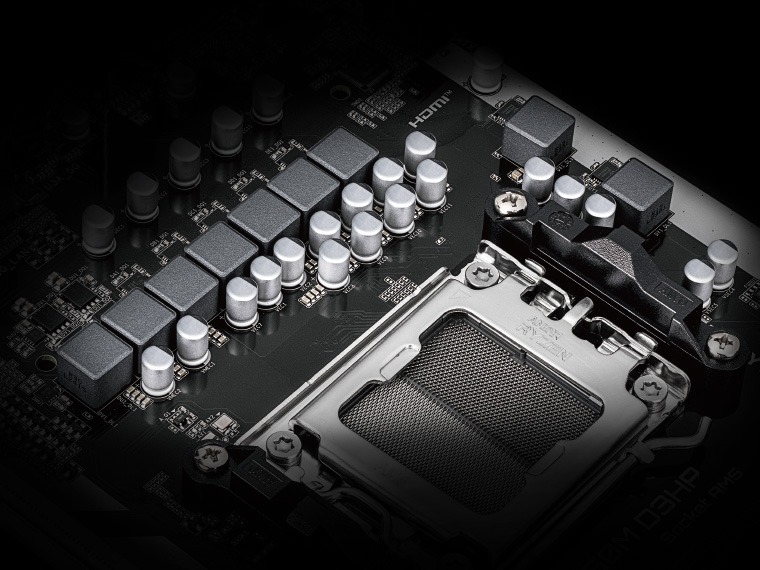

• 5+2+2 Digital VRM Design

  • 6-Layer PCB
  • Mid-Loss PCB

• Socket AM5 Supports AMD Ryzen™ Series Processors

• UD Power Connector

  • 24 pin ATX Power Connector
  • 8 pin CPU with UD Solid Pin

• 4 x DIMMs, Dual Channel DDR5

• 2 x M.2 Slots

  • 1 x PCIe 5.0 M.2 Slot

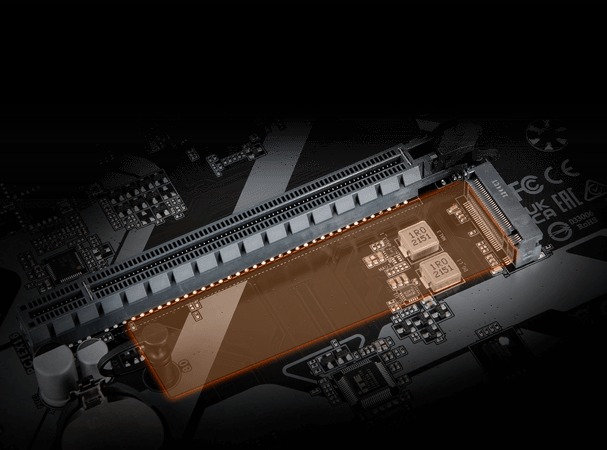

  • 1 x PCIe 4.0 M.2 Slot

• PCIe slots

  • 1 x PCIe 5.0 x16 slot
  • 1 x PCIe 3.0 x4 slot

Thermal :

• VRM Heatsink

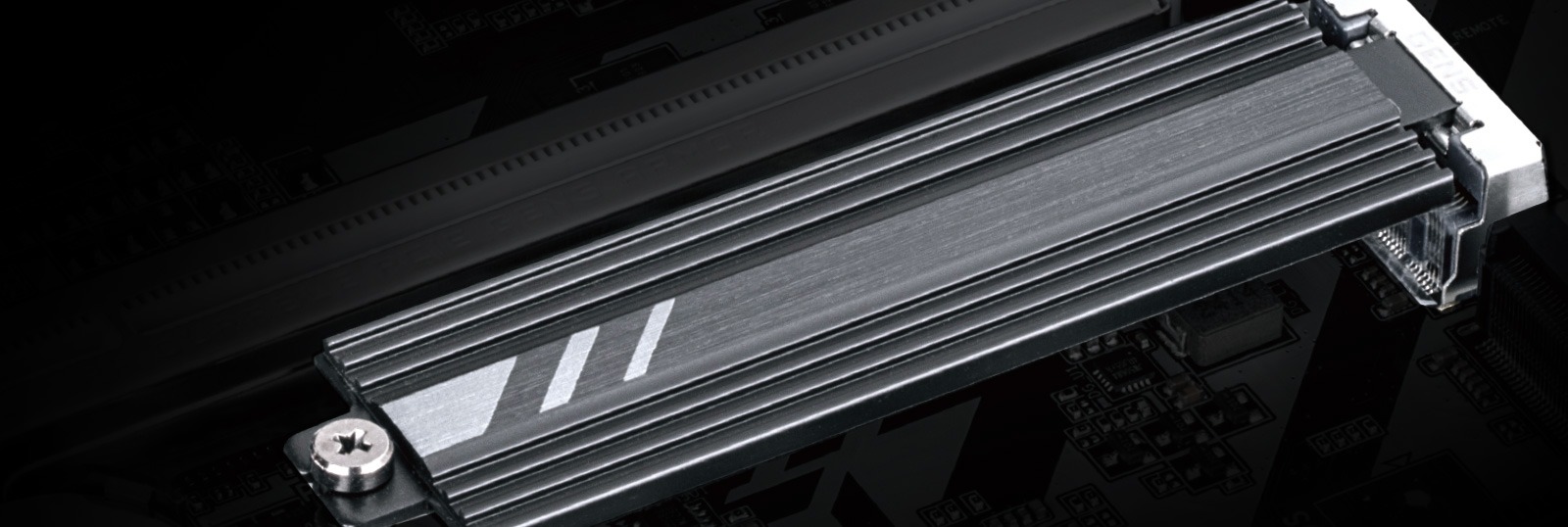

• M.2 Thermal Guard

• Smart Fan 6

  • Total 4*PWM/DC Fan Headers
  • Dual Fan Curve Mode

• Chipset Heatsink

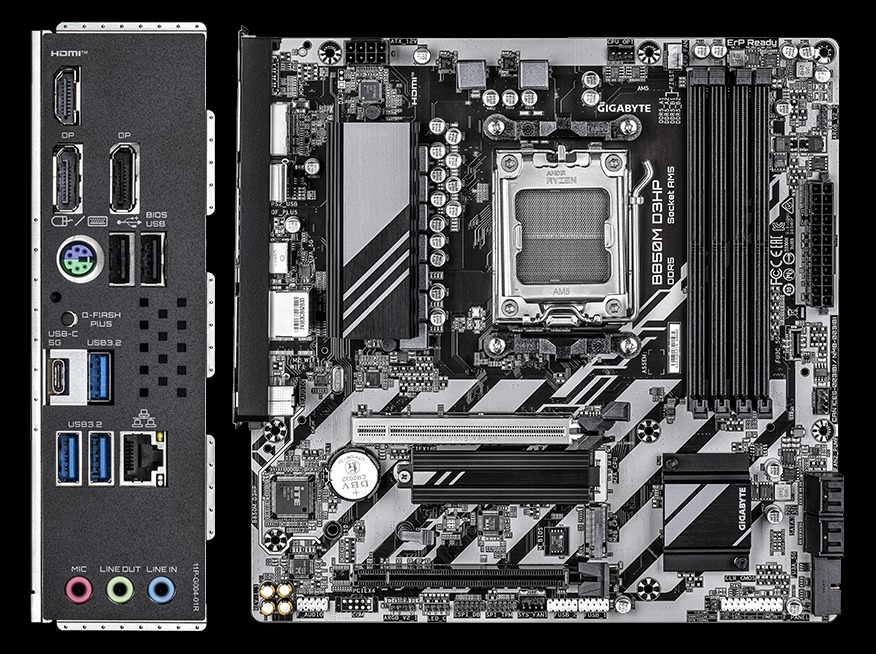

Connectivity :

• 1 x HDMI

• 2 x Displayports

• 2 x USB 2.0

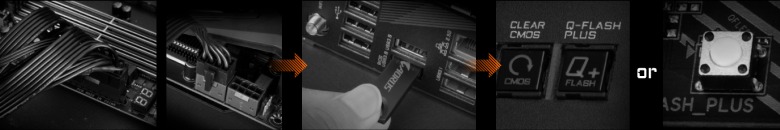

• Q-FLASH PLUS Button

• 1 x USB 3.2 Gen 1 Type-C®

• 3 x USB 3.2 Gen 1

• GbE LAN

• Front USB-C 5Gb/s

• 4 x SATA 6Gb/s

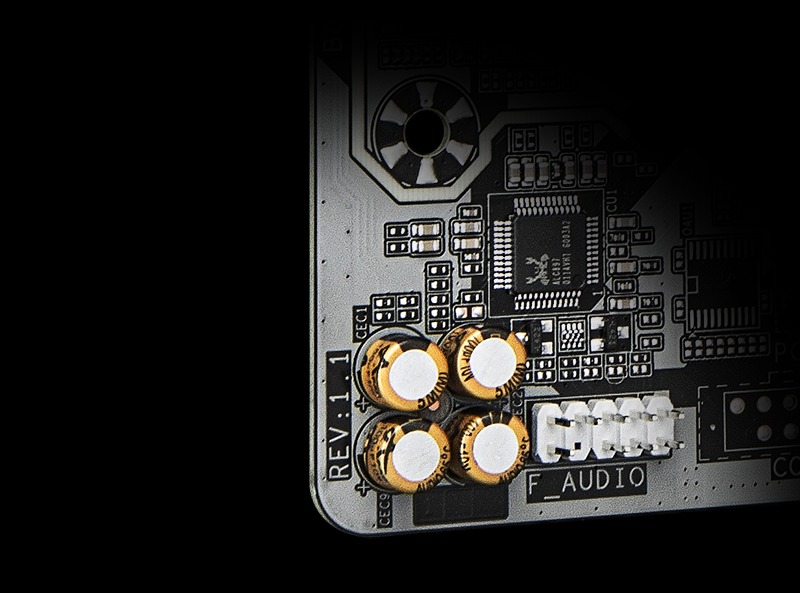

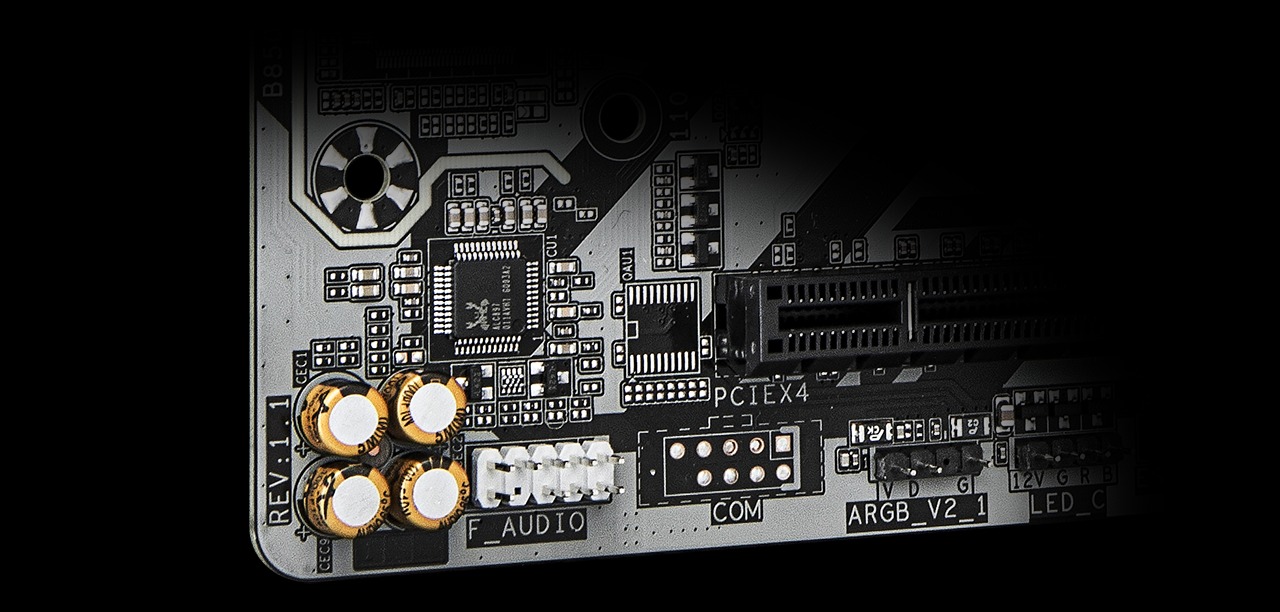

• Hi-Fi Audio

  • 8-CH HD Audio
  • High-End Audio Capacitor

• RGB FUSION

  • 2 x Addressable LED Header
  • 1 x RGB LED Header

• Pre-installed I/O shield

DIY Friendly :

• PCIe EZ-Latch

• EZ-Debug Zone

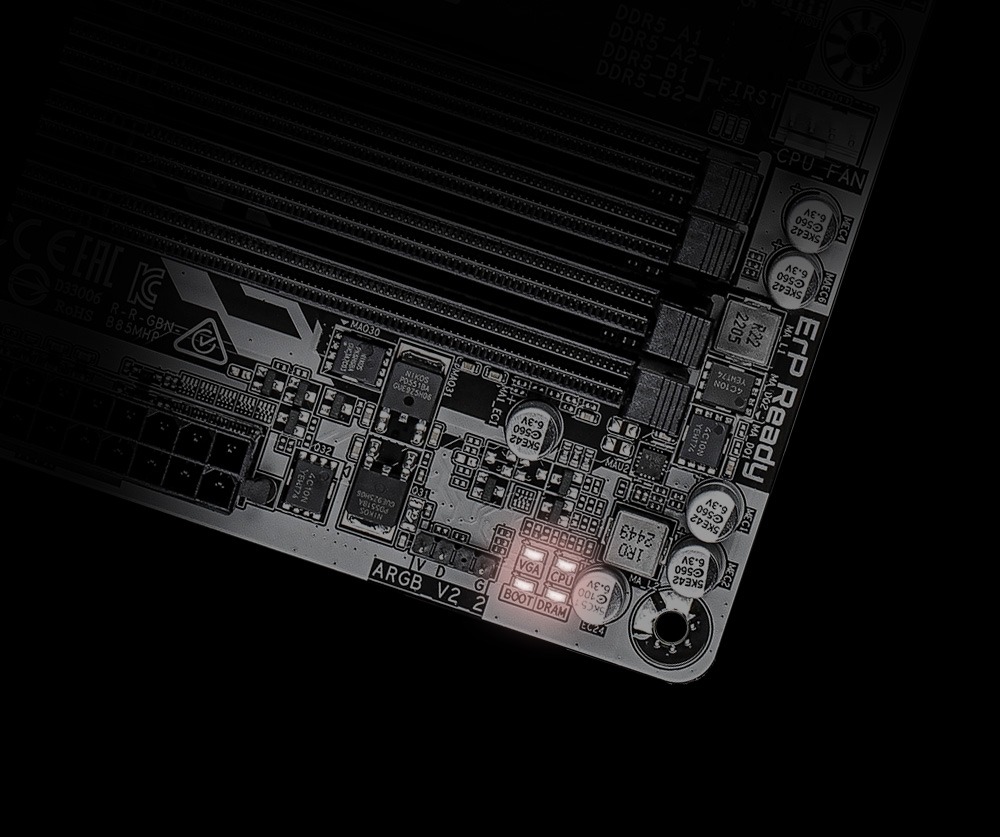

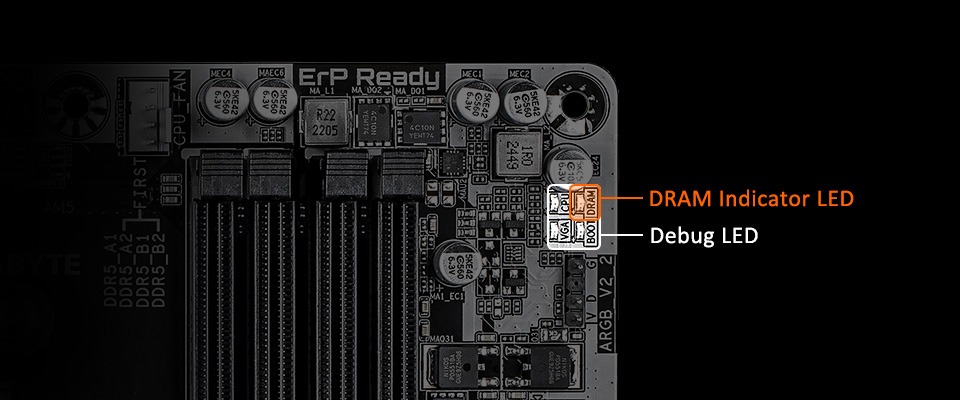

  • Debug LEDs

Key Features

• X3D Turbo Mode to unleash new era gaming performance
• AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital 5+2+2 phases VRM solution
• Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
• EZ-Latch : PCIe x16 Slot with Quick Release Design
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
• Fast Networking : GbE LAN
• Extended Connectivity : 2*DP, HDMI
