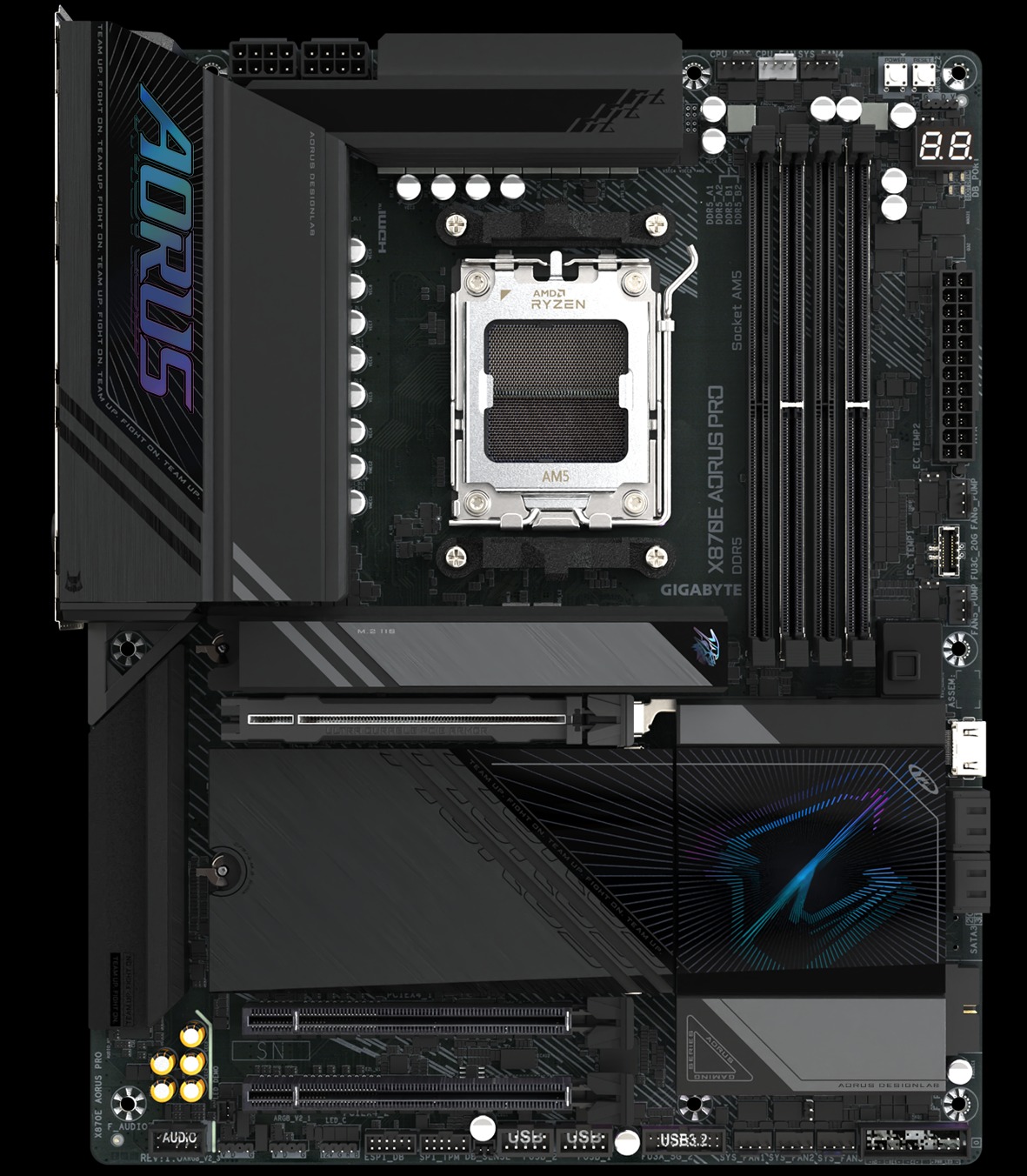

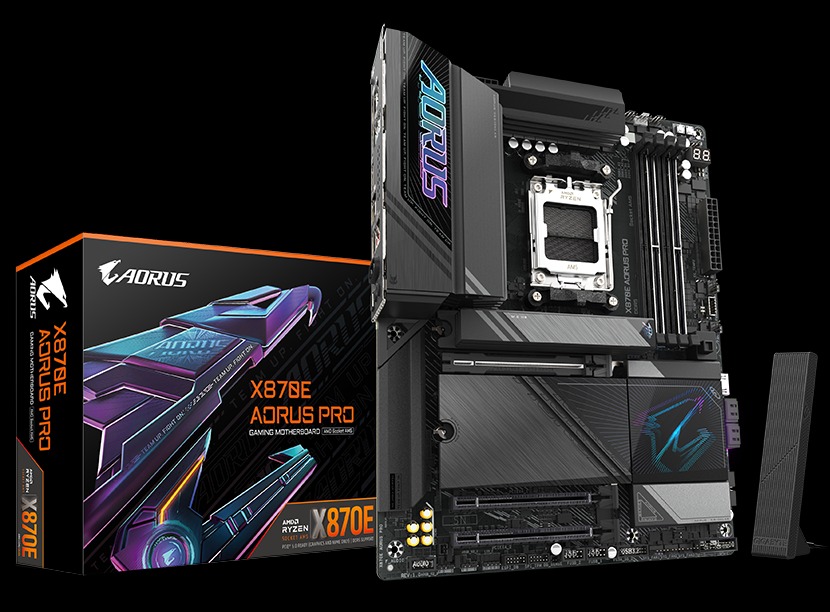

X870E AORUS PRO (rev.1.1)

Description

OVERVIEW

Performance :

• Dual digital VRM design 16*+2+2

  • Intelligent 80A power stage
  • 6-layer printed circuit board
  • Medium-loss PCBs
  • 2x Copper PCB
  • Premium quality coil and capacitor
  * 8+8 phase parallel power supply design

• The AM5 socket supports AMD Ryzen™
  Series processors

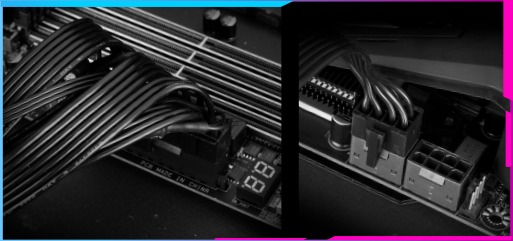

• UD power connector

  • 24-pin ATX power connector
  • CPU 8+8 pin with UD Solid Pin

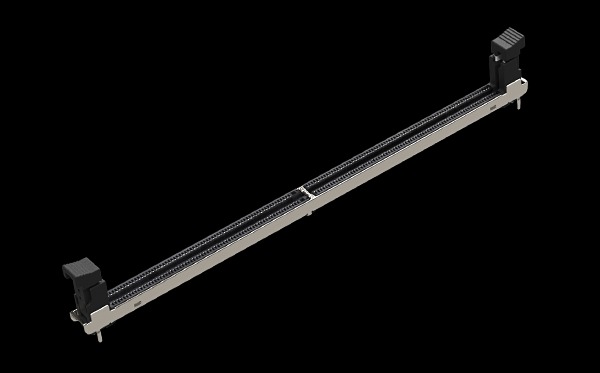

• 4 x DIMM, Dual Channel DDR5

• 4 M.2 slots

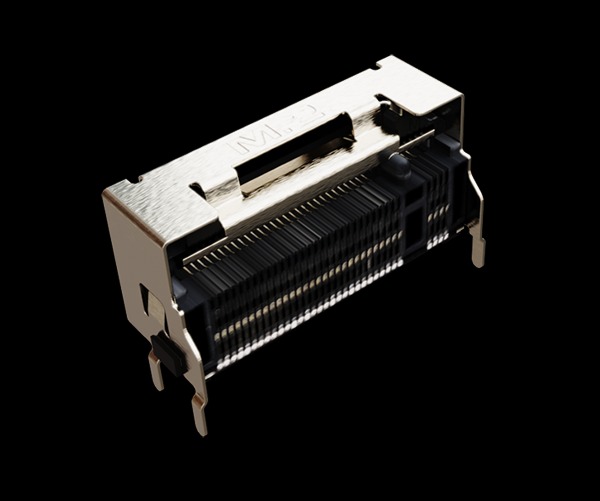

  • 3 x PCIe 5.0 M.2 UD Slots
  • 1 x PCIe 4.0 M.2 Slot

• Full-length PCIe slots

  • 1 x PCIe 5.0 x16 with PCIe UD Slot X
  • 1 x PCIe 4.0 x4 slot
  • 1 PCIe 3.0 x4 slot

Thermal :

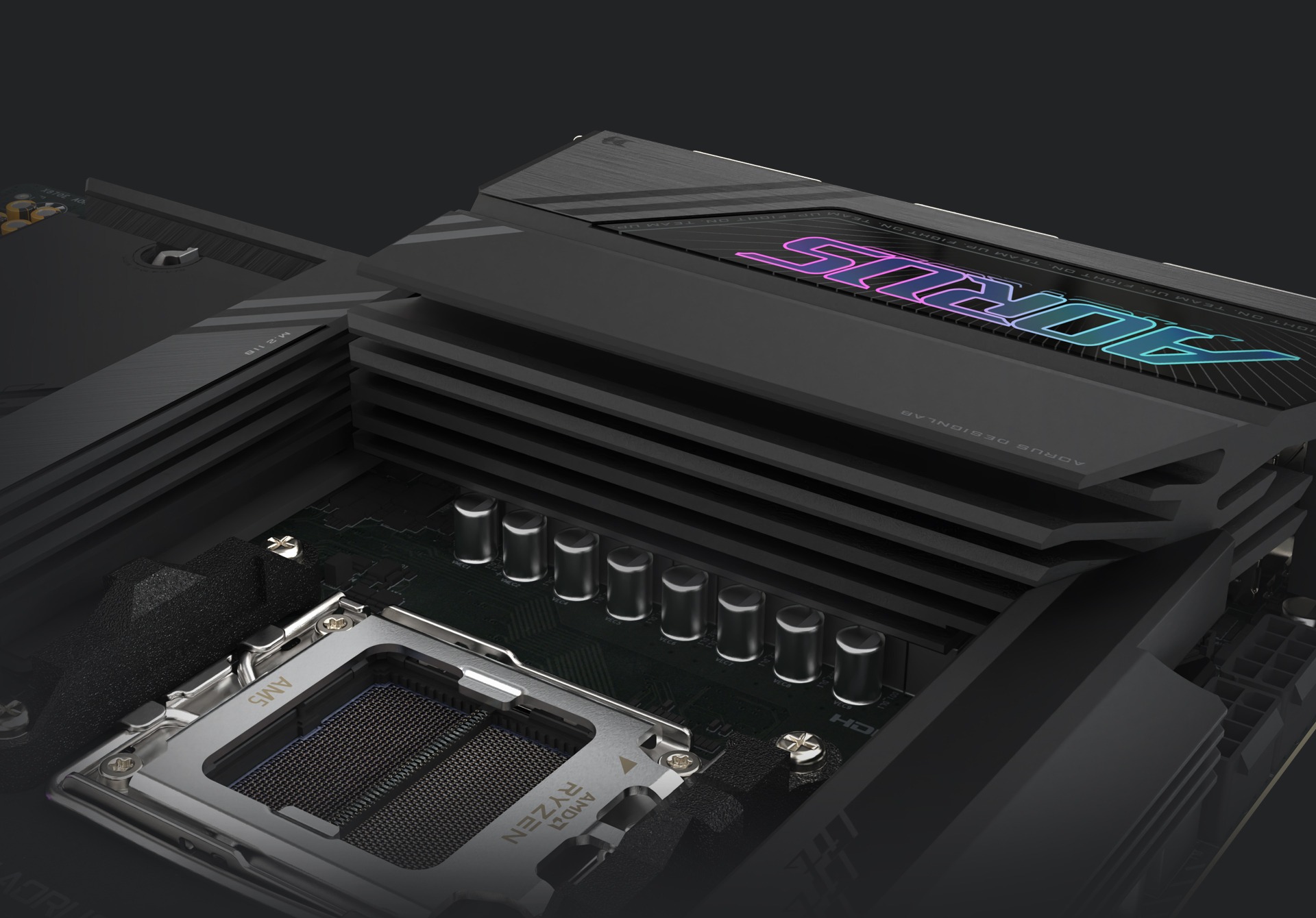

• VRM Thermal Armor Advanced

  • Ultimate Heat Pipe
  • 7 W/mK Thermal cushion
  • Integrated I/O shield

• M.2 Thermal protection L

• M.2 External thermal protection.

• Smart Fan 6

  • Total of 8 * PWM/DC Fan Connectors
  • Two fan curve modes

Connectivity :

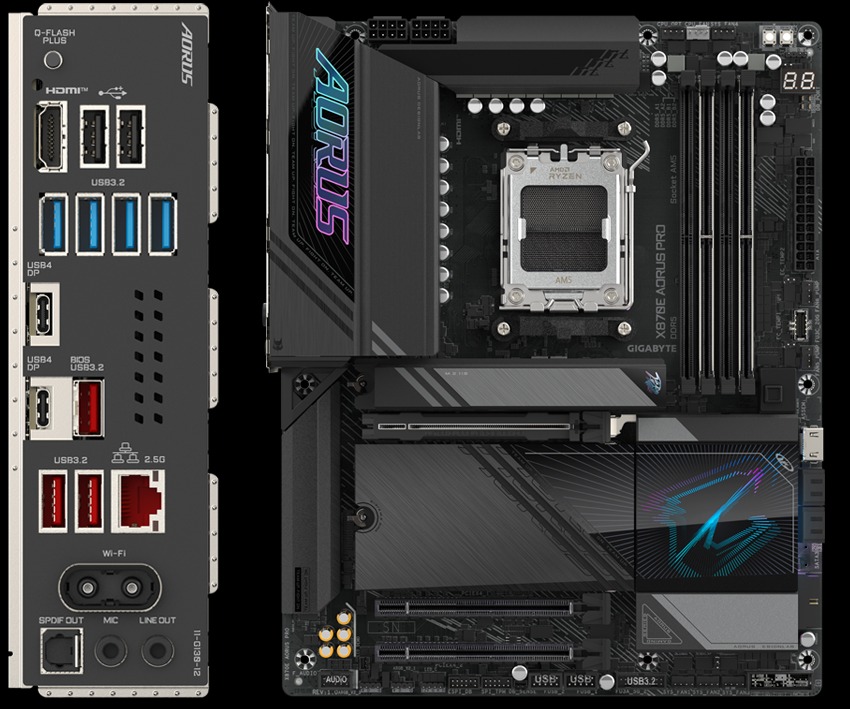

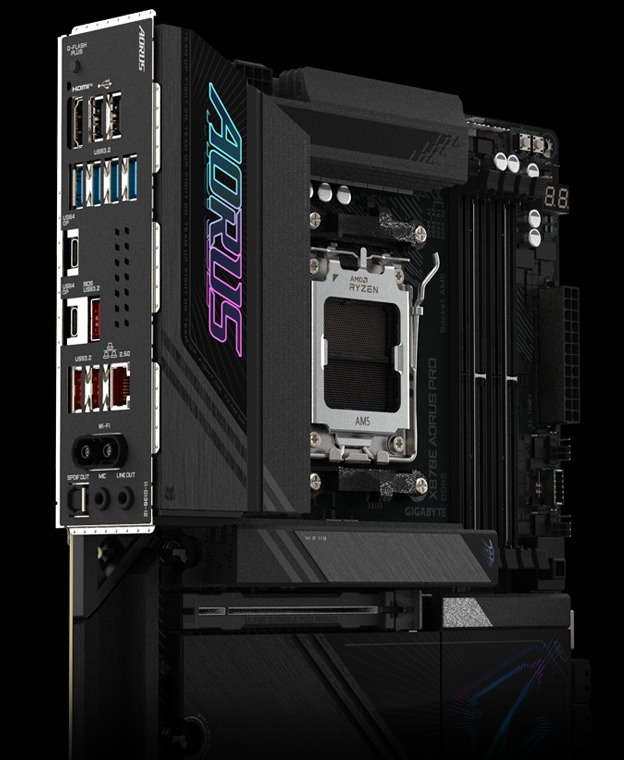

• 1 x HDMI

• 2 x USB 2.0

• 4 x USB 3.2 Gen 1

• Dual USB4 Type-C® up to
  40Gb/s with DP-Alt

• 3 x USB 3.2 Gen 2

• Wi-Fi 7 with very high gain antenna

• WIFI EZ-Plug

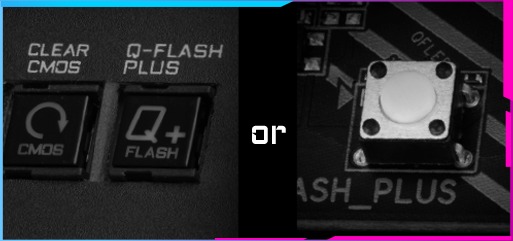

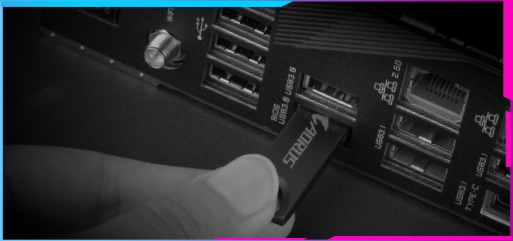

• Q-FLASH Plus Button

• 2.5 GbE Local Area Network

• USB-C 20Gb/s on the front

• 4 x SATA 6Gb/s

• Sensor Panel Link (HDMI)

• Precision in the service of gaming audio

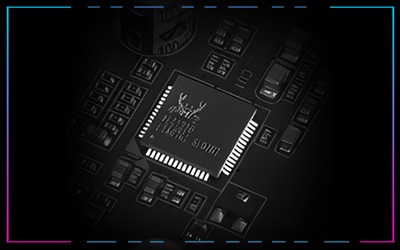

  • ALC1220 HD Audio

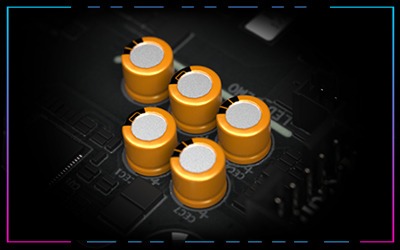

  • Audiophile-grade capacitors

• FUSION RGB

  • 1 x RGB LED Connector
  • 3 x ARGB LED Connectors

DIY Friendly :

• WIFI EZ-Plug

• M.2 EZ-Latch Plus
  M.2 EZ-Latch Click

• EZ-Latch removal angle

• PCIe EZ-Latch Plus

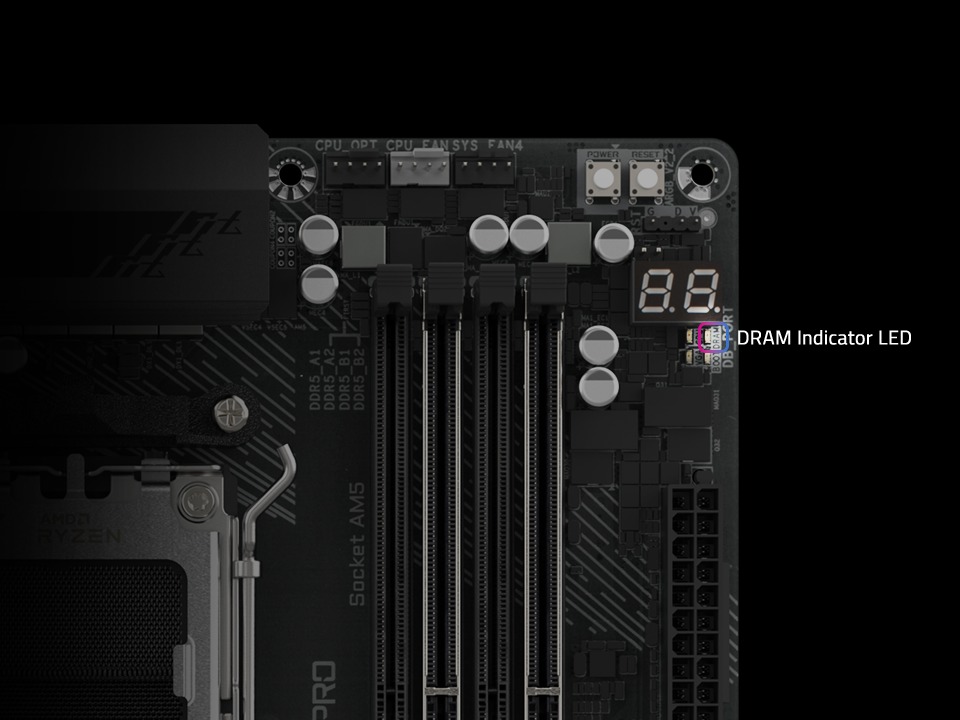

• EZ Debug Zone

  • Multifunctional
  • Power button
  • 80 port
  • debugging LED

Key Features

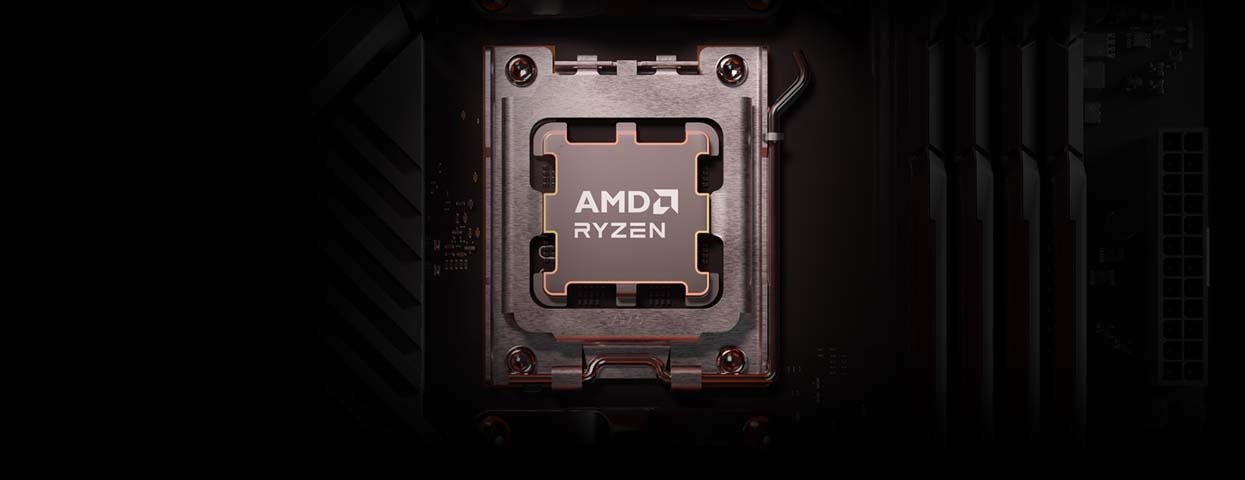

• AMD Socket AM5：Compatible with AMD Ryzen™ 9000 / 8000 / 7000 Series processors
• Dual digital VRM solution 16+2+2 phases
• Dual-channel DDR5: 4*DIMMs with AMD EXPO™ Memory Module Support
• WIFI EZ-Plug: Quick and easy design for installing a Wi-Fi antenna
• EZ-Latch Plus: PCIe and M.2 slots with quick release & screwless design
• EZ-Latch Click Heat Sinks: M.2 with screwless design
• Sensor Panel Link: Onboard video port for easy installation of panels in the chassis
• User-friendly interface: Multi-theme, AIO fan control, and Q-Flash Auto Scan in the BIOS and Software
• New power monitor in HWinfo for real-time monitoring of CPU power phases
• Ultra-fast storage: 4*M.2 slots, including 3*PCIe 5.0 x4
• Effective thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L
• Fast networking: 2.5GbE LAN & Wi-Fi 7 with ultra-high gain directional antenna
• Extended connectivity: Dual USB4 Type-C with DP-Alt, HDMI
• Reliable Audio：Realtek ALC1220 HD Audio & Audiophile Grade Capacitors

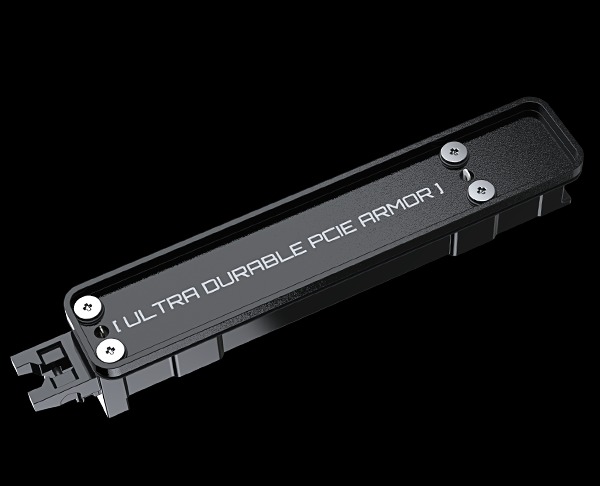

• Ultra-durable PCIe armor: The metal backplate of the PCIe x16 slot ensures greater durability.

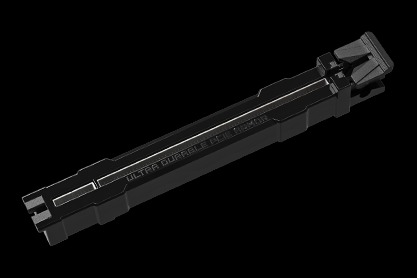

• PCIe UD Slot X: PCIe 5.0 x16 with 10X power for graphics cards
