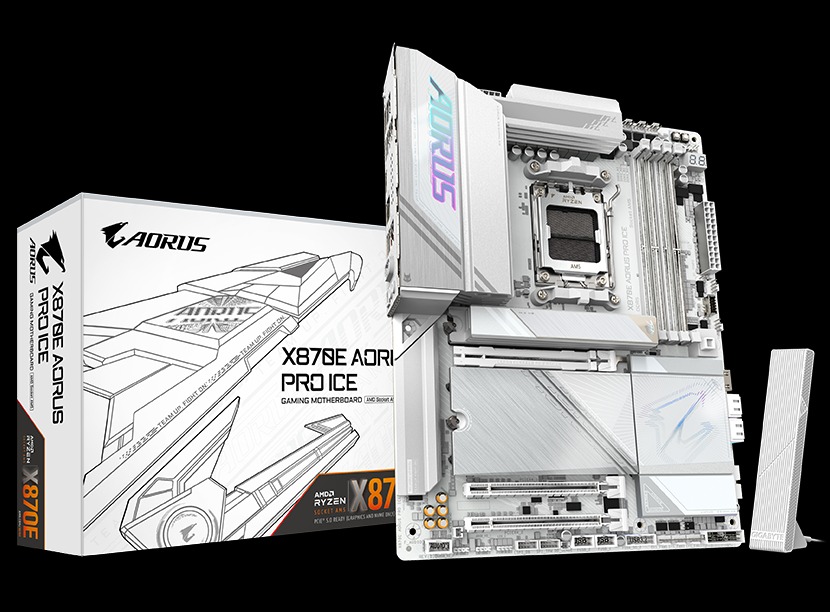

X870E AORUS PRO ICE (rev.1.1)

Description

OVERVIEW

Performance :

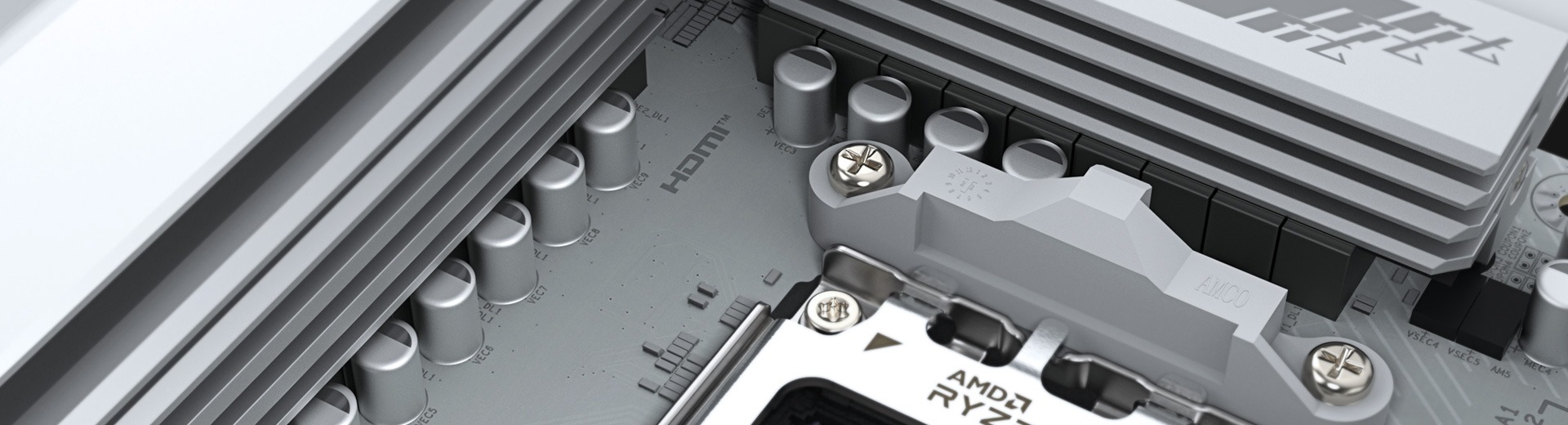

• 16*+2+2 Twin Digital VRM Design

  • 80A Smart Power Stage
  • 6-Layer PCB
  • Mid-Loss PCB
  • 2X Copper PCB
  • Premium Choke and Capacitor
  * 8+8 Phases parallel power design

• Socket AM5 Supports AMD Ryzen™
  Series Processors

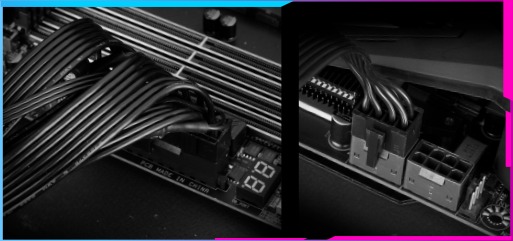

• UD Power Connector

  • 24 pin ATX Power Connector
  • 8+8 pin CPU with UD Solid Pin

• 4 x DIMMs, Dual Channel DDR5

• 4 x M.2 Slots

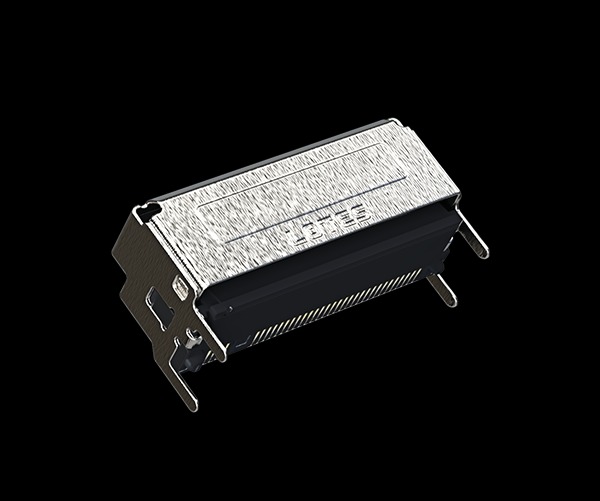

  • 3 x PCIe 5.0 M.2 UD Slots
  • 1 x PCIe 4.0 M.2 Slot

• Full-length PCIe slots

  • 1 x PCIe 5.0 x16 with PCIe UD Slot X
  • 1 x PCIe 4.0 x4 Slot
  • 1 x PCIe 3.0 x4 Slot

Thermal :

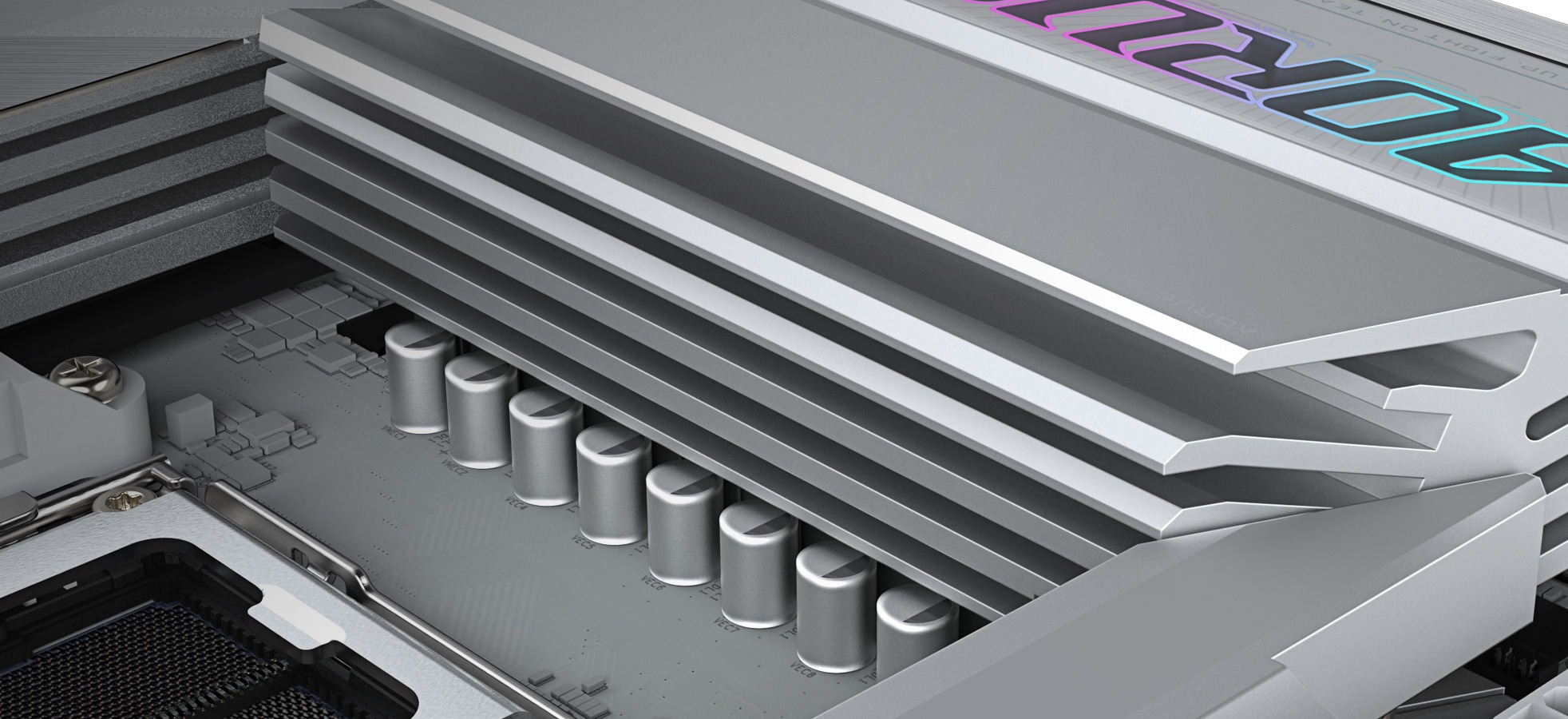

• VRM Thermal Armor Advanced

  • Ultimate Heatpipe
  • 7 W/mk Thermal Pad

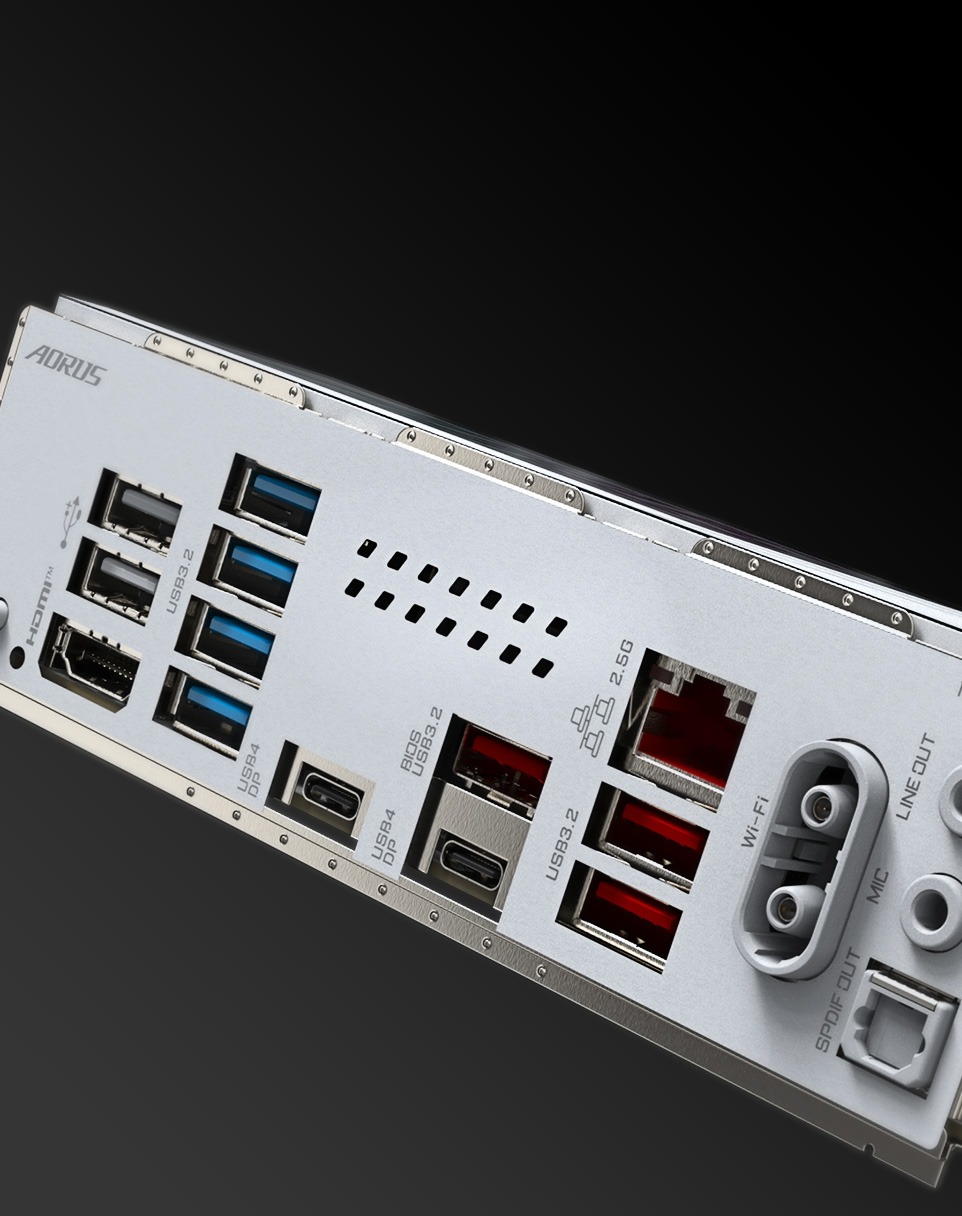

  • Integrated IO Shield

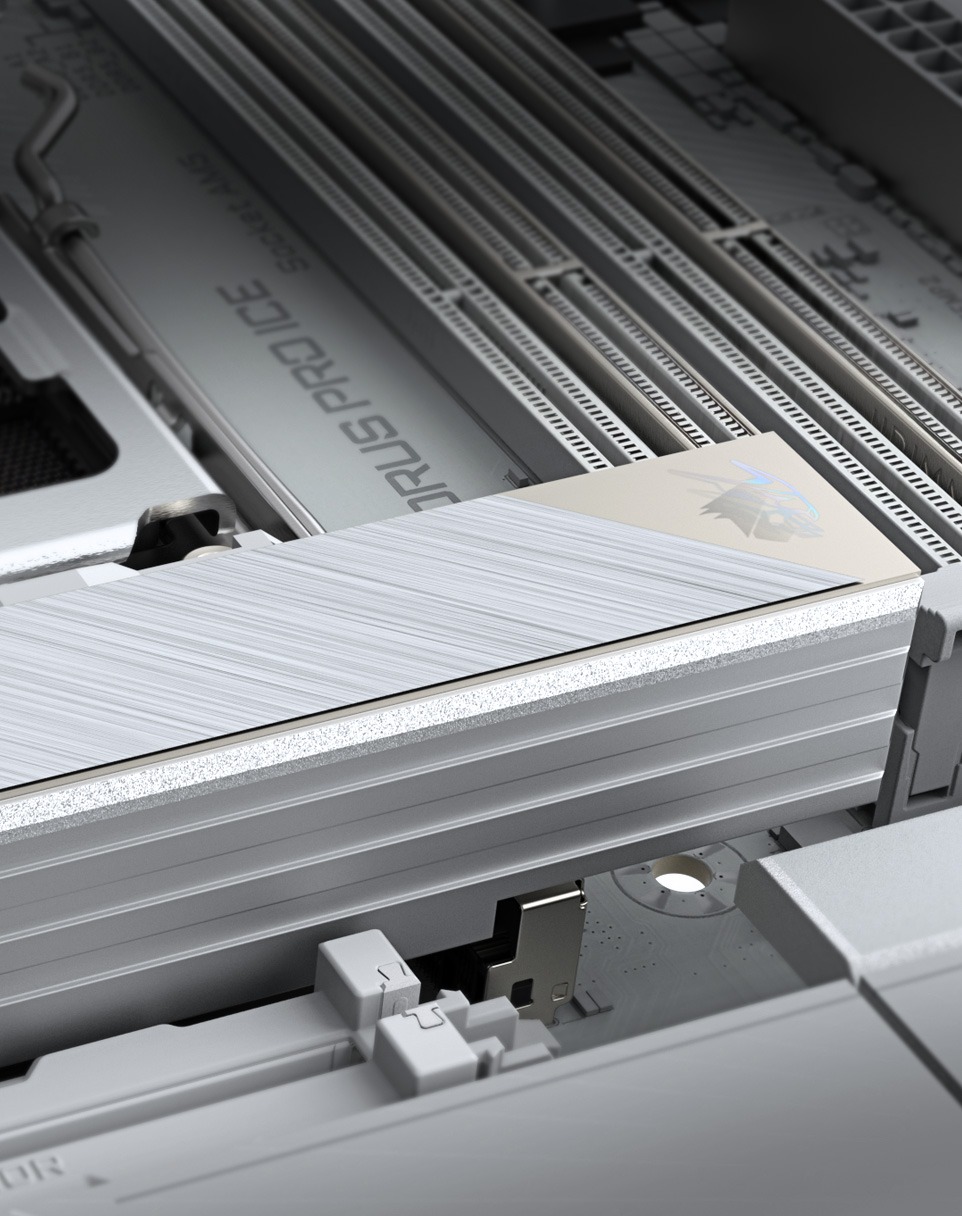

• M.2 Thermal Guard L

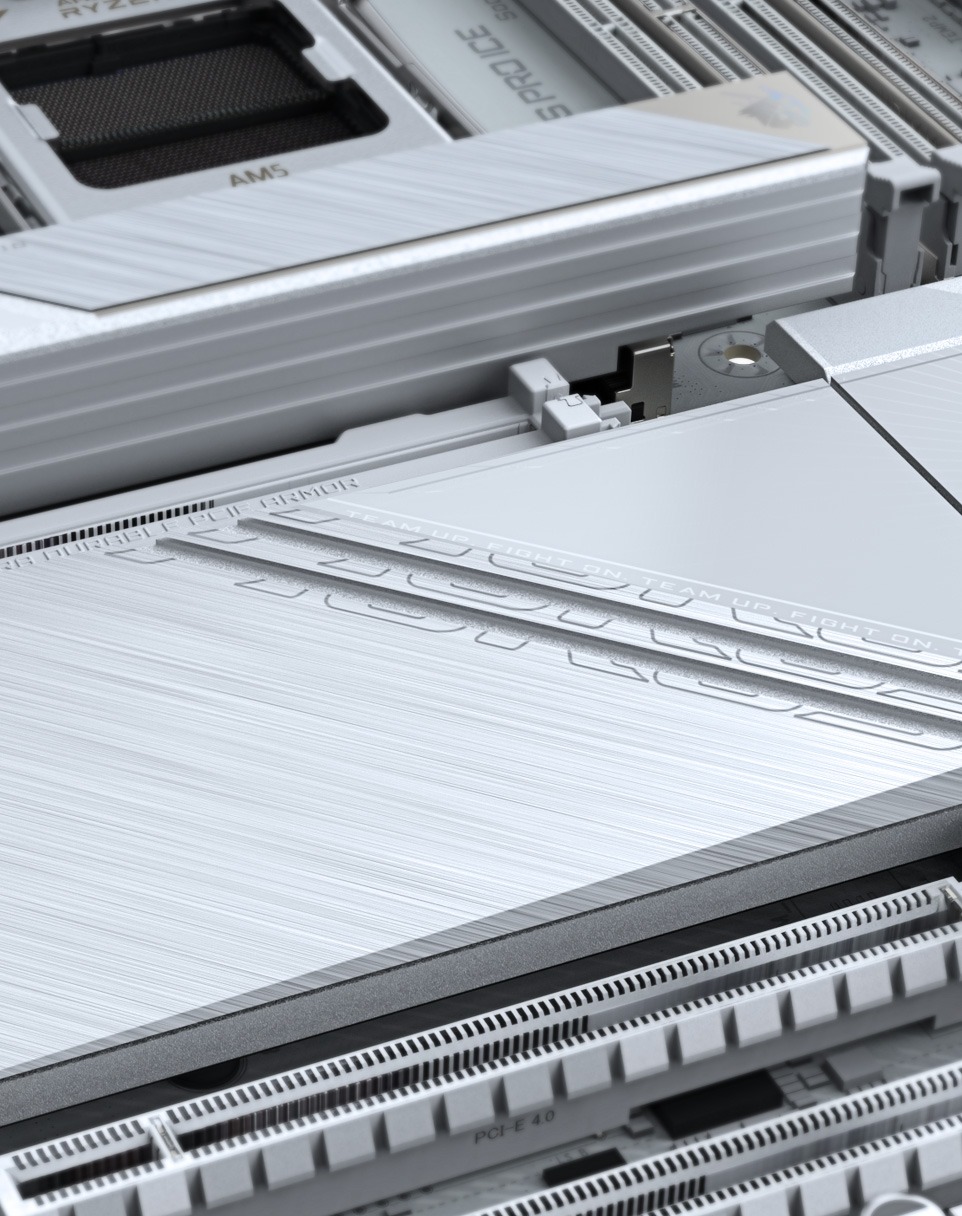

• M.2 Thermal Guard Ext.

• Smart Fan 6

  • Total 8*PWM/DC Fan Headers
  • Dual Fan Curve Mode

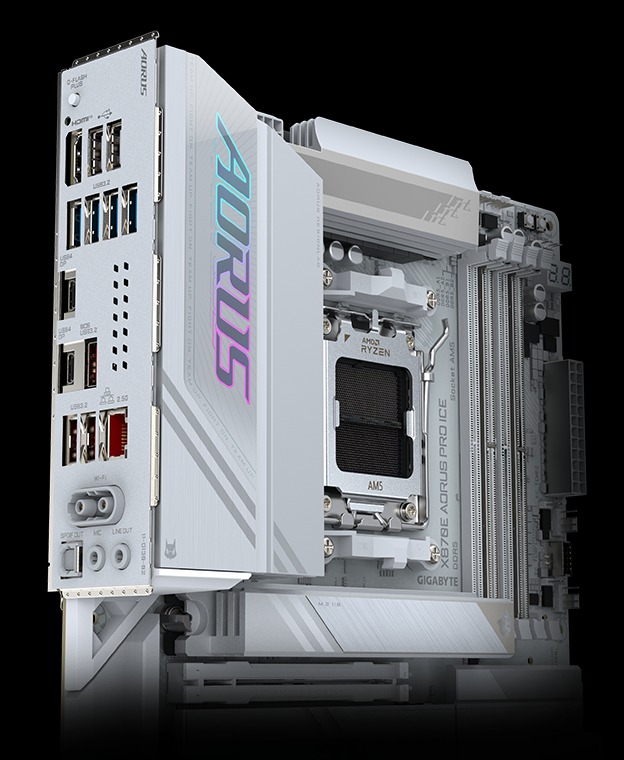

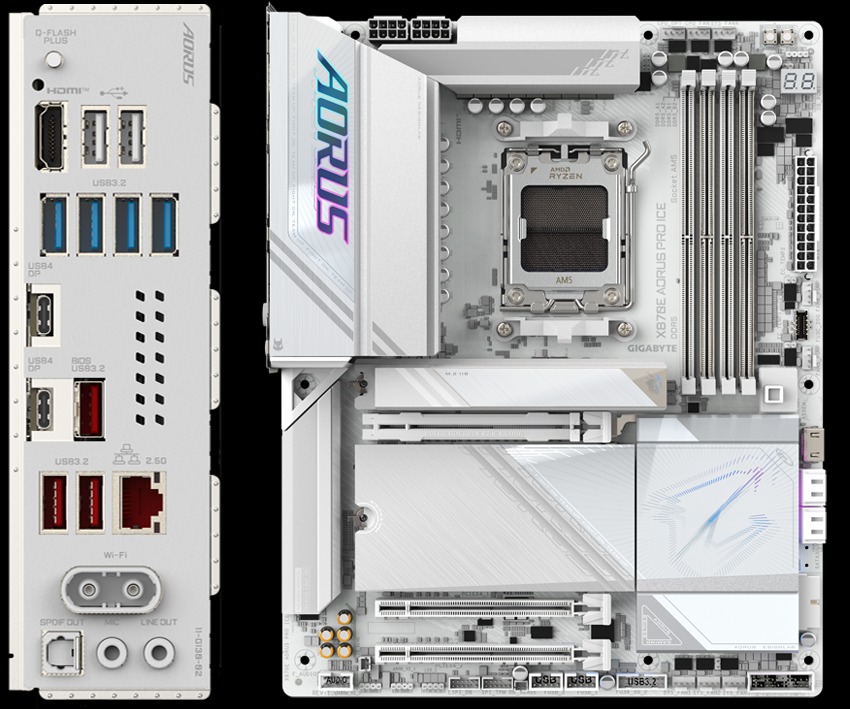

Connectivity :

• 1 x HDMI

• 2 x USB 2.0

• 4 x USB 3.2 Gen 1

• Dual USB4 Type-C® up to
  40Gb/s with DP-Alt

• 3 x USB 3.2 Gen 2

• Wi-Fi 7 with Ultra-high gain Antenna

• WIFI EZ-Plug

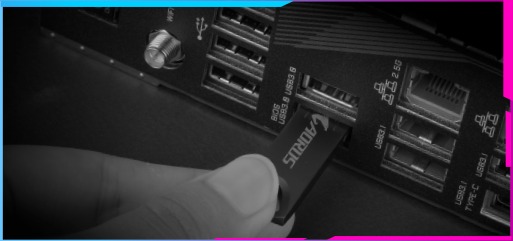

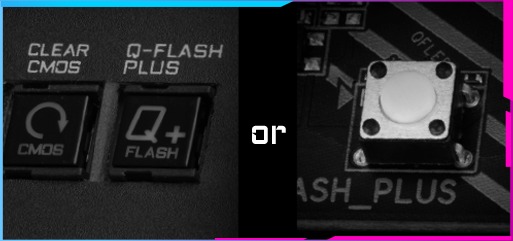

• Q-FLASH Button

• 2.5 GbE LAN

• Front USB-C 20Gb/s

• 4 x SATA 6Gb/s

• Sensor Panel Link(HDMI)

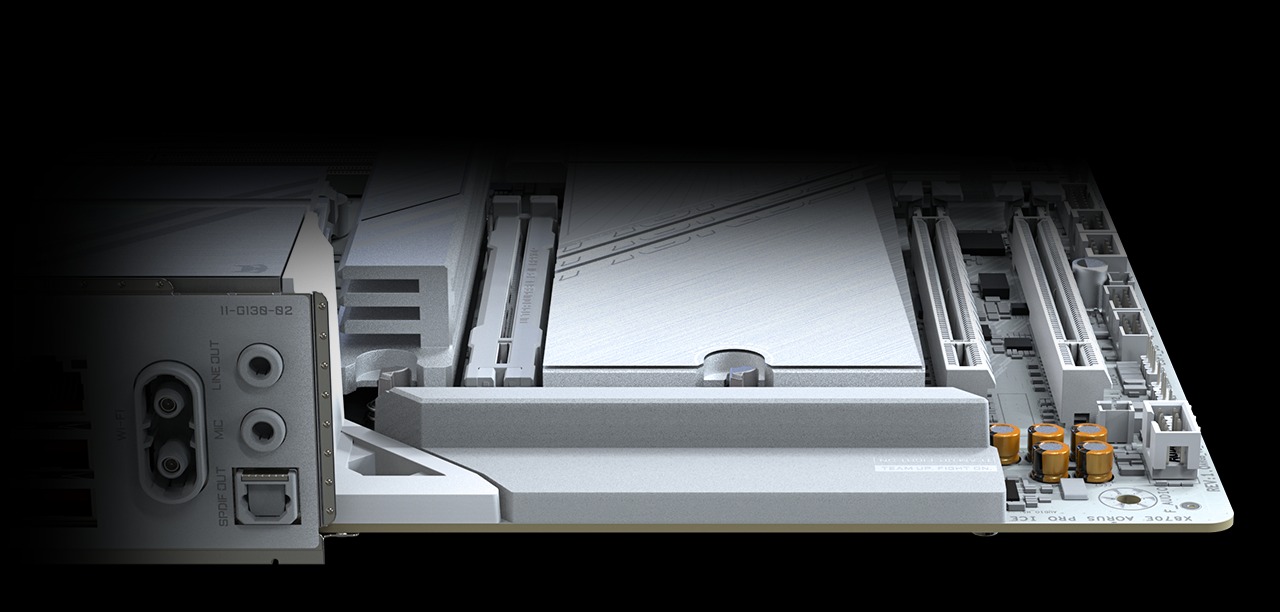

• Unleash HD audio

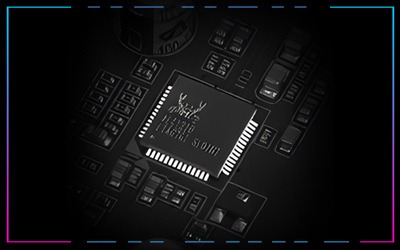

  • ALC1220 HD Audio

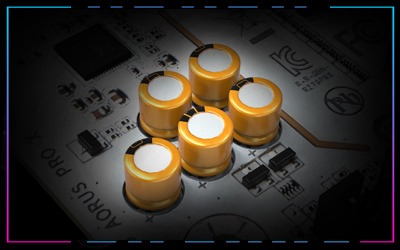

  • Audiophile Grade Capacitors

• RGB FUSION

  • 1 x RGB LED Header
  • 3 x ARGB LED Headers

DIY Friendly :

• WIFI EZ-Plug

• M.2 EZ-Latch Plus
  M.2 EZ-Latch Click

• EZ-Latch Un-Install Angle

• PCIe EZ-Latch Plus

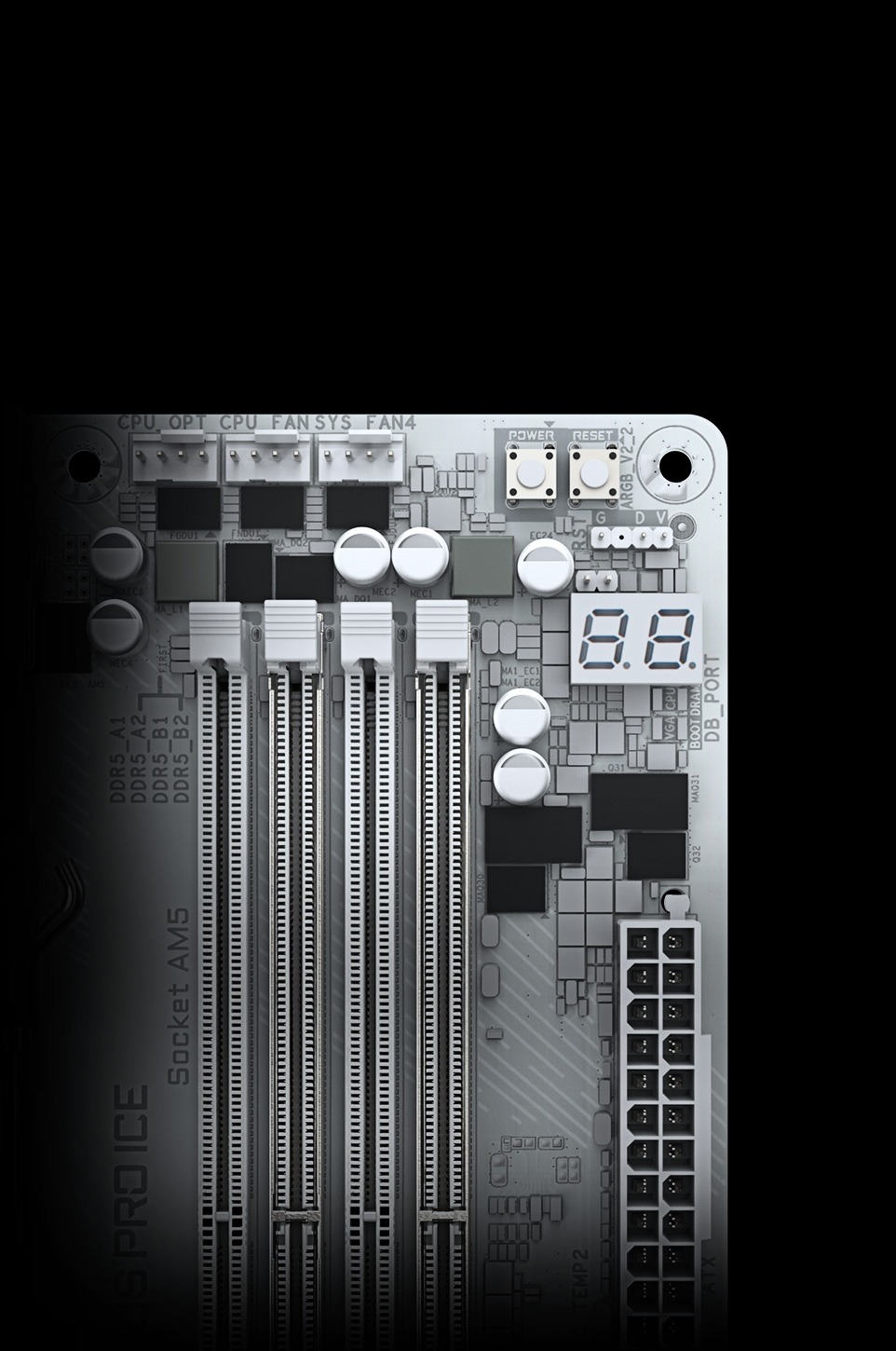

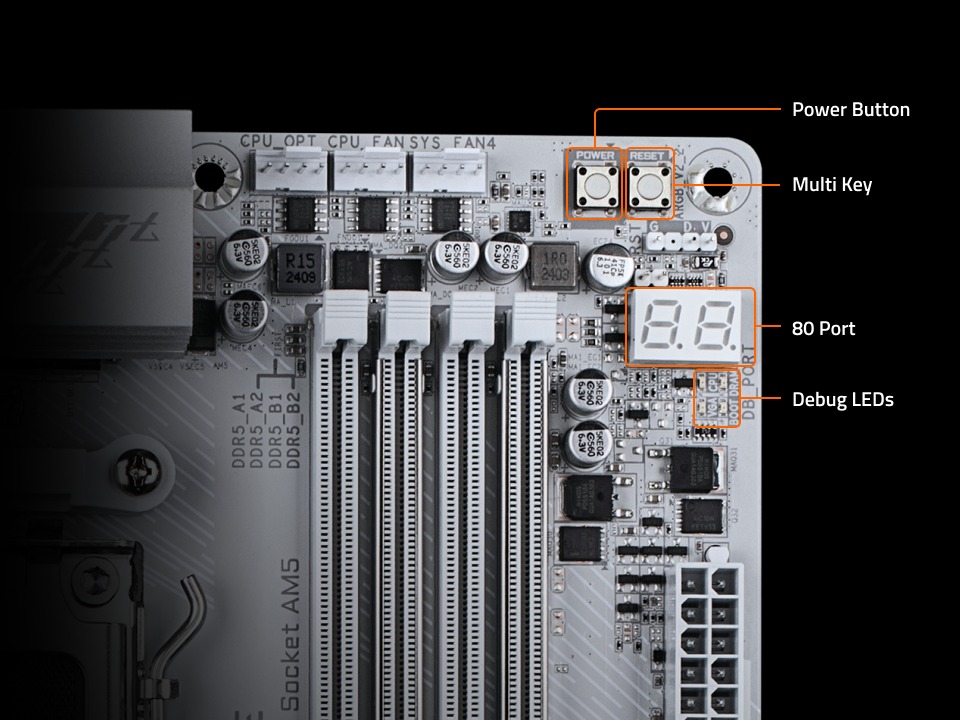

• EZ-Debug Zone

  • Multi Key
  • 80 Port
  • Debug LEDs

Key Features

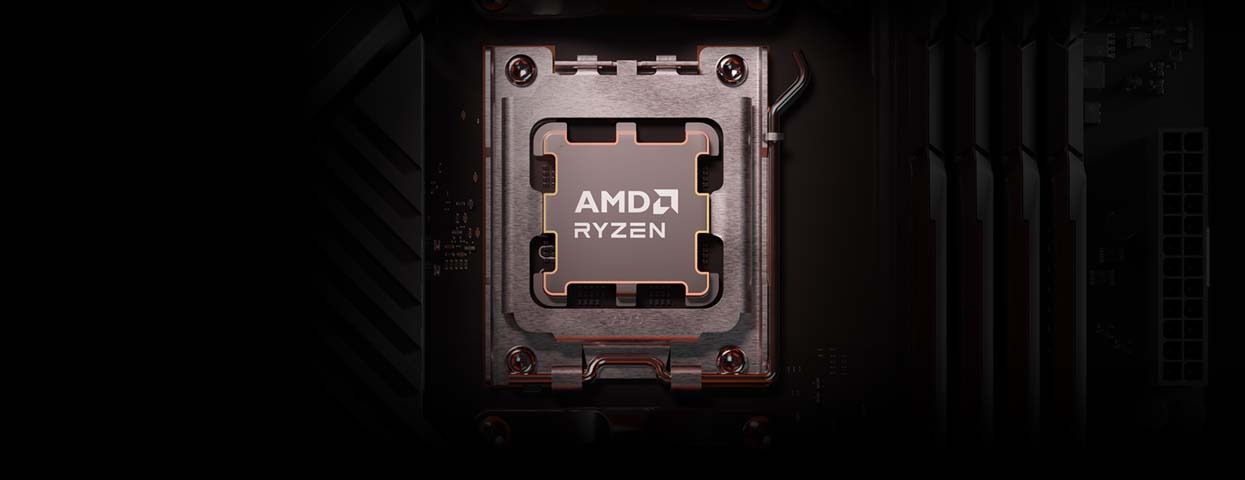

• AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000/ 7000 Series Processors
• Digital twin 16+2+2 phases VRM solution
• Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click：M.2 heatsinks with screwless design

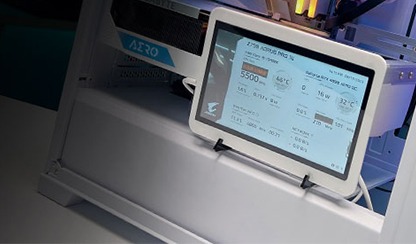

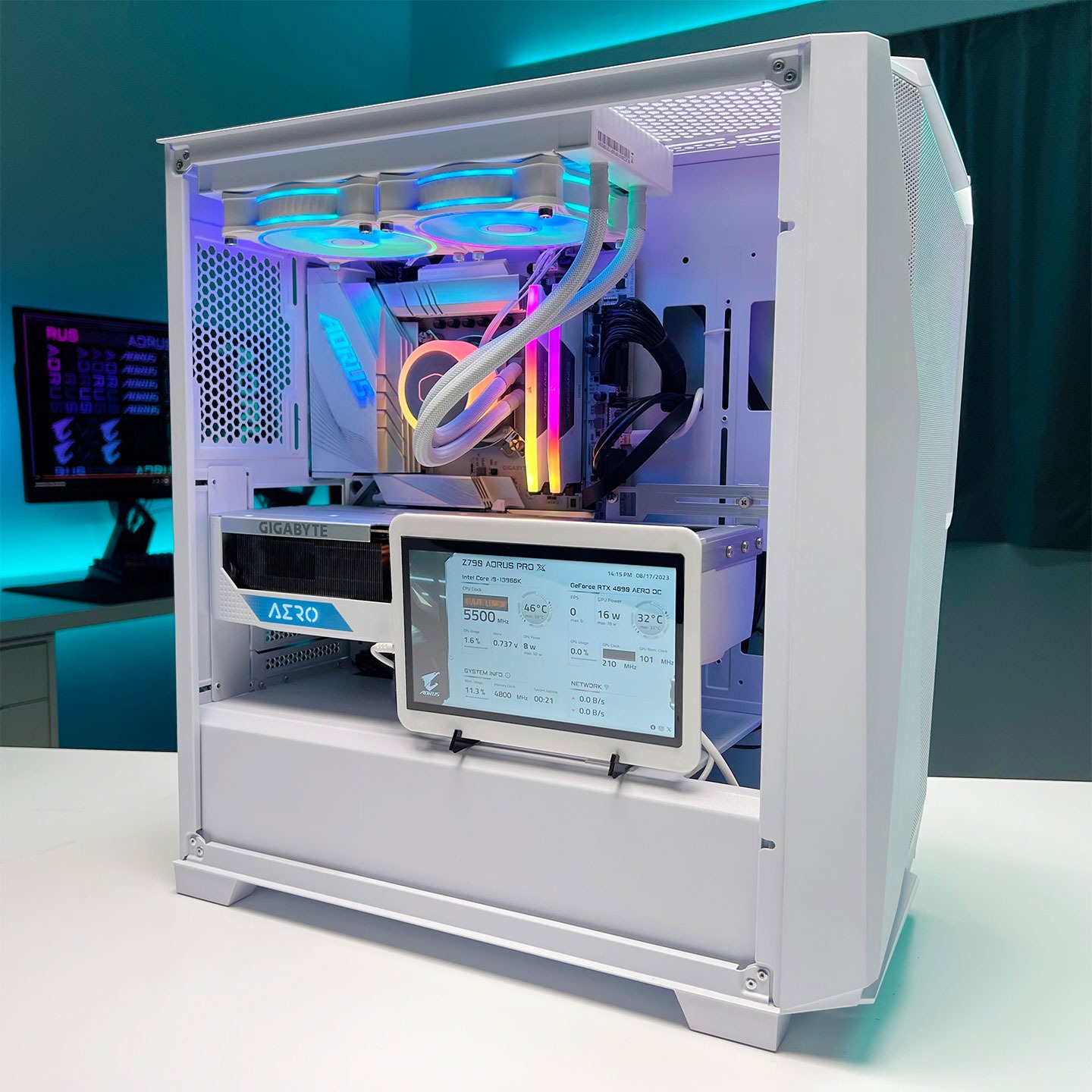

• Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• New Power Monitor in HWinfo for real-time monitoring on CPU power phases
• Ultra-Fast Storage：4*M.2 slots, including 3* PCIe 5.0 x4
• Efficient Thermal：VRM Thermal Armor Advanced  & M.2 Thermal Guard L
• Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
• Reliable Audio：Realtek ALC1220 HD Audio & Audiophile Grade Capacitors

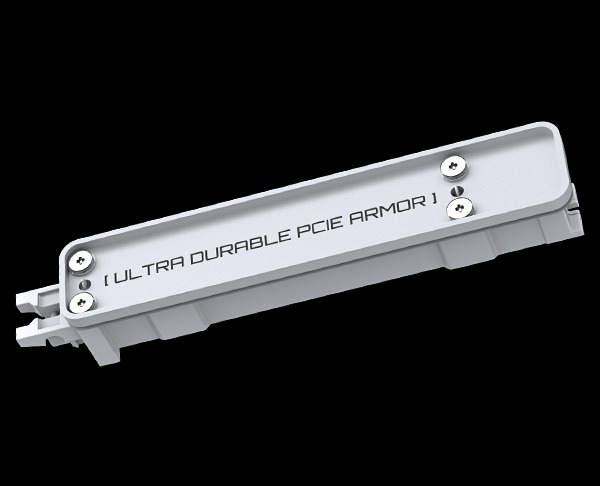

• Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability.
• PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
