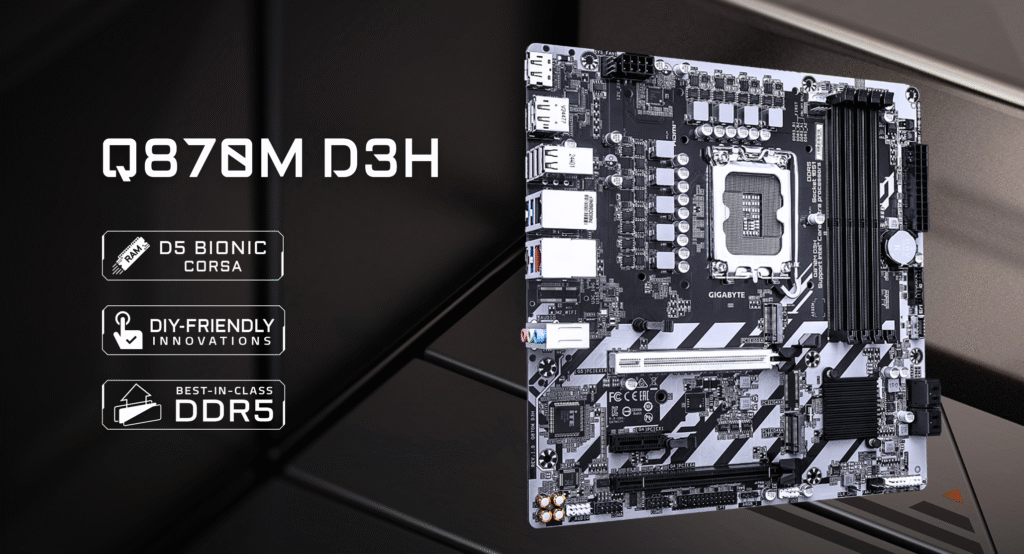

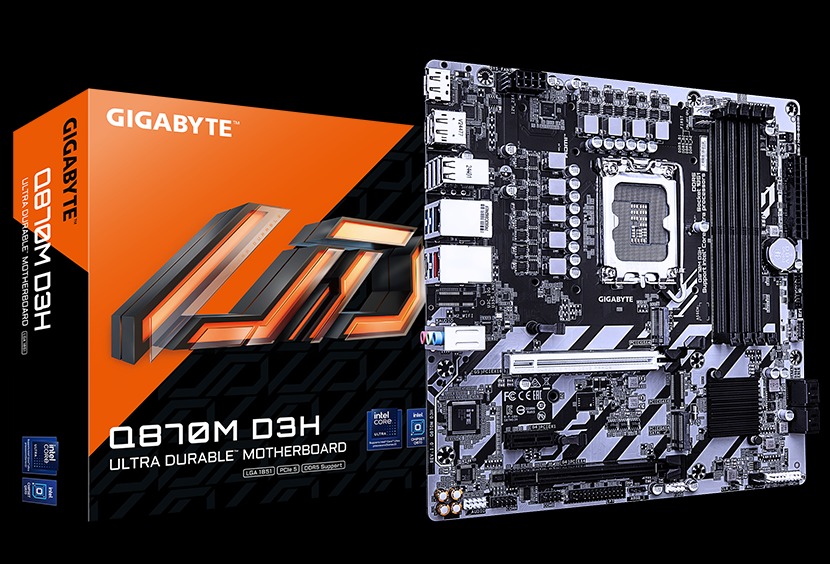

Q870M D3H

Description

OVERVIEW

Performance :

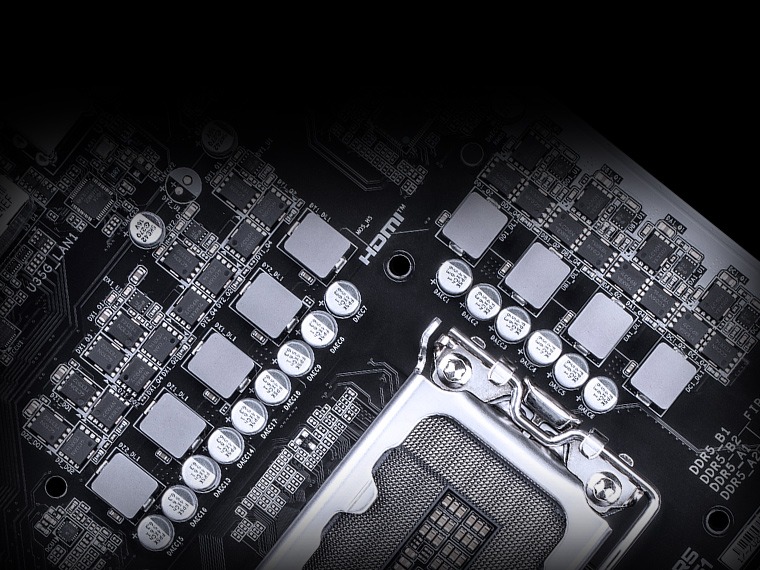

• Hybrid VRM Design

  • 6-Layer PCB
  • Mid-Loss PCB

• Intel® Core Ultra processors (Series 2) Support

• UD Power Connector

  • 24 pin ATX Power Connector
  • 8 pin CPU with UD Solid Pin

• 4 x DIMMs, Dual Channel DDR5

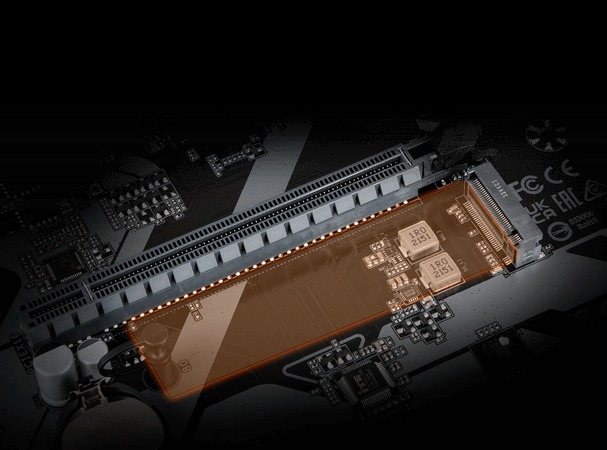

• 2 x M.2 Slots

  • 2 x PCIe 4.0 M.2 Slots

• PCIe slots

  • 1 x PCIe 5.0 x16 with PCIe UD Slot
  • 1 x PCIe 4.0 x4 slot
  • 1 x PCIe 4.0 x1 slot

Thermal :

• CPU socket with RL-ILM

• Chipset Heatsink

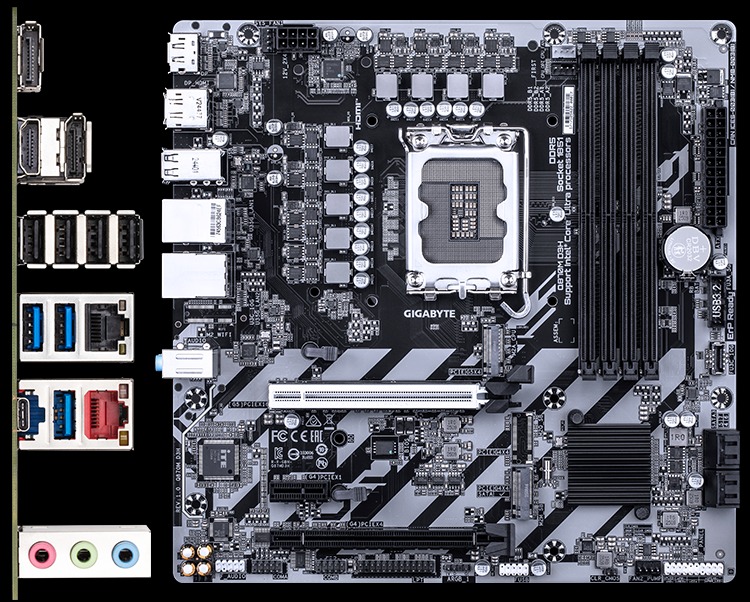

Connectivity :

• 2 x DisplayPorts

• 1 x HDMI

• 4 x USB 2.0

• 3 x USB 3.2 Gen 1

• 1 x USB 3.2 Gen 2 Type-C®

• GbE LAN

• 2.5 GbE LAN

• Front USB-C 10Gb/s

• 4 x SATA 6Gb/s

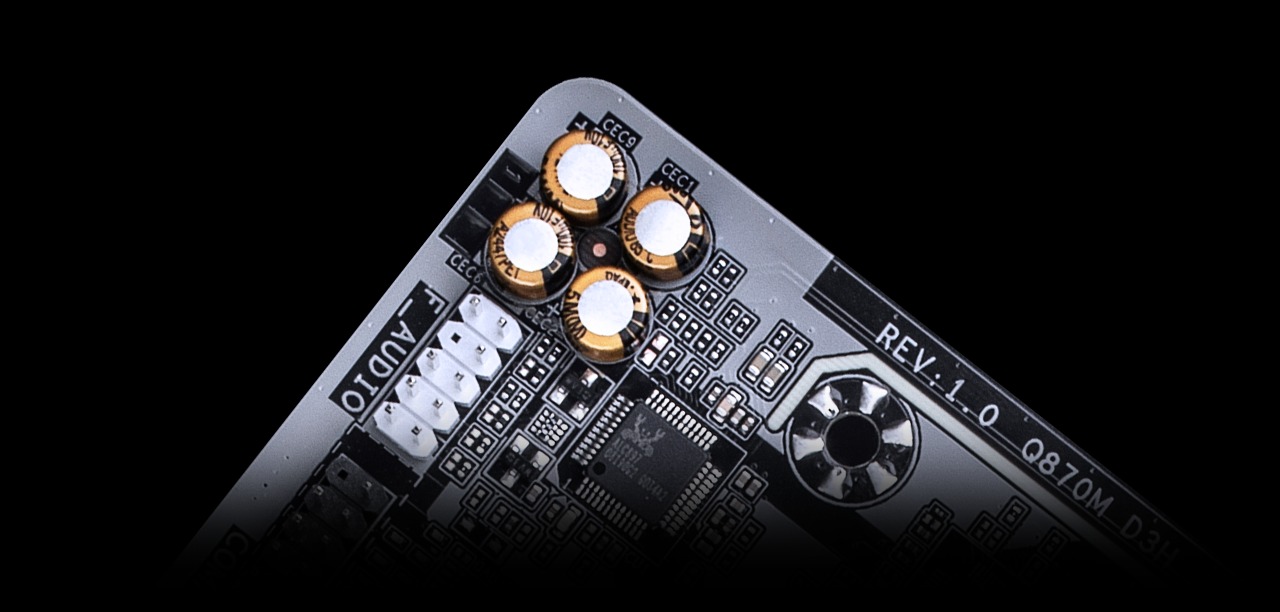

• Hi-Fi Audio

  • 8-CH HD Audio
  • High-End Audio Capacitor

• RGB FUSION

  • 1 x ARGB LED Header

DIY Friendly :

• PCIe EZ-Latch

Key Features

• Supports Intel® Core™ Ultra processors (Series 2)

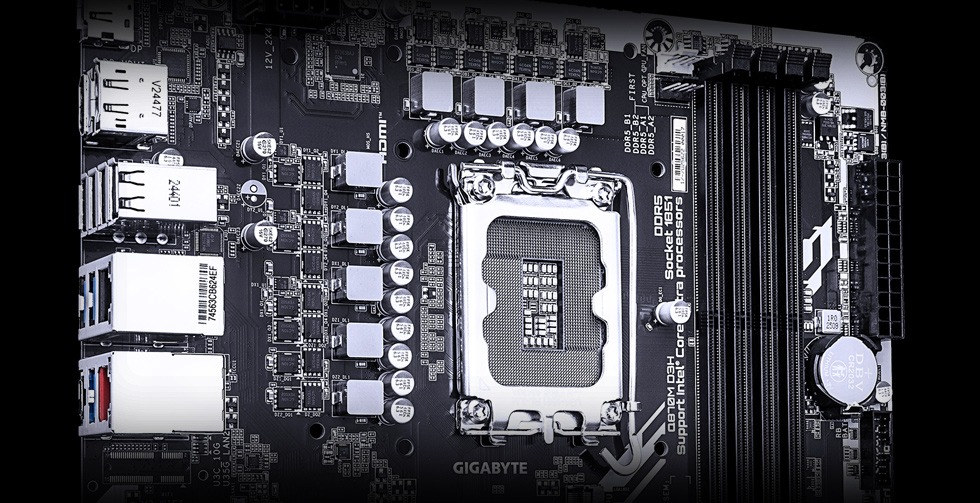

• Hybrid 4+1+2 phases VRM solution
• D5 Bionic Corsa for Infinite Memory Performance
• AI Perfdrive : Provides optimal and customized BIOS preset profile for users
• EZ-Latch : PCIe x16 Slot with Quick Release Design
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
• Fast Networking : Dual 2.5G + GbE LAN
• Extended Connectivity : DisplayPort, HDMI
