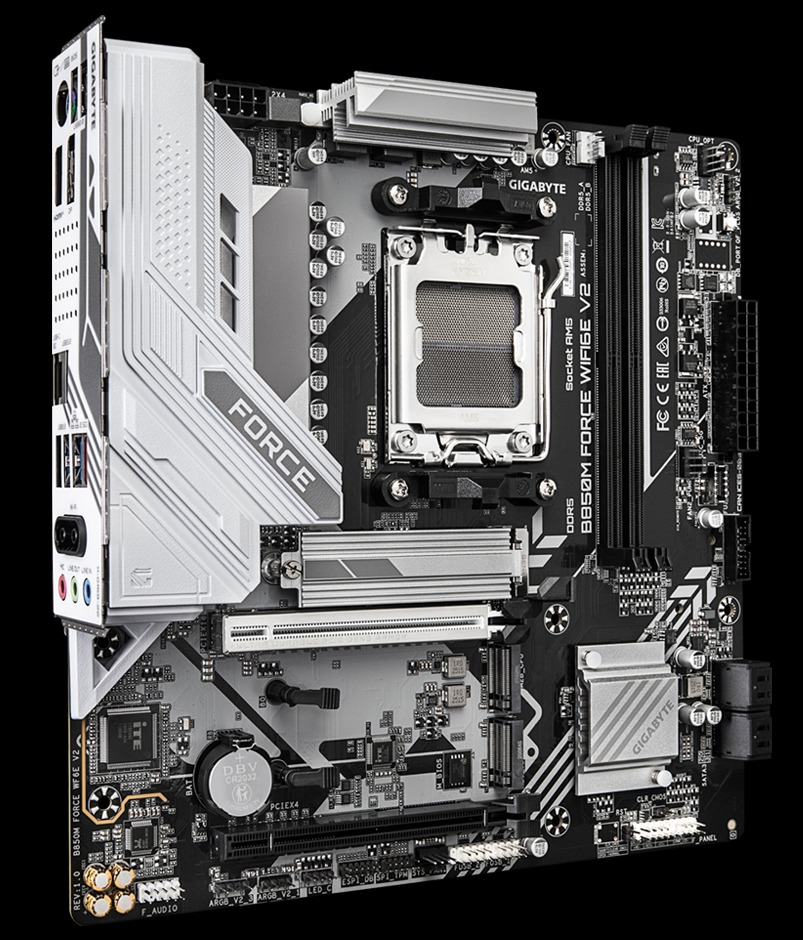

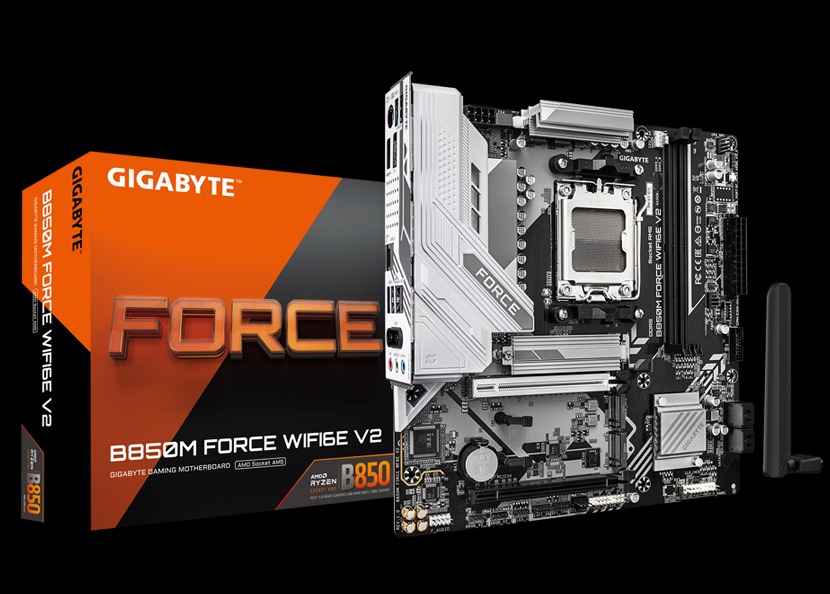

B850M FORCE WIFI6E V2

Description

OVERVIEW

Performance :

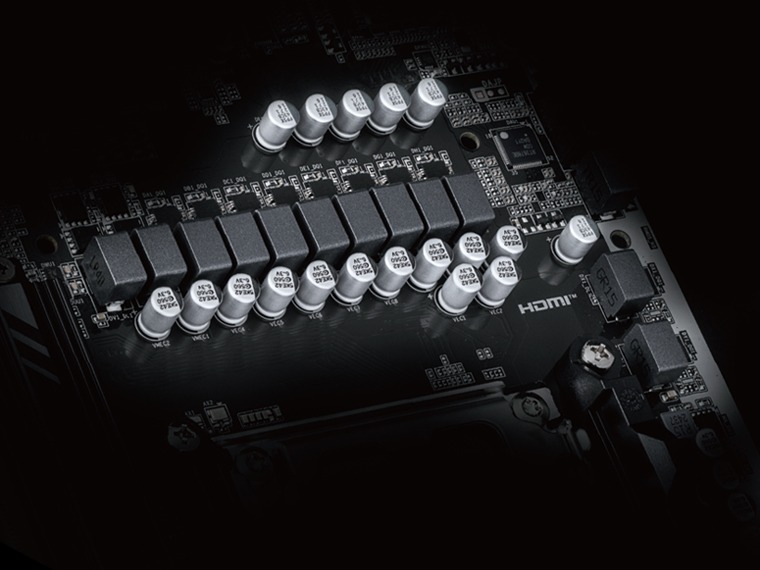

• 8+2+2 Digital VRM Design

• Socket AM5 Supports AMD Ryzen™ Series Processors

• UD Power Connector

  • 24 pin ATX Power Connector
  • 8 pin CPU with UD Solid Pin

• 2x DIMMs, Dual Channel DDR5

• 3 x M.2 Slots

  • 1 x PCIe 5.0 M.2 Slot
  • 2 x PCIe 4.0 M.2 Slots

• PCIe slots

  • 1 x PCIe 5.0 x16 Slot
  • 1 x PCIe 4.0 x4 slot

Thermal :

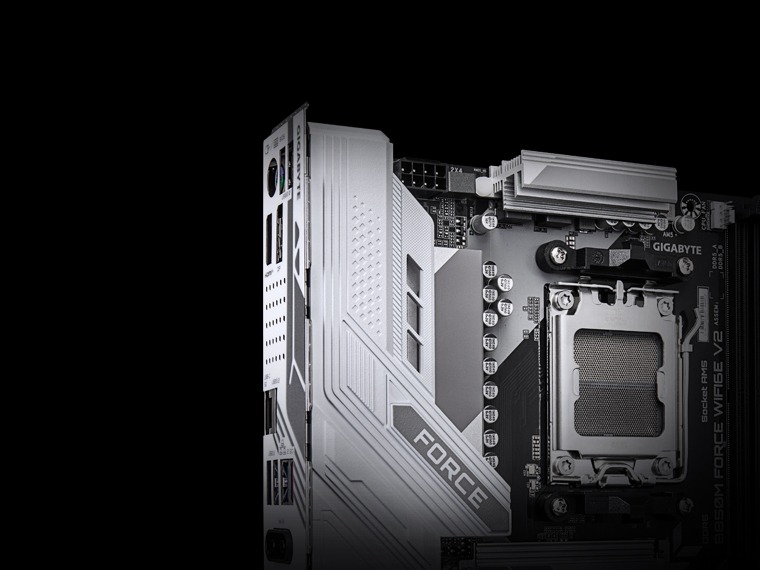

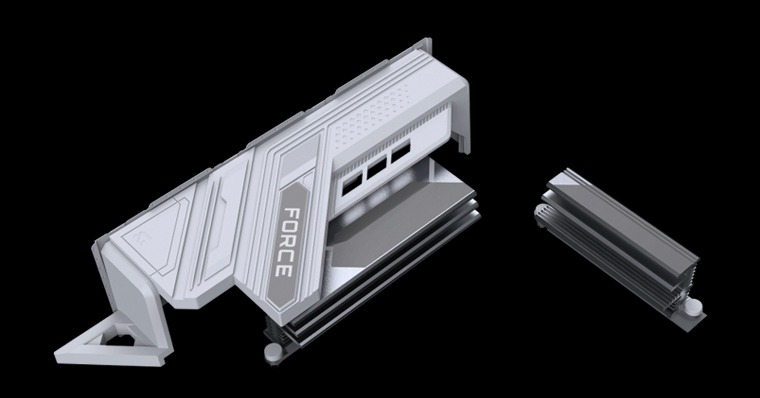

• VRM Thermal Armor Advanced

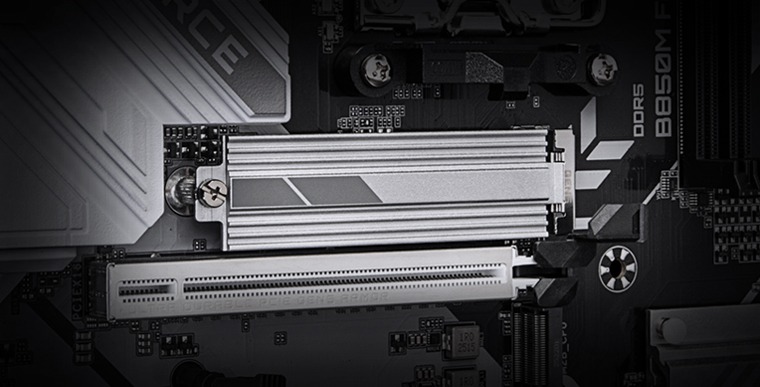

• M.2 Thermal Guard

• Smart Fan 6

  • Total 4*PWM/DC Fan Headers
  • Dual Fan Curve Mode

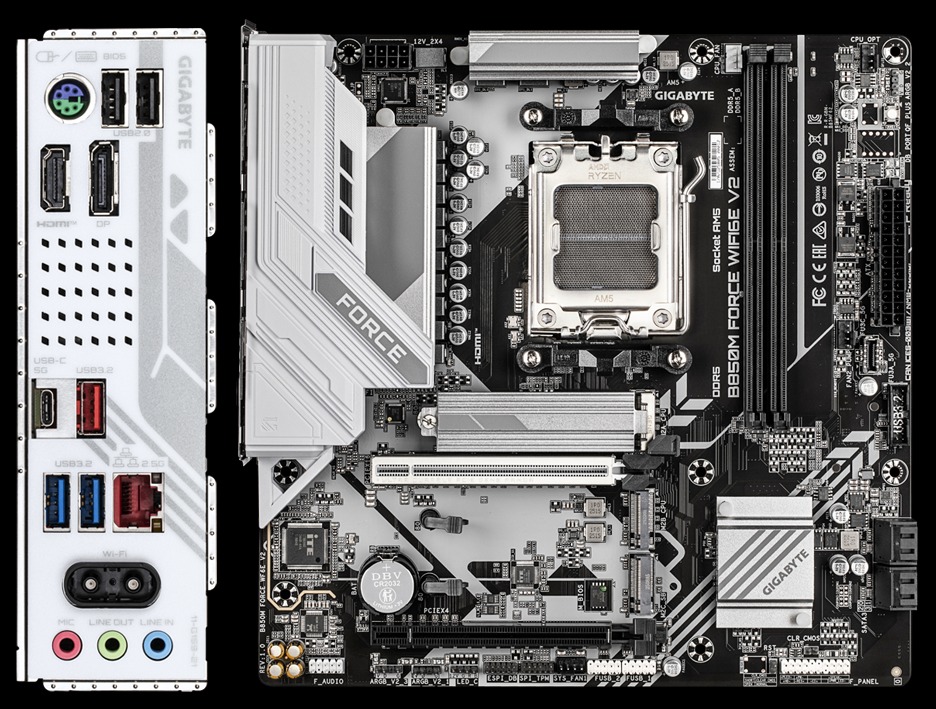

Connectivity :

• 2 x USB 2.0

• 1* DisplayPort

• 1 x HDMI

• 1 x USB 3.2 Gen 2

• 1 x USB 3.2 Gen 1 Type-C®

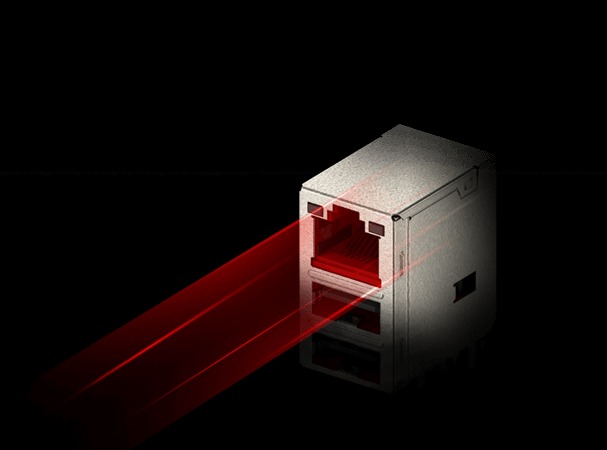

• 2.5 GbE LAN

• 2 x USB 3.2 Gen 1

• Wi-Fi 6E 802.11 ax

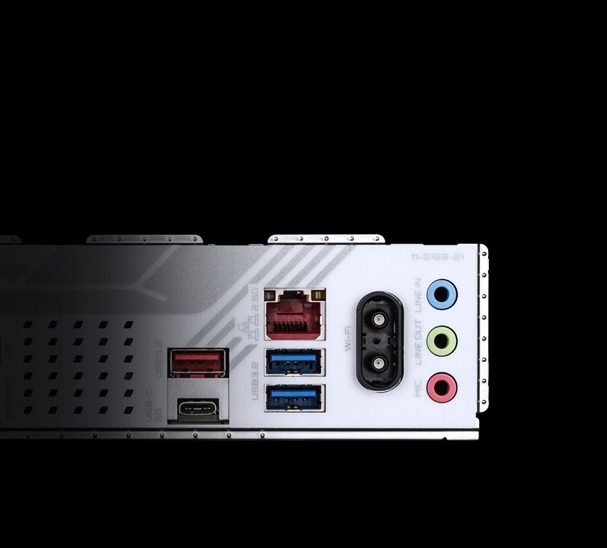

• WIFI EZ-Plug

• Front USB-C 5Gb/s

• 4 x SATA 6Gb/s

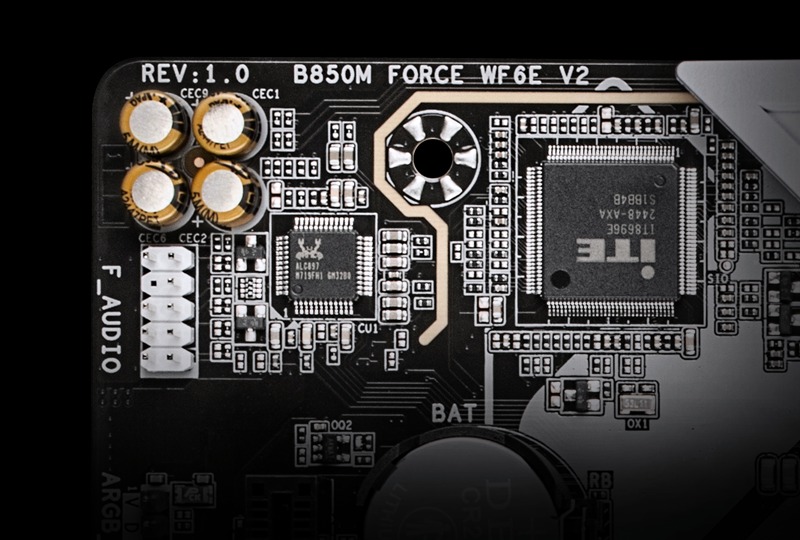

• Hi-Fi Audio

  • 8-CH HD Audio

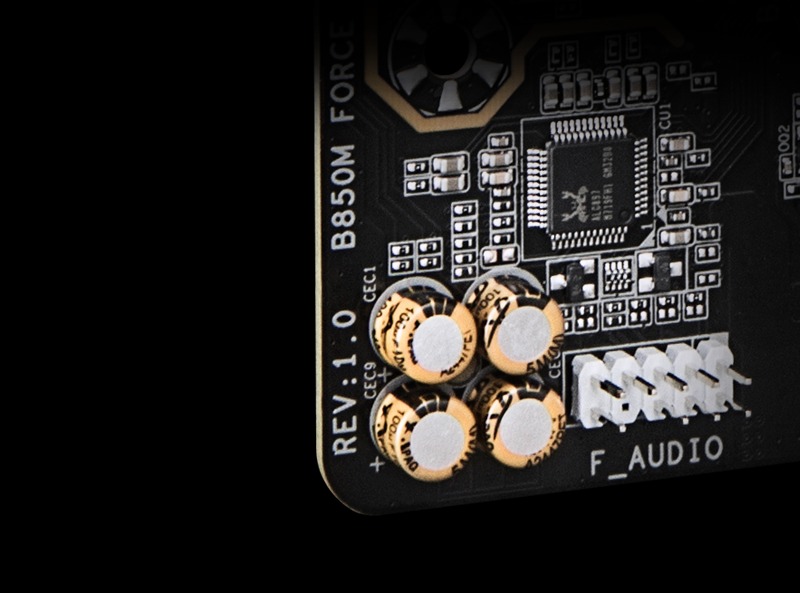

  • High-End Audio Capacitor

• RGB FUSION

  • 3 x Addressable LED Headers
  • 1 x RGB LED Header

DIY Friendly :

• Wi-Fi EZ-Plug

• PCIe EZ-Latch

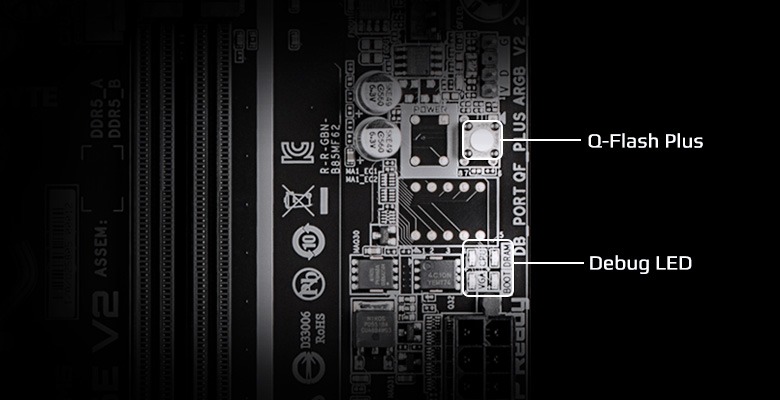

• EZ-Debug Zone

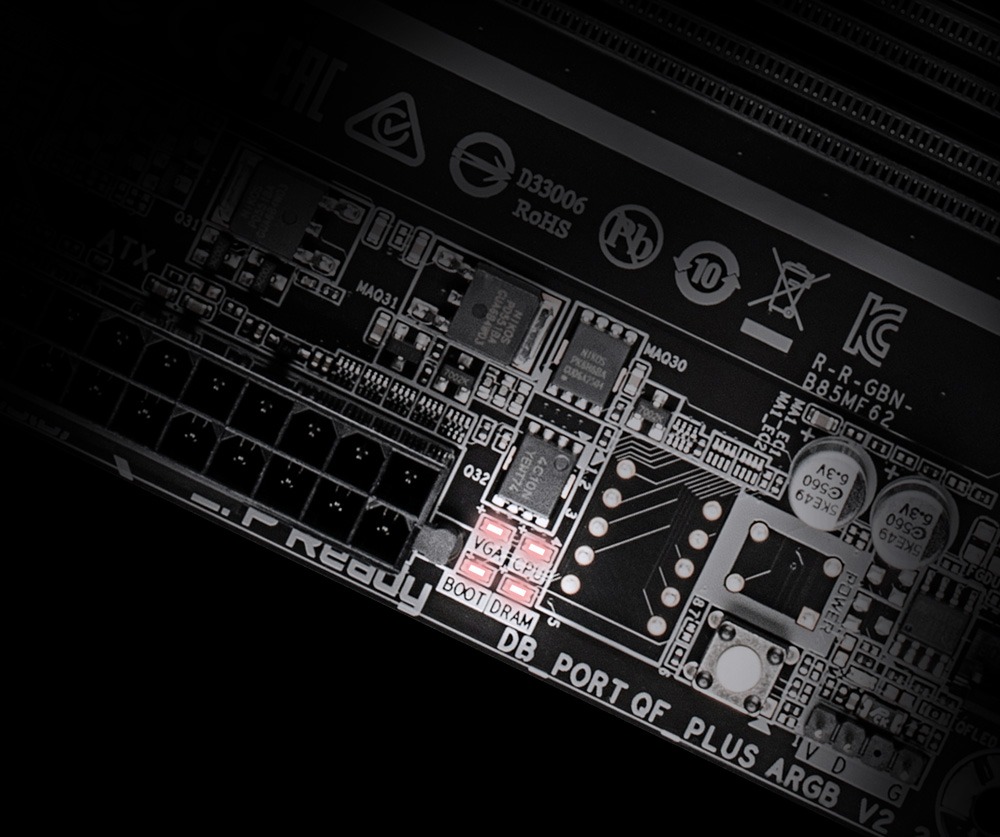

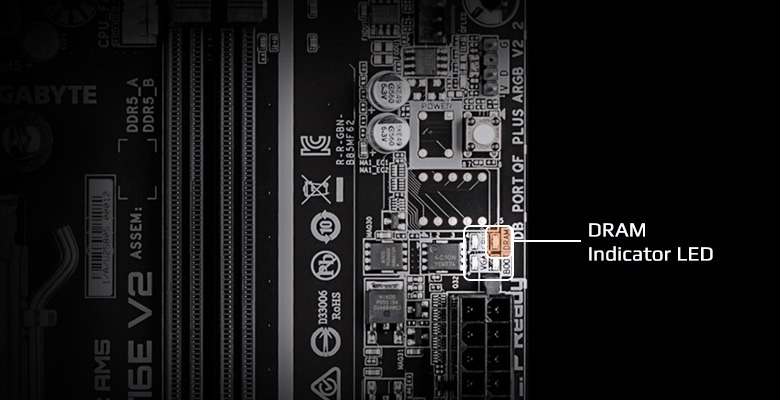

  • Debug LEDs
  • Q-Flash Plus Button

Key Features

• X3D Turbo Mode to unleash new era gaming performance
• AMD Socket AM5 : Supports AMD Ryzen™ 9000/8000/ 7000 Series Processors
• Digital 8+2+2 phases VRM solution
• Dual Channel DDR5 : 2*DIMMs with AMD EXPO™Memory Module Support

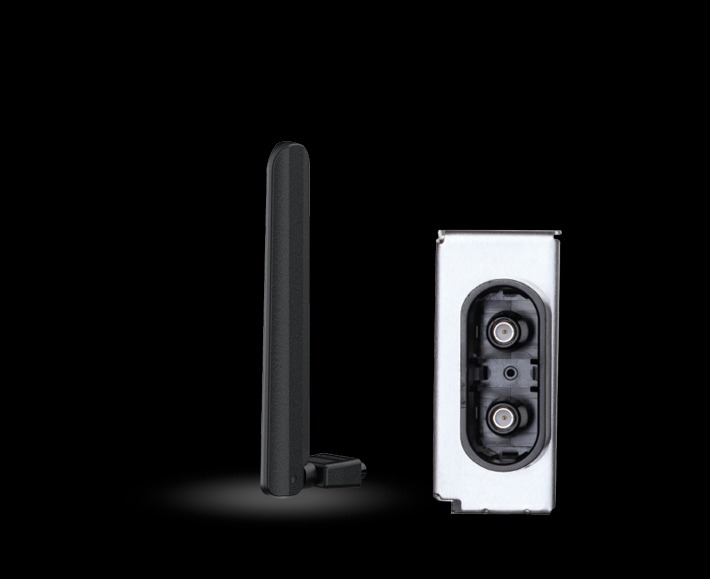

• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• EZ-Latch : PCIe x16 Slot with Quick Release Design
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
• Fast Networking : 802.11ax Wi-Fi6E and 2.5GbE LAN
• Extended Connectivity : DP, HDMI
