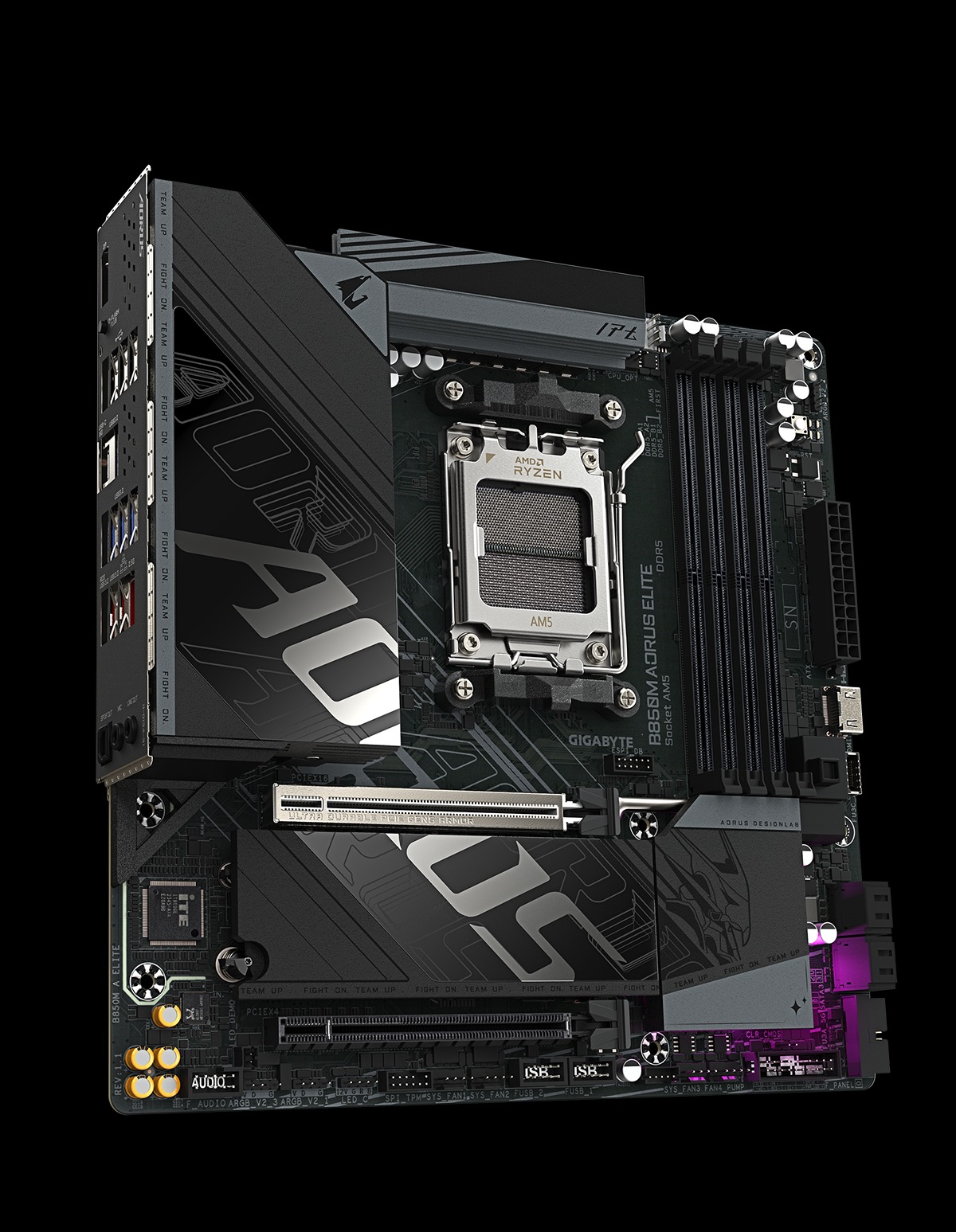

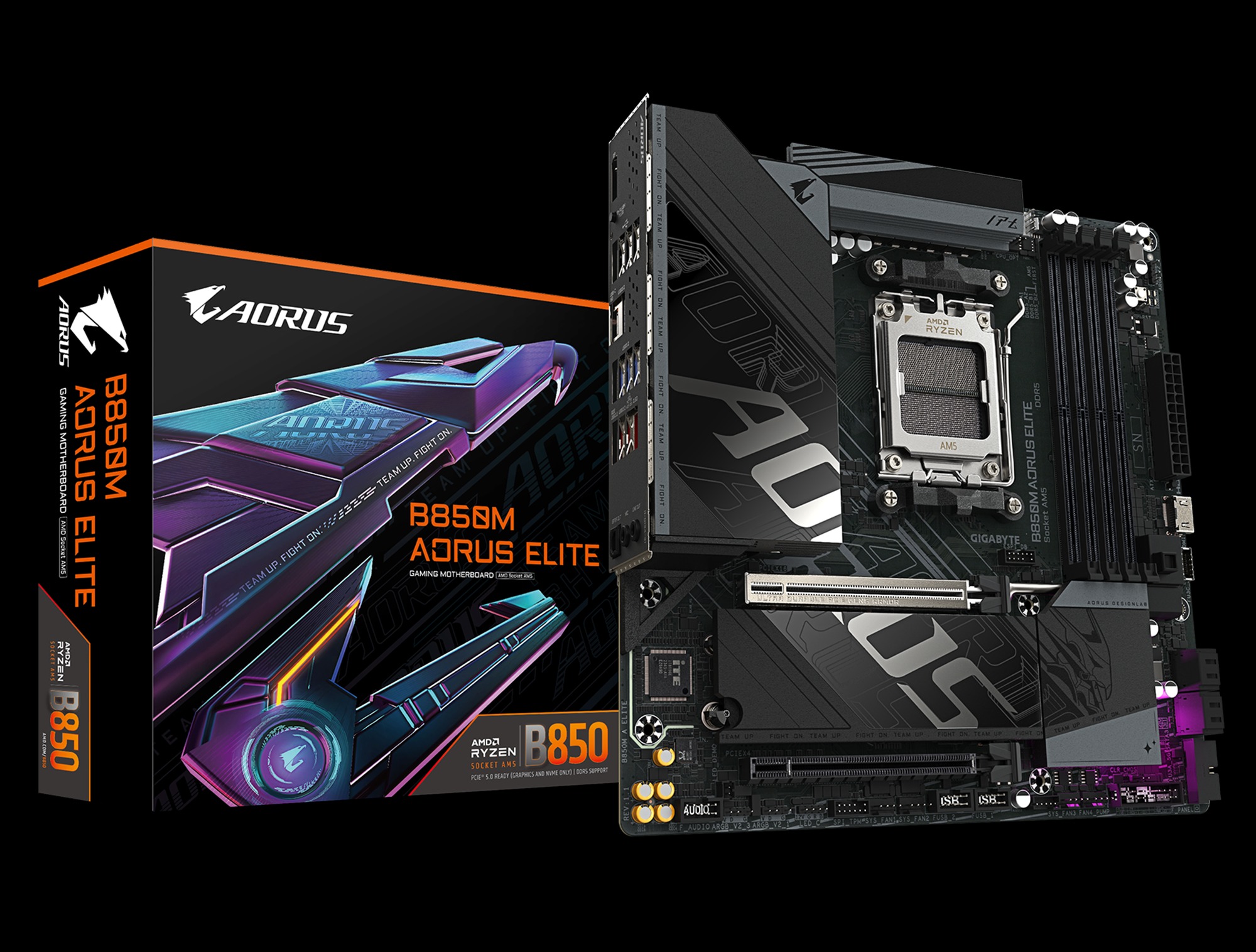

B850M AORUS ELITE

Description

OVERVIEW

Performance :

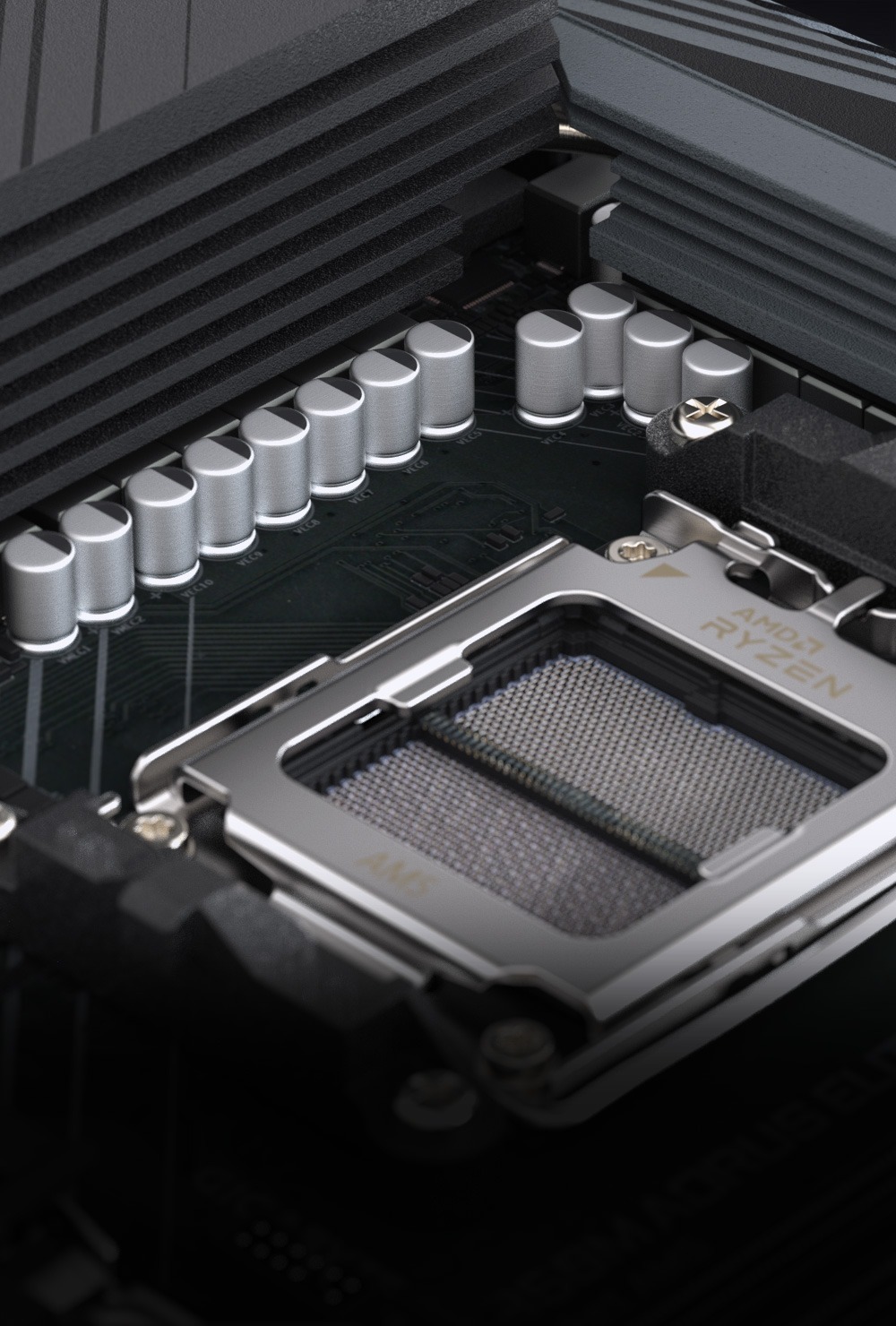

• 12*+2+2 Twin Digital VRM Design

  • 6-Layer PCB
  • Mid-Loss PCB
  • 2X Copper PCB
  • Premium Choke and Capacitor
  * 6+6 phases parallel power design

• Socket AM5 Supports AMD Ryzen™ Series Processors

• 4 x DIMMs, Dual Channel DDR5

• 2 x M.2 Slots

  • 1 x PCIe 5.0 M.2 Slot
  • 1 x PCIe 4.0 M.2 Slot

• Full-length PCIe slots

  • 1 x PCIe 5.0 x16 with PCIe UD Slot
  • 1 x PCIe 3.0 x4

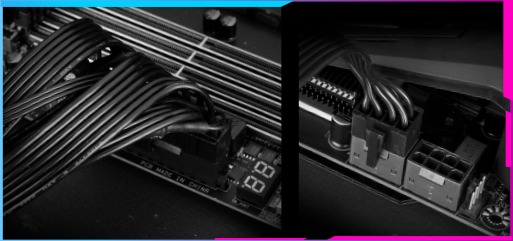

• UD Power Connector

  • 24 pin ATX with UD Solid Pin
  • 8 pin CPU with UD Solid Pin

Thermal :

• VRM Thermal Armor Advanced

  • Superior Heatpipe
  • 5 W/mk Thermal Pad
  • Integrated IO Shield

• M.2 Thermal Guard Ext.

• Smart Fan 6

  • Total 6*PWM/DC Headers
  • Dual Fan Curve Mode

Connectivity :

• 1 x DisplayPort

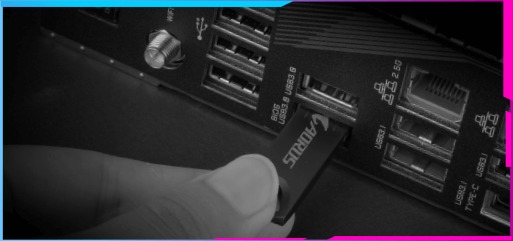

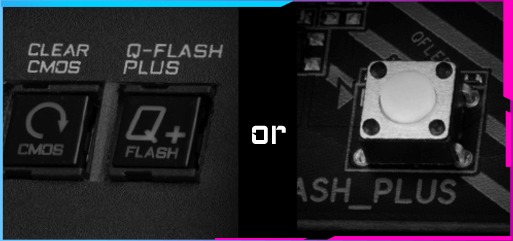

• Q-FLASH PLUS Button

• 4 x USB 2.0

• USB3.2 Gen2 Type-C®

• 5 x USB 3.2 Gen 1

• 2 x USB 3.2 Gen 2

• 2.5 GbE LAN

• Sensor Panel Link (HDMI)

• Front USB-C 20Gb/s

• 4 x SATA 6Gb/s

• RGB FUSION

  • 1 x RGB LED Header
  • 3 x ARGB LED Headers

• Hi-Fi Audio

  • 8-CH HD Audio
  • High-End Audio Capacitor

DIY Friendly :

• M.2 EZ-Latch Plus
  M.2 EZ-Latch Click

• PCIe EZ-Latch Plus

• EZ-Debug Zone

  • Multi-key
  • Debug LEDs

Key Features

• X3D Turbo Mode : Unleash new era gaming performance

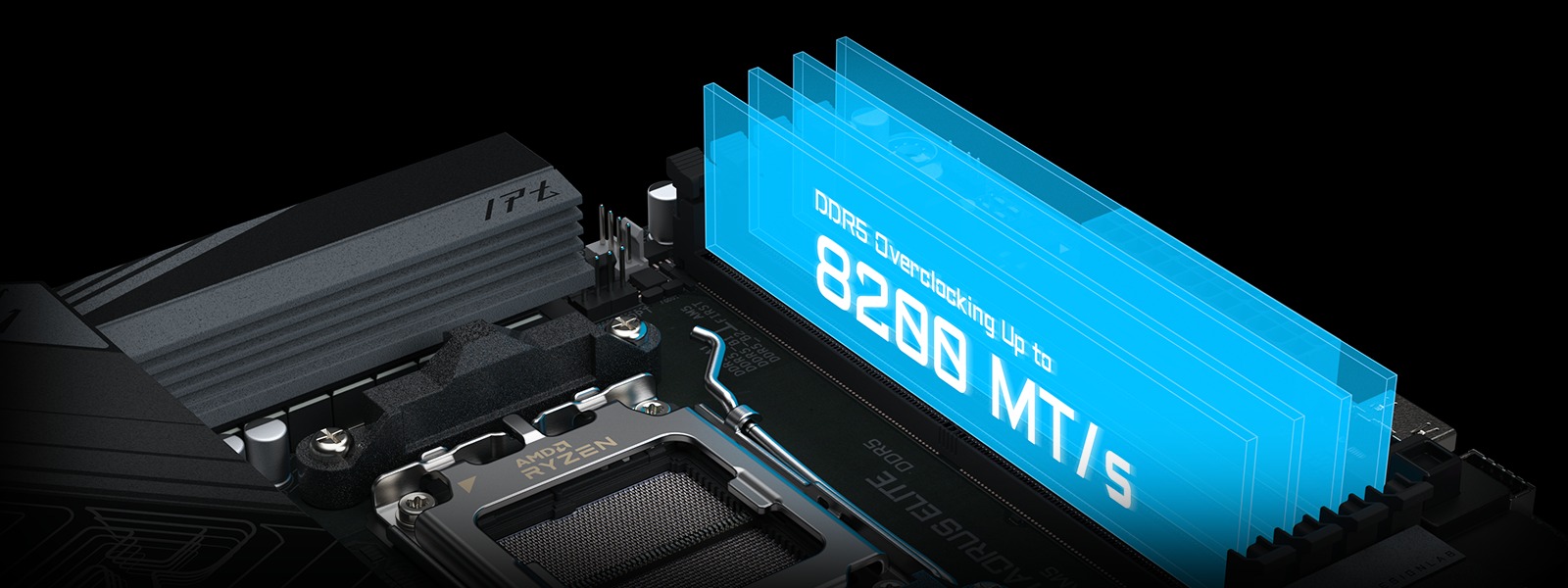

• DDR5 OC up to 8200MT/s
• AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital twin 12+2+2 phases VRM solution
• Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design

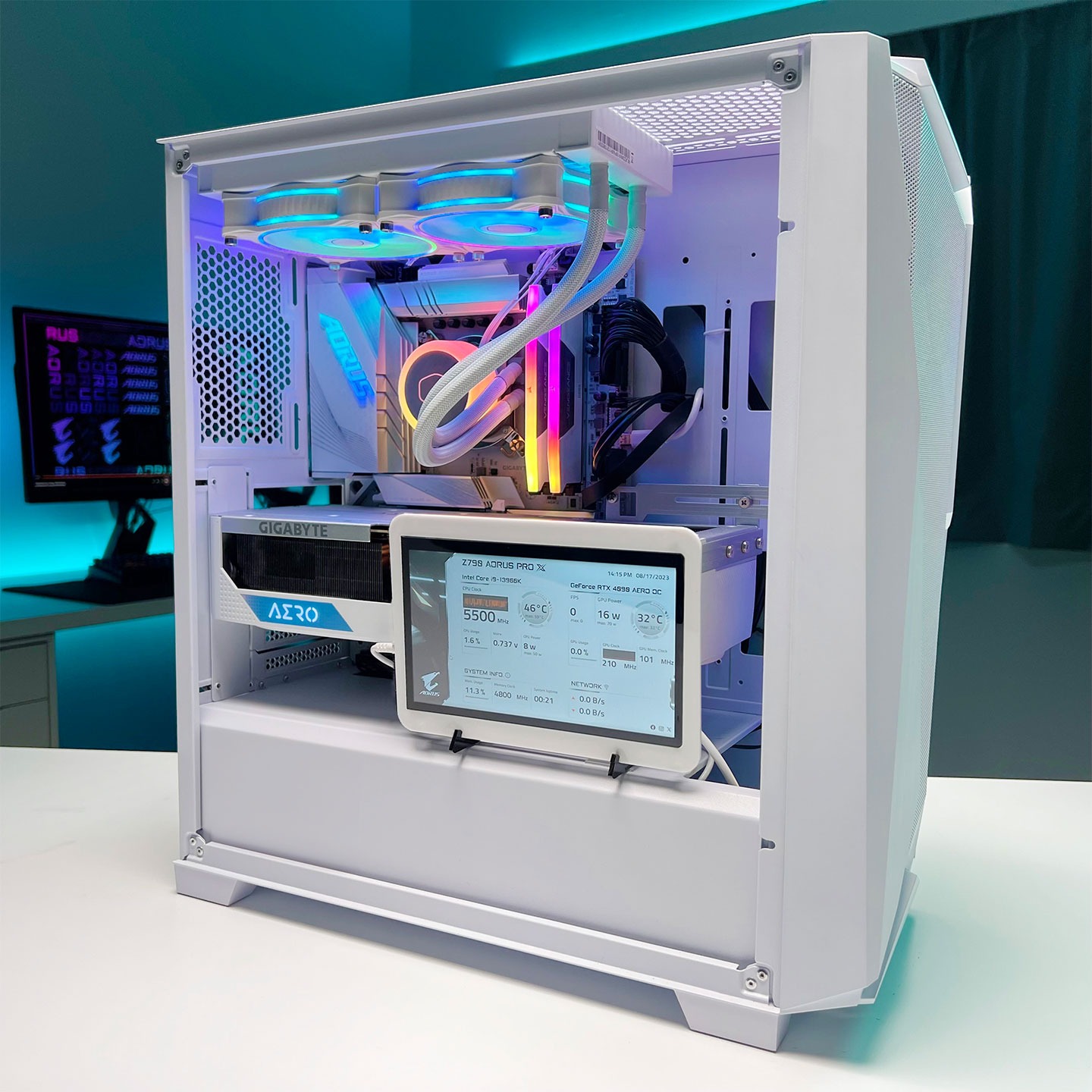

• Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage : 2*M.2 slots, including PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
• Fast Networking : 2.5GbE LAN
• Extended Connectivity : HDMI,Displayport
• PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
