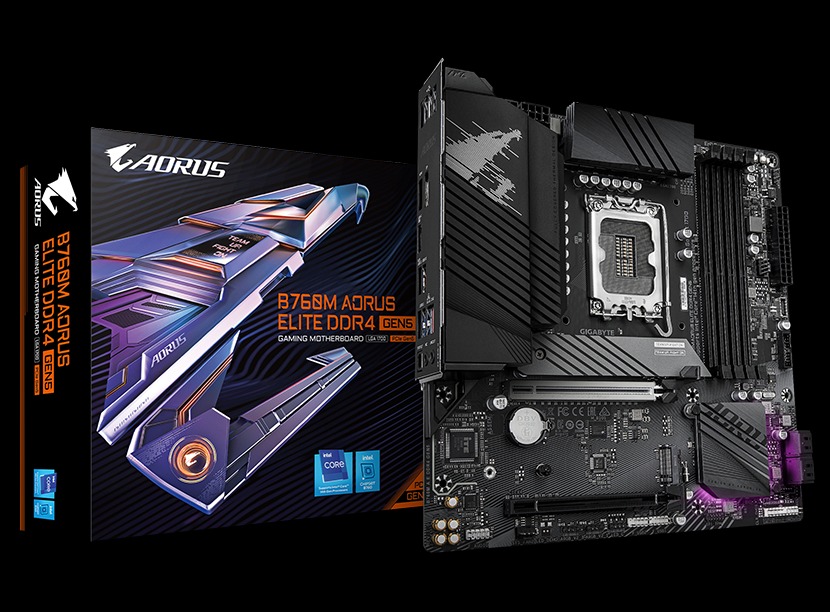

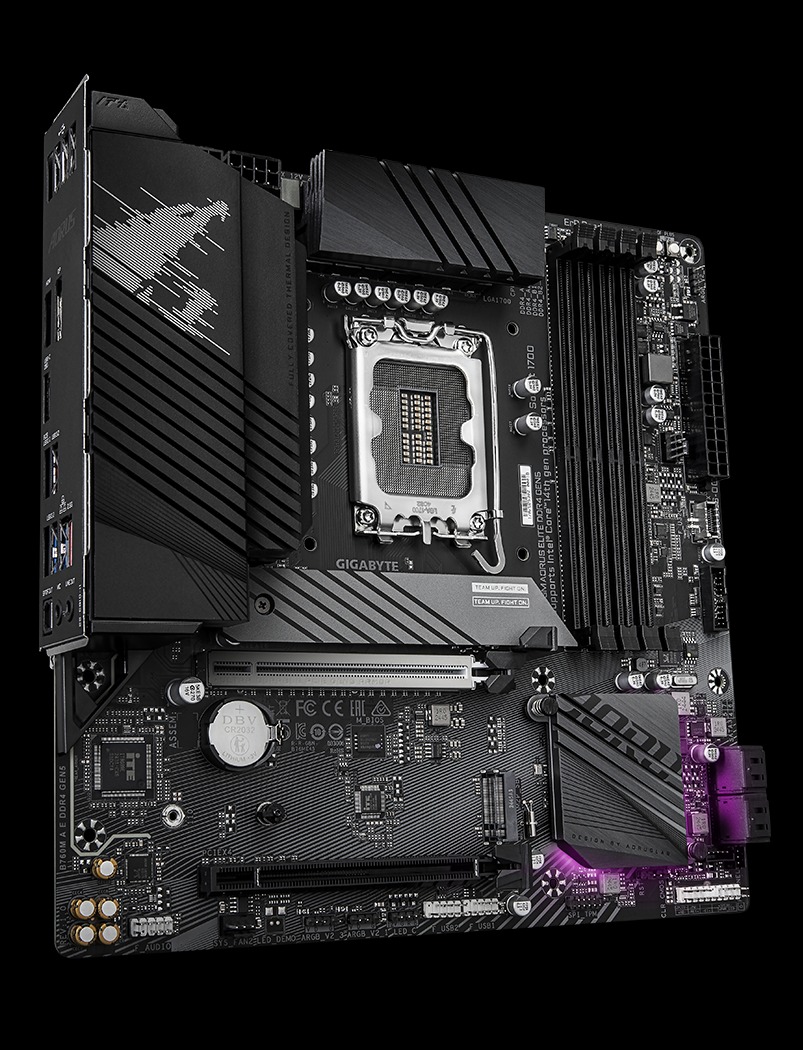

B760M AORUS ELITE DDR4 GEN5

Description

OVERVIEW

Performance :

• 12+1+1 Twin Hybrid Phases Digital Power

  • 60A DrMOS
  • PCIe 5.0 Ready PCB
  • 6-Layer & 2x Copper PCB

• Support 14th and 13th Gen. Intel® Core™ Processors

• UD Power Connector

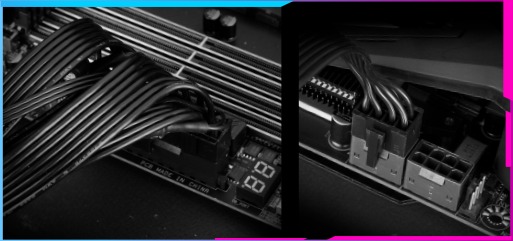

  • 8+4 Solid Pin CPU Power Connector

• 4 x DIMMs, Dual Channel DDR4

• 2 x M.2 Slots

  • 2*PCIe 4.0 x4 M.2

• Full-length PCIe slots

  • 1 x PCIe 5.0 x16 with PCIe UD Slot
  • 1 x PCIe 4.0 x4

Thermal :

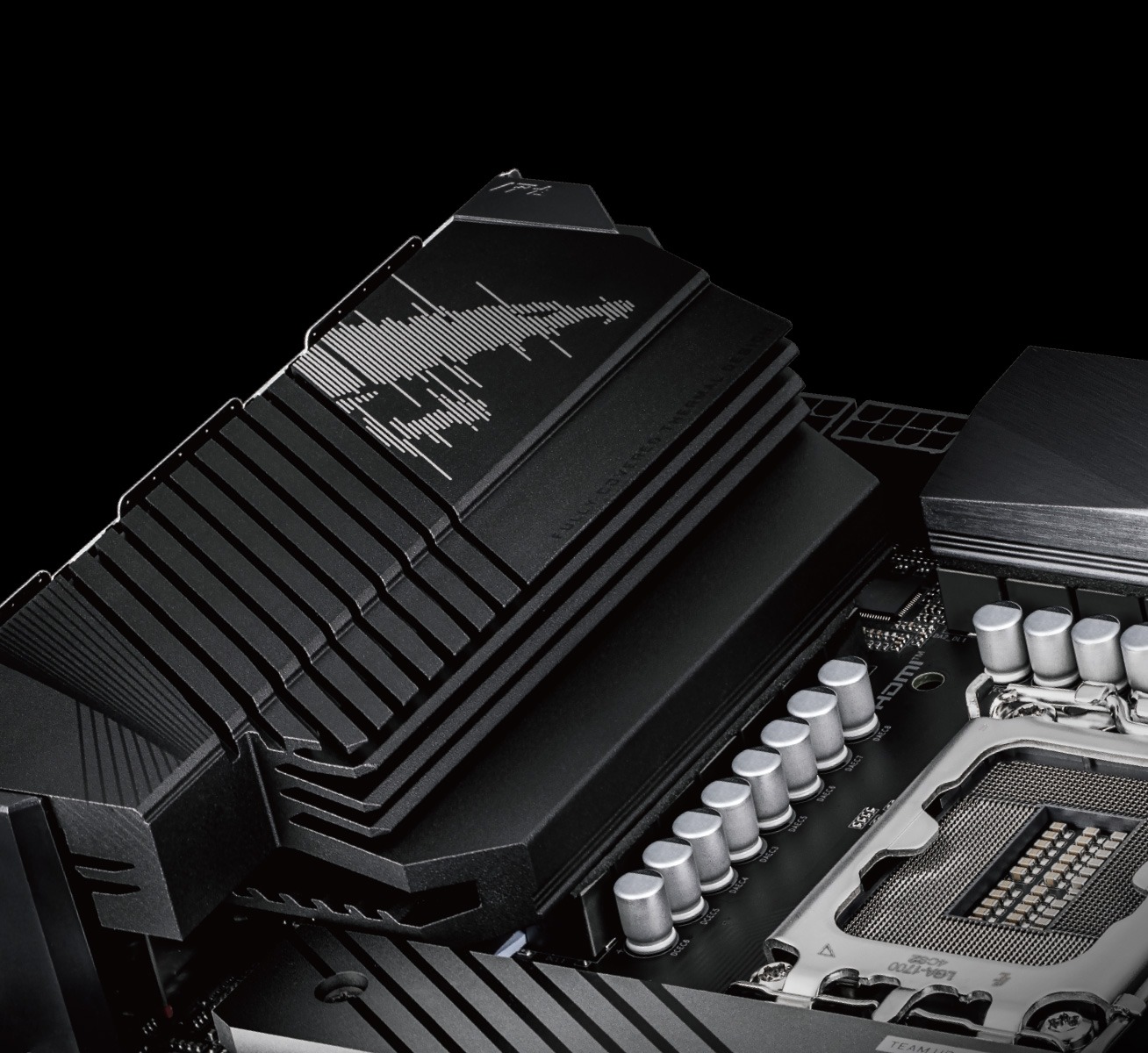

• VRM Thermal Armor Advanced

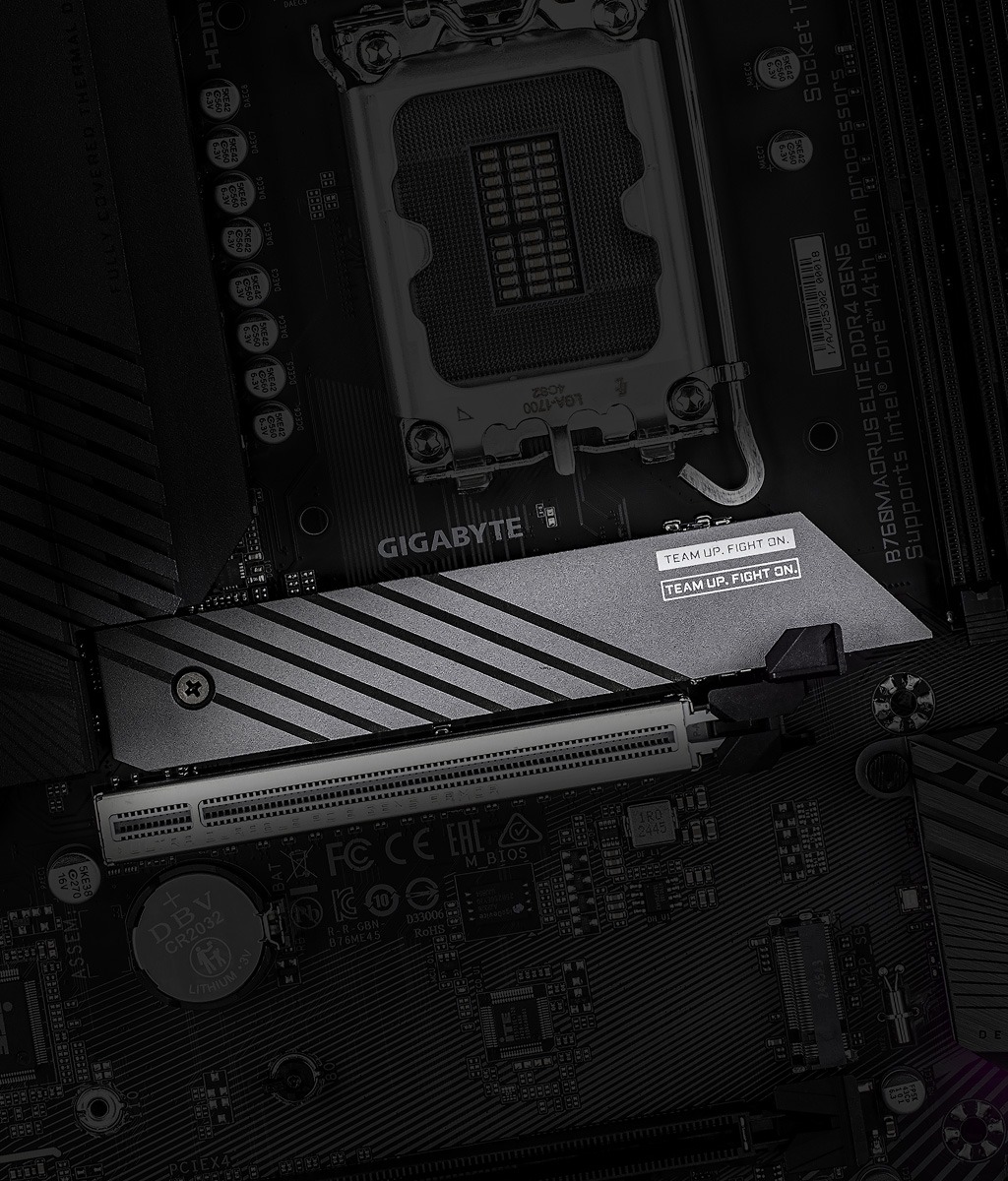

• M.2 Thermal Guard

Connectivity :

• 4 x USB 2.0

• 1 x DisplayPort

• 1 x HDMI

• USB 3.2 Gen 2×2 Type-C®

• 1 x USB 3.2 Gen 2

• 3 x USB 3.2 Gen 1

• 2.5 GbE LAN

• Front USB-C 10Gb/s

• 4 x SATA 6Gb/s

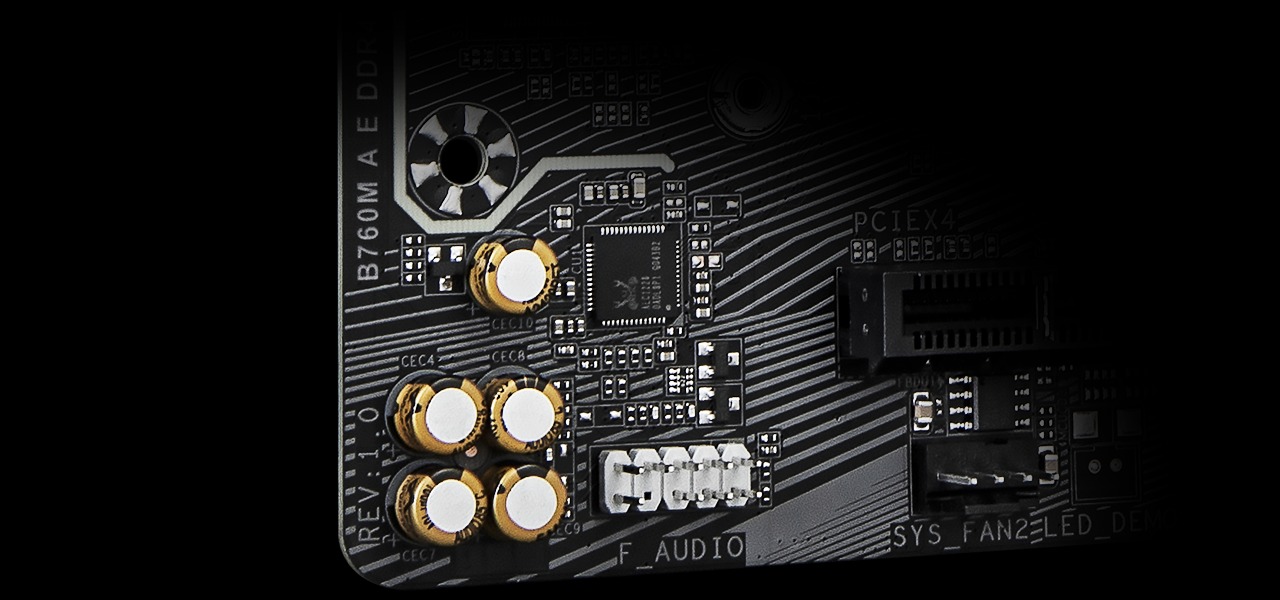

• ALC1220 Hi-Fi Audio

  • 8-CH HD Audio
  • High-End Audio Capacitor

• RGB FUSION

  • 3 x Addressable LED Headers
  • 1 x RGB LED Header

DIY Friendly :

• M.2 EZ-Latch Plus

• PCIe EZ-Latch

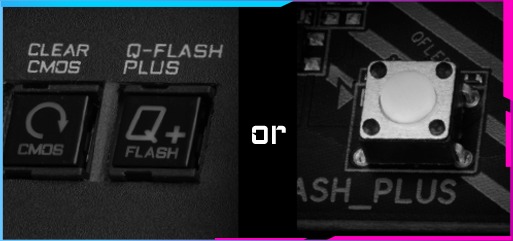

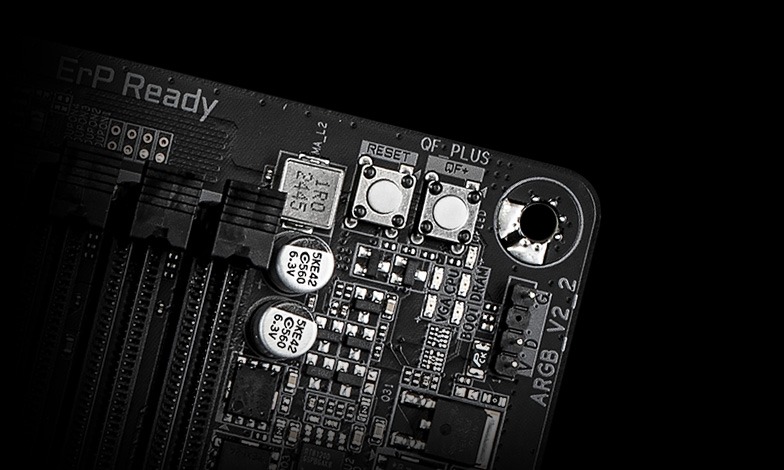

• Q-FLASH PLUS Button

• Multi-key

Key Features

• PCIe Gen5 Performance : Perfect Sync to Win
• Supports Intel® Core™ 14th/13th/12th processors
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard

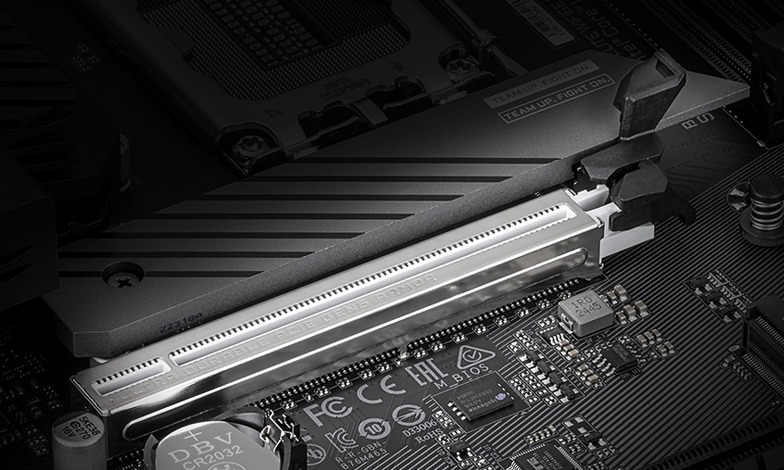

• EZ-Latch : PCIe 5.0×16 Slot with Quick Release Design
• EZ-Latch Plus : M.2 Connectors with Quick Release & Screwless Design

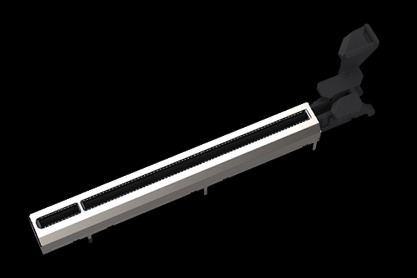

• PCIe UD Slot: Ultra Durable™ SMD PCIe 5.0 Armor for enhanced graphics card support
• Unparalleled Performance : Twin 12*+1+1 Phases Digital VRM Solution
• Dual Channel DDR4 : 4*DIMMs with XMP Memory Module Support
• Fast Networks : 2.5GbE LAN
• Extended Connectivity : Rear USB-C® 20Gb/s, Front USB-C® 10Gb/s, DP, HDMI
• Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
• Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

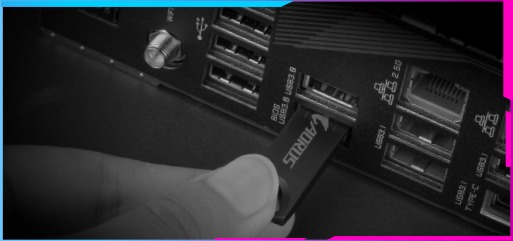

• Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
