Z890 UD (rev.1.1)

Description

OVERVIEW

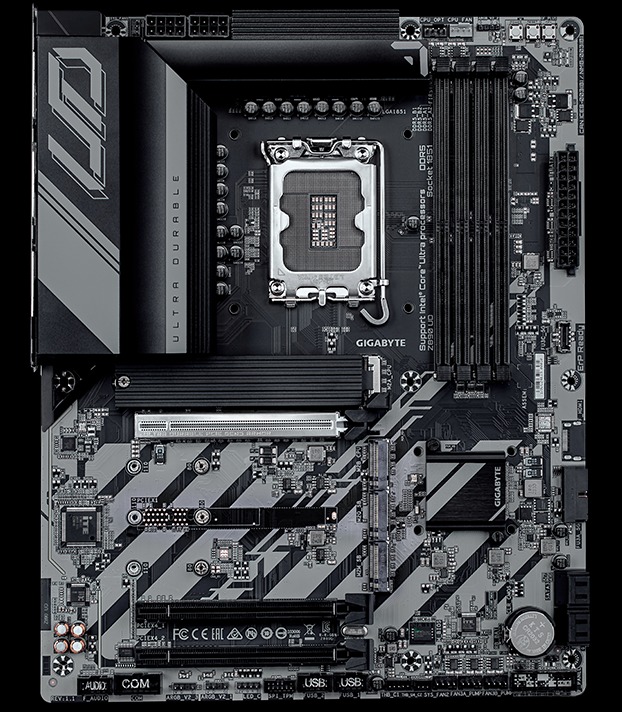

Performance :

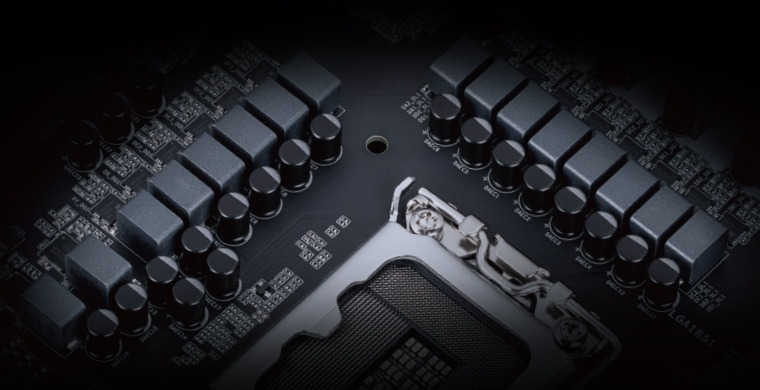

• 12*+1+2 Twin Digital VRM Design

  • 60A DrMOS
  • 2X Copper PCB
  • Premium Choke and Capacitor
  *6+6 Phases parallel power design

• Intel® Core Ultra processors (Series 2) Support

• UD Power Connector

  • 24 pin ATX Power Connector
  • 8+8 pin CPU with UD Solid Pin

• 4 x DIMMs, Dual Channel DDR5

• 4 x M.2 Slots

  • 1 x PCIe 5.0 M.2 Slot
  • 3 x PCIe 4.0 M.2 Slots

• Full-length PCIe slots

  • 1 x PCIe 5.0 x16 with PCIe UD Slot
  • 2 x PCIe 4.0 x4 slots

Thermal :

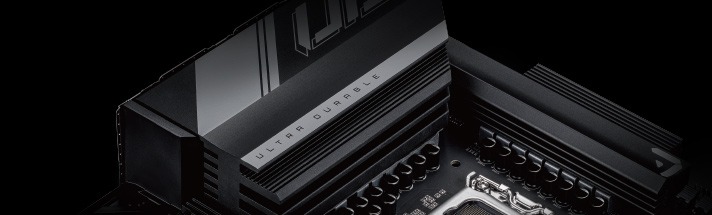

• VRM Thermal Armor Advanced

  • Fully Covered MOSFET Heatsinks
  • 5 W/mk Thermal Pad

• M.2 Thermal Guard

• CPU socket with RL-ILM

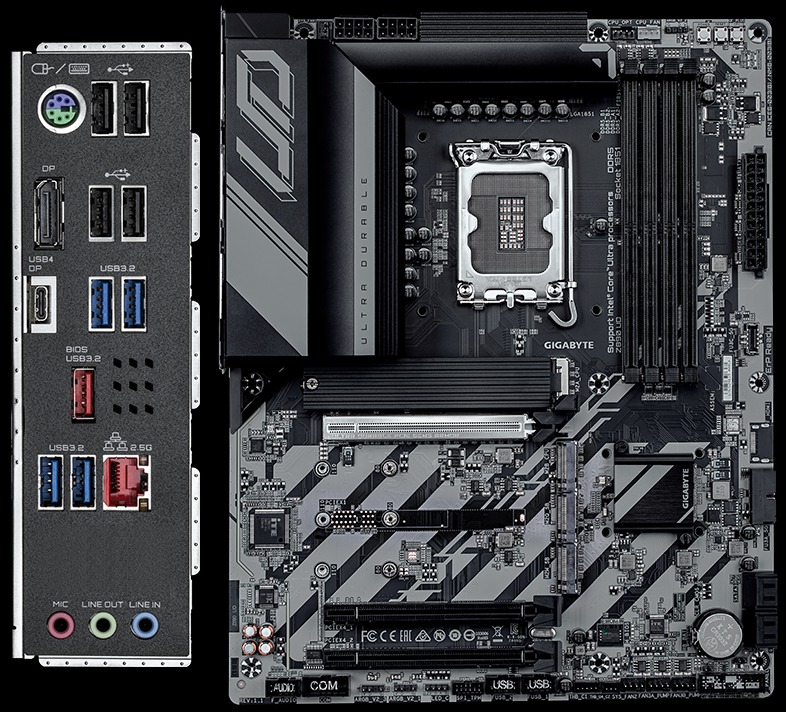

Connectivity :

• 4 x USB 2.0

• 1 x DisplayPort

• 1 x USB4 Type-C® up to
  40Gb/s with DP-Alt

• 1 x USB 3.2 Gen 2

• 4 x USB 3.2 Gen 1

• 2.5 GbE LAN

• Pre-installed I/O shield

• Front USB-C 5Gb/s

• 4 x SATA 6Gb/s

• Hi-Fi Audio

  • 8-CH HD Audio

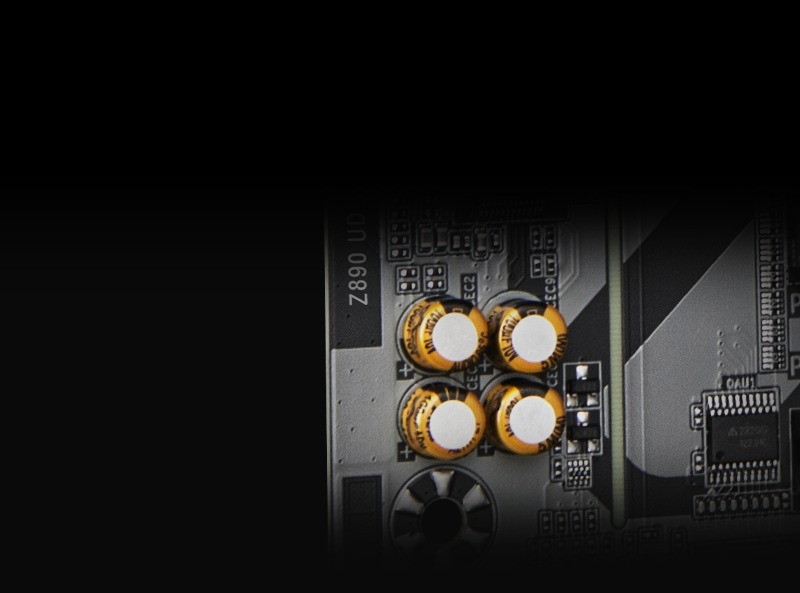

  • High-End Audio Capacitor

• RGB FUSION

  • 3 x Addressable LED Headers
  • 1 x RGB LED Header

DIY Friendly :

• Q-FLASH PLUS Button

• PCIe EZ-Latch

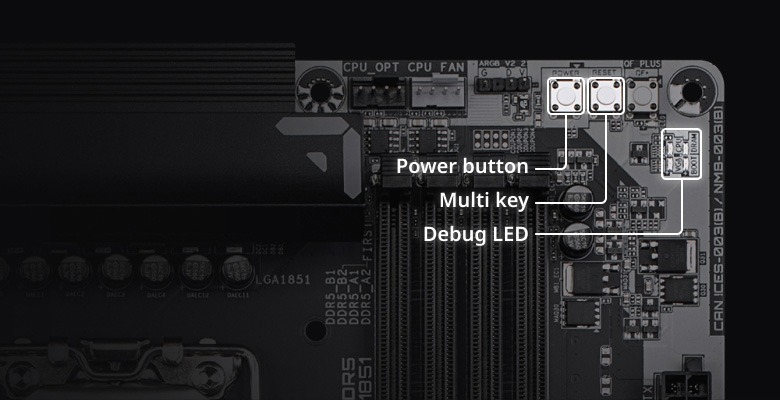

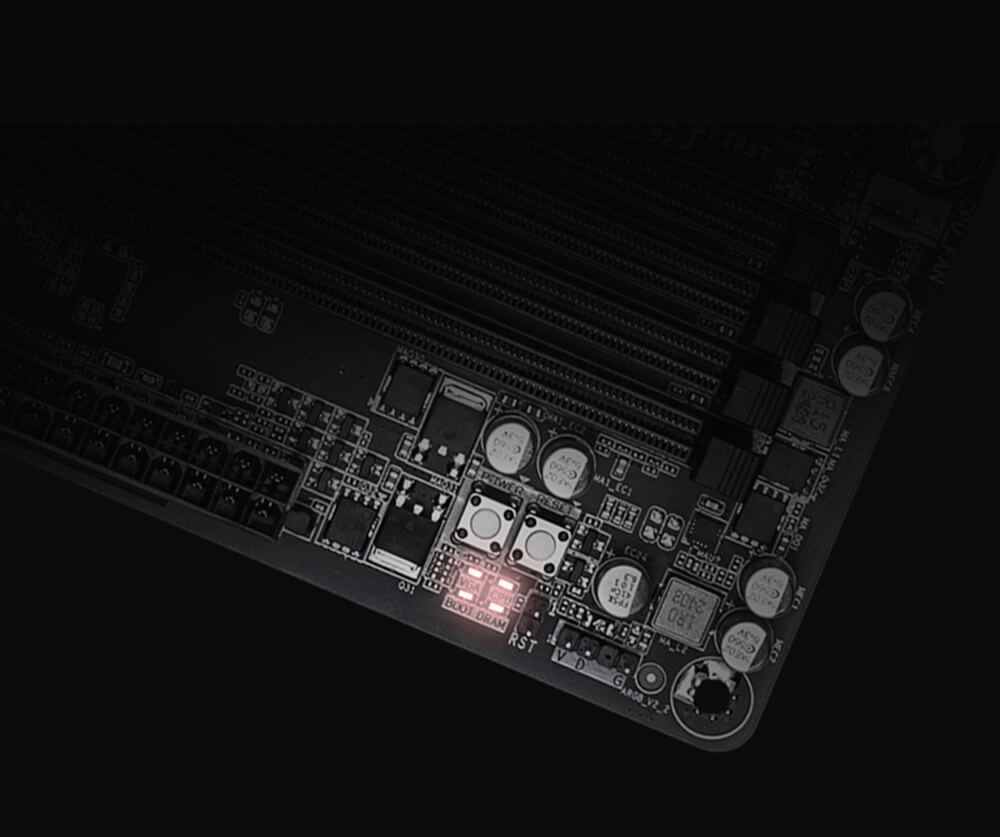

• EZ-Debug Zone

  • Multi-key
  • Power Button

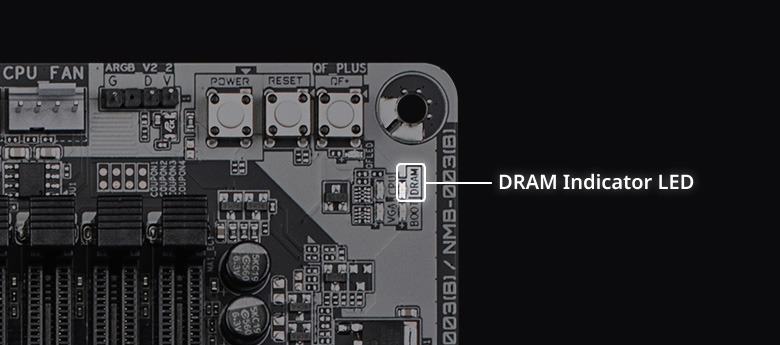

  • Debug LEDs

Key Features

• Supports Intel® Core™ Ultra processors (Series 2)
• Digital twin 12+1+2 phases VRM solution
• D5 Bionic Corsa for Infinite Memory Performance
• AI Perfdrive : Provides optimal and customized BIOS preset profile for users
• Premium Compatibility : 4*DDR5 with XMP Memory Module Support
• PCIe EZ-Latch : PCIe slots with Quick Release & Screwless Design
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• New Power Monitor in  HWinfo for real-time monitoring on CPU power phases
• Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking : 2.5GbE LAN
• Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort
