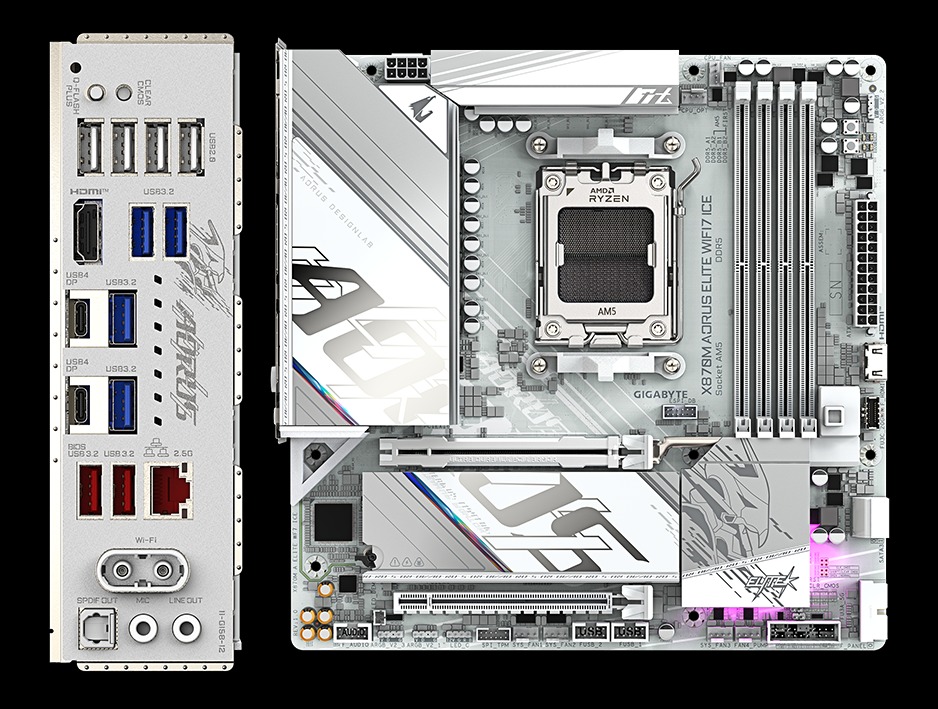

X870M AORUS ELITE WIFI7 ICE

Description

OVERVIEW

Performance :

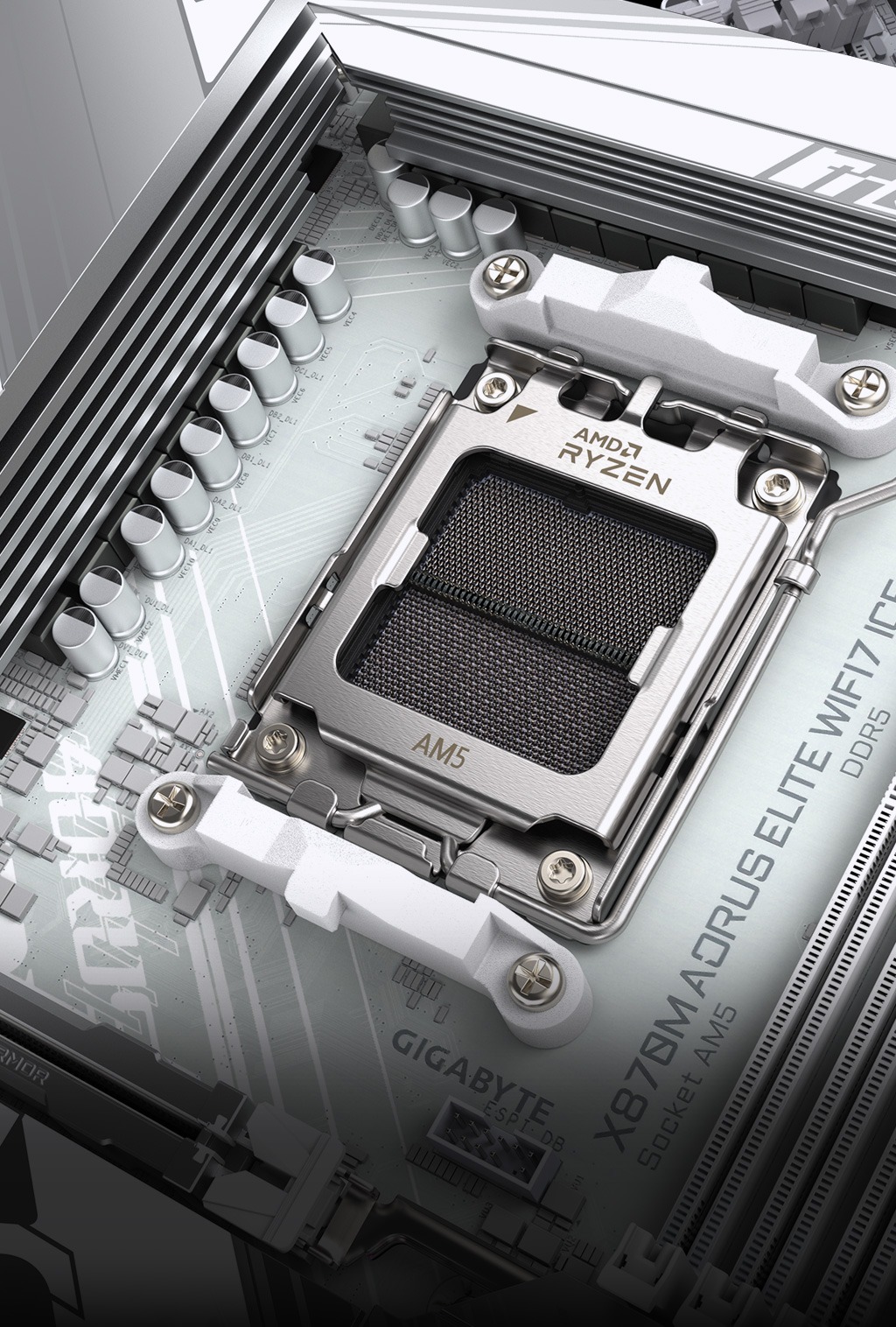

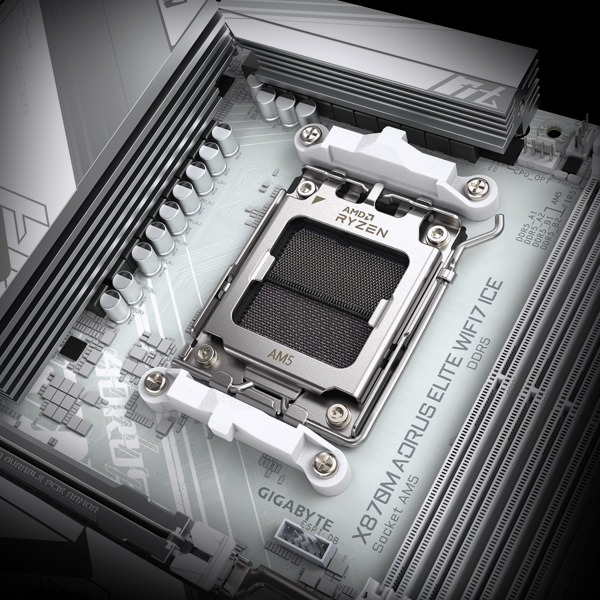

• 14*+2+2 Twin Digital VRM Design

  • 6-Layer PCB
  • Mid-Loss PCB
  • 2X Copper PCB
  • Premium Choke and Capacitor

  * 7+7 phases parallel power design

• Socket AM5 Supports AMD Ryzen™
  Series Processors

• UD Power Connector

  • 24 pin ATX with UD Solid Pin
  • 8 pin CPU with UD Solid Pin

• 4 x DIMMs, Dual Channel DDR5
  with Memory Slot

• 2 x M.2 Slots

  • 1 x PCIe 5.0 M.2 Slot
  • 1 x PCIe 4.0 M.2 Slot

• Full-length PCIe slots

  • 1 x PCIe 5.0 x16 with PCIe UD Slot X
  • 1 x PCIe 4.0 x4

Thermal :

• VRM Thermal Armor Advanced

  • 5 W/mk Thermal Pad
  • Integrated IO Shield

• M.2 Thermal Guard Ext.

• Smart Fan 6

  • Total 6* PWM / DC Fan Headers
  • Dual Fan Curve Mode

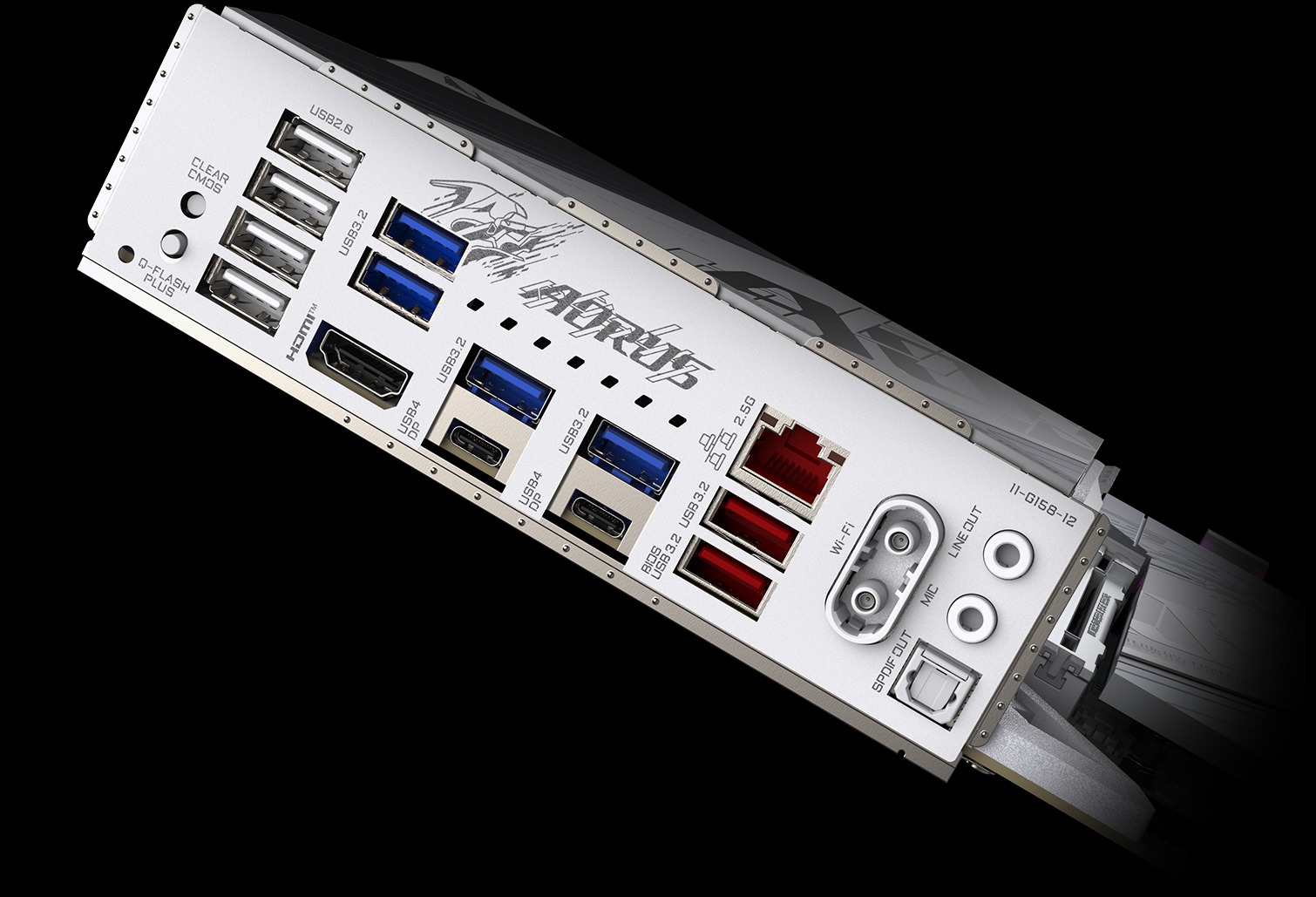

Connectivity :

• 1 x HDMI

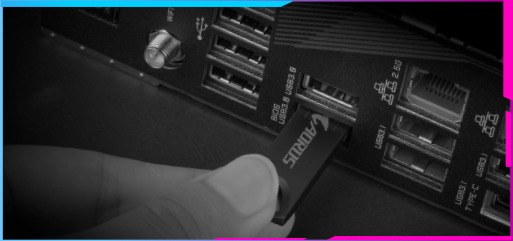

• Q-FLASH PLUS Button

• 4 x USB 2.0

• 2 x USB4 Type-C®

• 4 x USB3.2 Gen 1

• 2 x USB3.2 Gen 2

• 2.5 GbE LAN

• WIFI EZ-Plug

• Wi-Fi 7 with Directional
  Ultra-high gain Antenna

• Sensor Panel Link (HDMI)

• Front USB-C 20Gb/s

• 2 x SATA 6Gb/s

• Hi-Fi Audio.

  • 8-CH HD Audio
  • High-End Audio Capacitor

• RGB FUSION

  • 1 x RGB LED Header
  • 3 x ARGB LED Headers

DIY Friendly :

• WIFI EZ-Plug

• M.2 EZ-Latch Plus
  M.2 EZ-Latch Click

• PCIe EZ-Latch Plus

• EZ-Debug Zone

  • Multi-key
  • Debug LEDs

Key Features

• X3D Turbo Mode：Unleash new era gaming performance

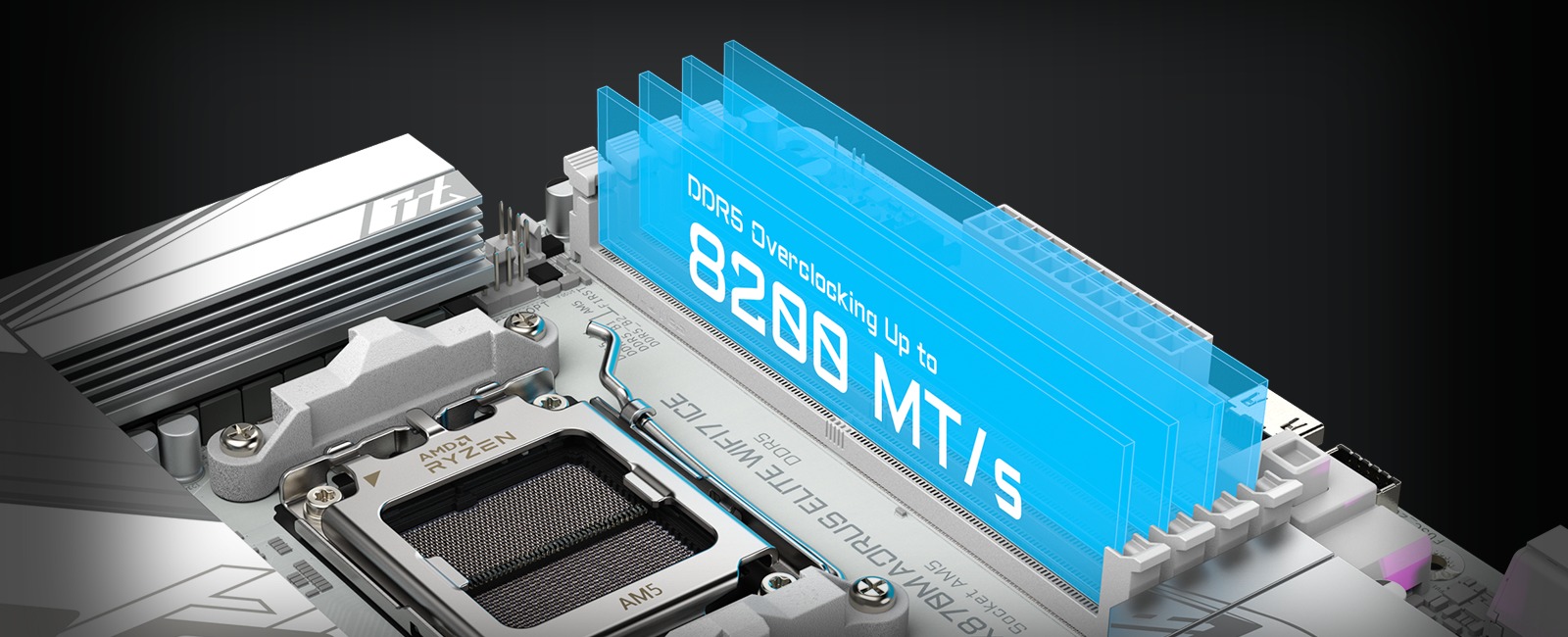

• DDR5 OC up to 8200MT/s
• AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital twin 14+2+2 phases VRM solution
• Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
• WIFI EZ-Plug：Quick and easy design for Wi-Fi antenna installation
• D5 Bionic Corsa for Infinite Memory Performance
• EZ-Latch：PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click：M.2 heatsinks with screwless design
• Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
• Friendly UI：Multi-Theme, AIO Fan Control, and Q-Flash Auto ScaninBIOS and SW
• Ultra-Fast Storage：2*M.2 slots, including PCIe 5.0 x4
• Efficient Thermal：VRM Thermal Armor Advanced& M.2 Thermal Guard Ext.
• Fast Networking：2.5GbE LAN & Wi-Fi 7
• Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI

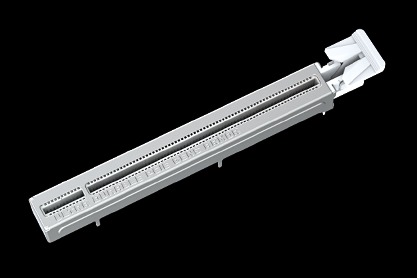

• PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card
