X870E AORUS PRO X3D ICE

Description

OVERVIEW

Performance Front :

• 18*+2+2 Twin Digital VRM Design

  • 8-Layer PCB
  • Low-Loss PCB
  • 2X Copper PCB
  • Premium Choke and Capacitor
  * 9+9 Phases parallel power design

• Socket AM5 Supports
  AMD Ryzen™ Series Processors

• UD Power Connector

  • 8+8 pin CPU with UD Solid Pin
  • 24 pin ATX

• Total 8*PWM/DC Headers

  • Dual Fan Curve Mode

• 4 x DIMMs, Dual Channel DDR5

• 4 x M.2 Slots

  • 2 x PCIe 5.0 M.2 Slots
  • 2 x PCIe 4.0 M.2 Slots

• Full-length PCIe slots

  • 1 x PCIe 5.0 x16 with PCIe UD Slots
  • 1 x PCIe 4.0 x4 slot
  • 1 x PCIe 3.0 x2 slot

• PCIe power connector
  (front QC-USB 65W)

Performance Back :

• PCB Thermal Plate

Thermal :

• VRM Thermal Armor Advanced

  • Superior Direct-touch Heatpipe
  • 12 W/mk Thermal Pad
  • Integrated IO Shield

• M.2 Thermal Guard L

• M.2 EZ-Flex Design
  (Exclusive Patented Design)

• M.2 Thermal Guard Ext.

Connectivity :

• 1 x HDMI

• 5 x USB 3.2 Gen 2

• Dual USB4 Type-C®
  up to 40Gb/s with DP-Alt

• 2 x USB3.2 Gen2 Type-C®

• 5 GbE LAN

• 3 x USB 3.2 Gen 1

• Wi-Fi 7(320Mhz) & Directional
  Ultra-high gain Antenna

• WIFI EZ-Plug

• Front QC-USB 65W

• 4 x SATA 6Gb/s

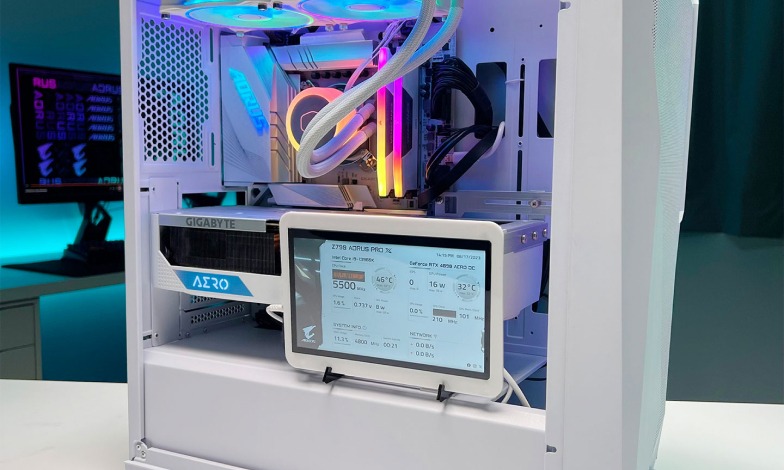

• Sensor Panel Link ( HDMI )

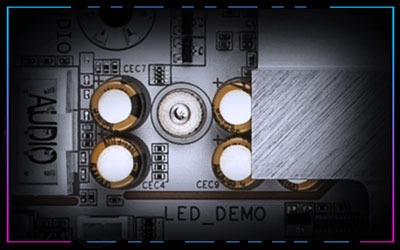

• Hi-Fi Audio

  • 8-CH HD Audio
  • High-End Audio Capacitor

• RGB FUSION

  • 1 x RGB LED Header
  • 3 x ARGB LED Headers

DIY Friendly :

• WIFI EZ-Plug

• M.2 EZ-Latch Click

• M.2 EZ-Latch Plus

• PCIe EZ-Latch Plus

• M.2 EZ-Match

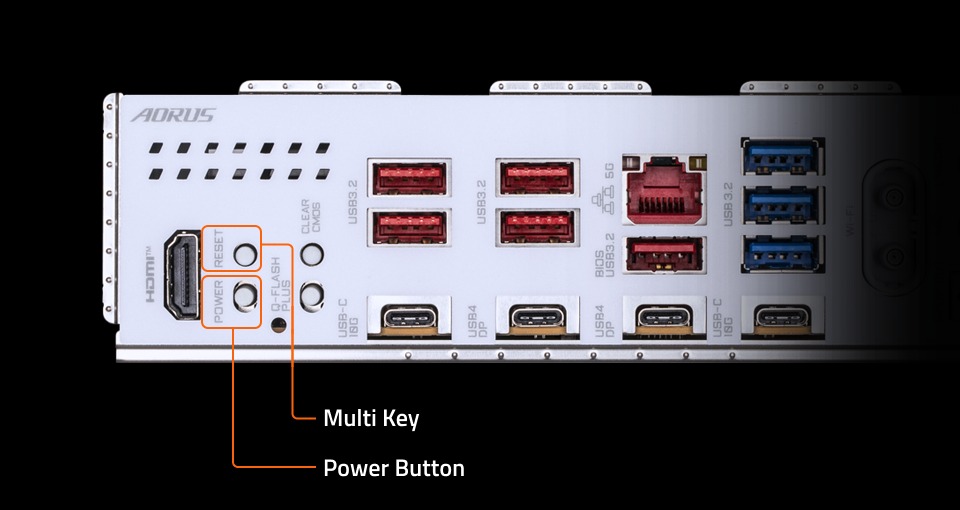

• EZ-Debug Zone

  • Debug LEDs
  • 80 port

• Rear EZ Button

  • Multi-key (Default Reset)
  • Power Button
  • Q-flash Plus button
  • Clear CMOS button

Key Features

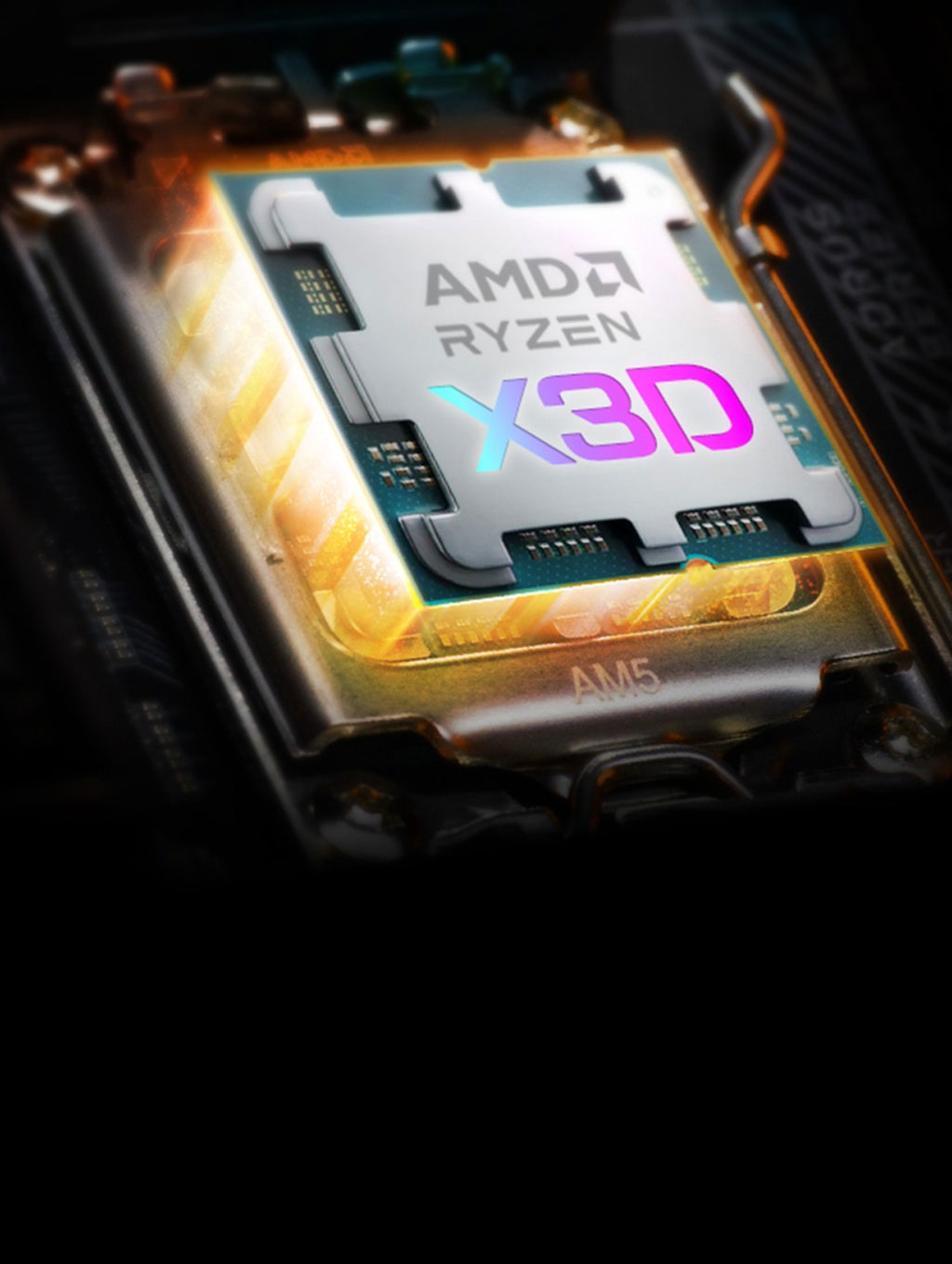

• X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
• DDR5 OC up to 9000MT/s
• DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
• AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital twin 18+2+2 phases VRM solution
• Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
• M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4
• PCB Thermal Plate : 14% thermal improvement and reinforced motherboard stability.
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
• Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W
• PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
