X870 GAMING WIFI6

Description

OVERVIEW

Performance :

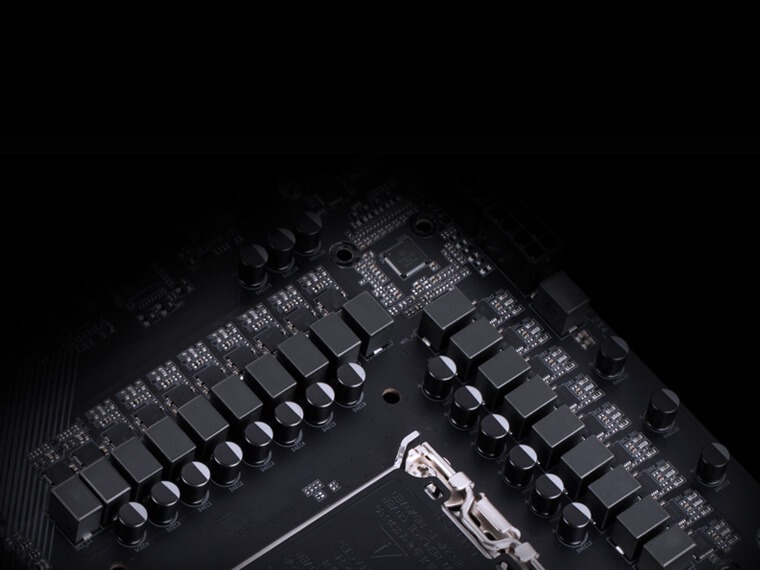

• Dual digital VRM design 8*+2+2

  • 6-layer printed circuit board
  • Medium-loss PCBs
  • 2x Copper PCB
  • Premium quality coil and capacitor
  *Design of a 4+4 phase parallel power supply

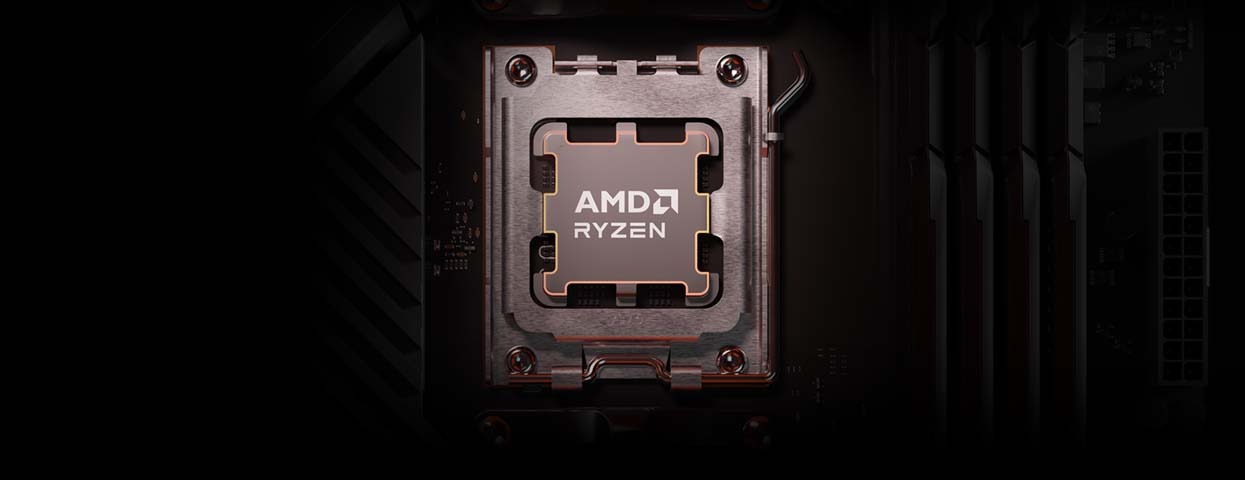

• The AM5 socket supports AMD Ryzen™
  Series processors

• UD power connector

  • 24-pin ATX power connector
  • CPU 8+4 pin with UD Solid Pin

• 4 x DIMM, Dual Channel DDR5

• 3 M.2 slots

  • 1 x PCIe 5.0 M.2 UD Slot
  • 2 x PCIe 4.0 M.2 Slots

• Full-length PCIe slots

  • 1 x PCIe 5.0 x16 with PCIe UD slot
  • 2 PCIe 3.0 x1 slots

Thermal :

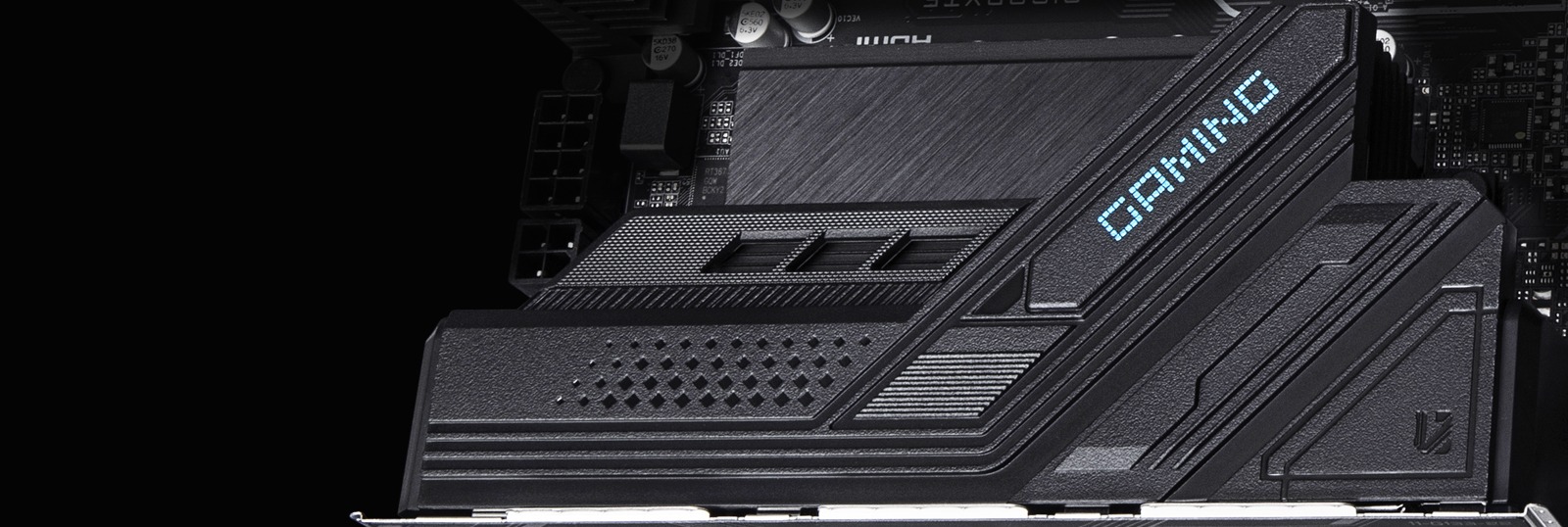

• VRM Thermal Armor Advanced

  • Fully covered MOSFET heat sinks
  • 5 W/mK Thermal cushion
  • Integrated I/O shield

• M.2 Thermal protection

• Smart Fan 6

  • Total of 6 PWM/DC fan connectors
  • Two fan curve modes

Connectivity :

• Q-FLASH PLUS Button

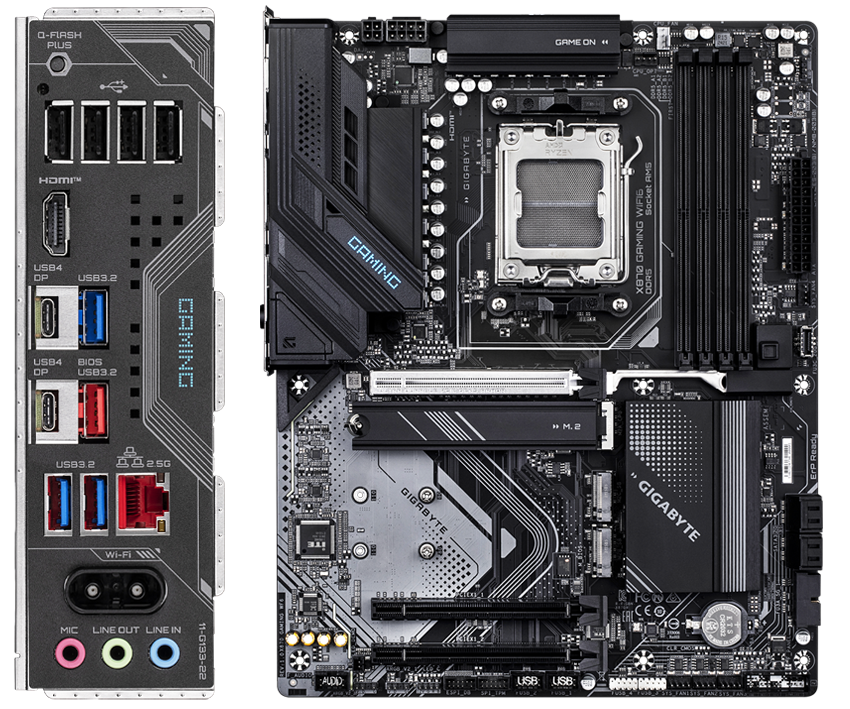

• 4 x USB 2.0

• 1 x HDMI

• Dual USB4 Type-C® up to
  40Gb/s with DP-Alt

• 1 x USB 3.2 Gen 2

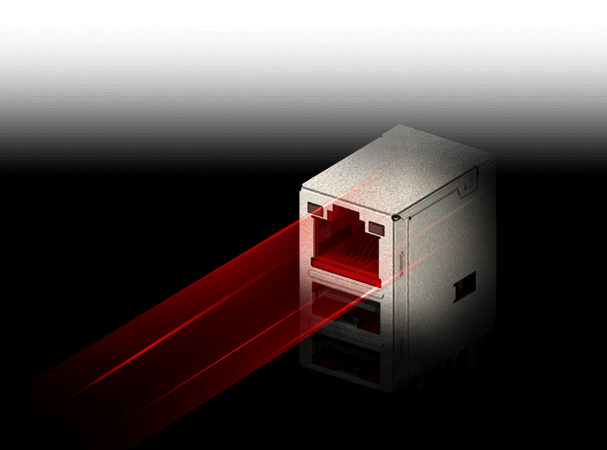

• 2.5 GbE Local Area Network

• 3 x USB 3.2 Gen 1

• Wi-Fi 6 802.11ax

• WIFI EZ-Plug

• USB-C 20Gb/s on the front

• 4 x SATA 6Gb/s

• Hi-Fi Audio

  • 8-CH HD Audio
  • High-end audio capacitor

• FUSION RGB

  • 3 x addressable LEDs
  • 1 x RGB LED Connector

DIY Friendly :

• WIFI EZ-Plug

• M.2 EZ-Latch Plus
  M.2 EZ-Latch Click

• EZ-Latch removal angle

• PCIe EZ-Latch Plus

• EZ Debug Zone

  • debugging LED

Key Features

• AMD Socket AM5：Compatible with AMD Ryzen™ 9000 / 8000 / 7000 Series processors
• Dual digital VRM solution 8+2+2 phases
• Dual-channel DDR5: 4*DIMMs with AMD EXPO™ Memory Module Support
• WIFI EZ-Plug: Quick and easy design for installing a Wi-Fi antenna
• EZ-Latch Plus: PCIe and M.2 slots with quick release & screwless design
• EZ-Latch Click Heat Sinks: M.2 with screwless design
• User-friendly interface: Multi-theme, AIO fan control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-fast storage: 3*M.2 slots, including 1*PCIe 5.0 x4
• Effective thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast networking: 2.5GbE LAN & Wi-Fi 6 802.11ax
• Extended connectivity: Dual USB4 Type-C with DP-Alt, HDMI
