Description
OVERVIEW
Performance Front:
Performance Back:
-

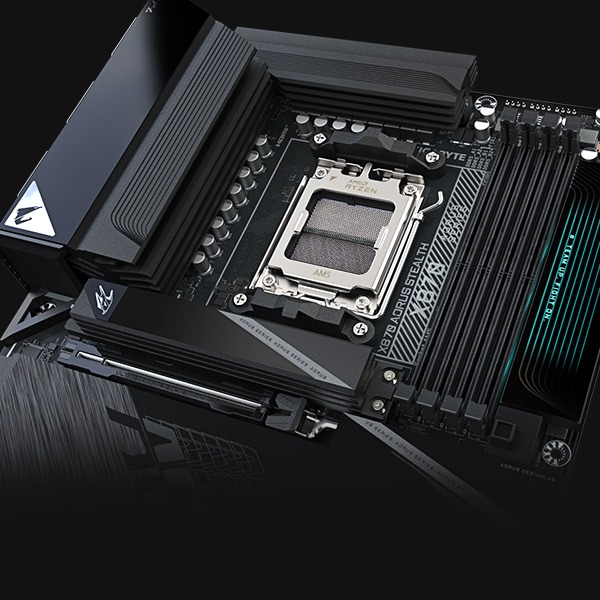

16*+2+2 Twin Digital VRM Design
- 6-Layer PCB
- Mid-Loss PCB
- 2X Copper PCB
- Premium Choke and Capacitor
*8+8 phases parallel power design -
Full-length PCIe slots
- 1 x PCIe 5.0 x16 with PCIe UD Slot
- 1 x PCIe 4.0 x4
-
Socket AM5 Supports AMD Ryzen™ Series Processors
-
4 x DIMMs, Dual Channel DDR5
-
4 x M.2 Slots
- 2 x PCIe 5.0 M.2 Slots
- 2 x PCIe 4.0 M.2 Slots
Thermal :
-
VRM Thermal Armor Advanced
- Superior Heatpipe
- 7 W/mk Thermal Pad
- Integrated IO Shield
-
M.2 Thermal Guard L
-
M.2 EZ-Flex Design
(Exclusive Patented Design) -
M.2 Thermal Guard Ext.
Connectivity :
-
4 x USB 3.2 Gen 1
-
1 x HDMI
-
4 x USB 2.0
-
2* USB4 Type-C®
up to 40Gb/s with DP-Alt -
2 x USB 3.2 Gen 2
-
USB3.2 Gen2 Type-C
-
5 GbE LAN
-
Wi-Fi 7(320Mhz) & Directional
Ultra-high gain Antenna -
WIFI EZ-Plug
-
Hi-Fi Audio.
8-CH HD Audio.
High-End Audio Capacitor
DIY Friendly :
-
WIFI EZ-Plug
-
M.2 EZ-Latch Plus
M.2 EZ-Latch Click -

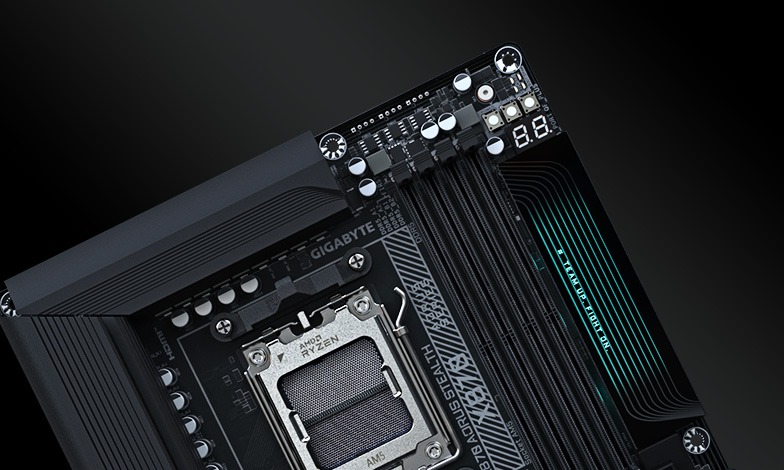

EZ-Debug Zone
- Multi-key
- Debug LEDs
- Power Button
- 80 port
-
PCIe EZ-Latch Plus
Key Features

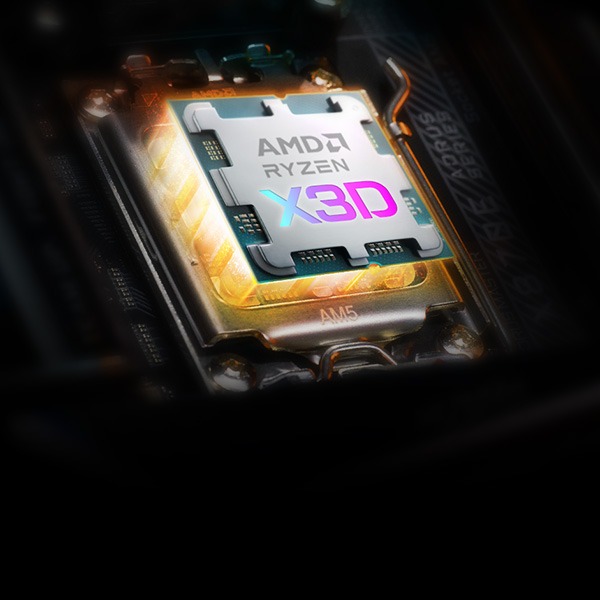

- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- M.2 EZ-Flex : high-efficiency heat dissipation & flexible baseplate for M.2 SSD
(Exclusive Patented Design) - WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
- Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt
- PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
- UD Base Plate : Experience the protection and heat dissipation with the UD Base Plate.
