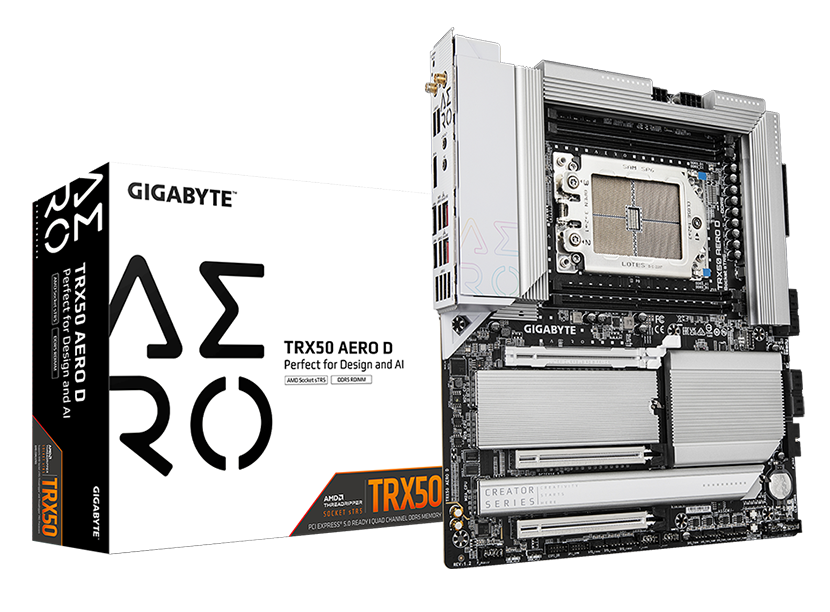

TRX50 AERO D (rev.1.2)

Description

OVERVIEW

Performance :

• 16+8+4 Phases Digital VRM

  • 108A Smart Power Stage
  • 12 Layer PCB
  • PCIe 5.0 Ready Low Loss PCB
  • 2X Copper PCB

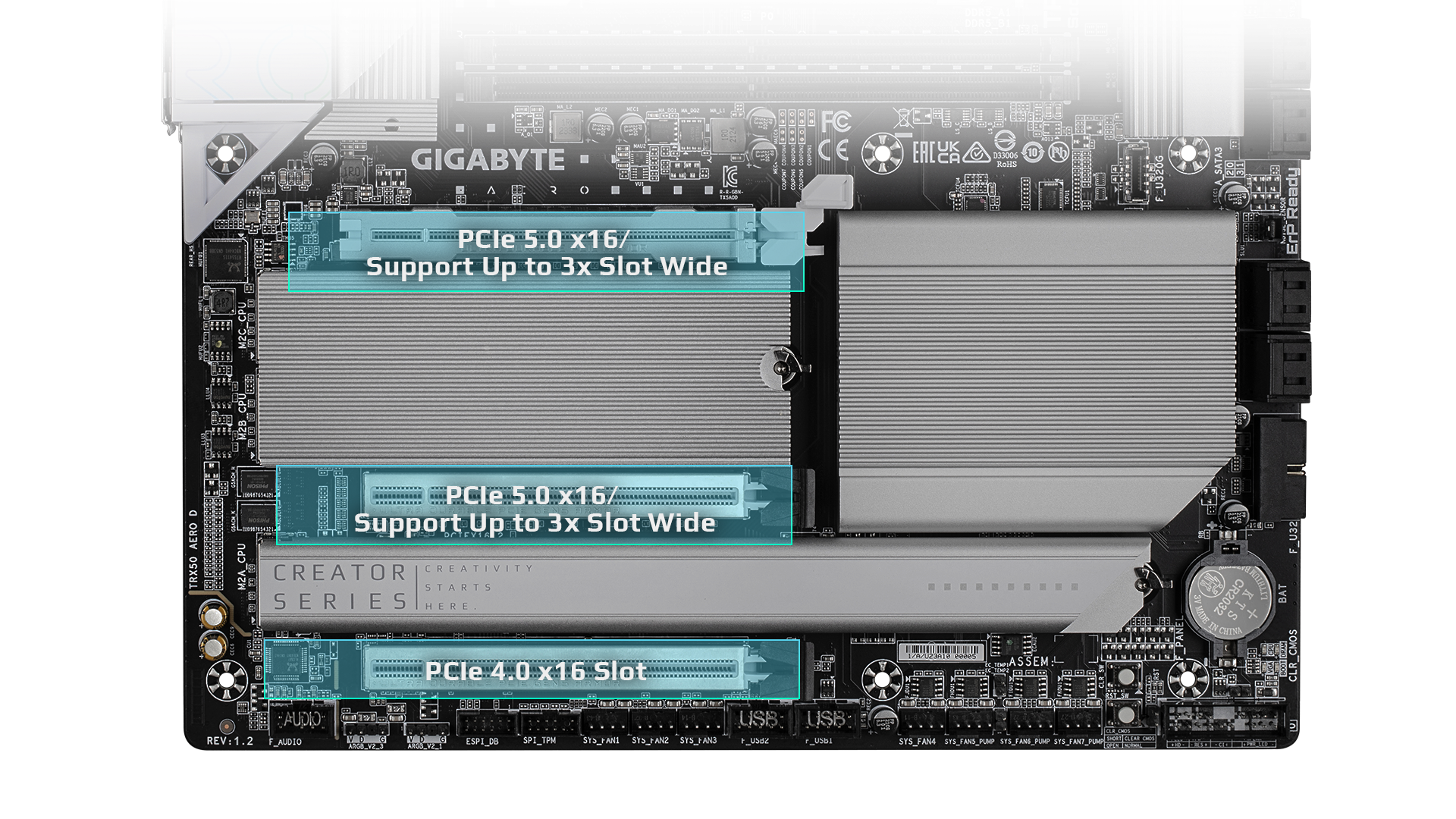

• Full-length PCIe slots

  • 1 x PCIe 5.0 x16 with PCIe UD Slot X
  • 1 x PCIe 5.0 x16 Slot
  • 1 x PCIe 4.0 x16 Slot

• UD Power Connector

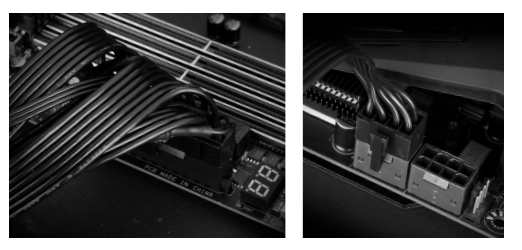

  • 24 pin ATX with UD Solid Pin
  • 8+8 pin CPU with UD Solid Pin

• 4 x DDR5 R-DIMMs, Quad Channel with Memory UD Slot

• Supports AMD Ryzen™ Threadripper™ PRO 7000 series/ Ryzen™ Threadripper™ 7000 series Processors

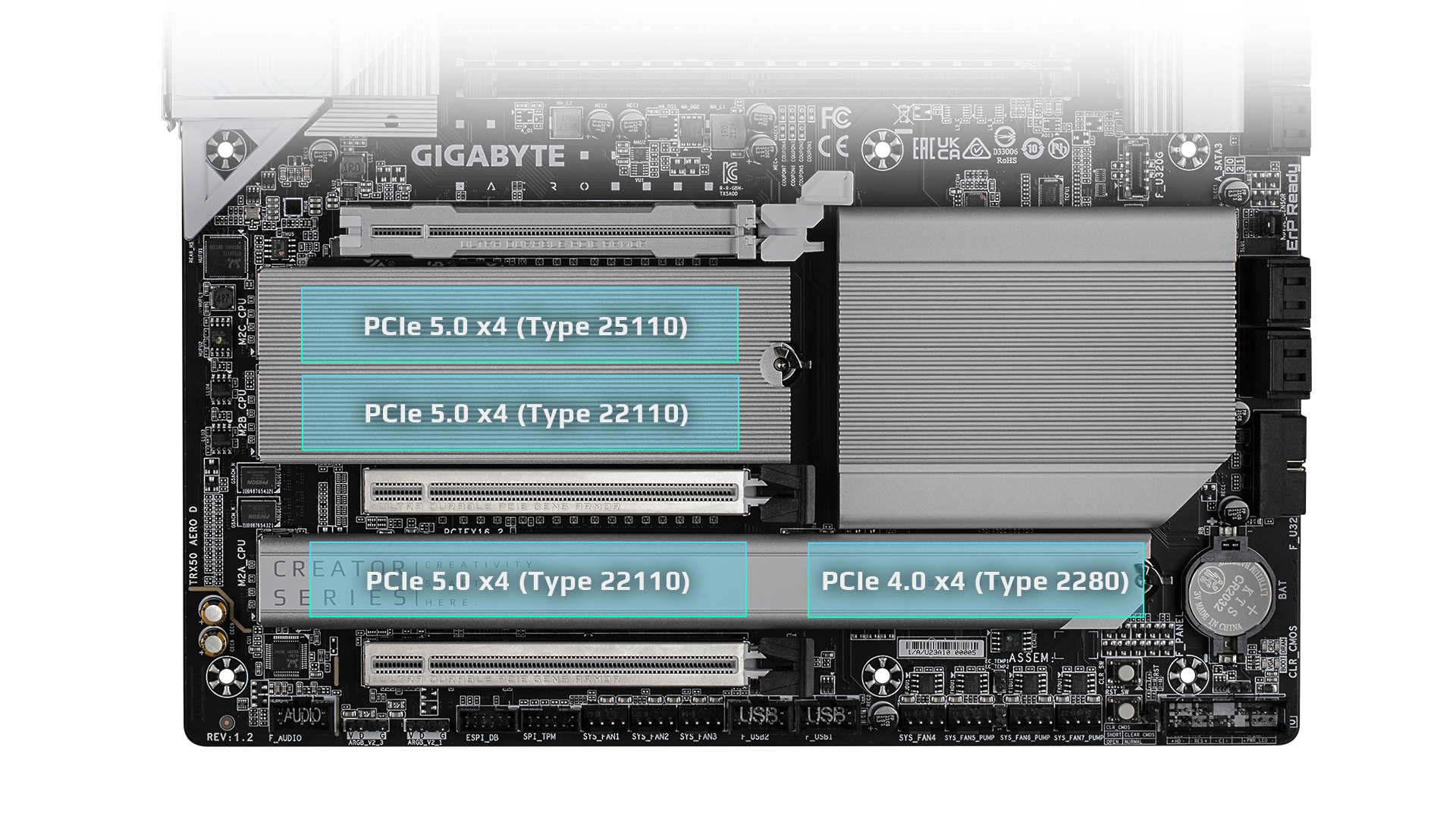

• 4 x M.2 Slots with Thermal Guard

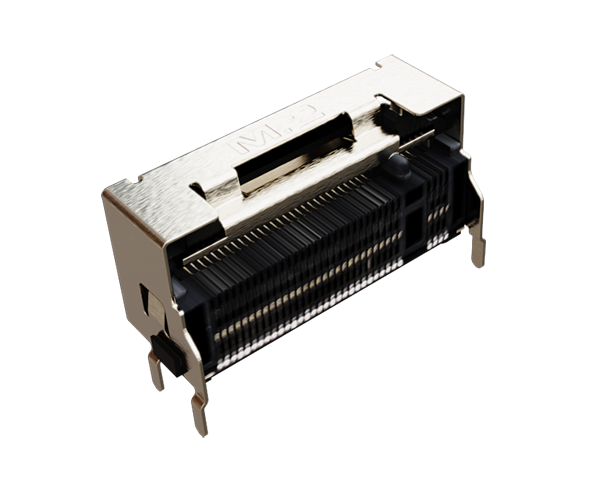

  • 3 x M.2 Gen 5 M.2 UD Slots
  • 1 x M.2 Gen 4 M.2 Slot

Thermal :

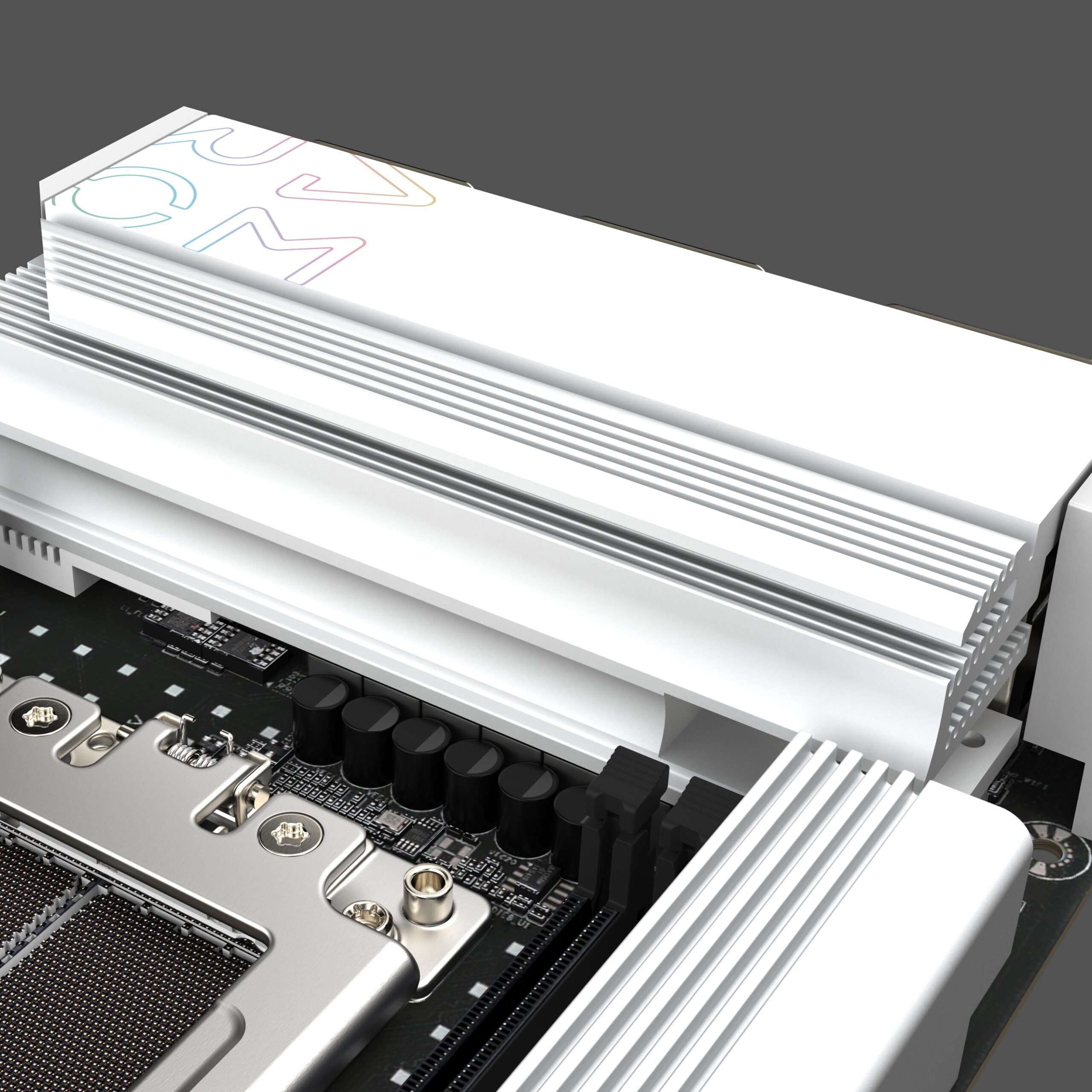

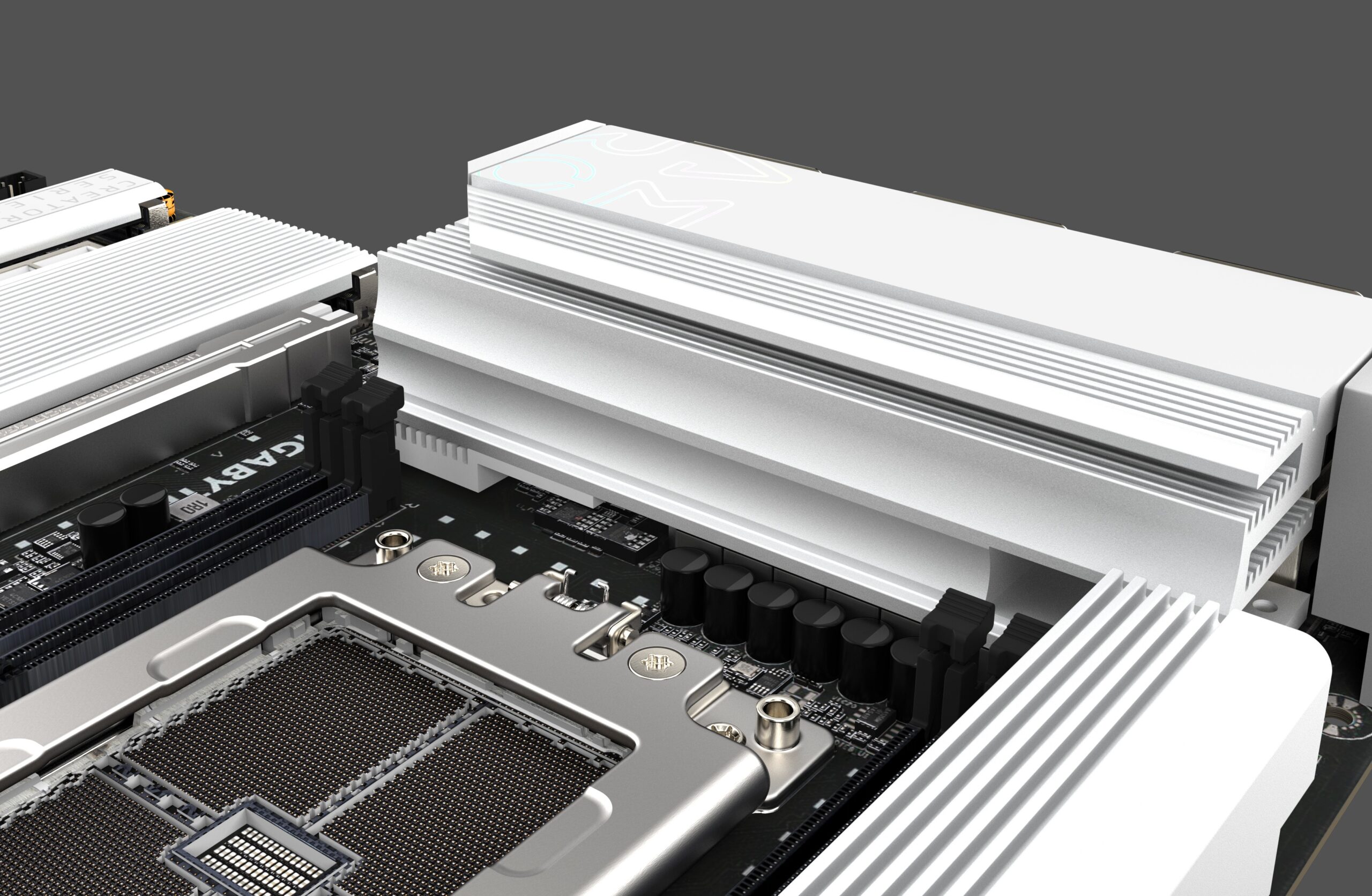

• VRM Thermal Armor Advanced

  • 8 mm Heatpipe
  • 7 W/mk Thermal Pad
  • Integrated IO Shield

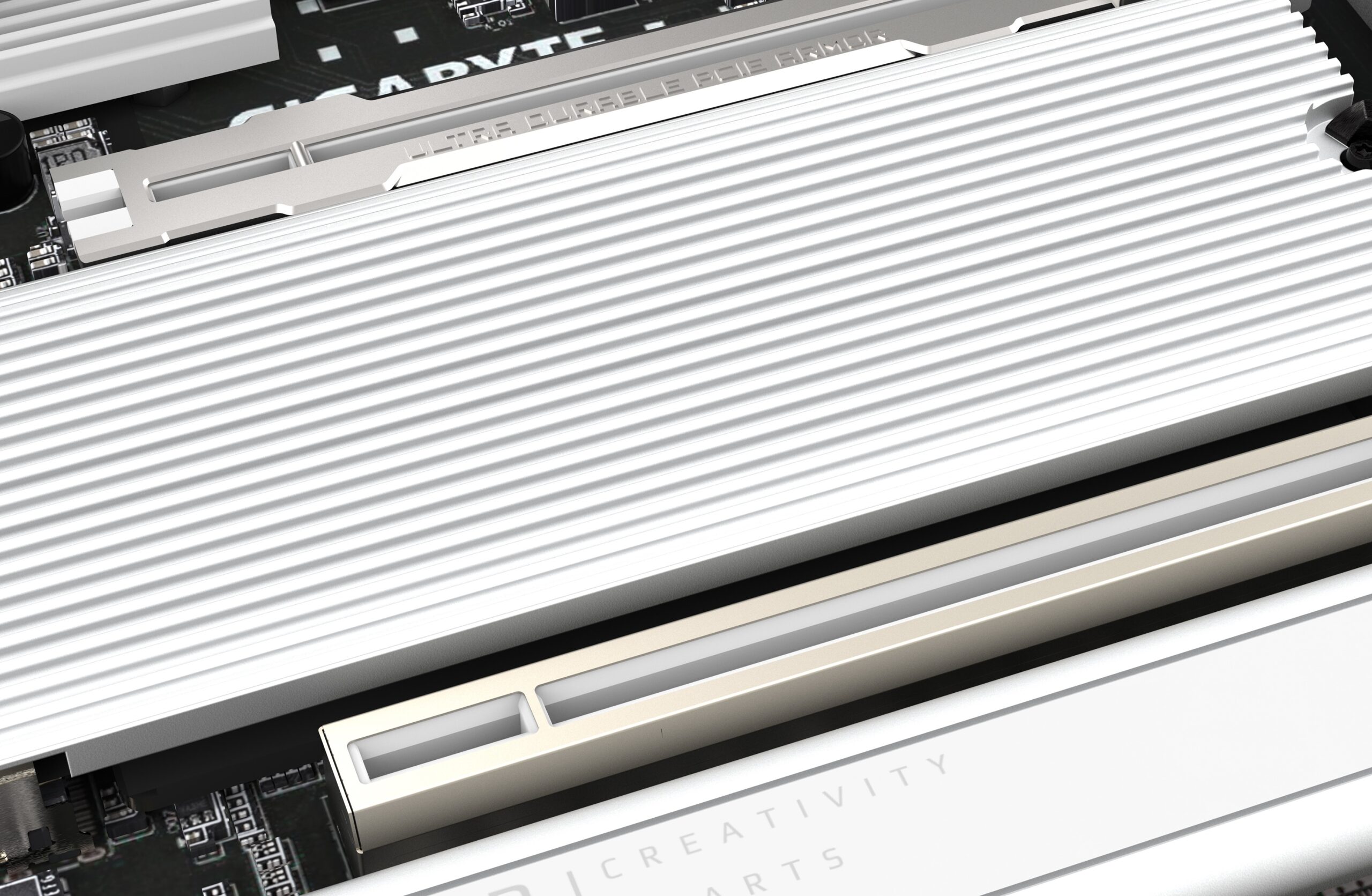

• M.2 Thermal Guard

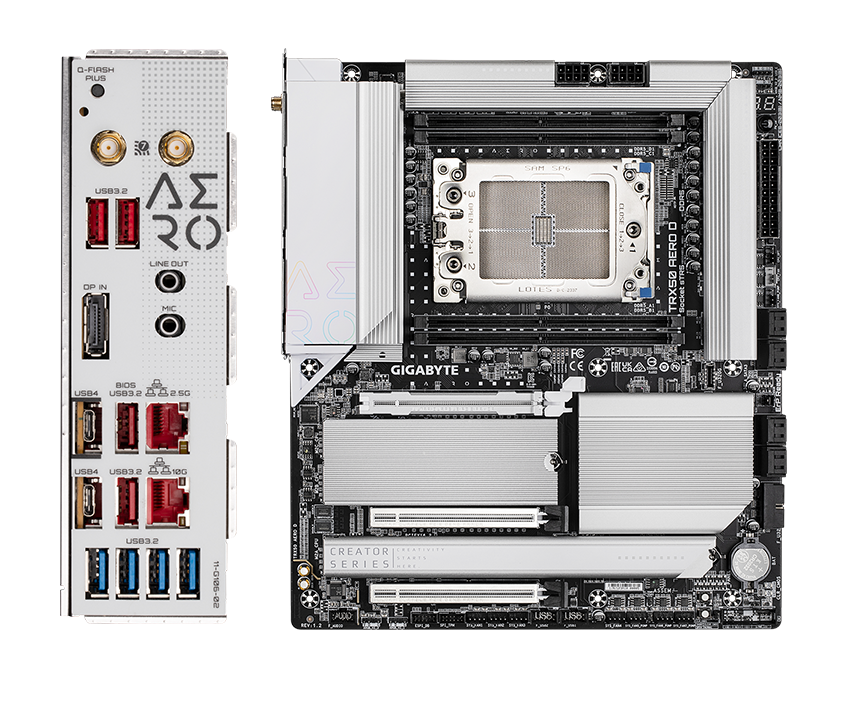

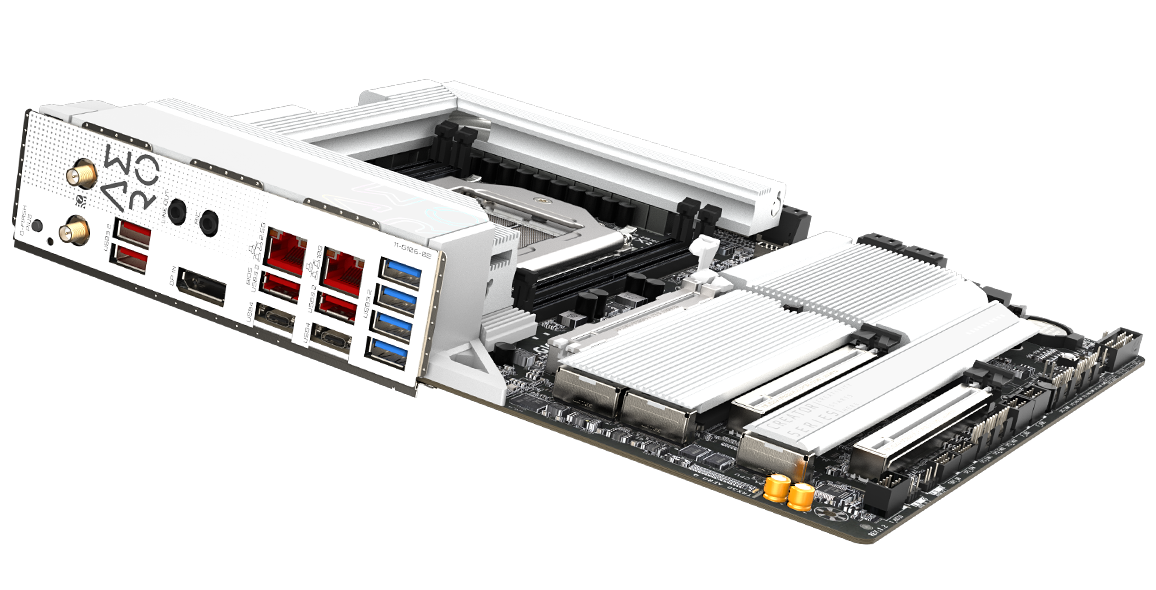

Connectivity :

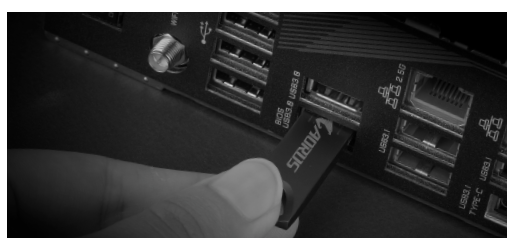

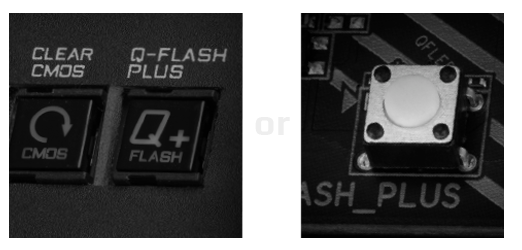

• Q-FLASH Plus button

• Wi-Fi 7 with Ultra-high gain Antenna

• 4 x USB 3.2 Gen 2

• DisplayPort Input

• 2.5 GbE LAN

• USB4® USB Type-C®
  (DisplayPort Output)

• USB4® USB Type-C®

• 10 GbE LAN

• 4 x USB 3.2 Gen 1

• RGB Fusion

  • 3 x Addressable LED Header
  • 1 x RGB LED Header

• Front USB-C® 20Gb/s

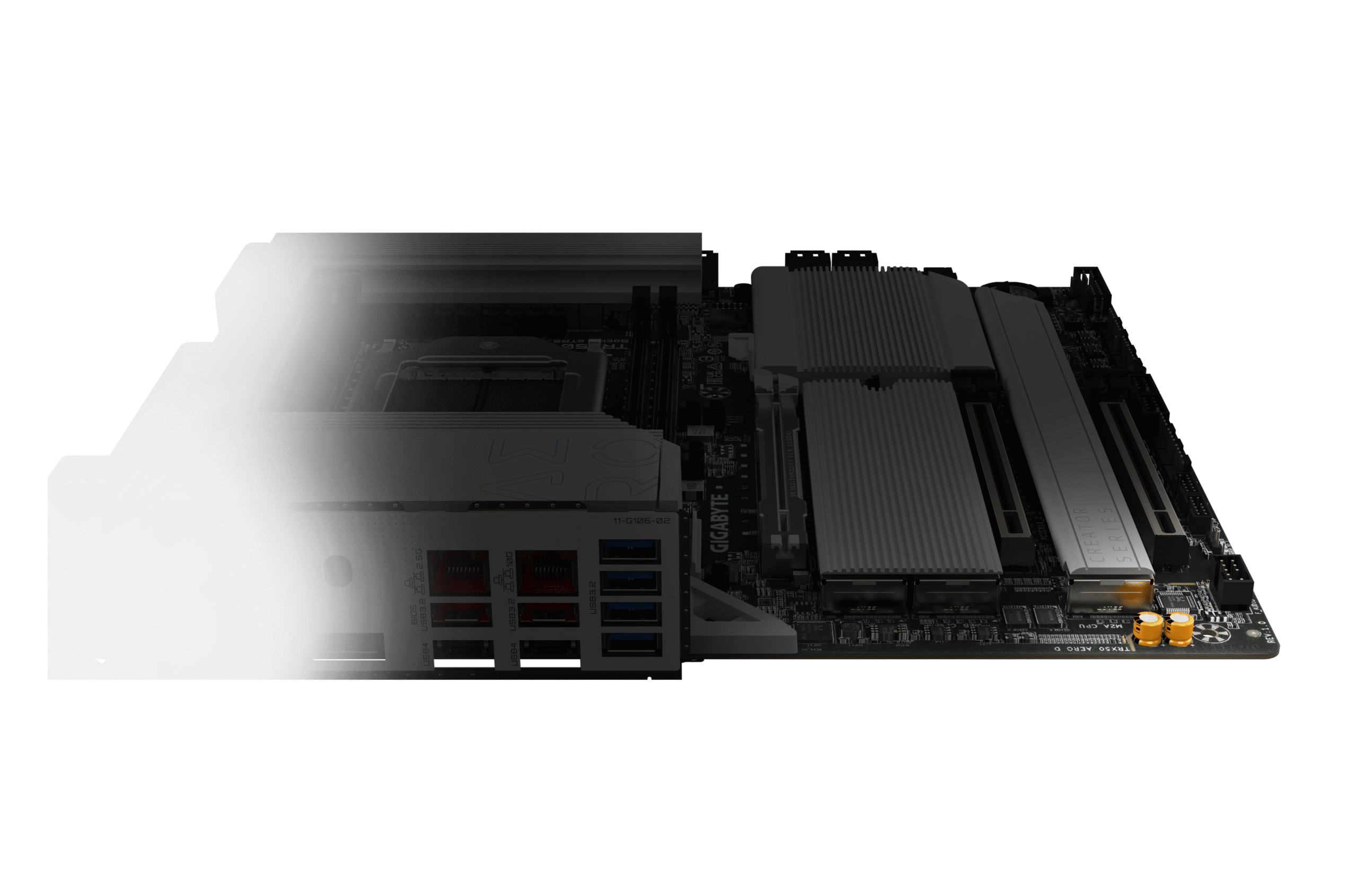

• Experience enchanting audio thrill

  • Realtek ALC4080 + ALC897
  • Audiophile Grade Capacitors

DIY Friendly :

• M.2 EZ-Latch Click &
  M.2 EZ-Latch Plus

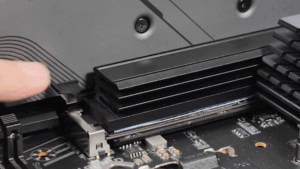

• PCIe EZ-Latch

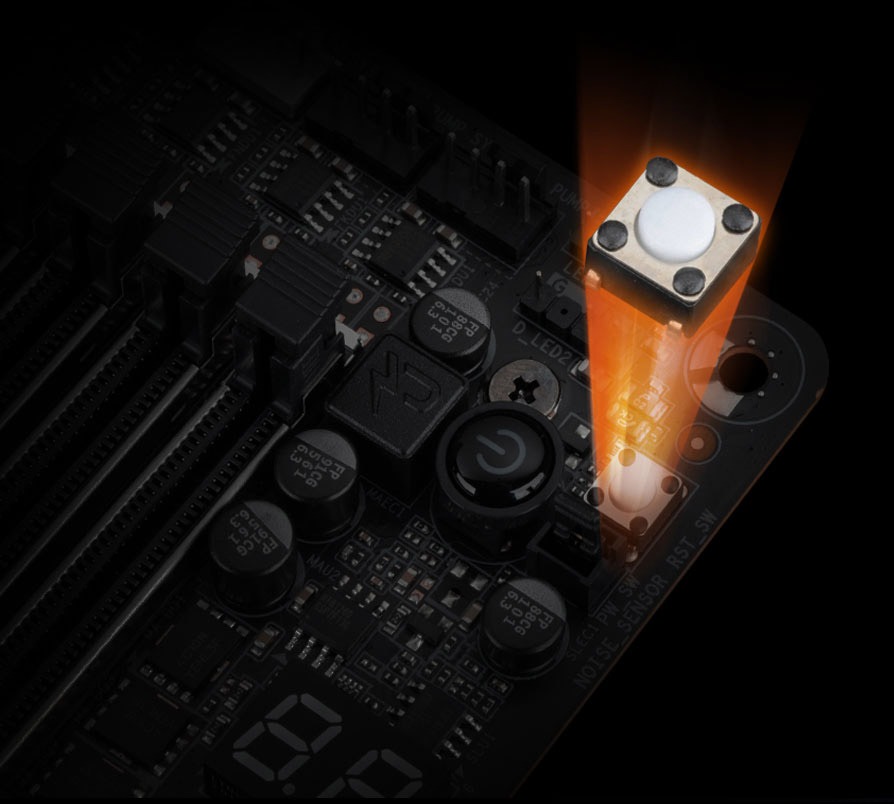

• Multi-Key Button

Key Features

• Supports AMD Ryzen™ Threadripper™ PRO 7000 series/ Ryzen™ Threadripper™ 7000 series Processors​
• Breakthrough Performance：16+8+4 Phases Digital VRM Solution
• Quad Channel DDR5：4*SMD R-DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
• Reinforced Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard

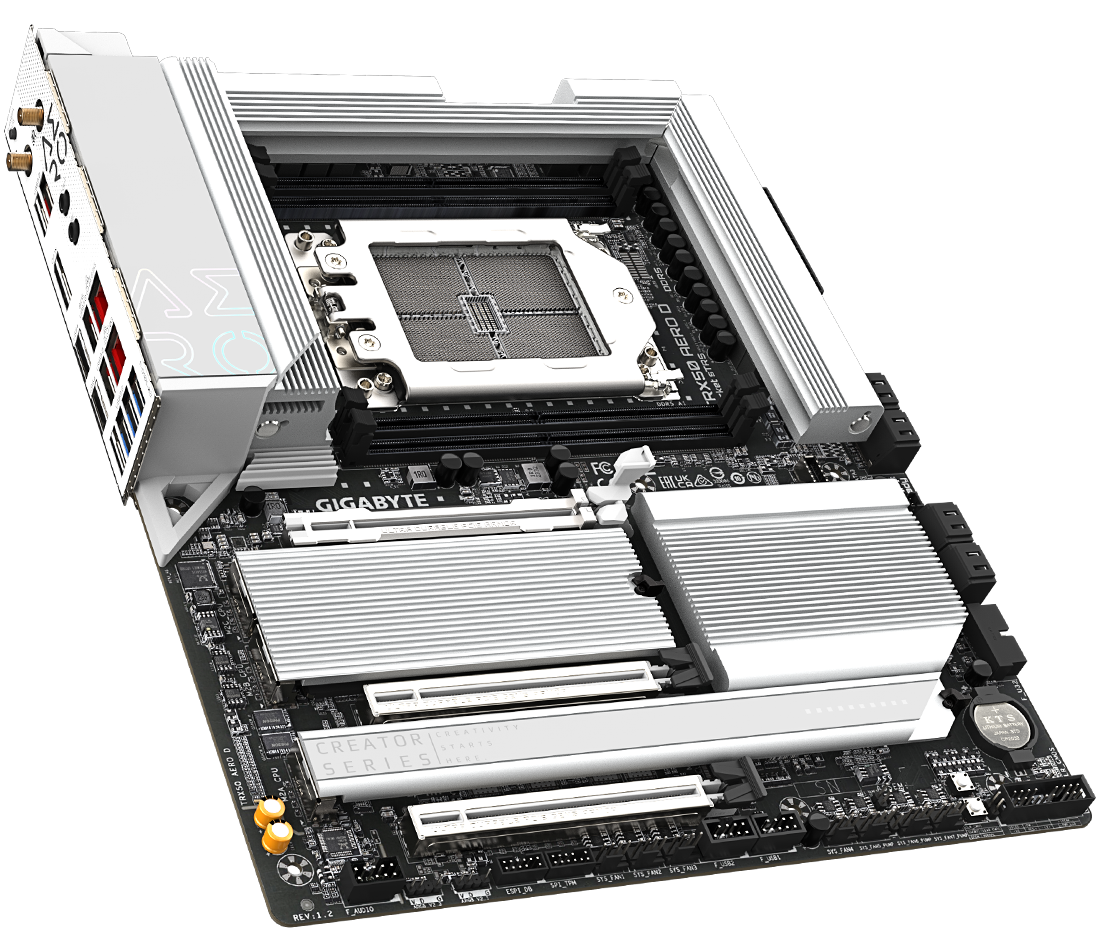

• Ultimate Scalability: 3*PCIe x16 slots for Multi-GPU and 4*PCIe x4 M.2 slots
• Next-gen Connectivity: Dual USB4® Type-C ports
• Blazing Fast Networks: 10GbE + 2.5 GbE Dual LAN and Wi-Fi 7

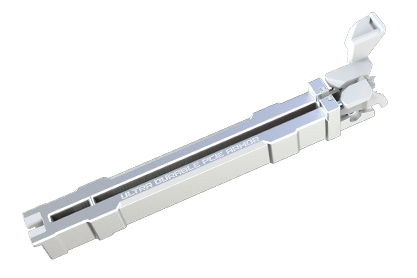

• PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card

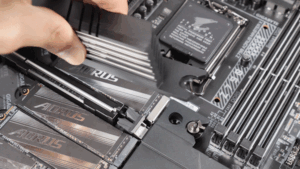

• EZ-Latch Click：M.2 heatsinks with screwless design

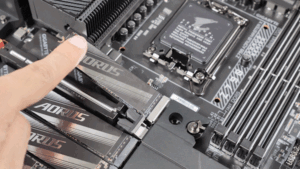

• EZ-Latch Plus：M.2 slots with quick release design
• Hi-Fi Audio with DTS:X® Ultra：ALC4080+ALC897 CODEC
• UC BIOS：User-Centred intuitive UX with Quick Access function
