Description
GPU Server Systems
Unrivaled GPU Systems: Deep Learning-Optimized Servers for the Modern Data Center
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
AS8125GSTNHR
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
A+ Server
Product Model
8125GS-TNHR
Product Name

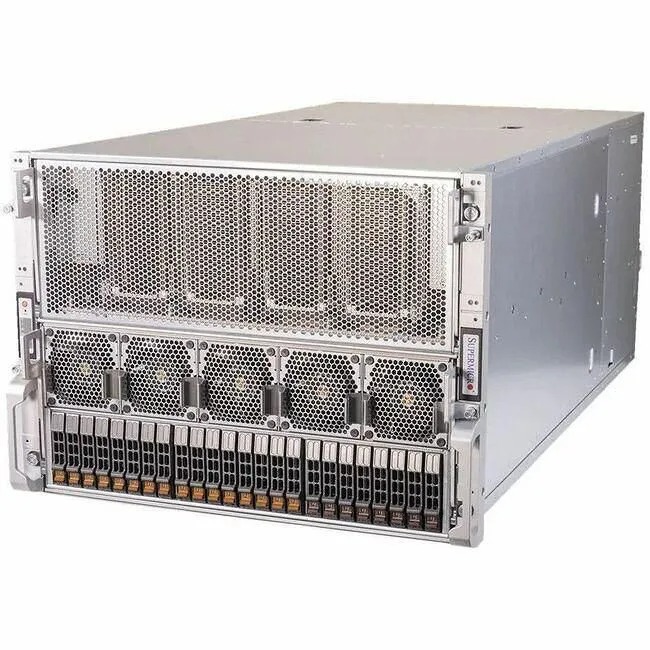

GPU A+ Server AS -8125GS-TNHR (Complete System Only)
Product Type
Server Barebone System
Processor
Number Of Processors Supported
2
Processor Socket
Socket SP5 LGA-6096
Processor Supported
EPYC
64-Bit Processing
Yes
Chipset
Chipset Manufacturer
AMD
Memory
Maximum Memory Supported
6 TB
Memory Technology
DDR5 SDRAM
Memory Standard
DDR5-4800/PC5-38400
Total Number Of Memory Slots
24
Storage
Supported Storage Drive Interfaces
Serial ATA III
Supported Storage Drive Types
- HDD
- SSD
Controllers
Controller Type
- Serial ATA/600
- NVMe
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number Of Total Expansion Bays
18
Total Number Of Expansion Slots
10
Number Of PCI Express X16 Slots
10
Number Of M.2 Interfaces
1
Interfaces/Ports
Network (RJ-45)
Yes
Number Of VGA Ports
1
Power Description
Plug/Connector Type
C19 to IEC 320-C20
Number Of Power Supplies Installed
6
Maximum Power Supply Wattage
3000 W
Physical Characteristics
Color Family
Dual Color
Product Color
- Black
- Silver
Form Factor
Rack-mountable
Rack Height
8U
Height
14″
Width
17.2″
Depth
33.2″
Weight (Approximate)
166.01 lb
Miscellaneous
Package Contents
- GPU A+ Server AS -8125GS-TNHR (Complete System Only)
- 1 x Super H13DSG-O-CPU-D Motherboard
- 1 x 8U Chassis
- 2 x FAN board with 5 FAN connectors and 4 2×4 power connect
- 1 x NIC card carrier board for Delta-Next GPU system,RoHS
- 1 x PCIE Gen5 switch board for 4U 8 SXM5 GPU system,RoHS
- 1 x IO board for Delta-Next GPU system,RoHS
- 1 x NIC Riser board(After Mid-Plane) for Delta-Next GPU Syst
- 1 x NIC adaptor board with PLX switch for Delta-Next GPU sys
- 1 x Delta Next IO module, VGA, RJ45 LAN, USB3.0, COM, UID,Ro
- 1 x Midplane for 8U Delta-Next GPU system SYS-821GE-TNHR (chassis CSE-GP801).,RoHS
- 1 x NVMe Gen5 24-slot direct-attached backplane, support NVMe Gen5/SAS4/SAS3/SATA HDD/SSDs.,RoHS
- 2 x Power distribution board (extension board) used in Habana Gaudi2 GPU system,RoHS
- 6 x BLADE PWS POWER CORD C-19 TO C-20, PBF
- 2 x PicoBlade 1.25, 1×4 to 1×4,SB,45cm,3x 26AWG,RoHS
- 1 x [NR] Picoclasp SB,NCSI,2×10 to 2×10,60cm,28AWG,1A/p,RoHS
- 1 x 2 MCIO (x8 to x8), STR, FFC, 32cm, RoHS
- 4 x MCIO x8 (STR to STR),55CM,30AWG,RoHS
- 4 x MCIOx8/ STR to MCIOx8/ STR, 65cm,30AWG,RoHS
- 16 x MCIO (x8 to x8), STR, 30cm,G5,32AWG, RoHS,RoHS
- 1 x MiniFit,2×2,PH4.2,F to MiniFit,2×2,PH4.2,F,40CM,8A/pin,
- 1 x MicroHi,(2×4 to 2×4),PH3.0,40CM,8A/pin,18AWG,RoHS
- 3 x MicroHi,(2X4 to 2X4) P3.0,60CM,8A/pin,18AWG,RoHS
- 1 x Slimline x4 (STR) to Slimline x4 (STR),42.5CM,100 OHM,R
- 1 x Slimline x4 (STR) to Slimline x4 (STR) x4,INT 66CM,100
- 1 x [NR] GenZ 2C+2 mount holes to SlimSAS x8,21cm,31AWG,RoHS
- 5 x 80x80x80 mm, 12K-11.3K RPM Counter-rotating Fan for GP801,Ro
- 5 x 80x80x80mm, 48V 14.6K/12.2K RPM Counter-rotator, rear fan, c
- 5 x Black gen-3 hot-swap 2.5″; Tool-less HDD tray (clip design)
- 6 x AC-DC 3000W, Titanium efficiency, DC output: 54Vdc/45A
- 2 x 8080 FAN module use with PWS-3K06G-2R
- 1 x License key for enabling OOB BIOS management
- 2 x 4U Active CPU Heat Sink for AMD Socket SP5 Processors
