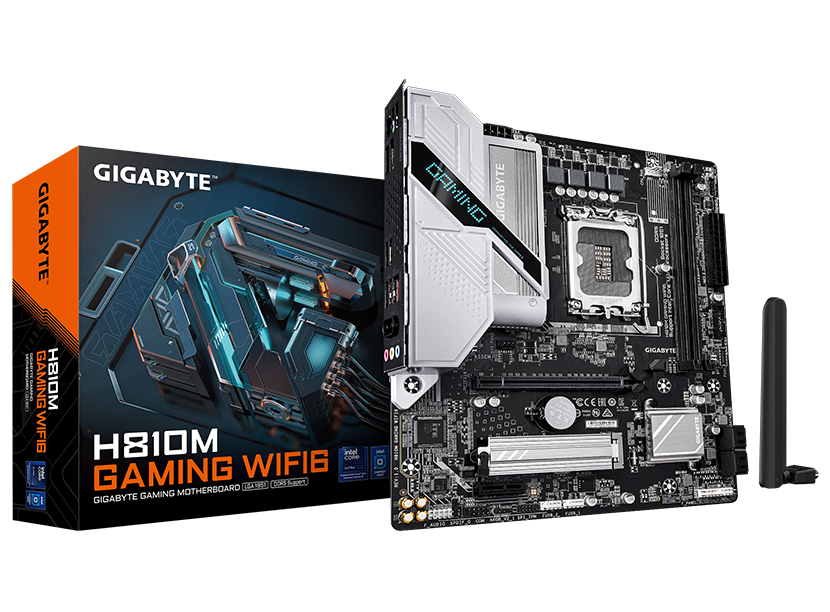

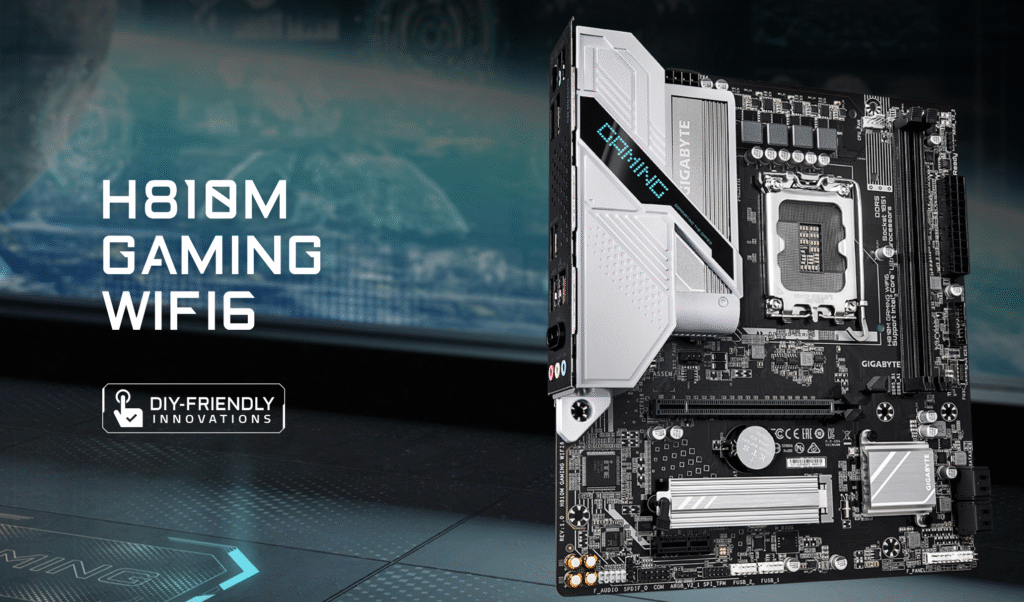

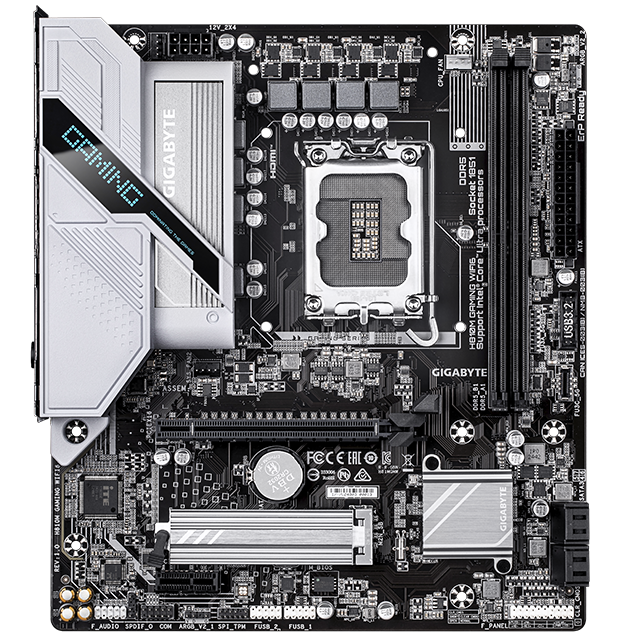

H810M GAMING WIFI6

Description

OVERVIEW

Performance :

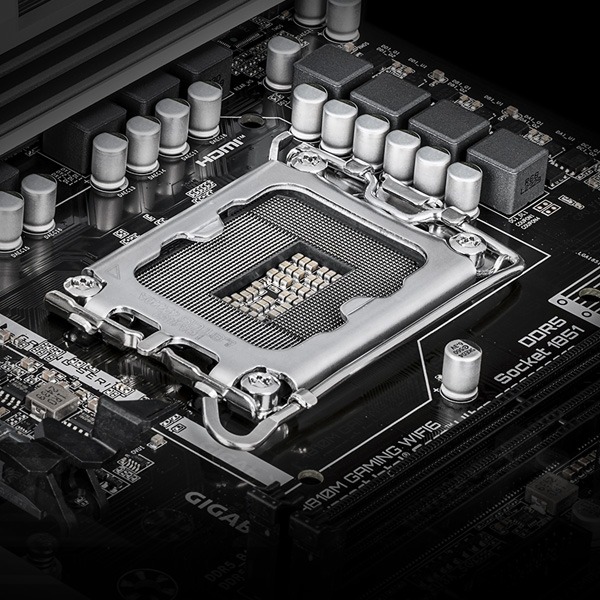

• Intel® Core Ultra processors (Series 2) Support

• UD Power Connector

  • 24-pin ATX Power Connector
  • 8-pin CPU with UD Solid Pin

• 2 x DIMMs, Dual Channel DDR5

• 1 x PCIe 4.0 M.2 Slot

• Full-length PCIe slots

  • 1 x PCIe 4.0 x16 Slot
  • 1 x PCIe 3.0 x1 slot

Thermal :

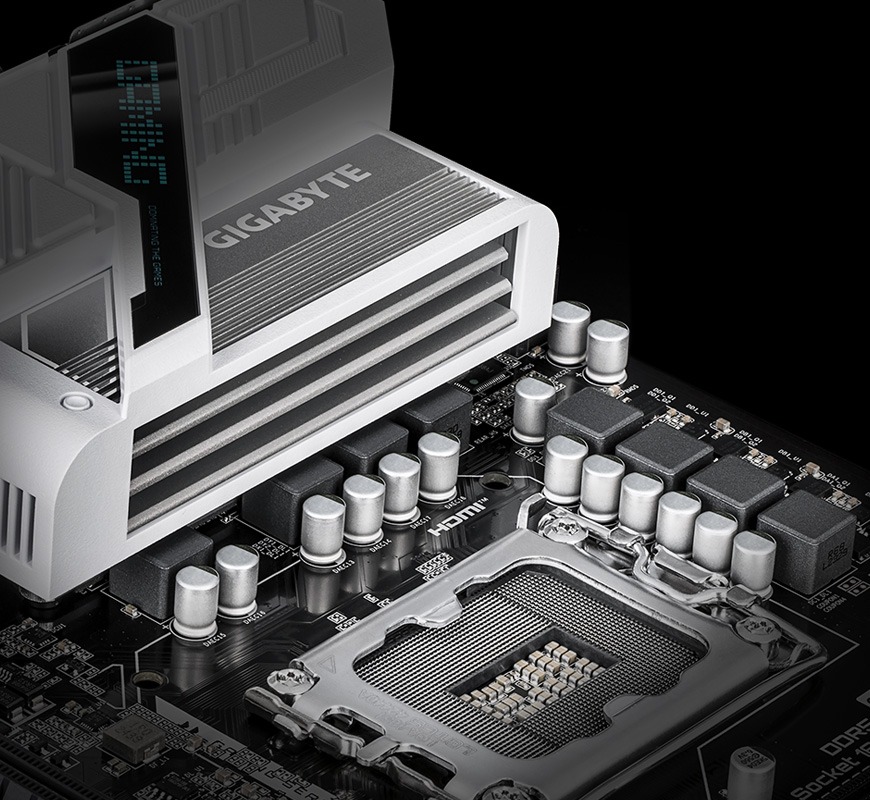

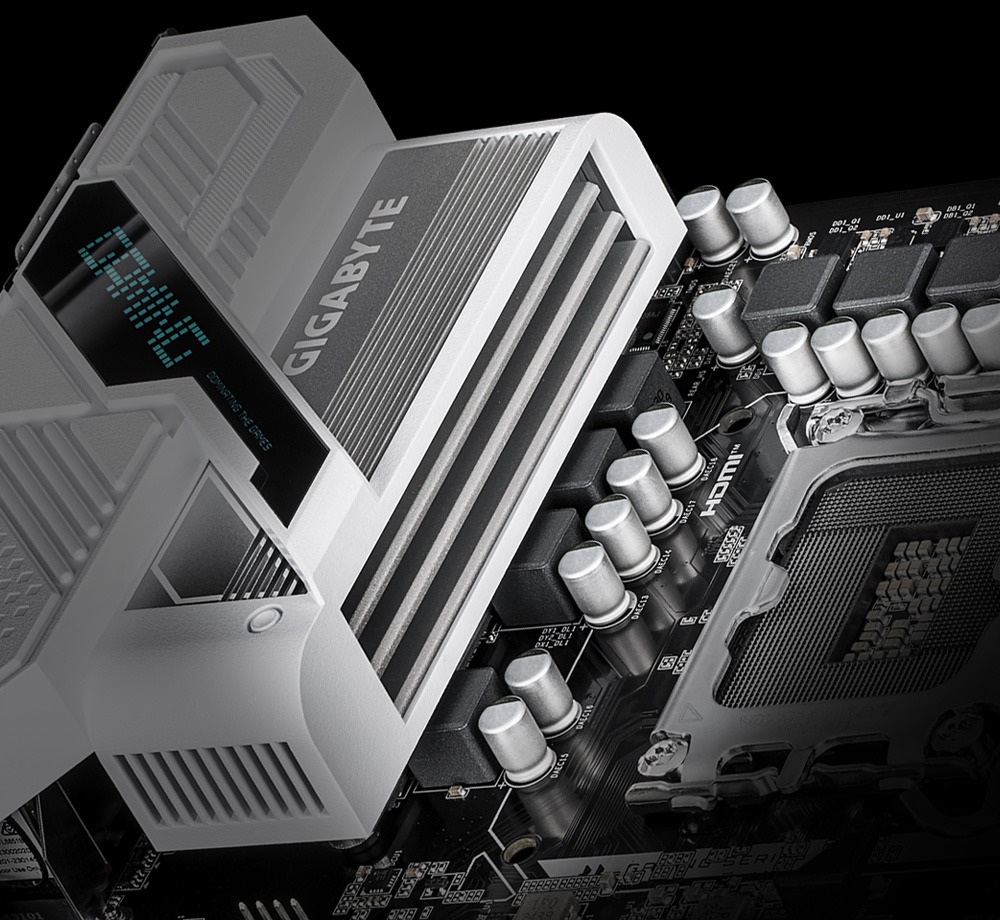

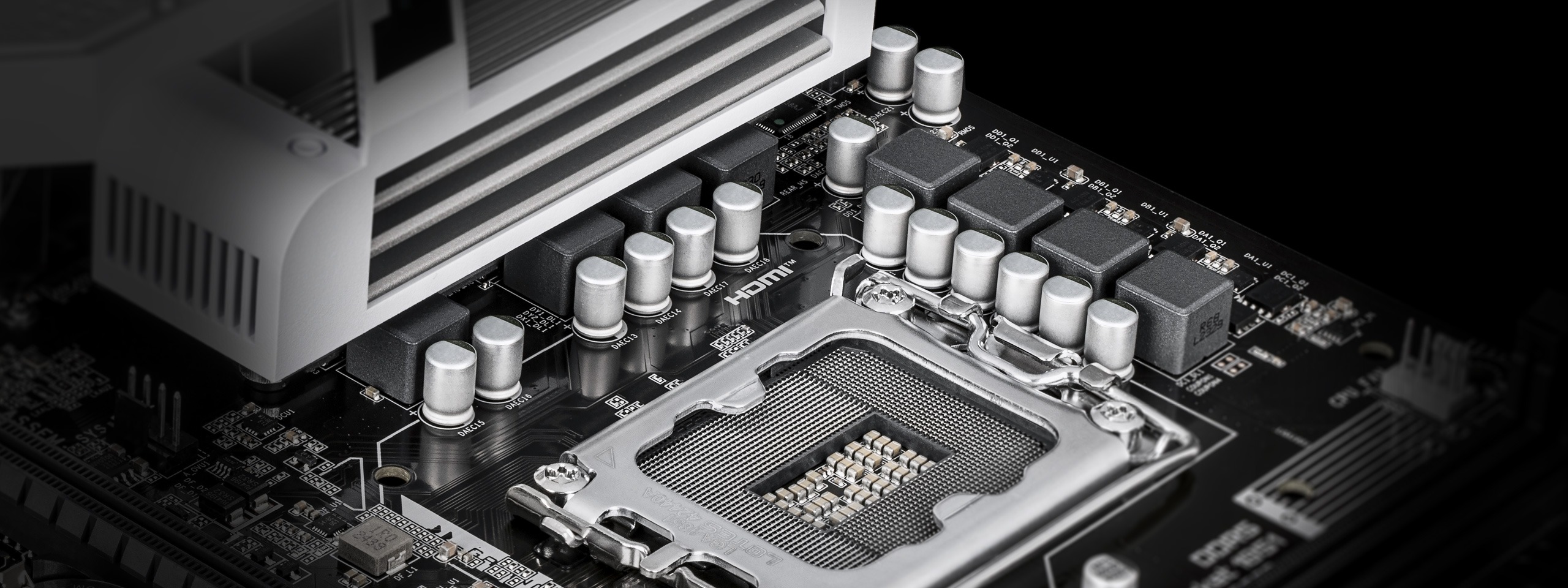

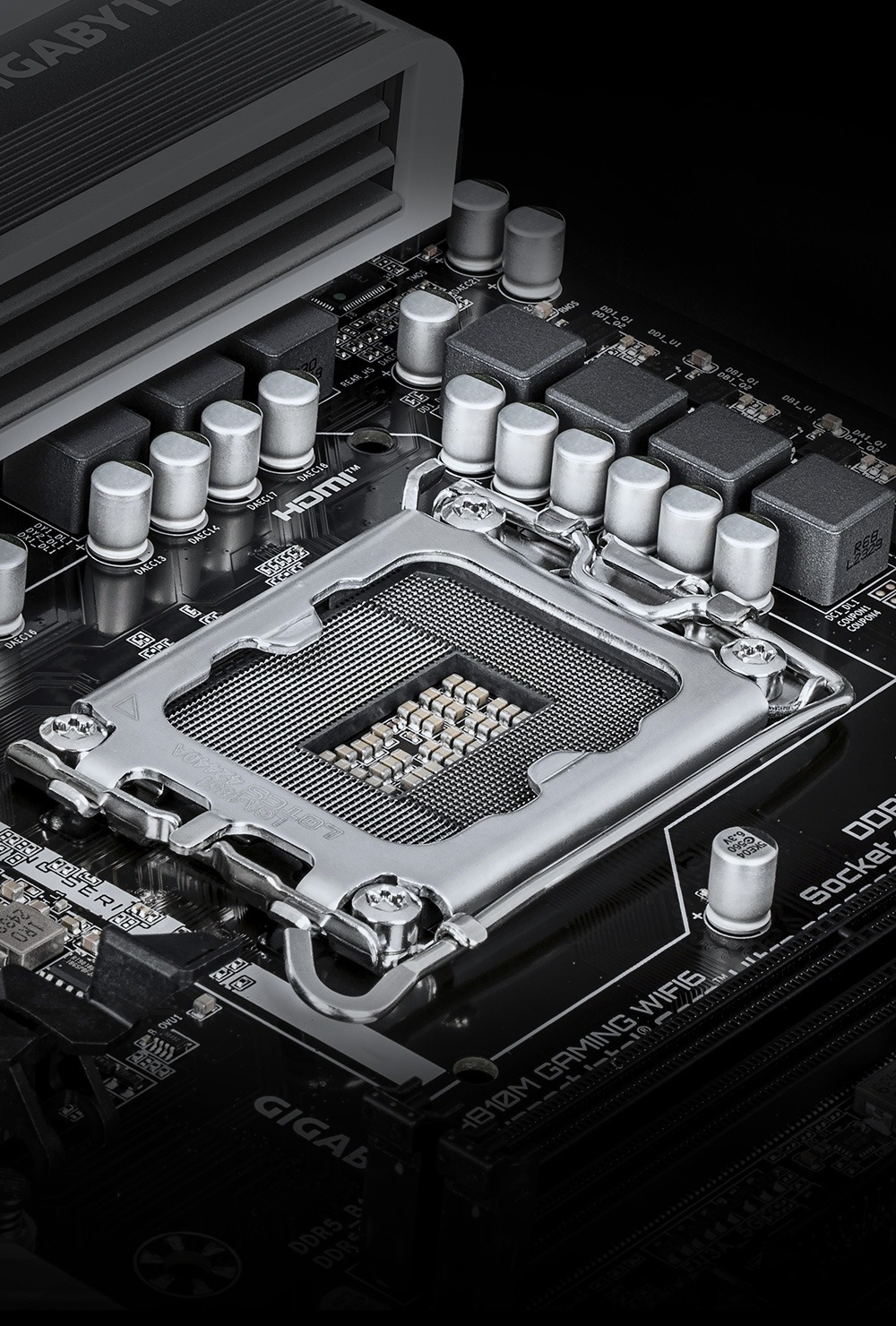

• VRM Thermal Armor Advanced

  • Integrated I/O Shield

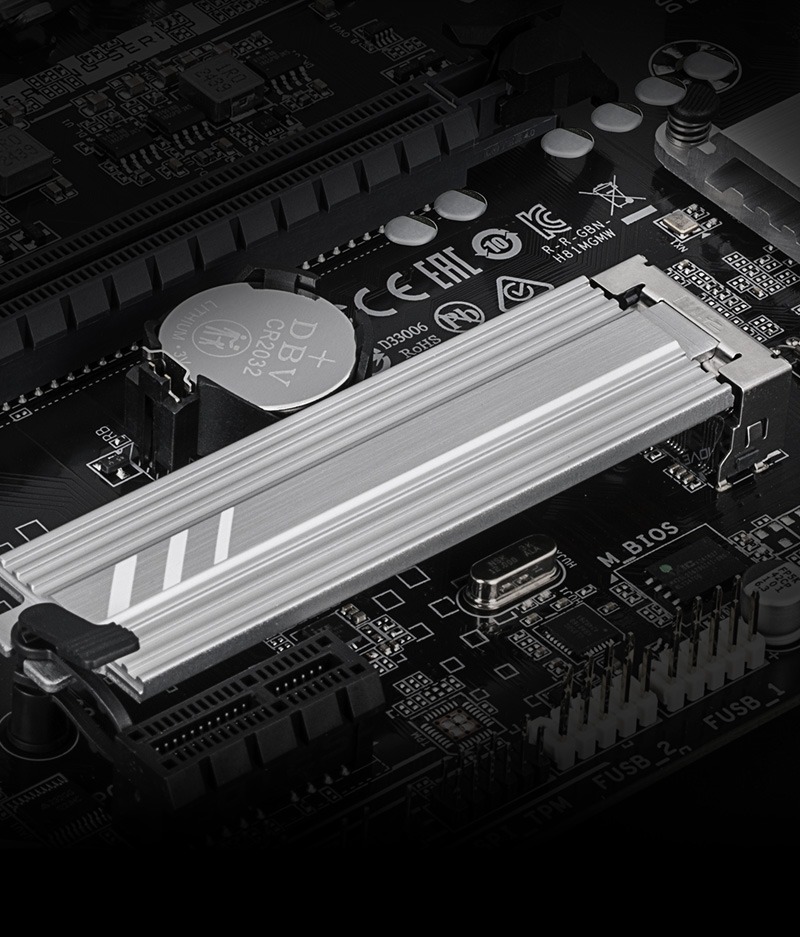

• M.2 Thermal Guard

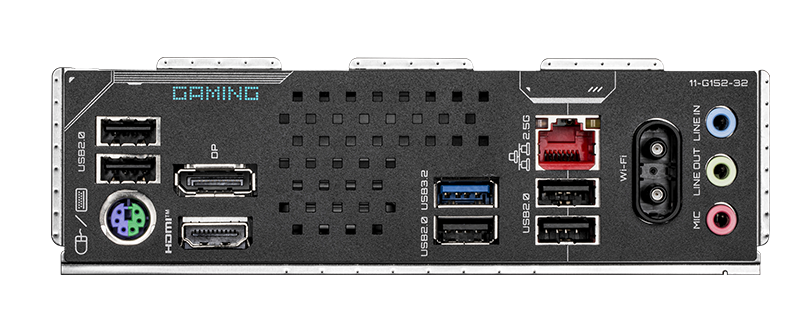

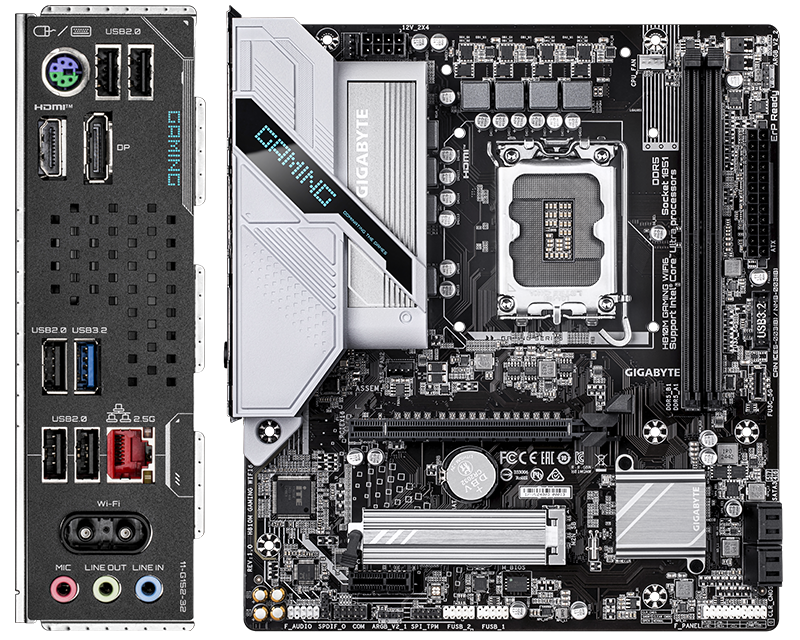

Connectivity :

• 5 x USB 2.0

• 1 x HDMI

• 1 x DisplayPort

• 1 x USB 3.2 Gen 1

• 2.5 GbE LAN

• WIFI EZ-Plug

• Wi-Fi 6 802.11ax

• Front USB-C 5Gb/s

• 4 x SATA 6Gb/s

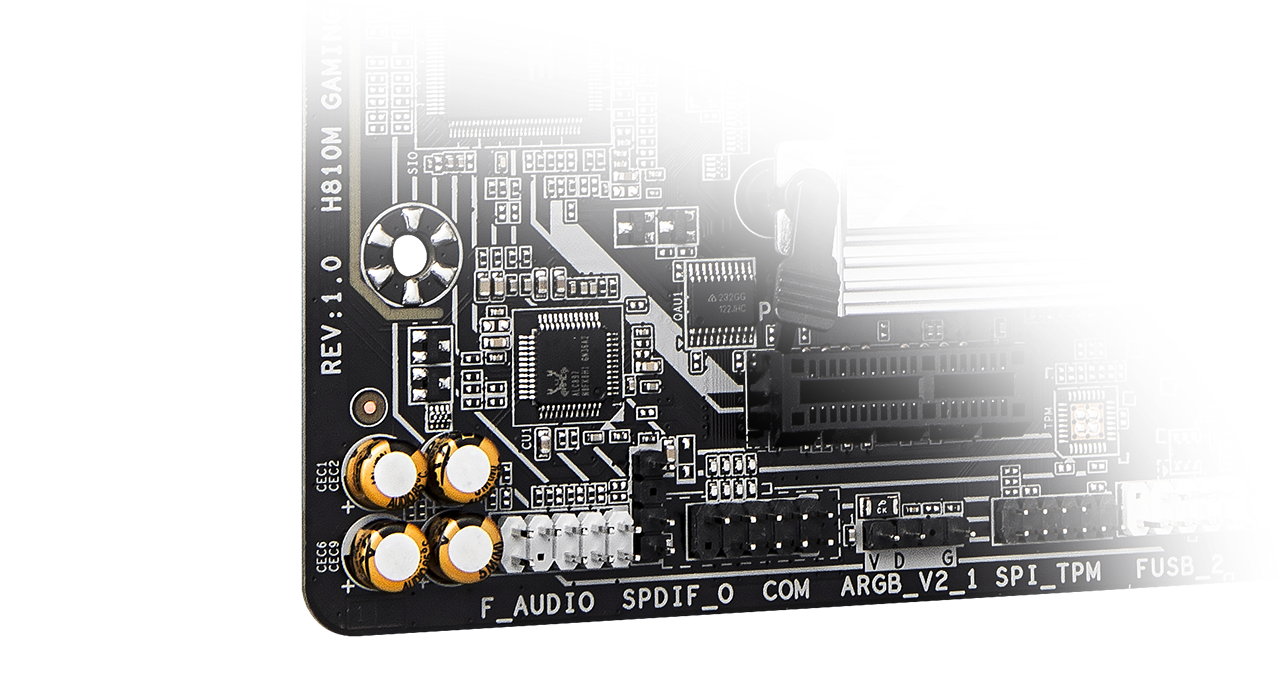

• Hi-Fi Audio

  • 8-CH HD Audio
  • High-End Audio Capacitor

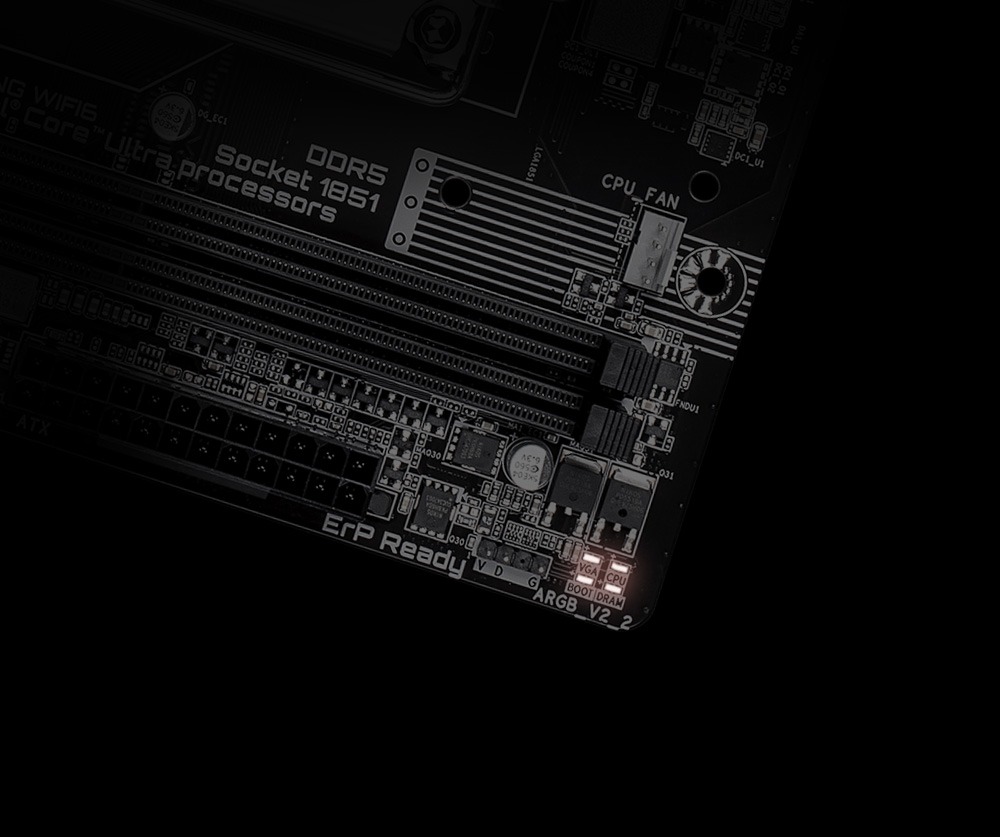

• RGB FUSION

  • 2 x ARGB LED Headers

DIY Friendly :

• WIFI EZ-Plug

• M.2 EZ-Latch Plus

• PCIe EZ-Latch

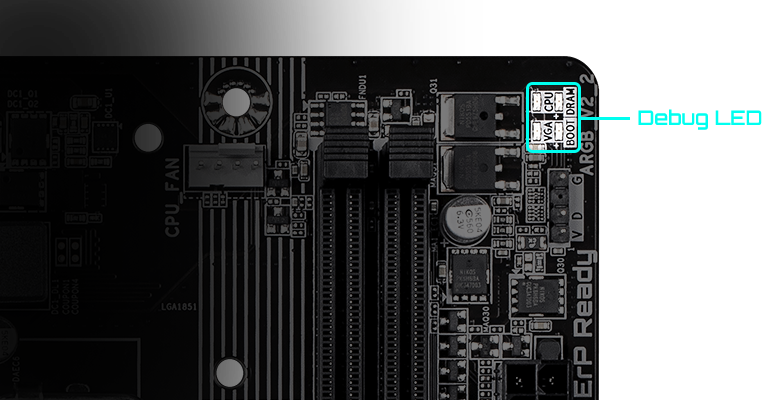

• EZ-Debug Zone

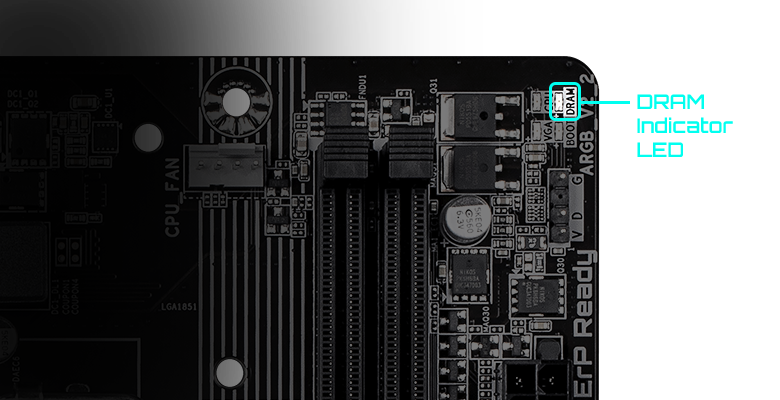

  • Debug LEDs

Key Features

• Supports Intel® Core™ Ultra processors (Series 2)

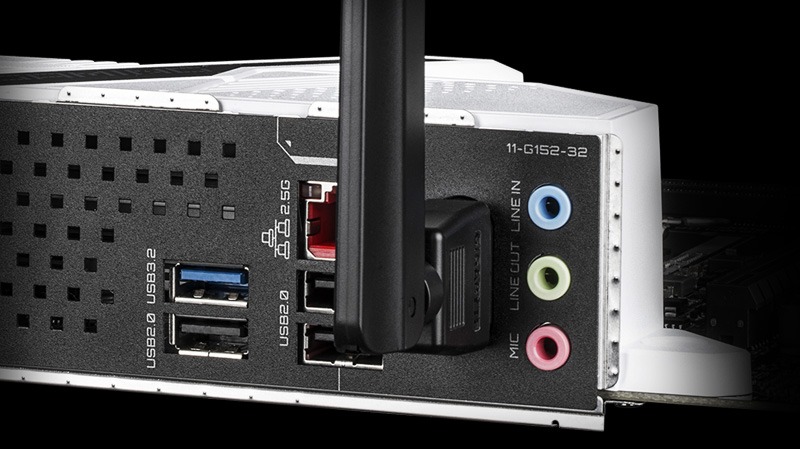

• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch: PCIe x16 Slot with Quick Release Design
• M.2 EZ-Latch Plus: Screwless installation for M.2 SSDs
• Friendly UI: Multi-Theme, and Q-Flash Auto Scan in BIOS and SW
• Ultra-Fast Storage: PCIe 4.0 x4 M.2 slots
• Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking: 2.5GbE LAN & Wi-Fi 6 802.11ax
• Extended Connectivity: HDMI, DisplayPort
