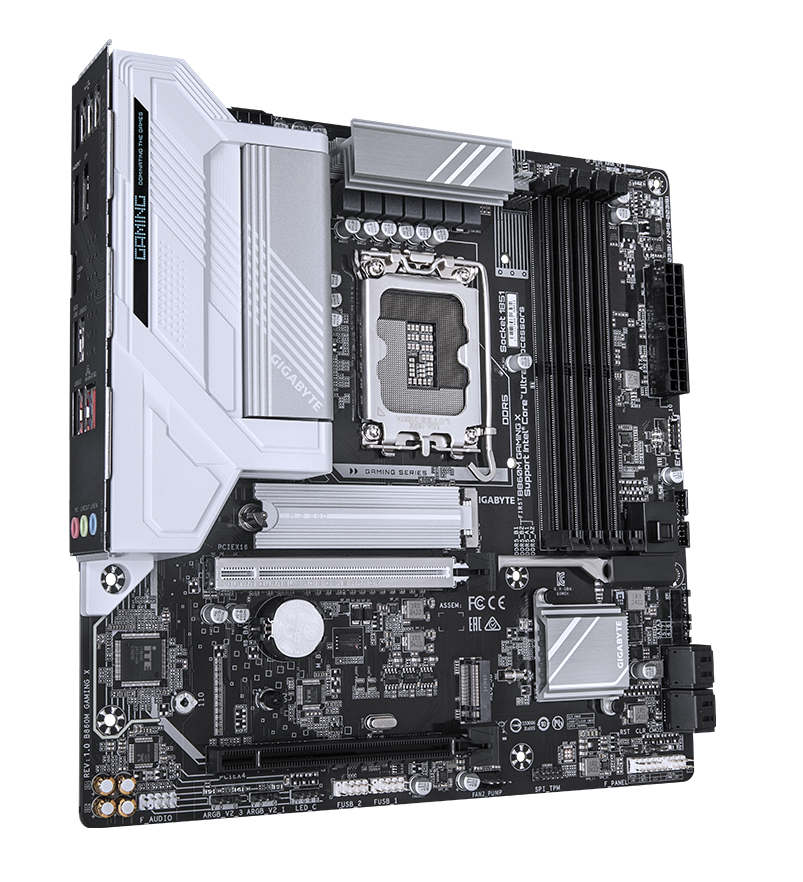

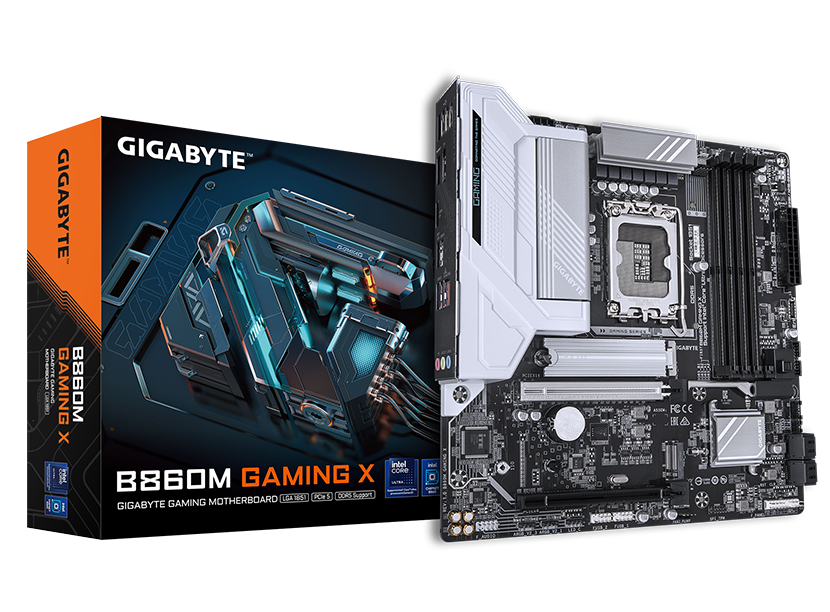

B860M GAMING X

Description

OVERVIEW

Performance :

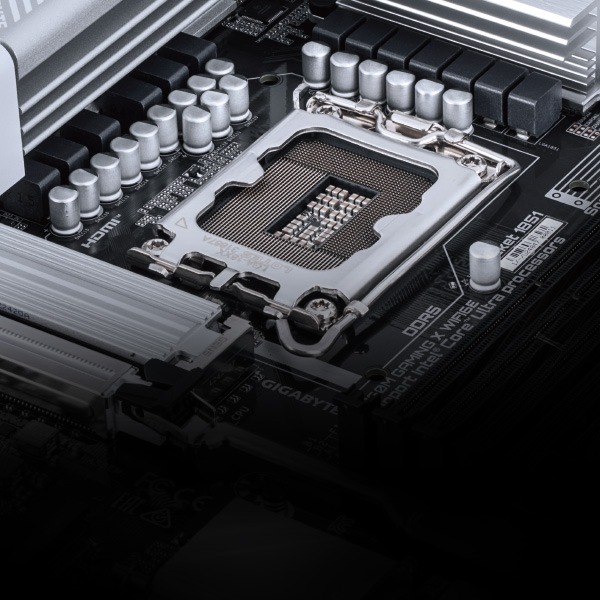

• 8+1+2 Hybrid Digital VRM Design

  • 6-Layer PCB
  • 2oz PCB

• Intel® Core Ultra processors (Series 2) Support

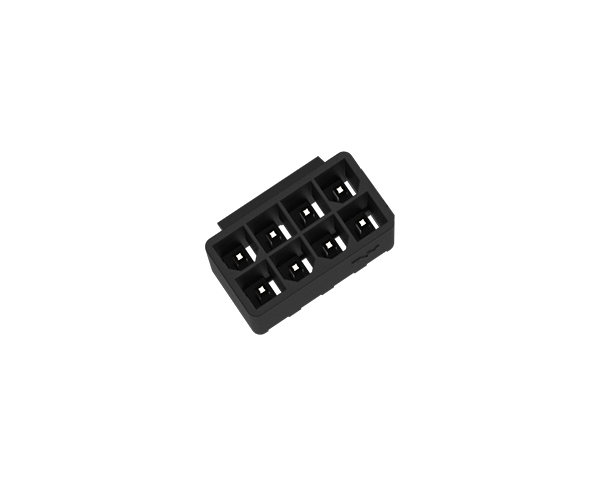

• UD Power Connector

  • 24 pin ATX Power Connector
  • 8 pin CPU with UD Solid Pin

• 4 x DIMMs, Dual Channel DDR5

• 2 x M.2 Slots

  • 1 x PCIe 5.0 M.2 Slot
  • 1 x PCIe 4.0 M.2 Slot

• Full-length PCIe slots

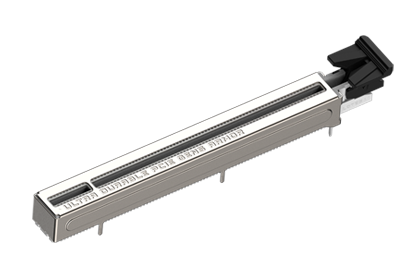

  • 1 x PCIe 5.0 x16 with PCIe UD Slot
  • 1 x PCIe 4.0 x4 slot

Thermal :

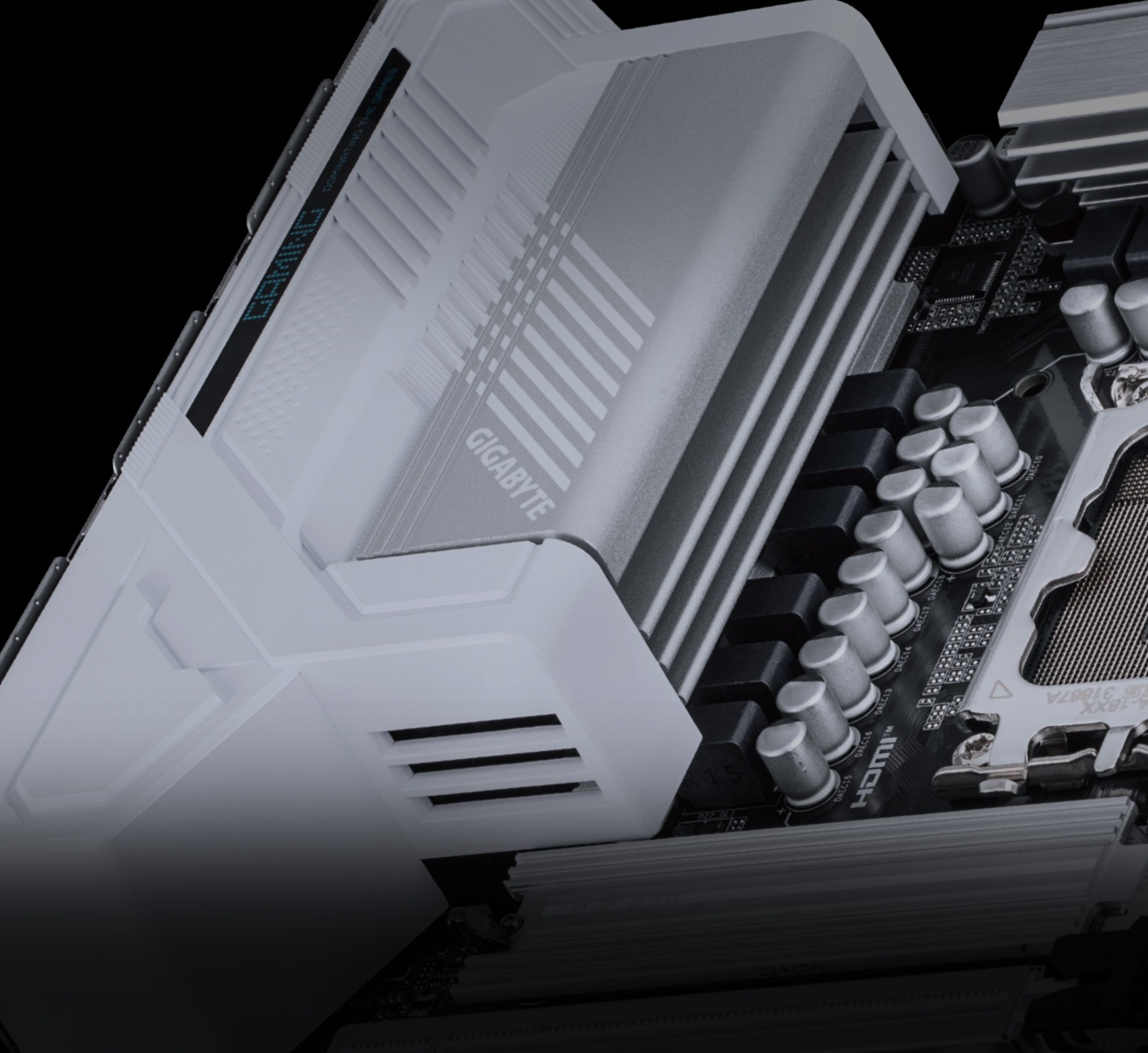

• VRM Thermal Armor Advanced

  • Integrated IO Shield

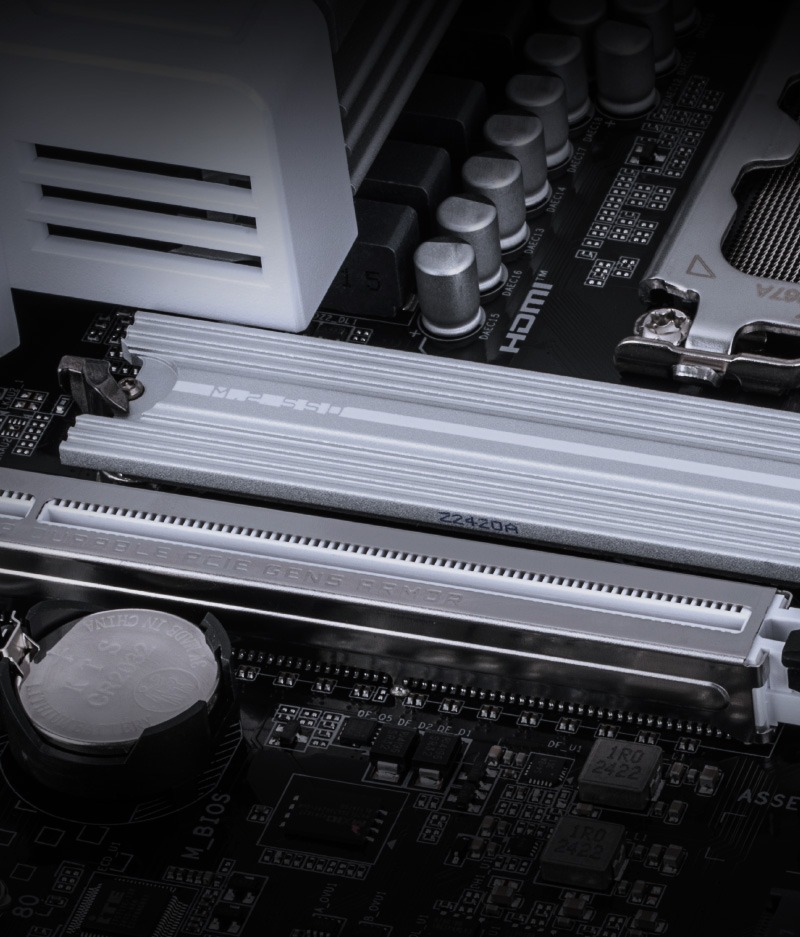

• M.2 Thermal Guard

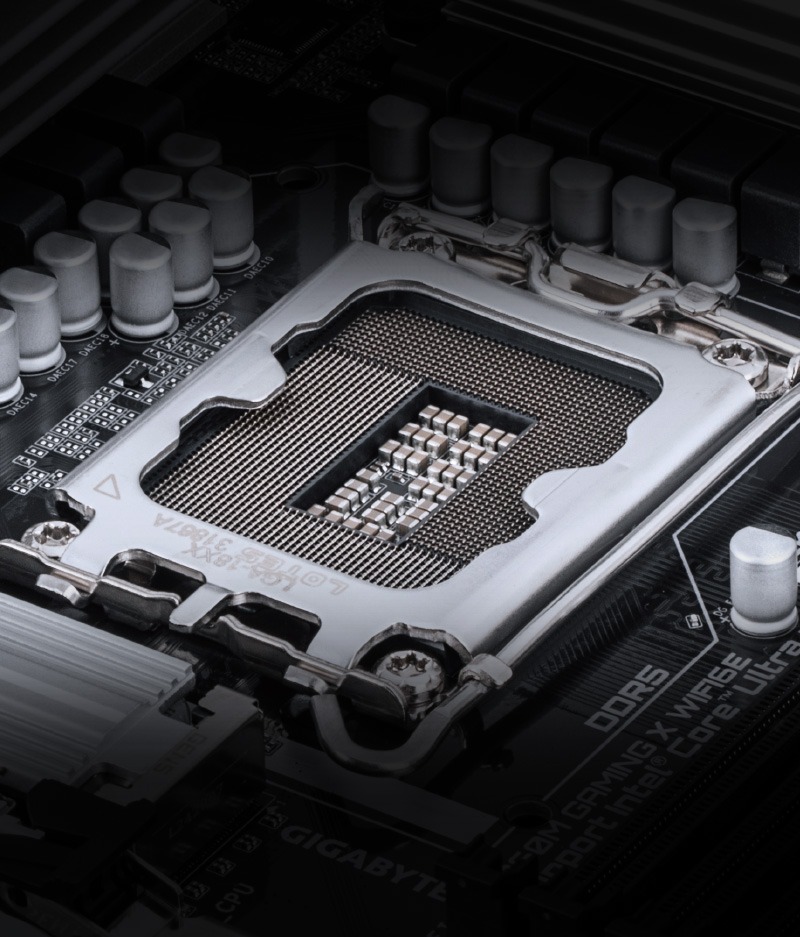

• CPU socket with RL-ILM

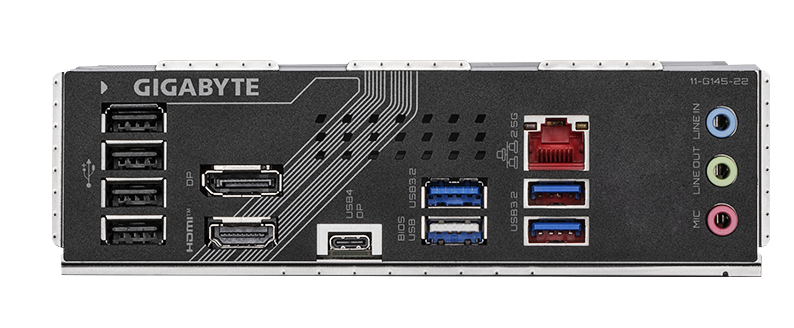

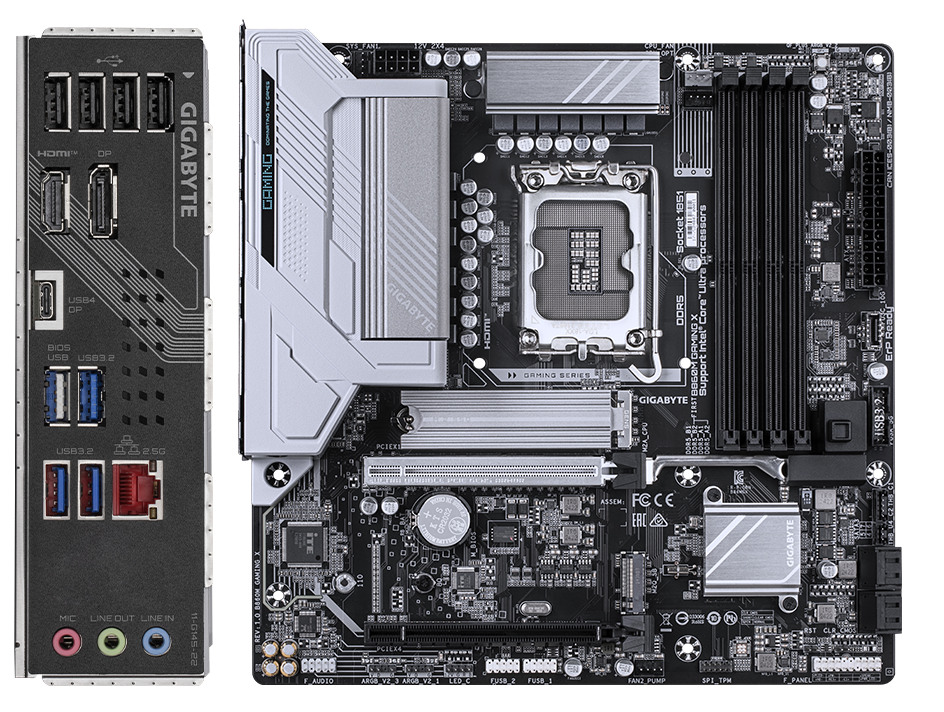

Connectivity :

• 5 x USB 2.0

• 1 x HDMI

• 1 x DisplayPort

• USB4 Type-C® with DP-Alt

• 3 x USB 3.2 Gen 1

• 2.5 GbE LAN

• Front USB-C 10Gb/s

• 4 x SATA 6Gb/s

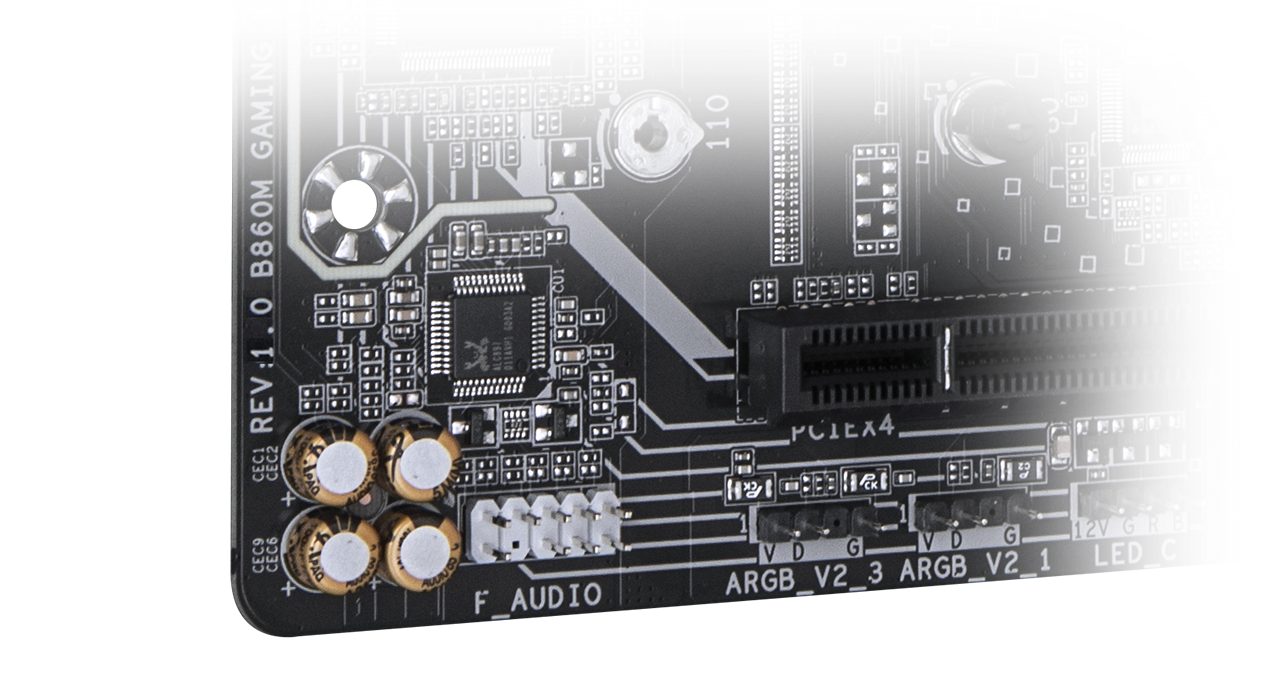

• Hi-Fi Audio

  • 8-CH HD Audio
  • High-End Audio Capacitor

• RGB FUSION

  • 1 x RGB LED Header
  • 3 x ARGB LED Headers

DIY Friendly :

• M.2 EZ-Latch Plus
  M.2 EZ-Latch Click

• PCIe EZ-Latch Plus

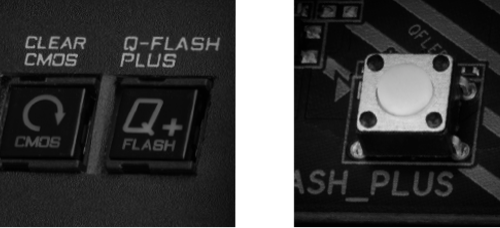

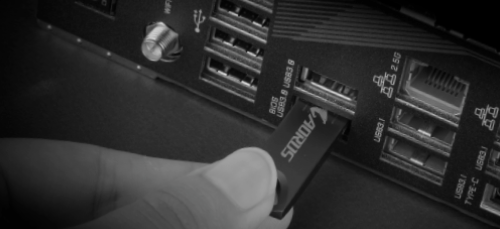

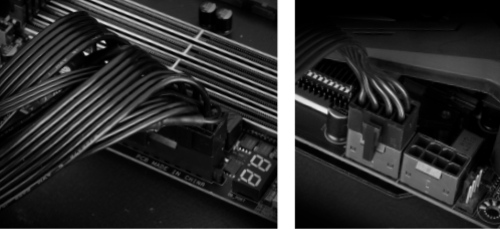

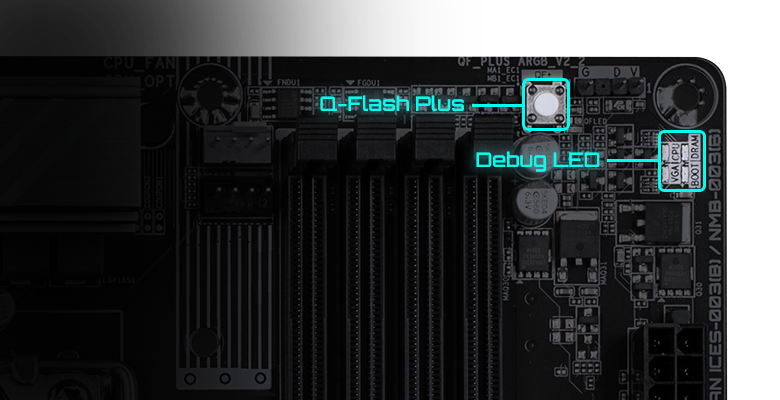

• Q-FLASH PLUS Button

• EZ-Debug Zone

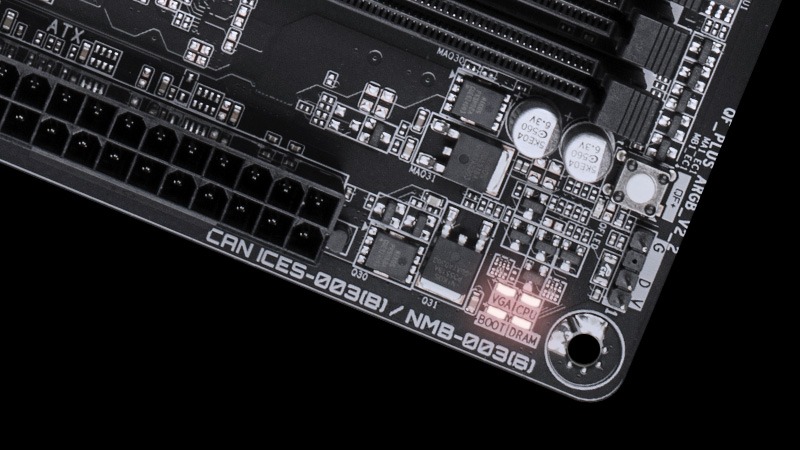

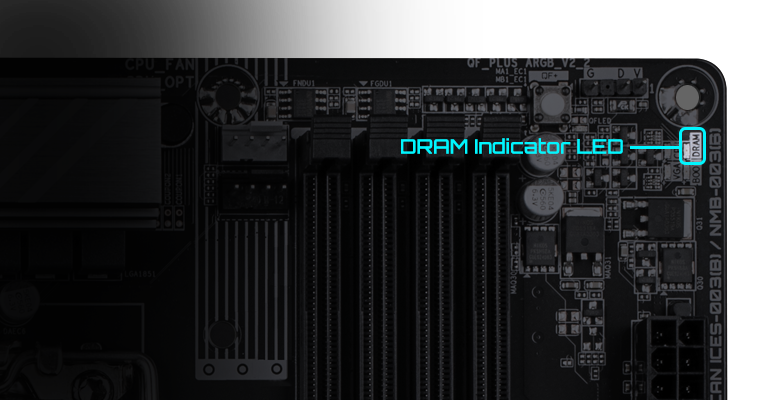

  • Debug LEDs

Key Features

• Supports Intel® Core™ Ultra processors (Series 2)
• Hybrid Digital 8+1+2 phases VRM solution
• D5 Bionic Corsa for Infinite Memory Performance
• AI Perfdrive : Provides optimal and customized BIOS preset profile for users
• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click  : M.2 heatsinks with screwless design
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• New  Power Monitor  in  HWinfo for real-time monitoring on CPU power phases
• Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking : 2.5GbE LAN
• Extended Connectivity : USB4 Type-C with DP-Alt, HDMI, DisplayPort
