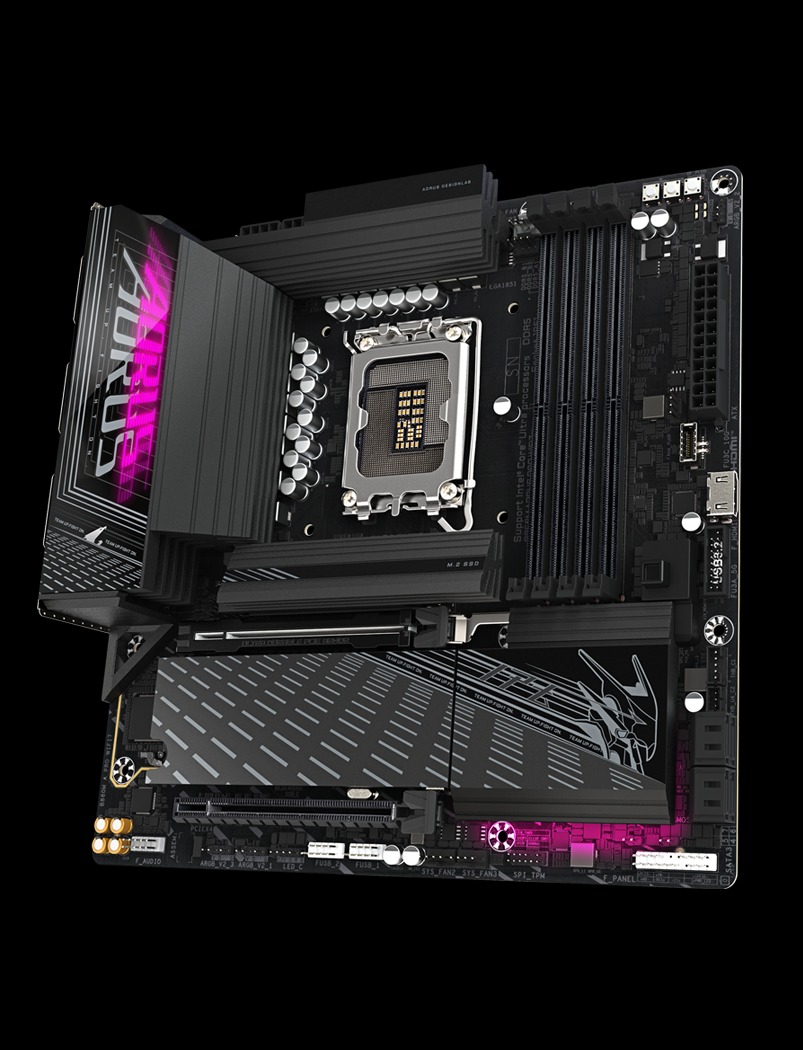

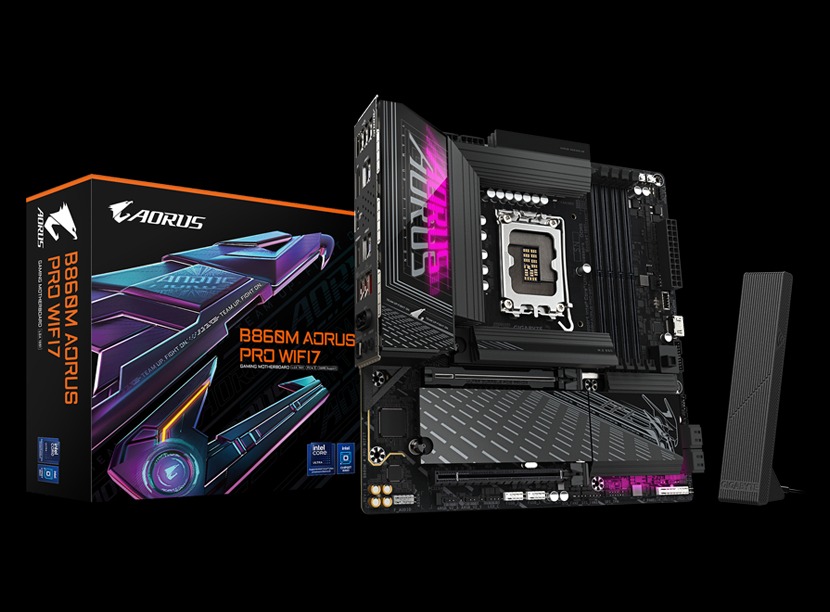

B860M AORUS PRO WIFI7

Description

OVERVIEW

Performance :

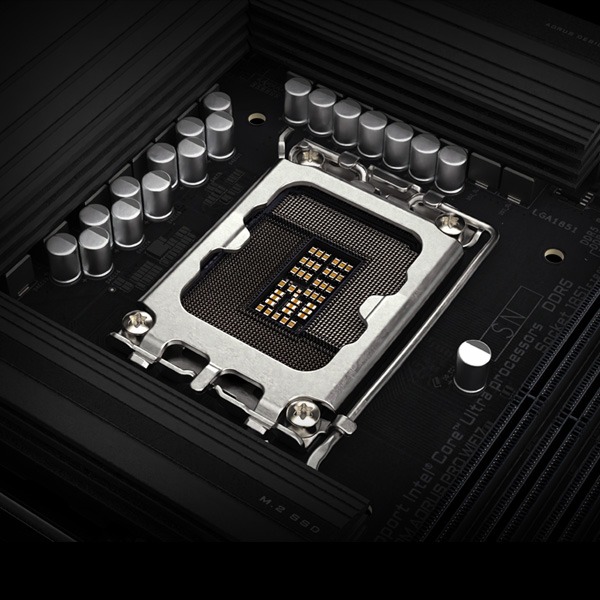

• 12*+1+2 Digital VRM Design

  • 8-Layer PCB
  • Mid-Loss PCB
  • 2X Copper PCB
  • Premium Choke and Capacitor

• Intel® Core™ Ultra processors (Series 2) Support

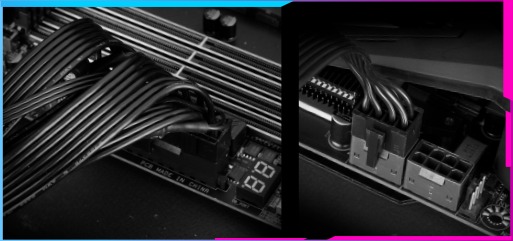

• UD Power Connector

  • 24 pin ATX Power Connector
  • 8+8 pin CPU with UD Solid Pin

• 4 x DIMMs, Dual Channel DDR5

• 3 x M.2 Slots

  • 1 x PCIe 5.0 M.2 Slot
  • 2 x PCIe 4.0 M.2 Slot

• Full-length PCIe slots

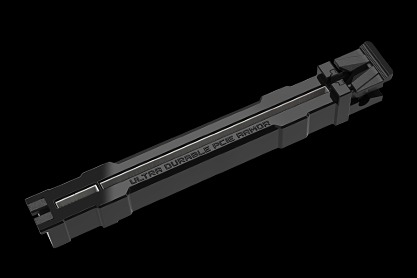

  • 1 x PCIe 5.0 x16 with PCIe UD Slot
  • 1 x PCIe 4.0 x4 slot

Thermal :

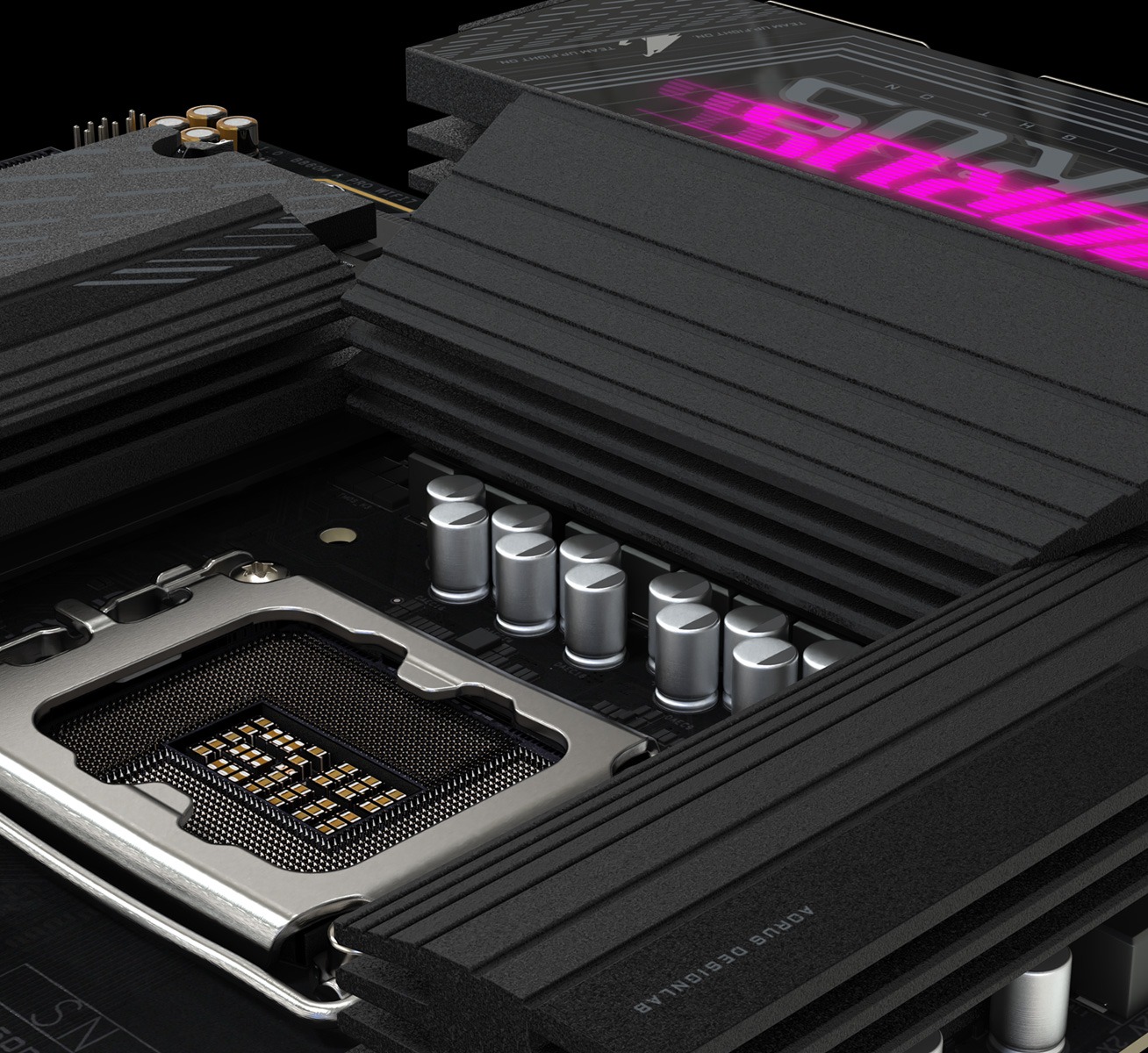

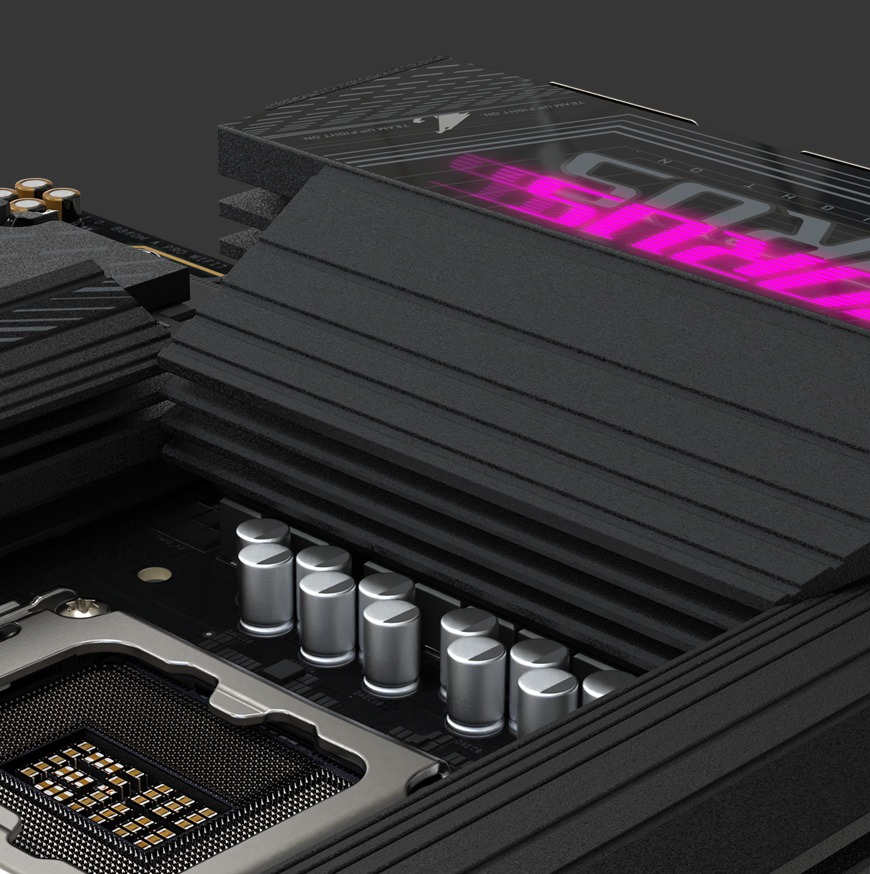

• VRM Thermal Armor Advanced

  • 5 W/mk Thermal Pad
  • Integrated IO Shield

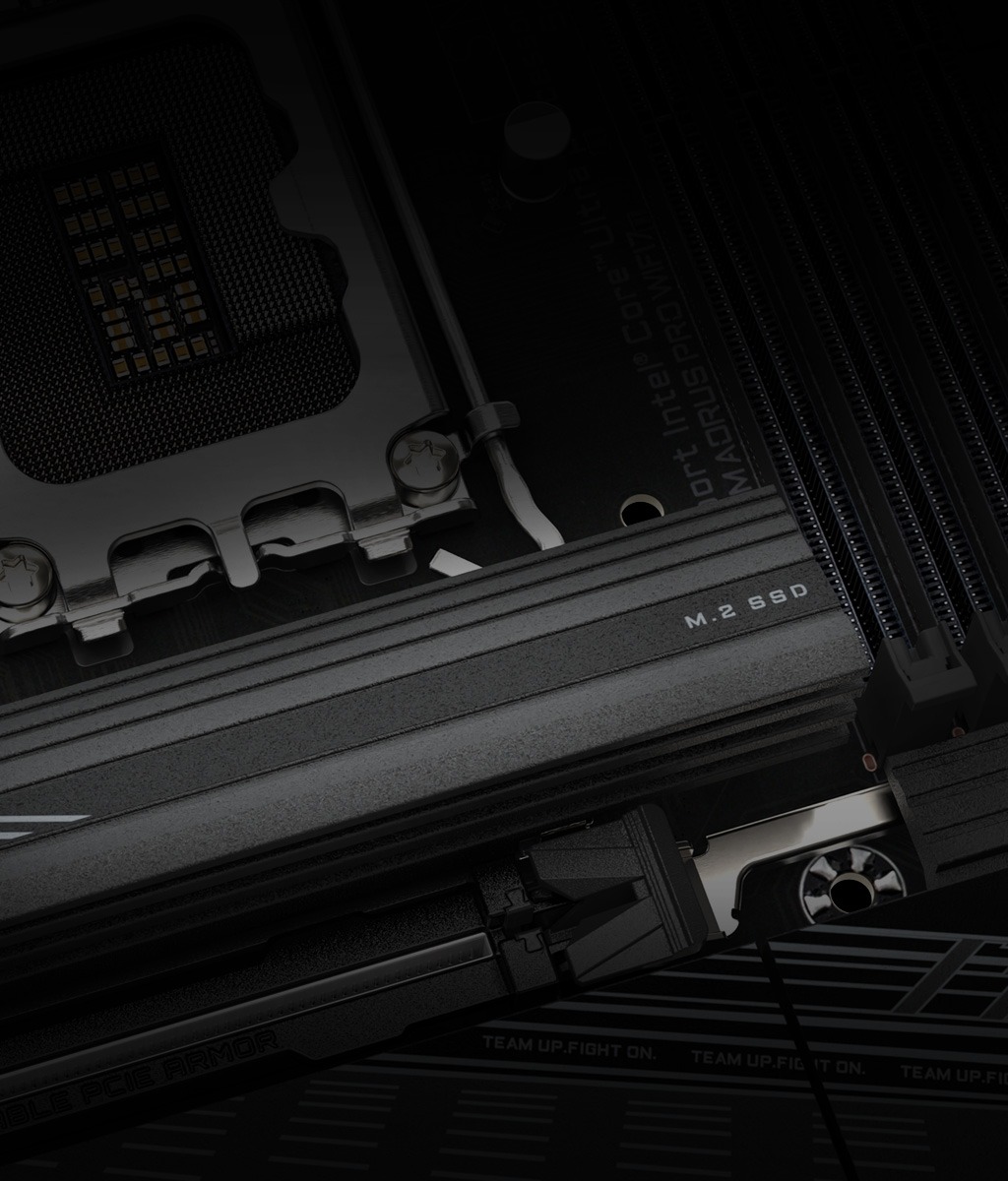

• M.2 Thermal Guard

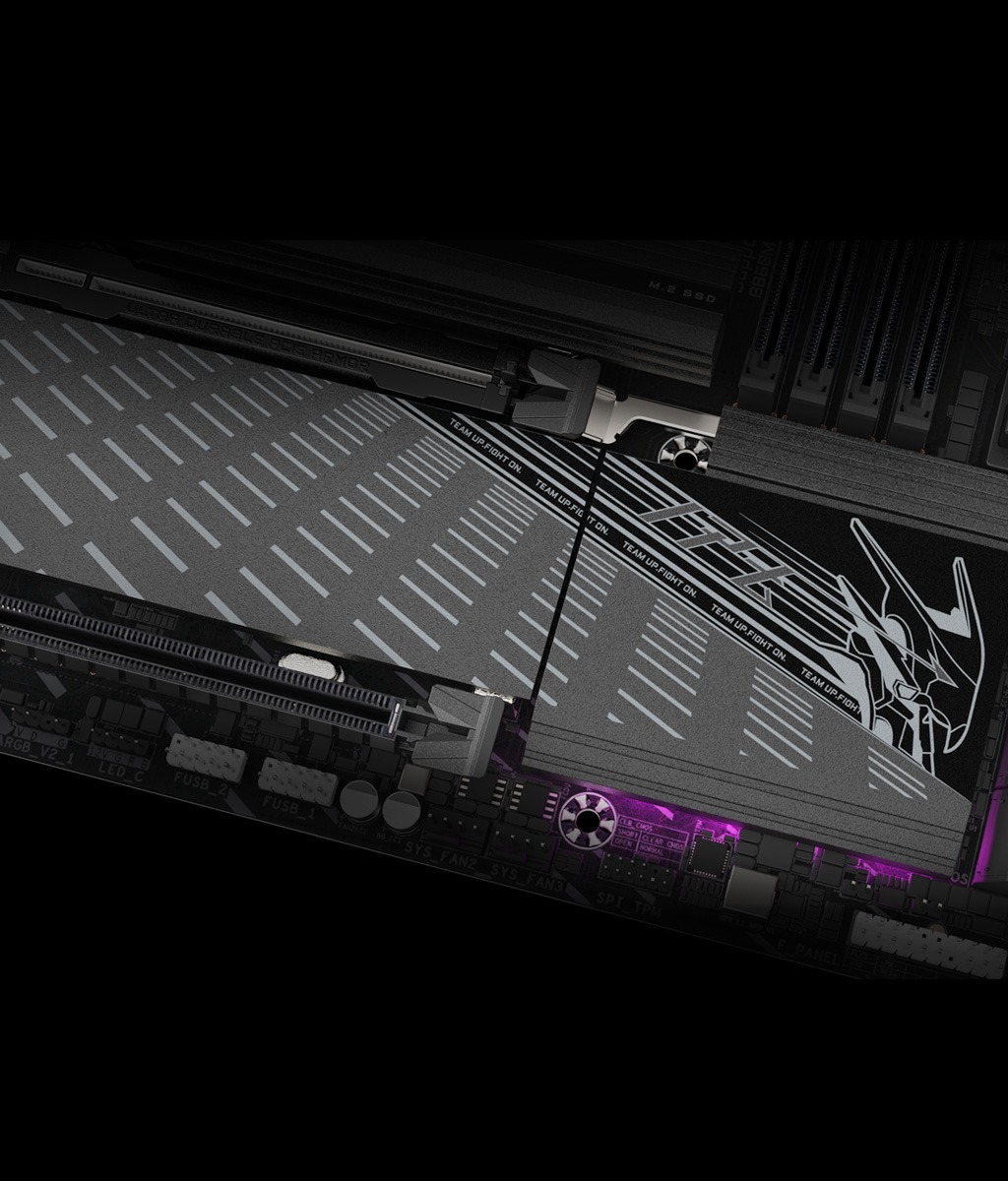

• M.2 Thermal Guard Ext.

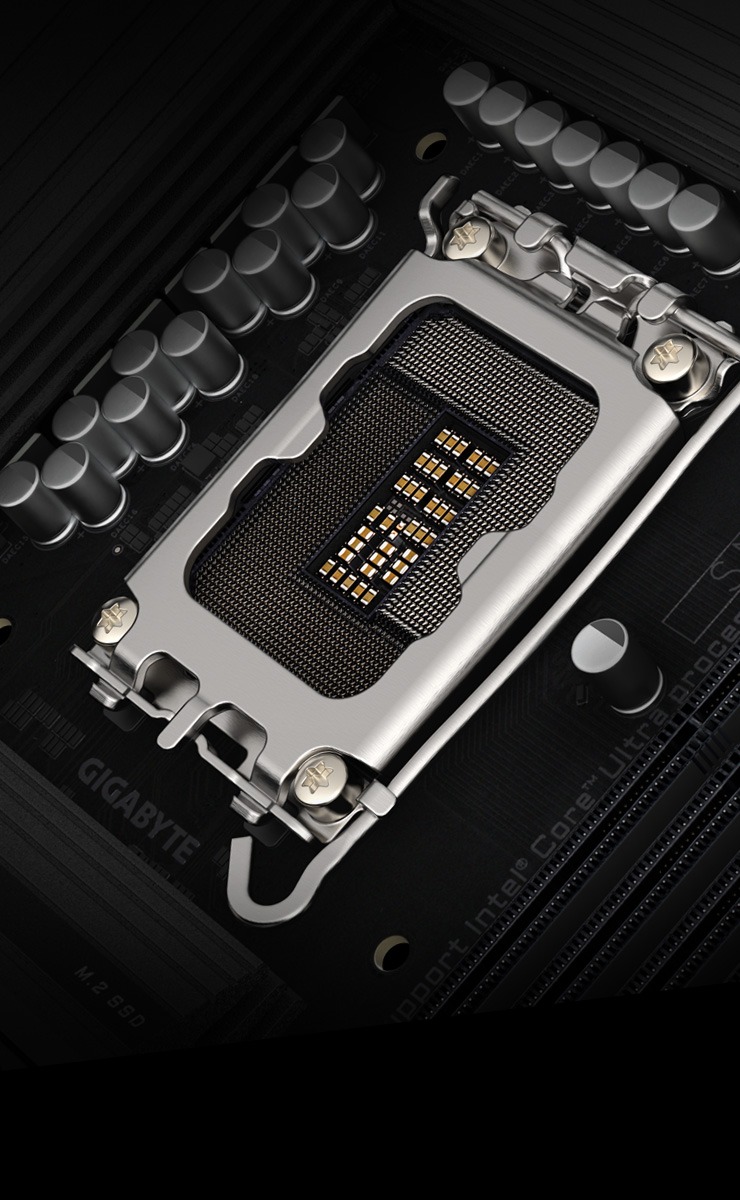

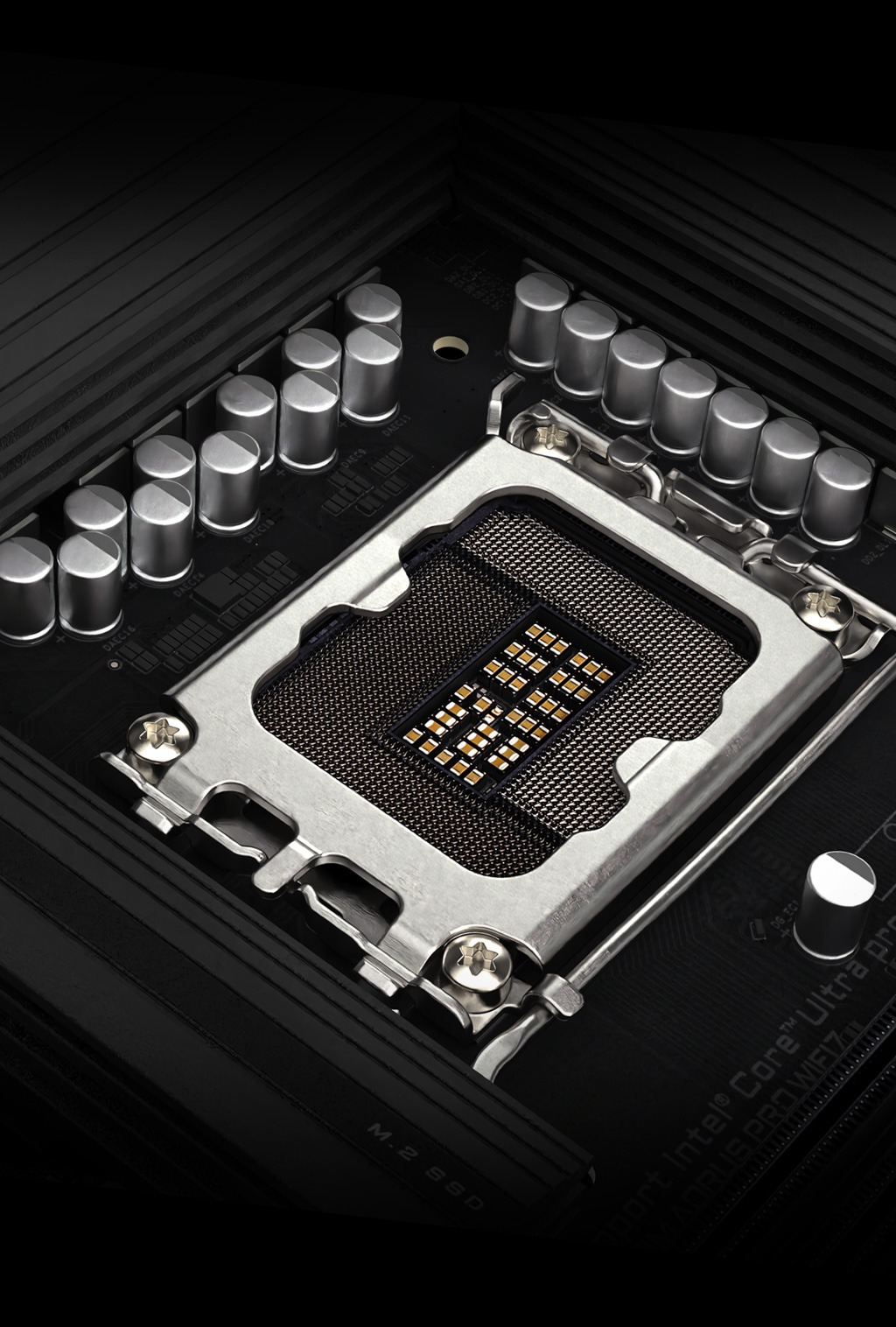

• CPU socket with RL-ILM

• Smart Fan 6

  • Total 4 * PWM / DC Fan Headers
  • Dual Fan Curve Mode

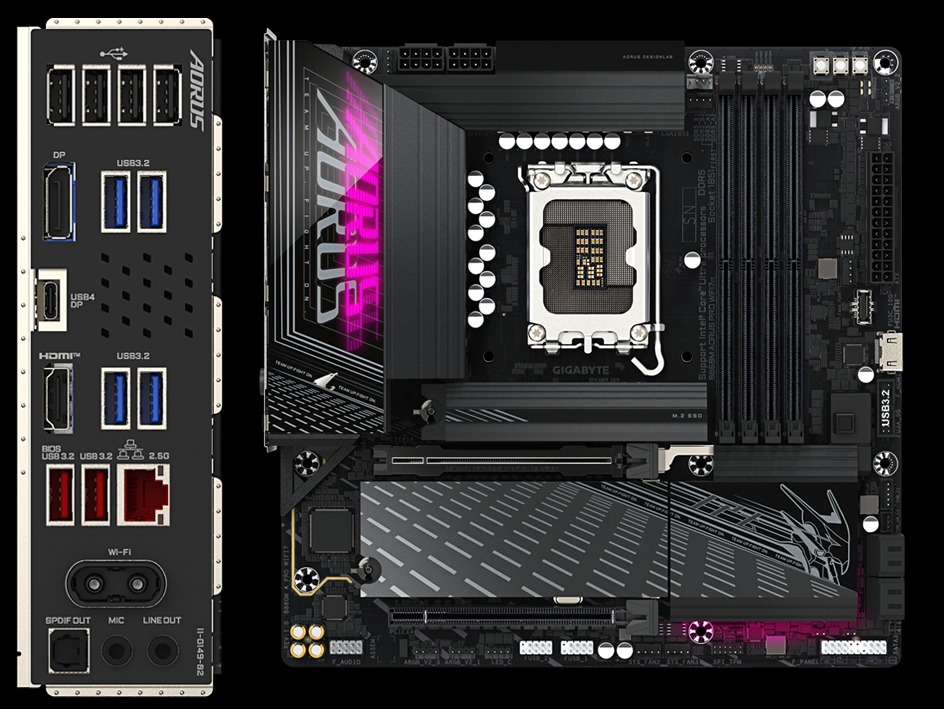

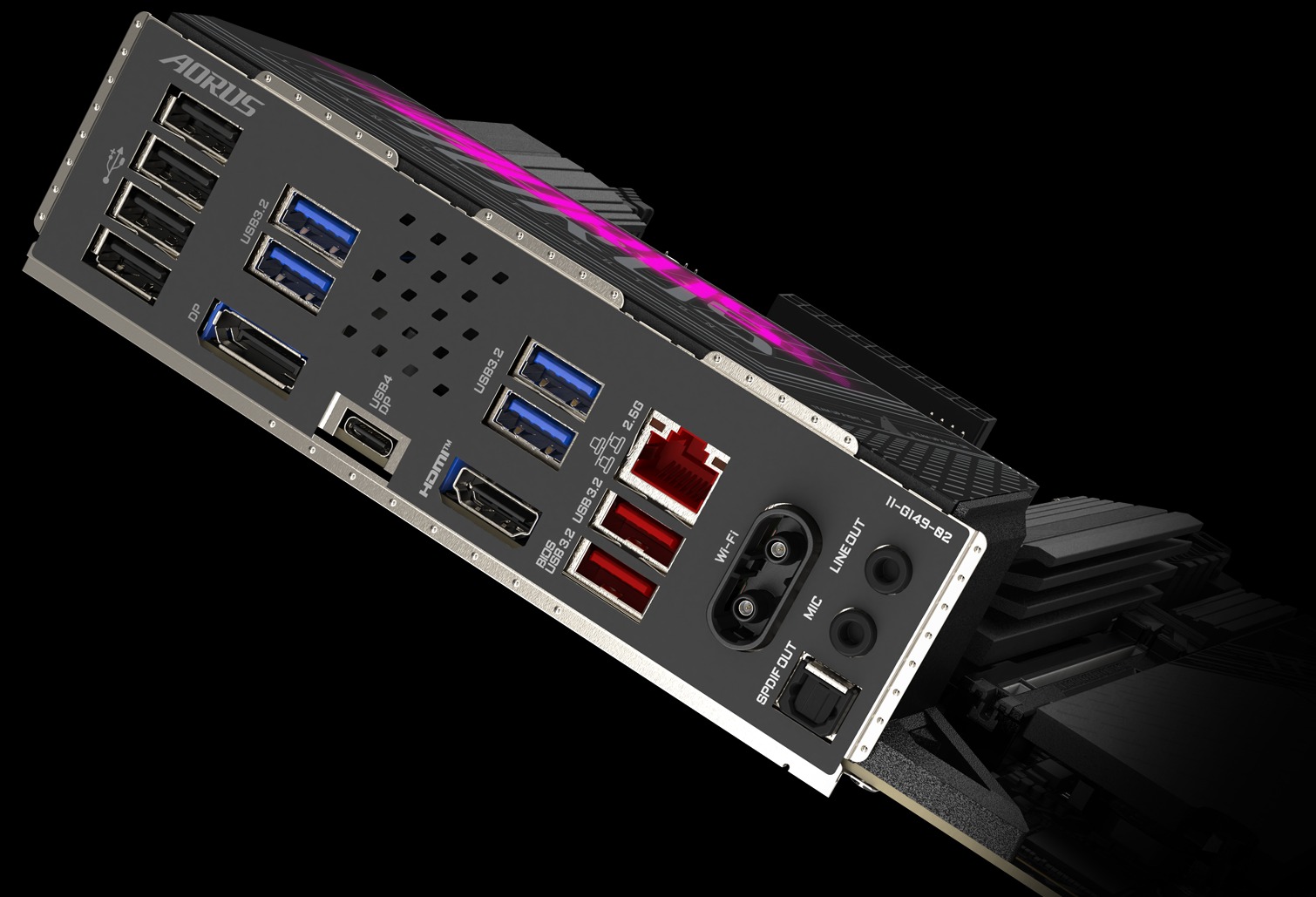

Connectivity :

• 4 x USB 2.0

• 1 x DisplayPort

• USB4 Type-C® with DP-Alt

• 1 x HDMI

• 4 x USB 3.2 Gen 1

• 2 x USB 3.2 Gen 2

• 2.5 GbE LAN

• Front USB-C 10Gb/s

• Sensor Panel Link

• 4 x SATA 6Gb/s

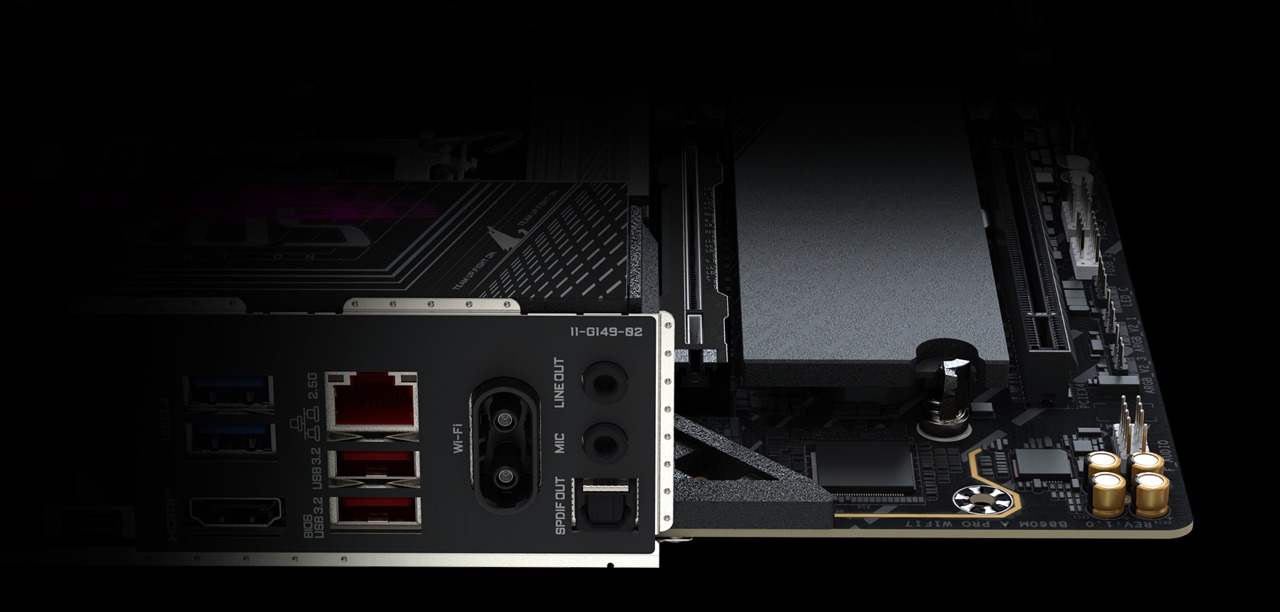

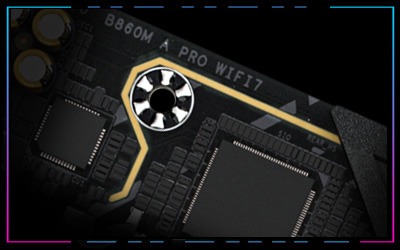

• Hi-Fi Audio

  • 8-CH HD Audio

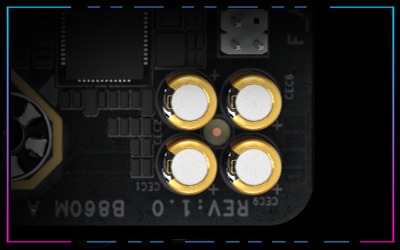

  • High-End Audio Capacitor

• RGB FUSION

  • 3 x Addressable LED Headers
  • 1 x RGB LED Header

• Wi-Fi 7 with directional
  Ultra-high gain antenna

• WIFI EZ-Plug

DIY Friendly :

• M.2 EZ-Latch Plus
  M.2 EZ-Latch Click

• PCIe EZ-Latch Plus

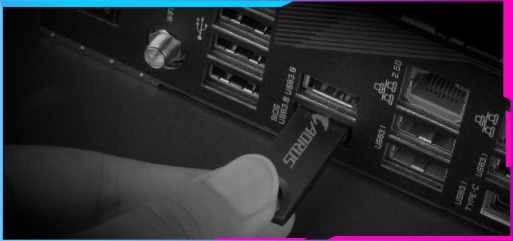

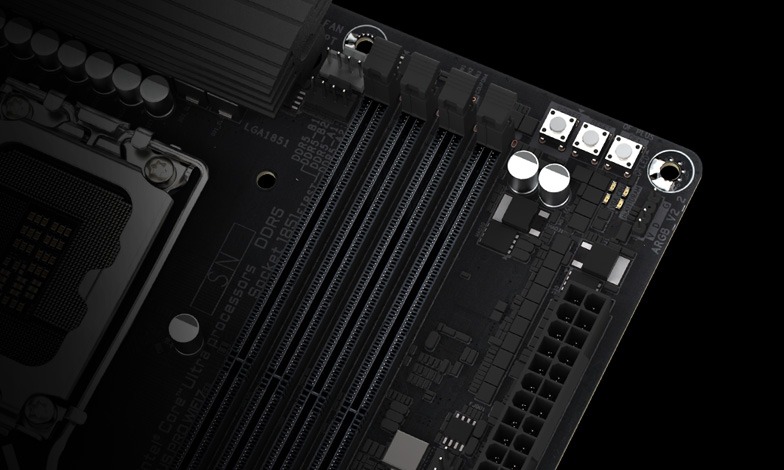

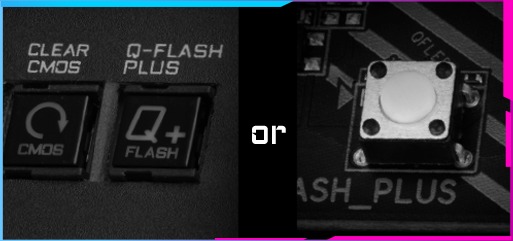

• Q-FLASH PLUS Button

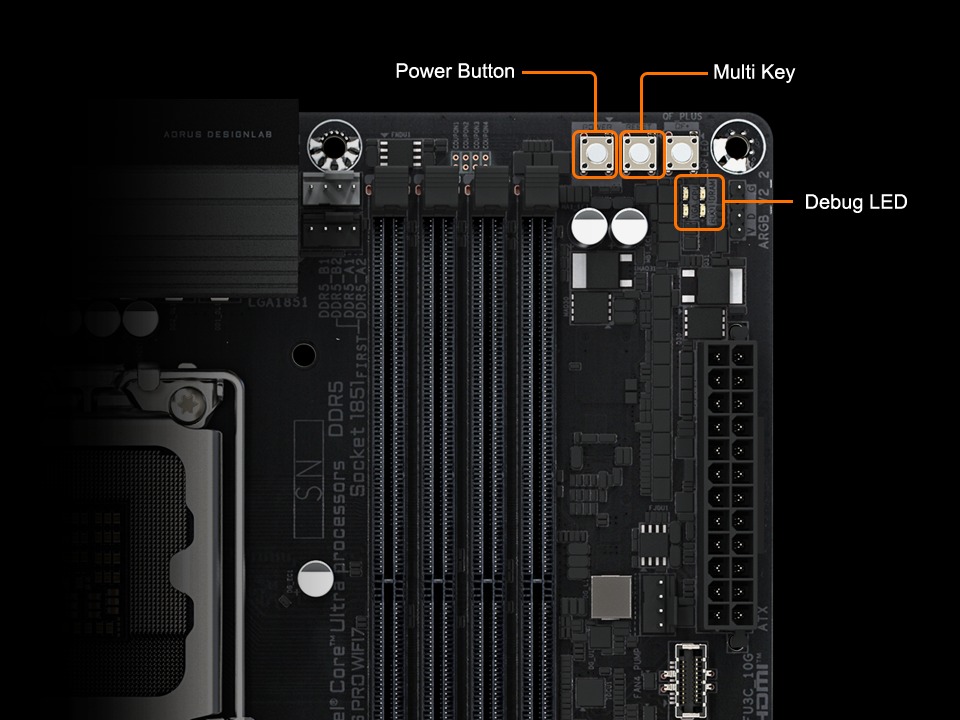

• EZ-Debug Zone

  • Multi-key

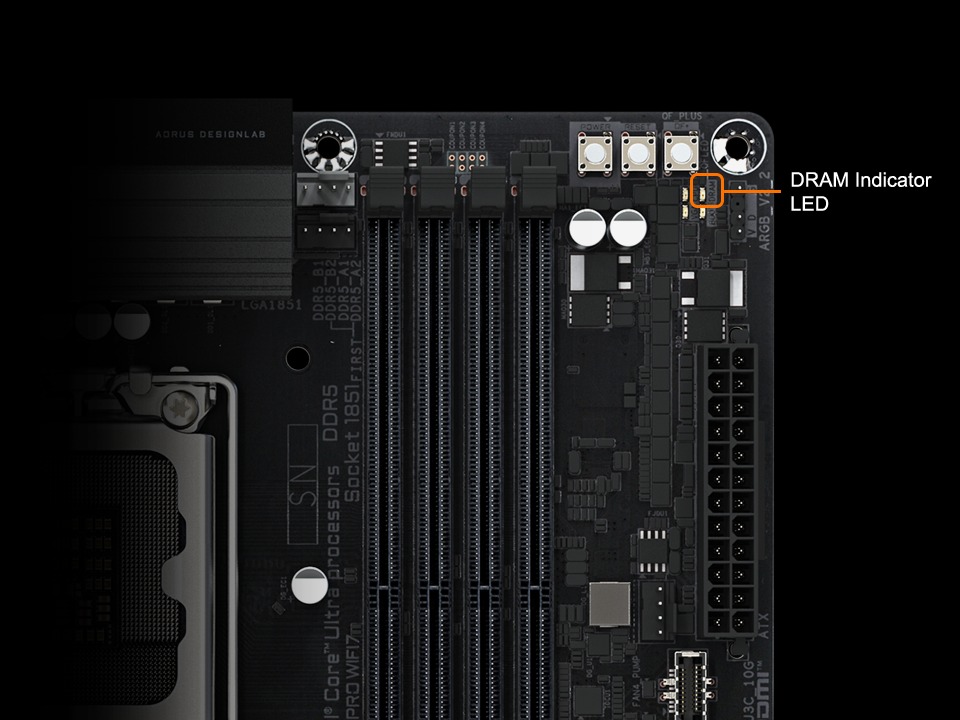

  • Debug LEDs
  • Power Button

• WIFI EZ-Plug

Key Features

• Supports Intel® Core™ Ultra processors (Series 2)
• Digital 12+1+2 phases VRM solution

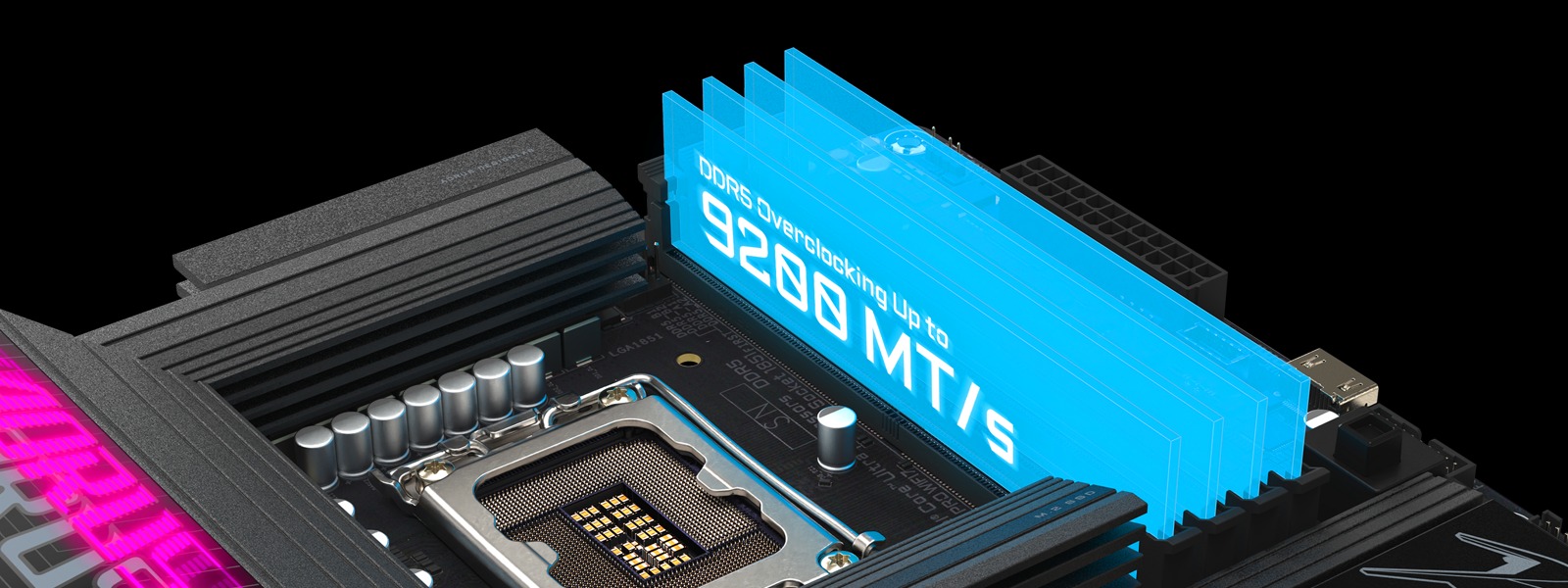

• Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
• D5 Bionic Corsa for Infinite Memory Performance
• AI Perfdrive : Provides optimal and customized BIOS preset profile for users
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
• Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity : USB4 Type-C with DP-Alt, HDMI, DisplayPort
