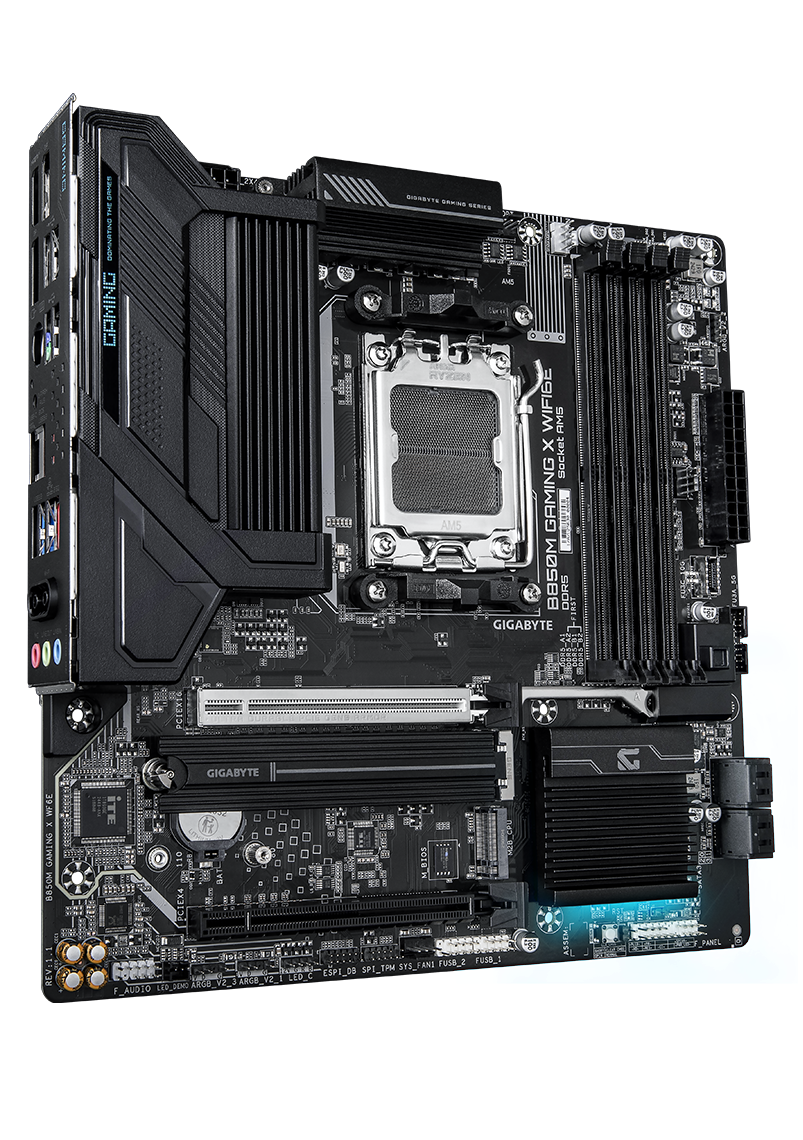

B850M GAMING X WIFI6E (rev.1.1)

Description

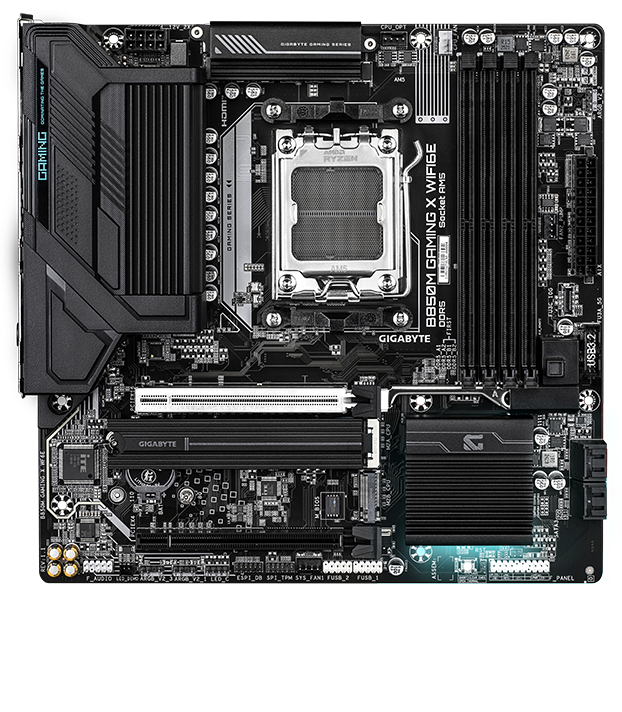

OVERVIEW

Performance :

• 10*+2+2 Twin Digital VRM Design

  • 6-Layer PCB
  • Mid-Loss PCB
  • 2X Copper PCB
  • Premium Choke and Capacitor
  *5+5 Phases parallel power design

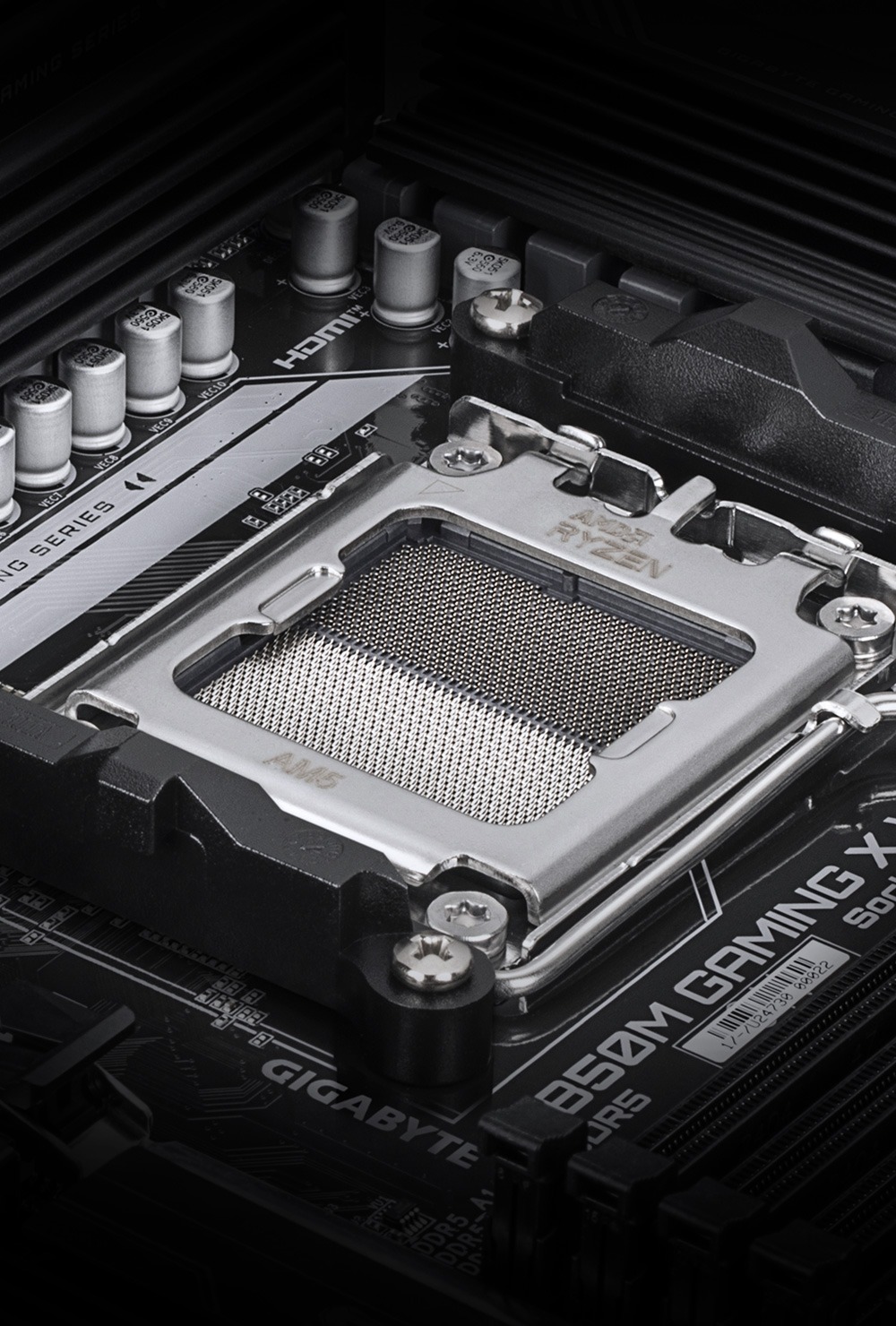

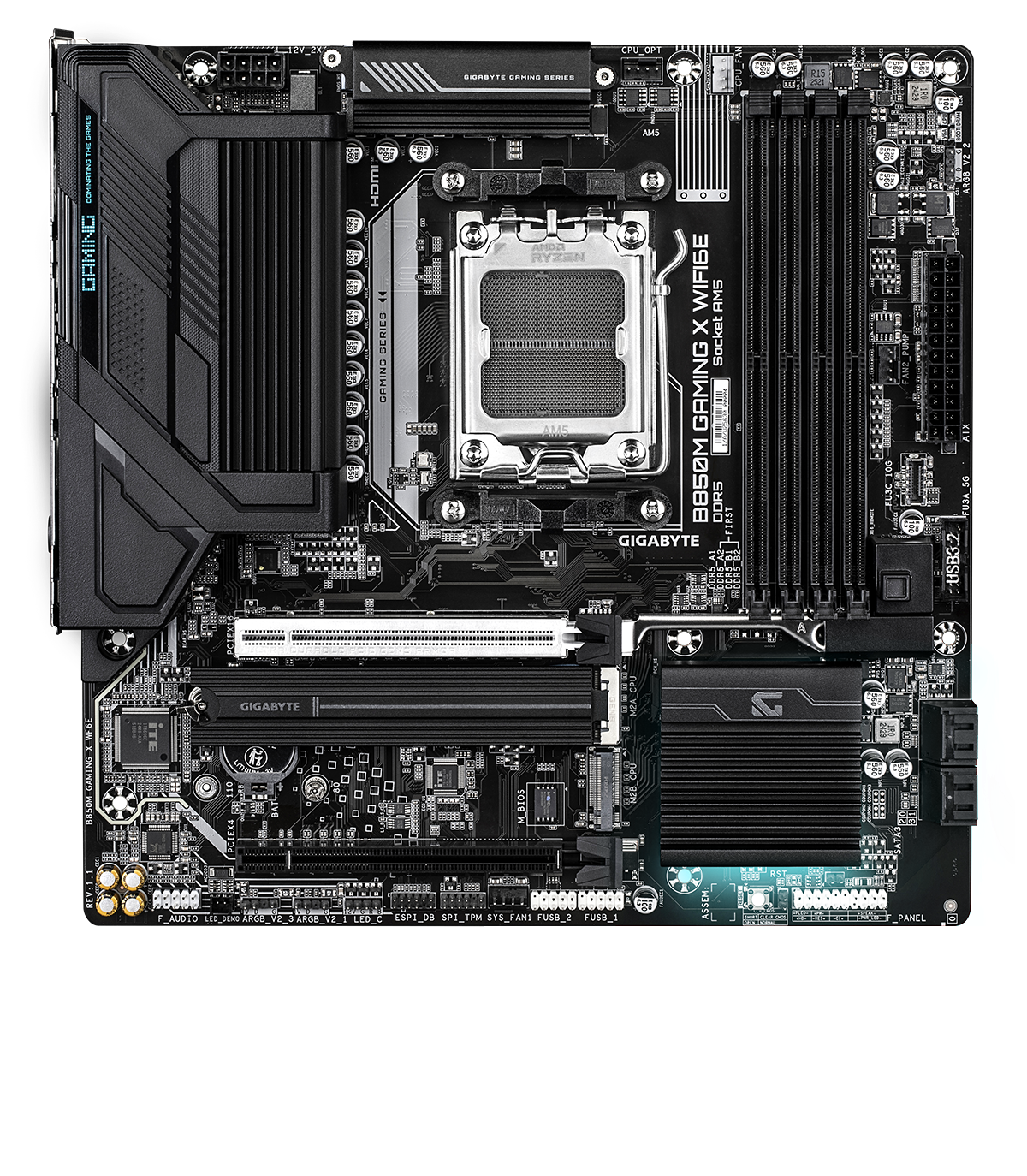

• Socket AM5 Supports AMD Ryzen™ Series Processors

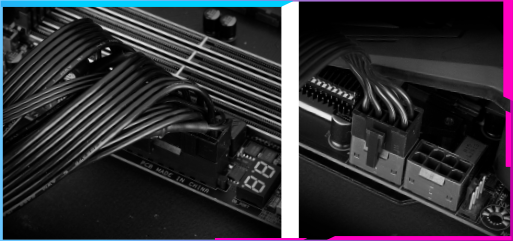

• UD Power Connector

  • 24 pin ATX Power Connector
  • 8 pin CPU with UD Solid Pin

• 4 x DIMMs, Dual Channel DDR5

• 2 x M.2 Slots

  • 1 x PCIe 5.0 M.2 Slot
  • 1 x PCIe 4.0 M.2 Slot

• Full-length PCIe slots

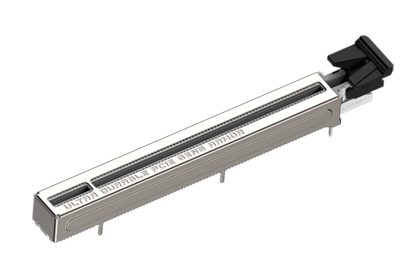

  • 1 x PCIe 5.0 x16 with PCIe UD Slot
  • 1 x PCIe 3.0 x4 slots

Thermal :

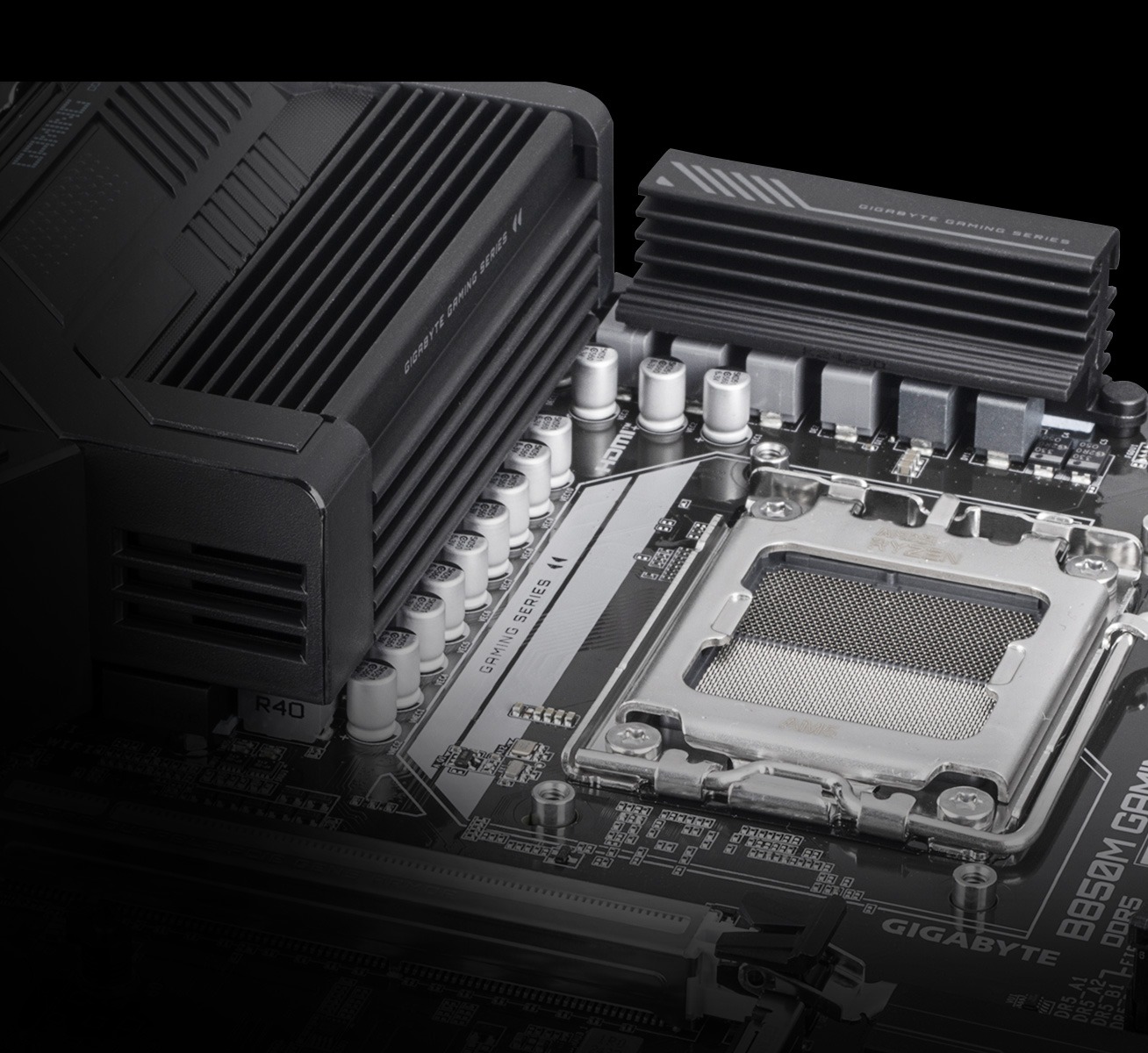

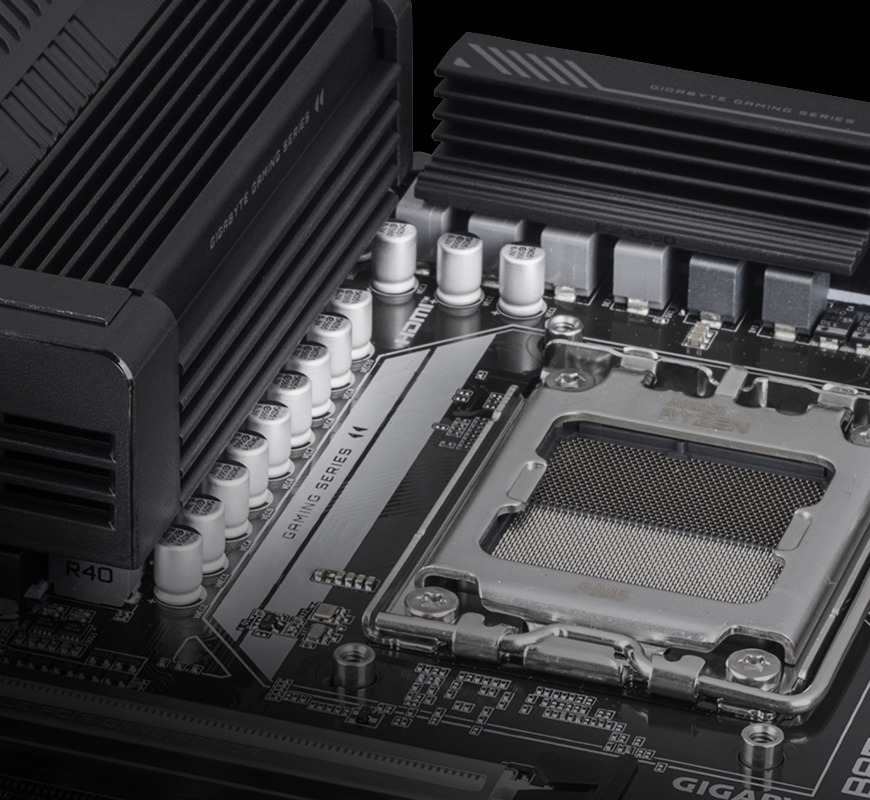

• VRM Thermal Armor Advanced

  • 5 W/mk Thermal Pad
  • Integrated IO Shield

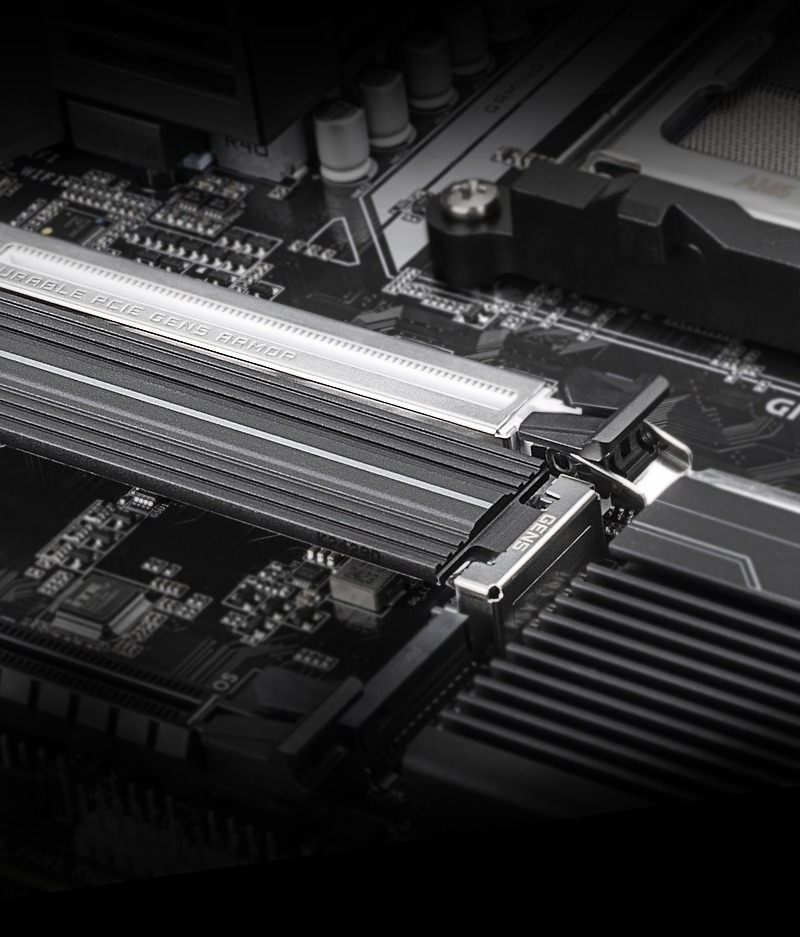

• M.2 Thermal Guard

• Smart Fan 6

  • Total 4* PWM / DC Fan Headers
  • Dual Fan Curve Mode

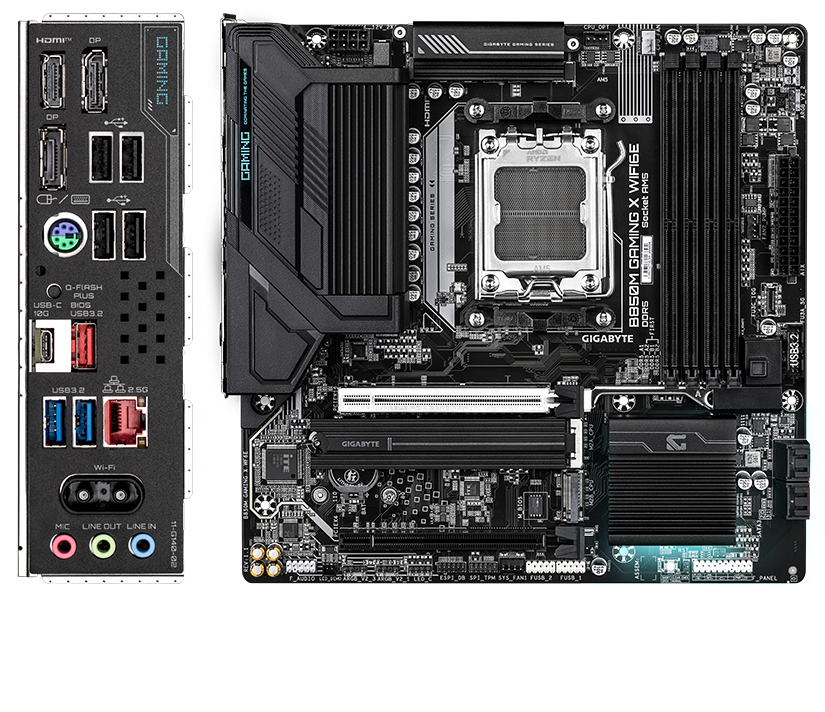

Connectivity :

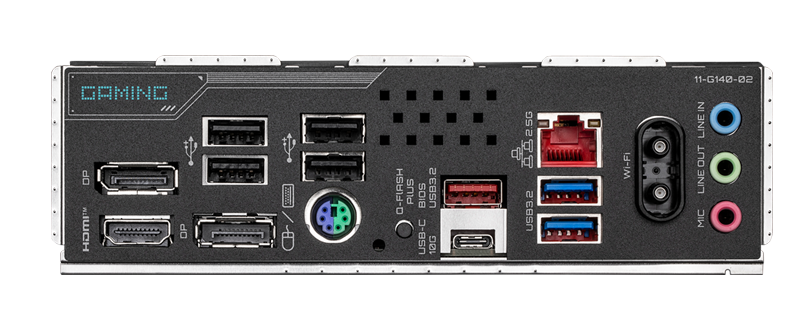

• 1 x HDMI

• 2 x DisplayPort

• 4 x USB 2.0

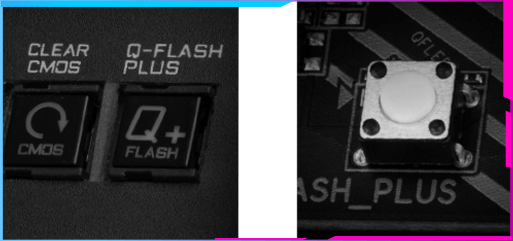

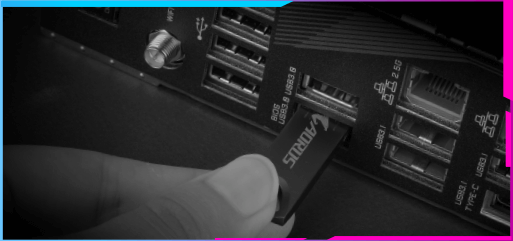

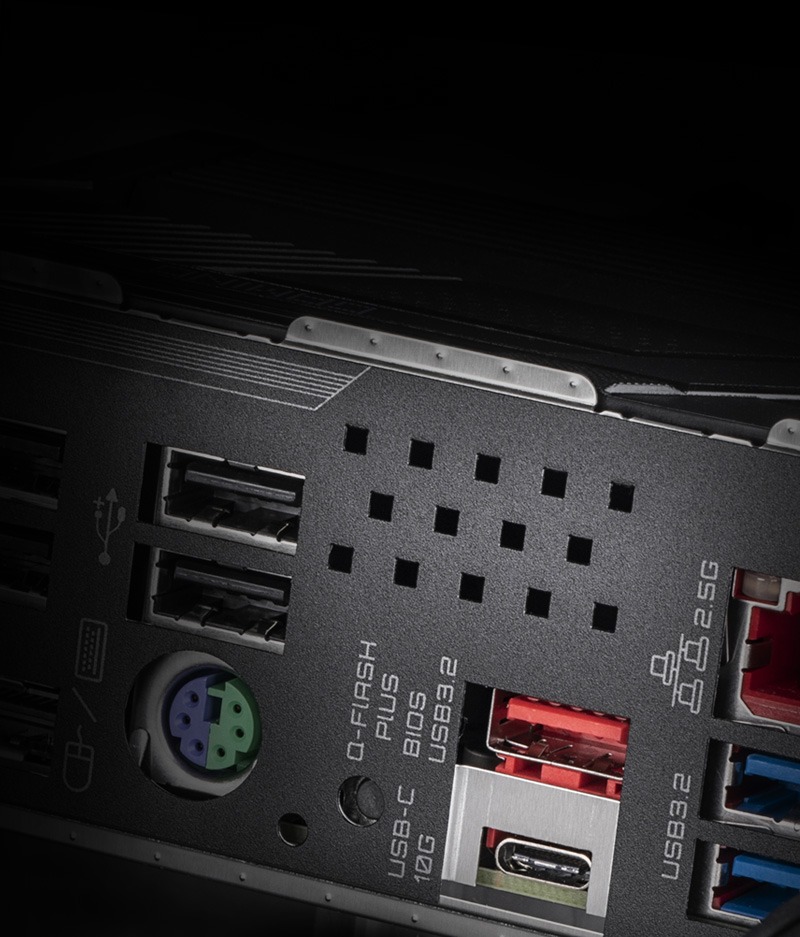

• Q-FLASH PLUS Button

• 1 x USB 3.2 Gen2 Type-C®

• 1 x USB 3.2 Gen 2

• 2.5 GbE LAN

• 2 x USB 3.2 Gen 1

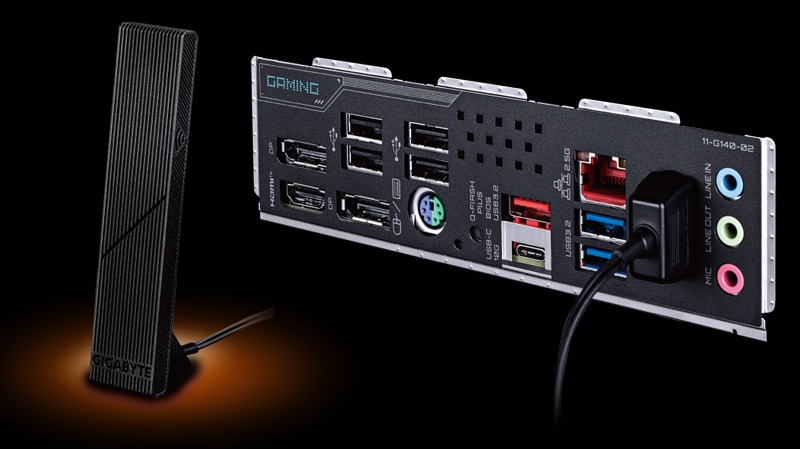

• WIFI EZ-Plug

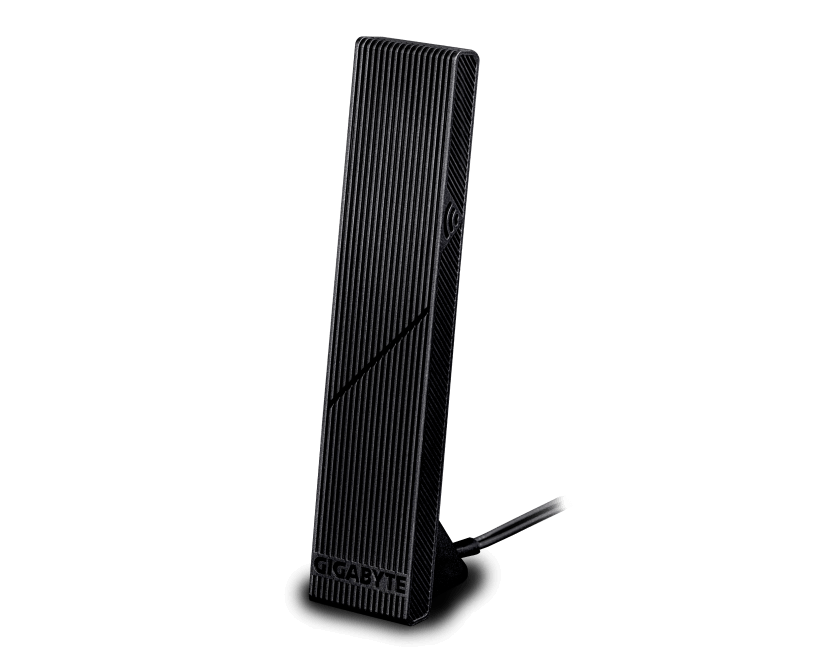

• Wi-Fi 6E with Directional
  Ultra-high gain Antenna

• Front USB-C 10Gb/s

• 4 x SATA 6Gb/s

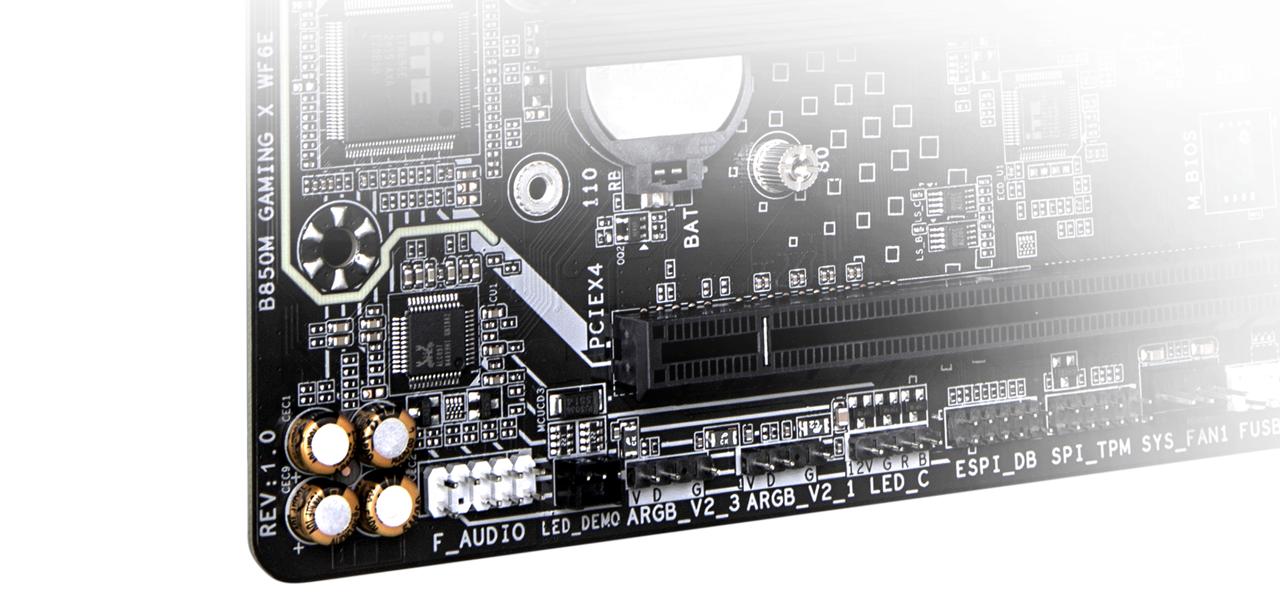

• Hi-Fi Audio

  • 8-CH HD Audio
  • High-End Audio Capacitor

• RGB FUSION

  • 1 x RGB LED Header
  • 3 x ARGB LED Headers

DIY Friendly :

• WIFI EZ-Plug

• M.2 EZ-Latch Plus
  M.2 EZ-Latch Click

• EZ-Latch Un-Install Angle

• PCIe EZ-Latch Plus

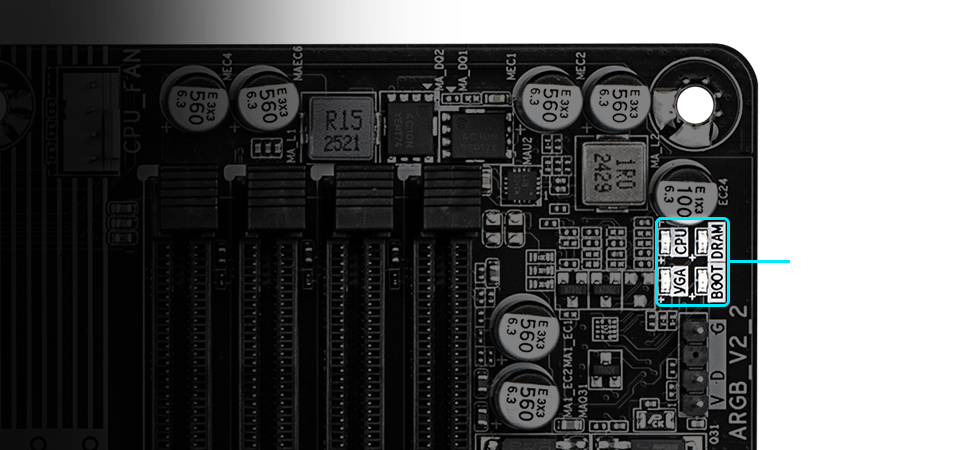

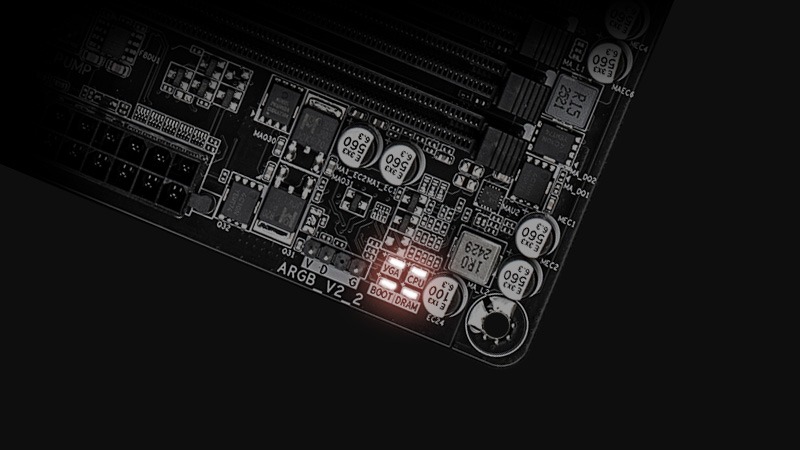

• EZ-Debug Zone

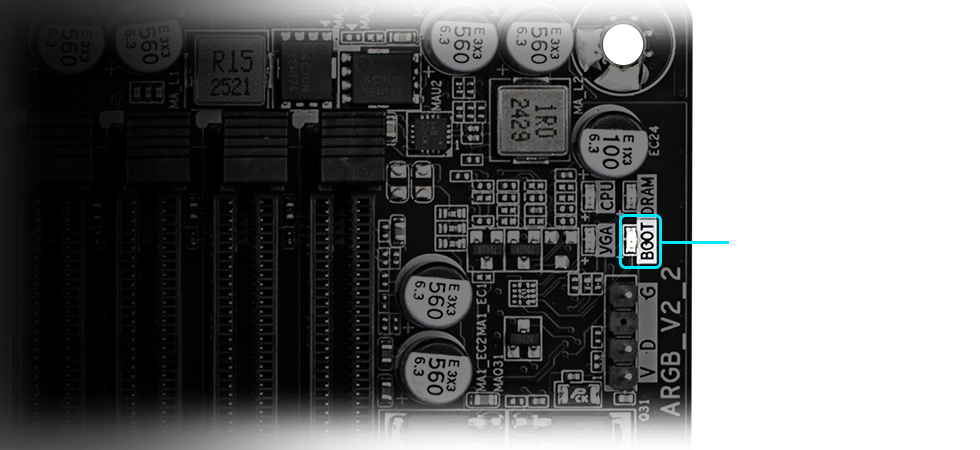

  • Debug LEDs
