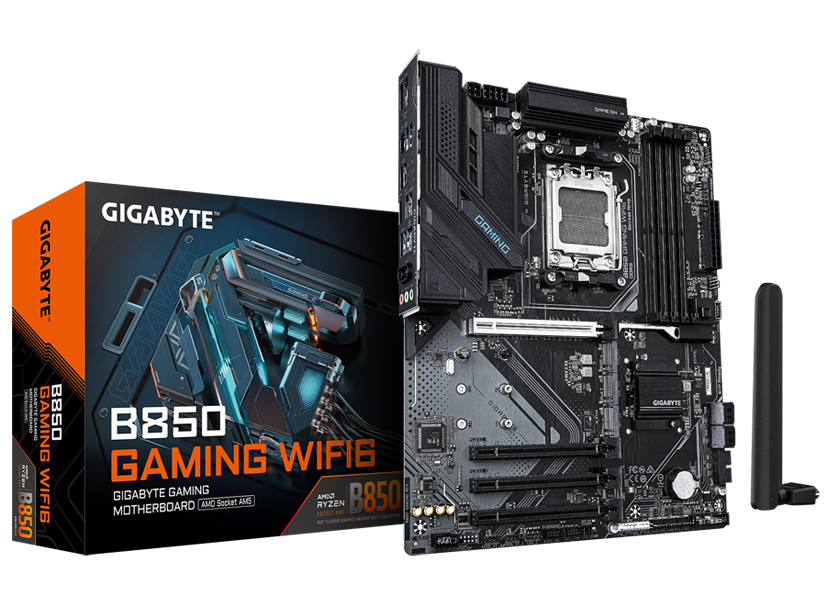

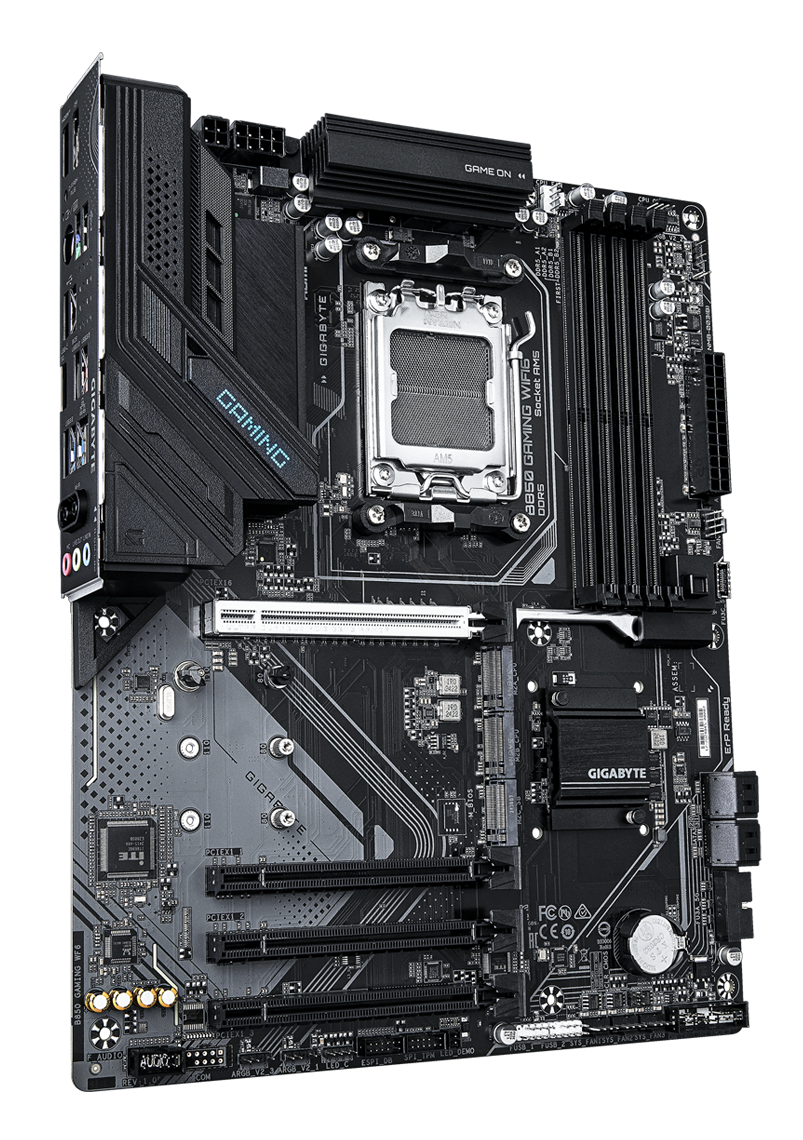

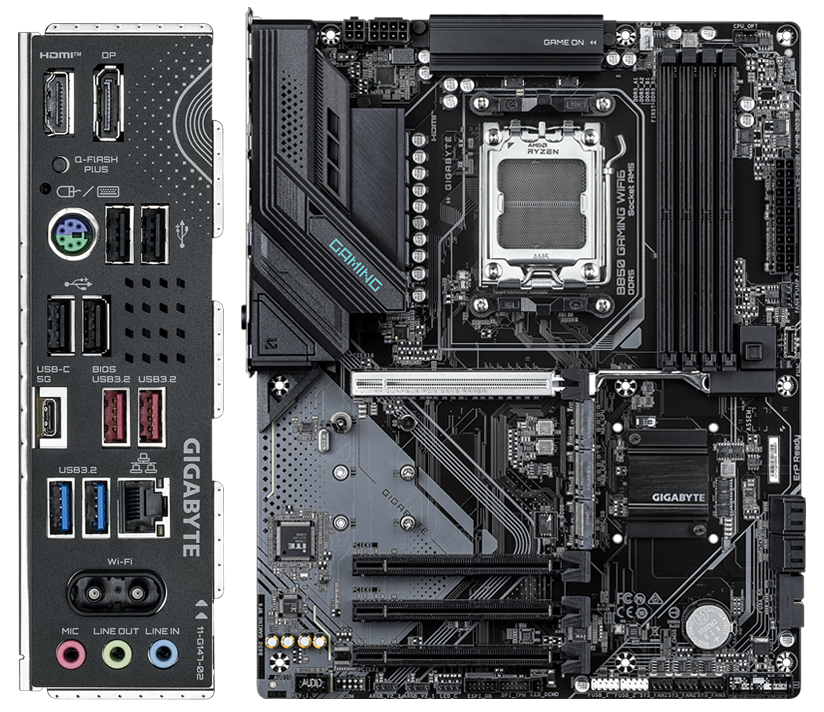

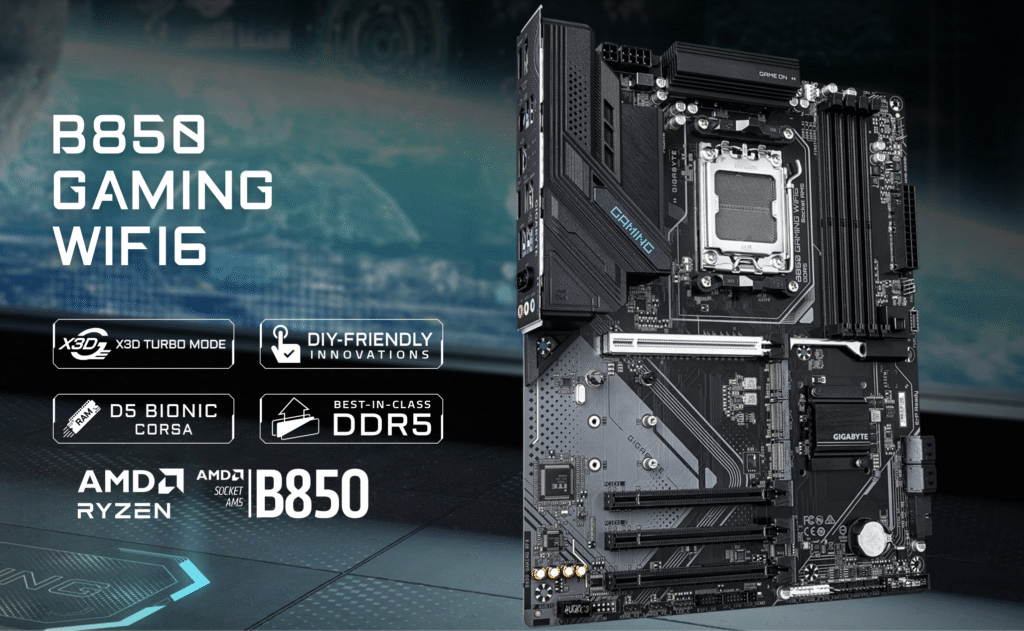

B850 GAMING WIFI6

Description

OVERVIEW

Performance :

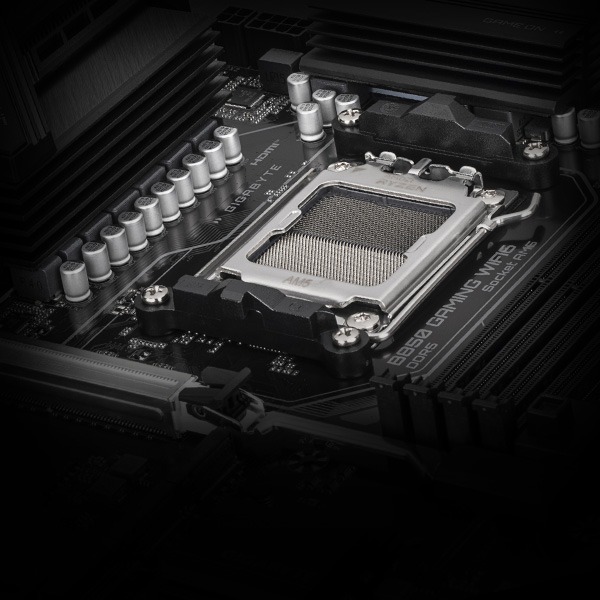

• 6+2+2 Digital VRM Design

  • 6-Layer PCB
  • Mid-Loss PCB
  • Premium Choke and Capacitor

• Socket AM5 Supports AMD Ryzen™ Series Processors

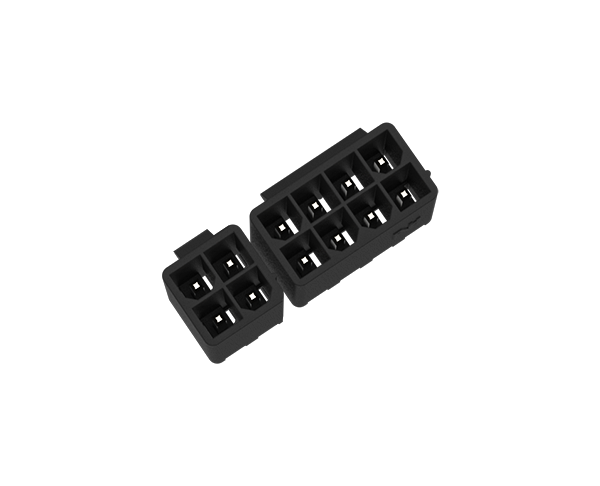

• UD Power Connector

  • 24 pin ATX Power Connector
  • 4+8 pin CPU with UD Solid Pin

• 4 x DIMMs, Dual Channel DDR5

• 3 x M.2 Slots

  • 1 x PCIe 5.0 M.2 Slot
  • 2 x PCIe 4.0 M.2 Slots

• Full-length PCIe slots

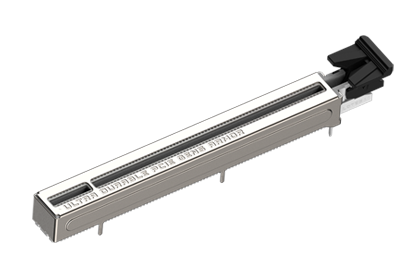

  • 1 x PCIe 5.0 x16 with PCIe UD Slot
  • 3 x PCIe 3.0 x1 slots

Thermal :

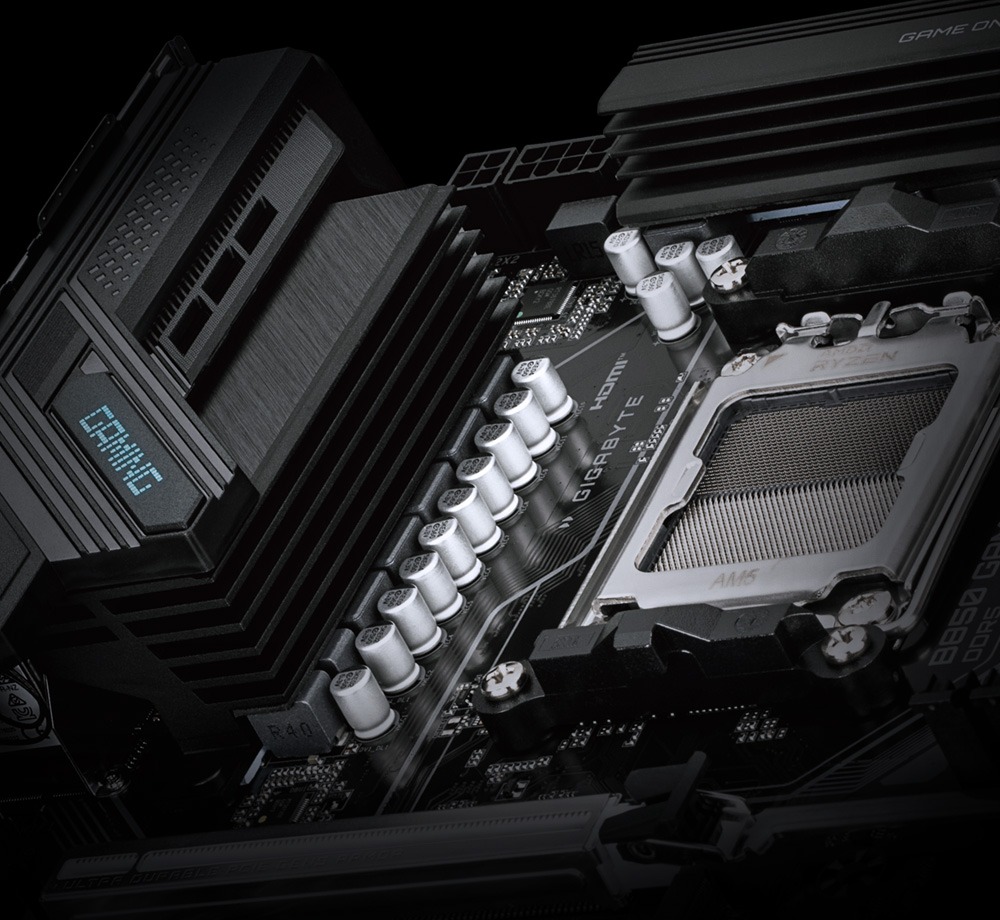

• VRM Thermal Armor Advanced

  • 5 W/mk Thermal Pad

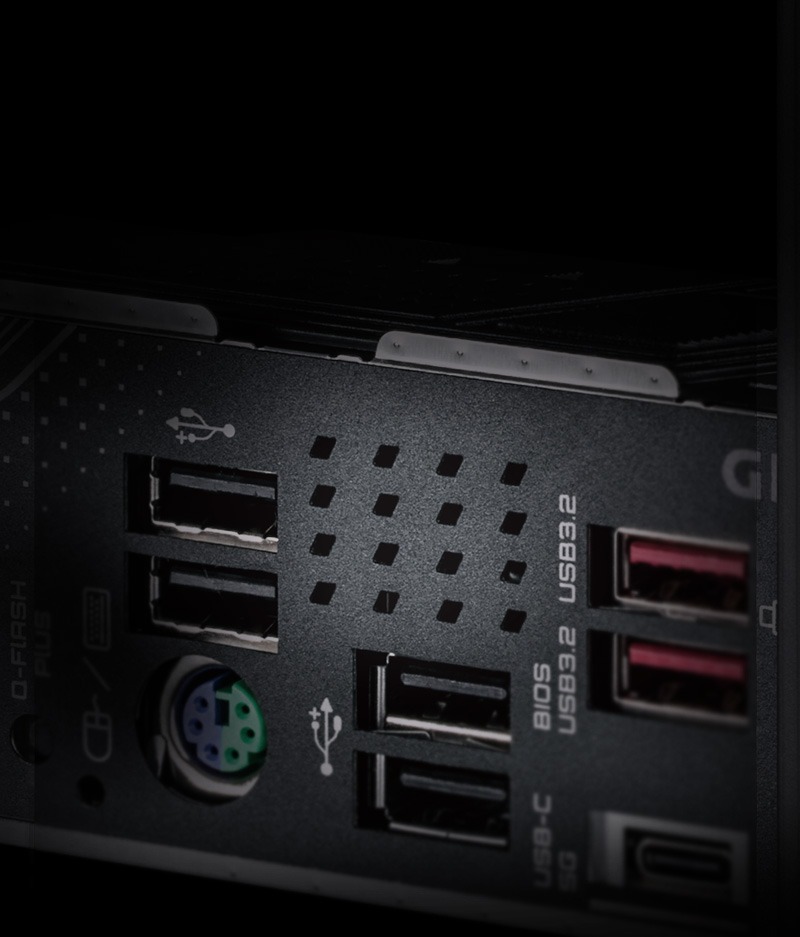

  • Integrated IO Shield

• Smart Fan 6

  • Total 6* PWM / DC Fan Headers
  • Dual Fan Curve Mode

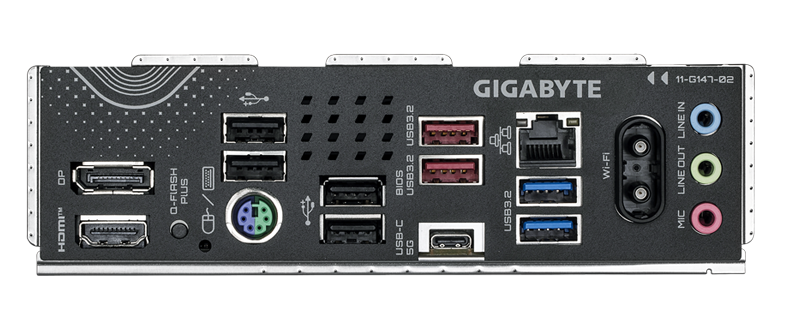

Connectivity :

• 1 x DisplayPort

• 1 x HDMI

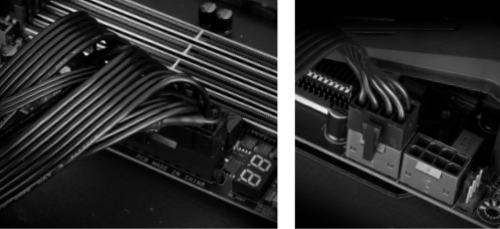

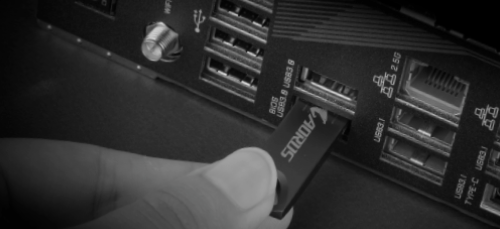

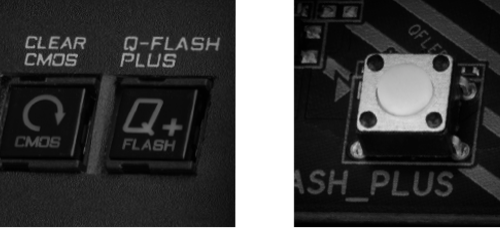

• Q-FLASH PLUS Button

• 4 x USB 2.0

• USB 3.2 Gen 1 Type-C®

• 2 x USB 3.2 Gen 2

• 2 x USB 3.2 Gen 1

• GbE LAN

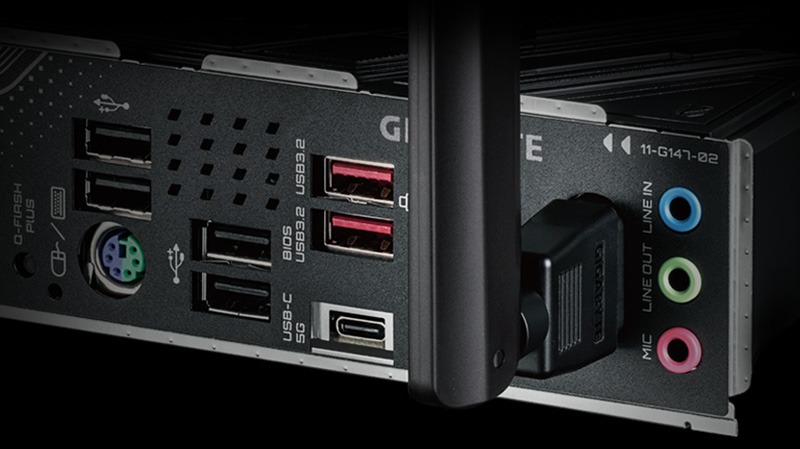

• WIFI EZ-Plug

• Wi-Fi 6 802.11ax

• Front USB-C 5Gb/s

• 4 x SATA 6Gb/s

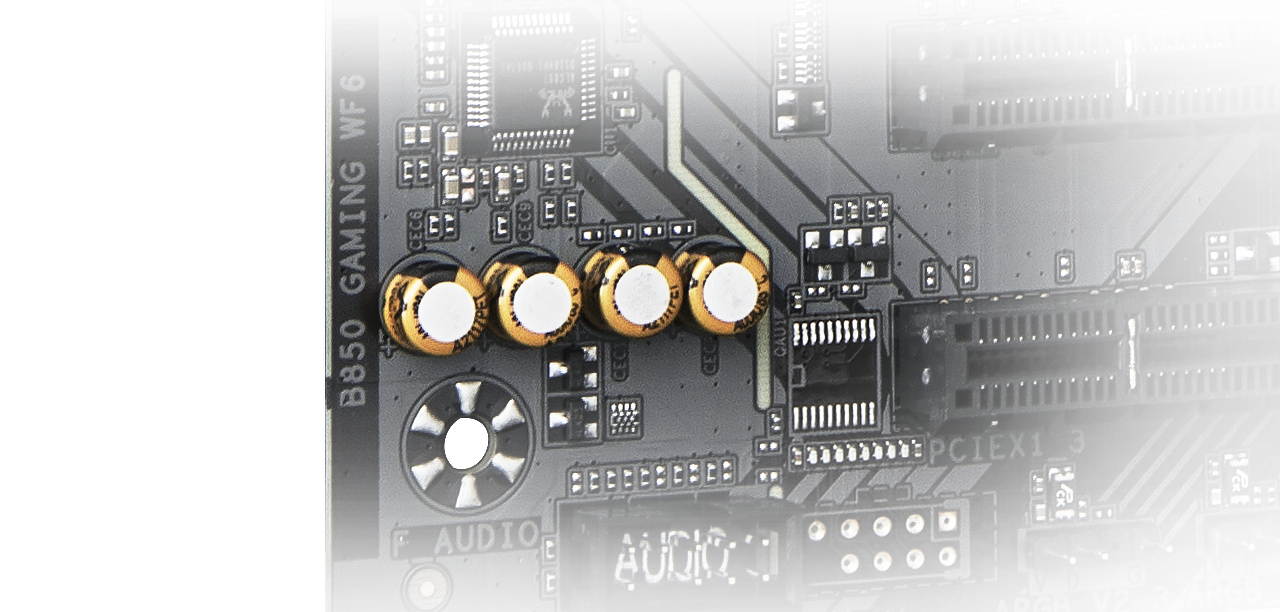

• Hi-Fi Audio

  • 8-CH HD Audio
  • High-End Audio Capacitor

• RGB FUSION

  • 1 x RGB LED Header
  • 3 x ARGB LED Headers

DIY Friendly :

• WIFI EZ-Plug

• M.2 EZ-Latch Plus

• PCIe EZ-Latch Plus

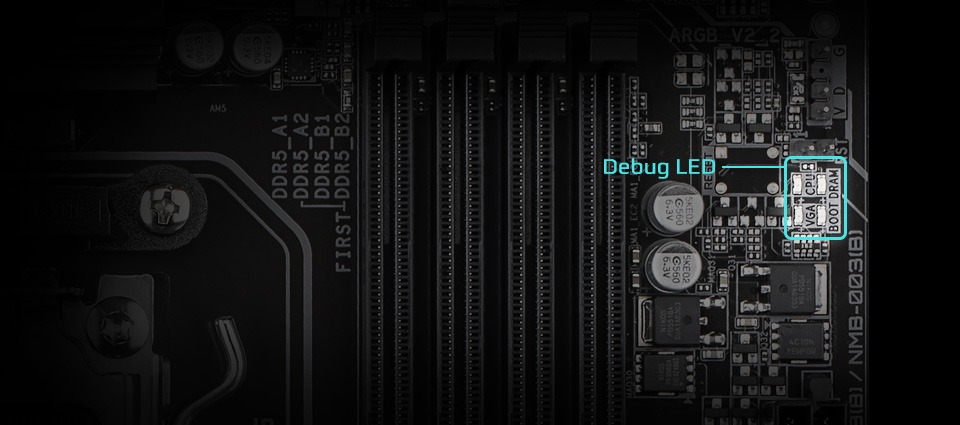

• EZ-Debug Zone

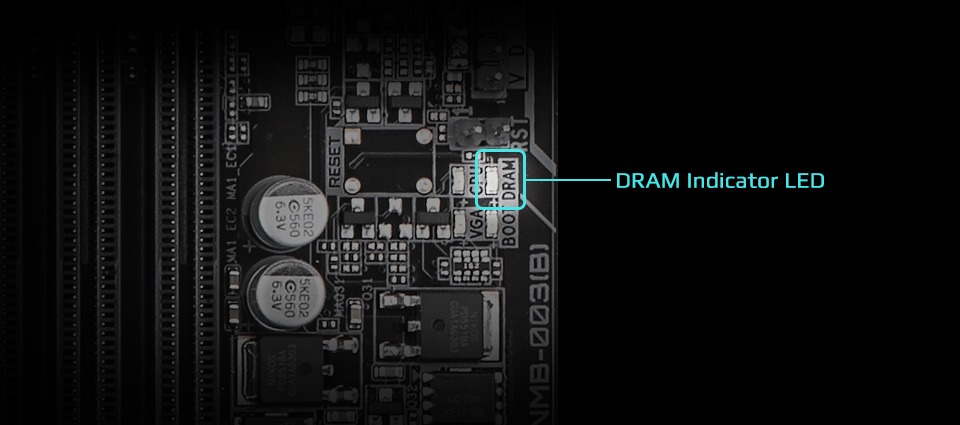

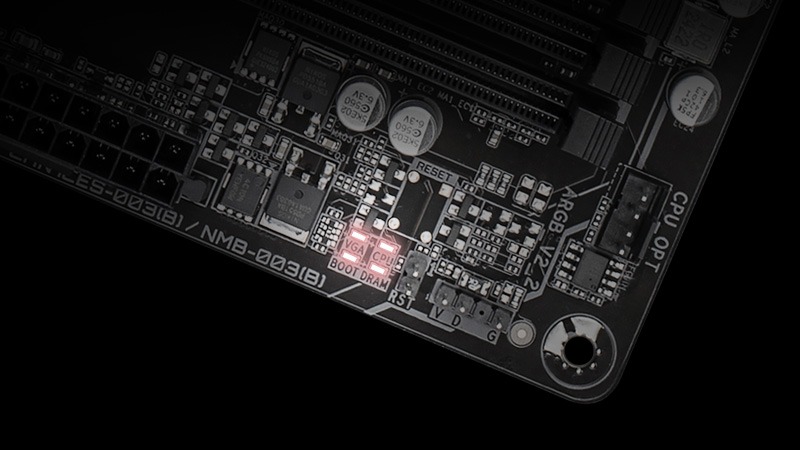

  • Debug LEDs

Key Features

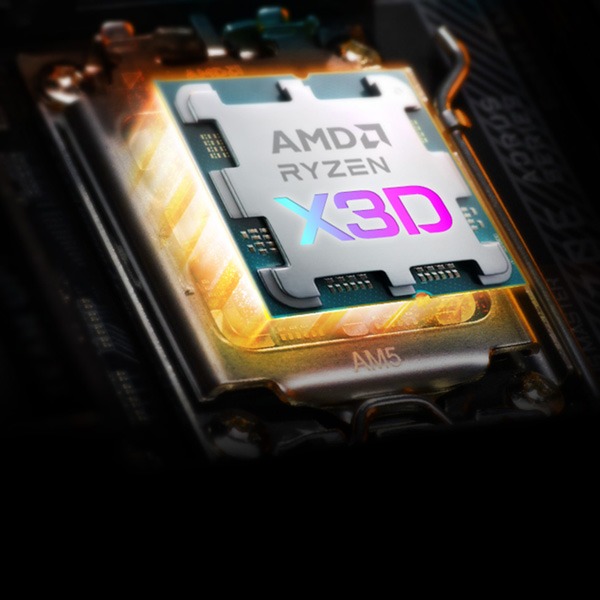

• X3D Turbo Mode : Unleash new era gaming performance
• DDR5 OC up to 8200MT/s
• AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital 6+2+2 phases VRM solution
• Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• PCIe EZ-Latch Plus : PCIe slots with Quick Release Design
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0×4 slot
• Efficient Thermal : VRM Thermal Armor Advanced
• Fast Networking : GbE LAN & Wi-Fi 6 802.11ax
• Extended Connectivity : HDMI, Displayport
