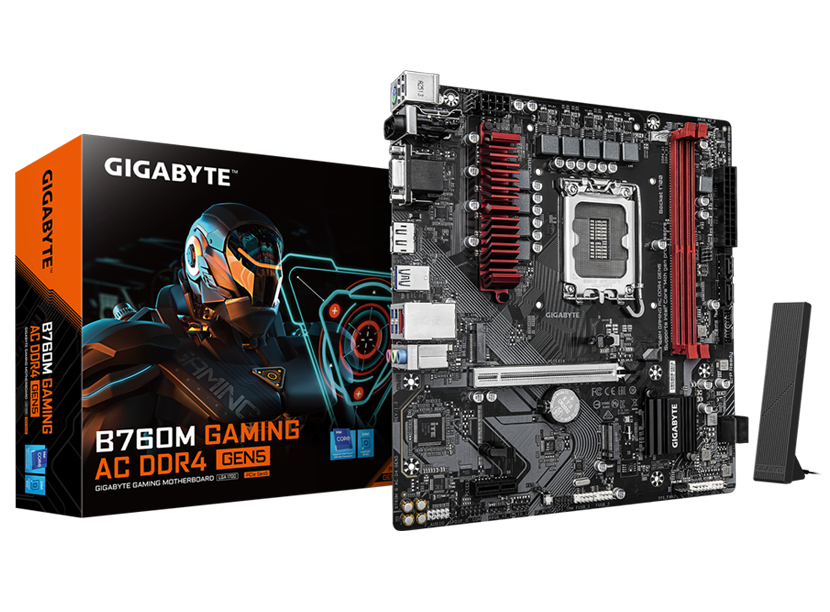

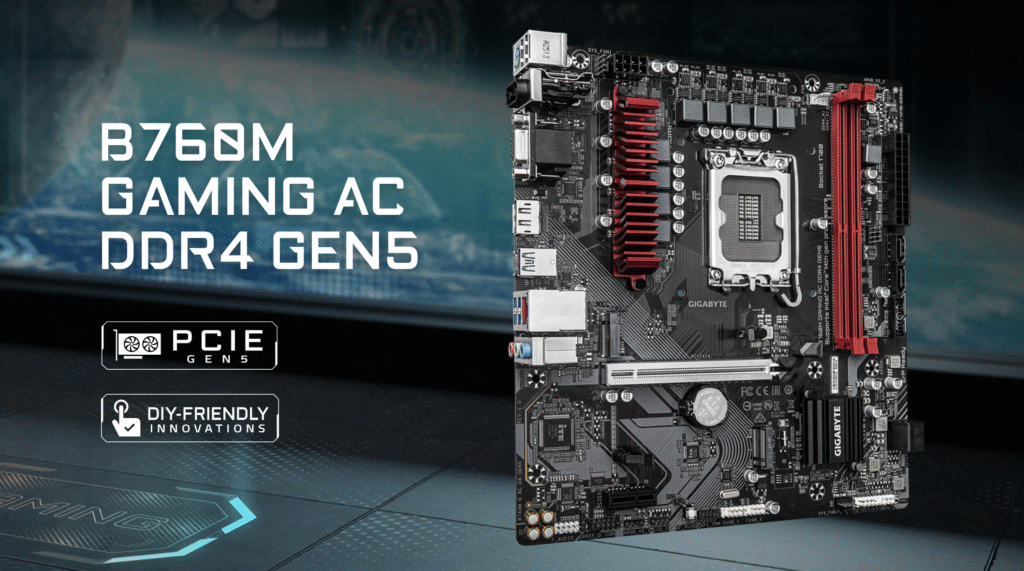

B760M GAMING AC DDR4 GEN5

Description

OVERVIEW

Performance :

• 6+2+1 Hybrid Phases Power

  • PCIe 5.0 Ready PCB

• Support 14th and 13th Gen.
  Intel® Core™ Processors

• UD Power Connector

  • 24 pin ATX Power Connector
  • 8 pin CPU with UD Solid Pin

• 2 x DIMMs, Dual Channel DDR4

• 2 x M.2 Slots

  • 2 x PCIe 4.0 M.2 Slots

• PCIe slots

  • 1 x PCIe 5.0 x16 with PCIe UD Slot
  • 1 x PCIe 3.0 x1 slot

Express to PCIE5 Performance

The new GIGABYTE B760 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform.

PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

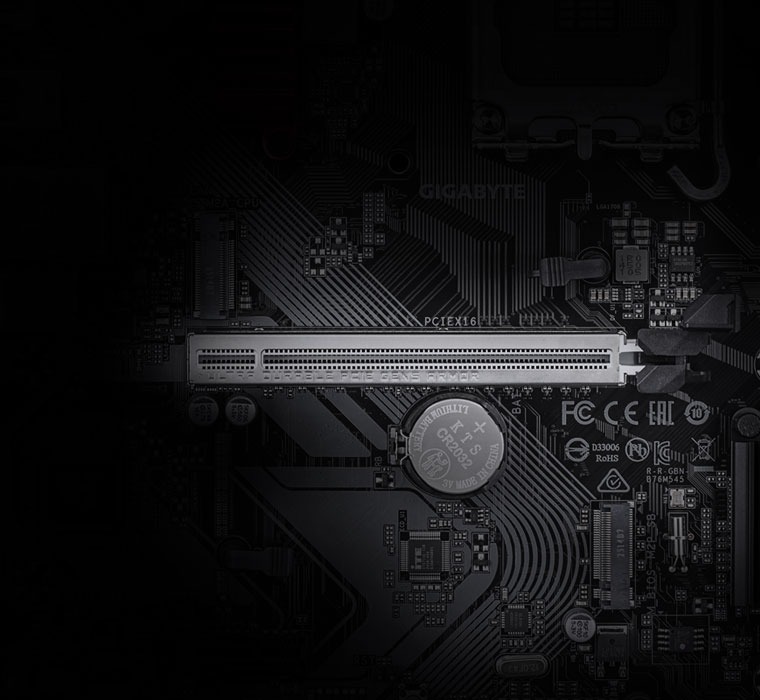

PCIe UD Slot

GIGABYTE’s one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards.

1.7X

stronger shearing test

3.2X

stronger retention force test

Reduced Signal Degradation
with SMD Technology

* Photo for refrence only

UD Power Connector

Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.

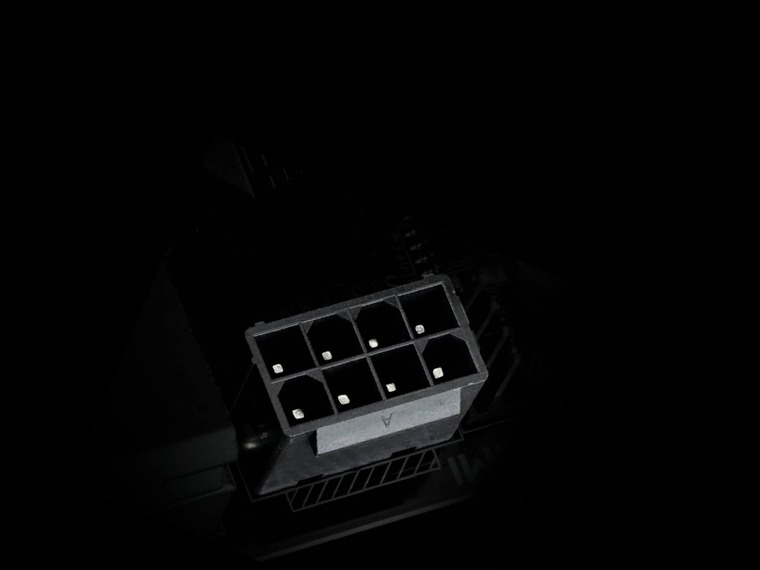

Solid Pins

Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections

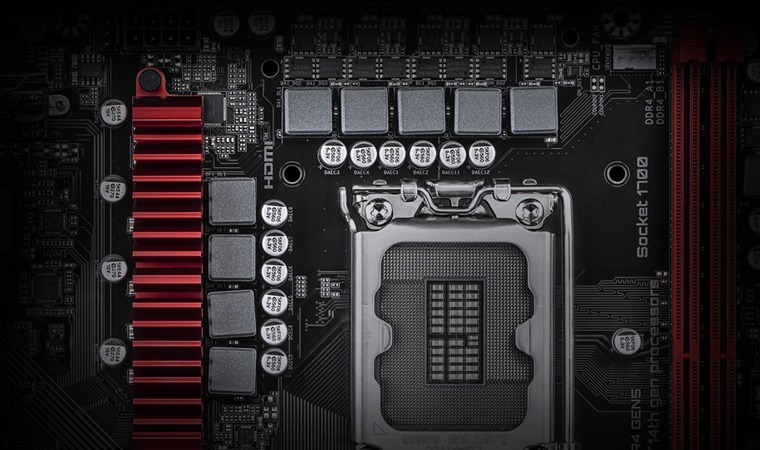

VRM Thermal

Durable VRM heatsinks keep your system cool and efficient.

* Photo for reference only

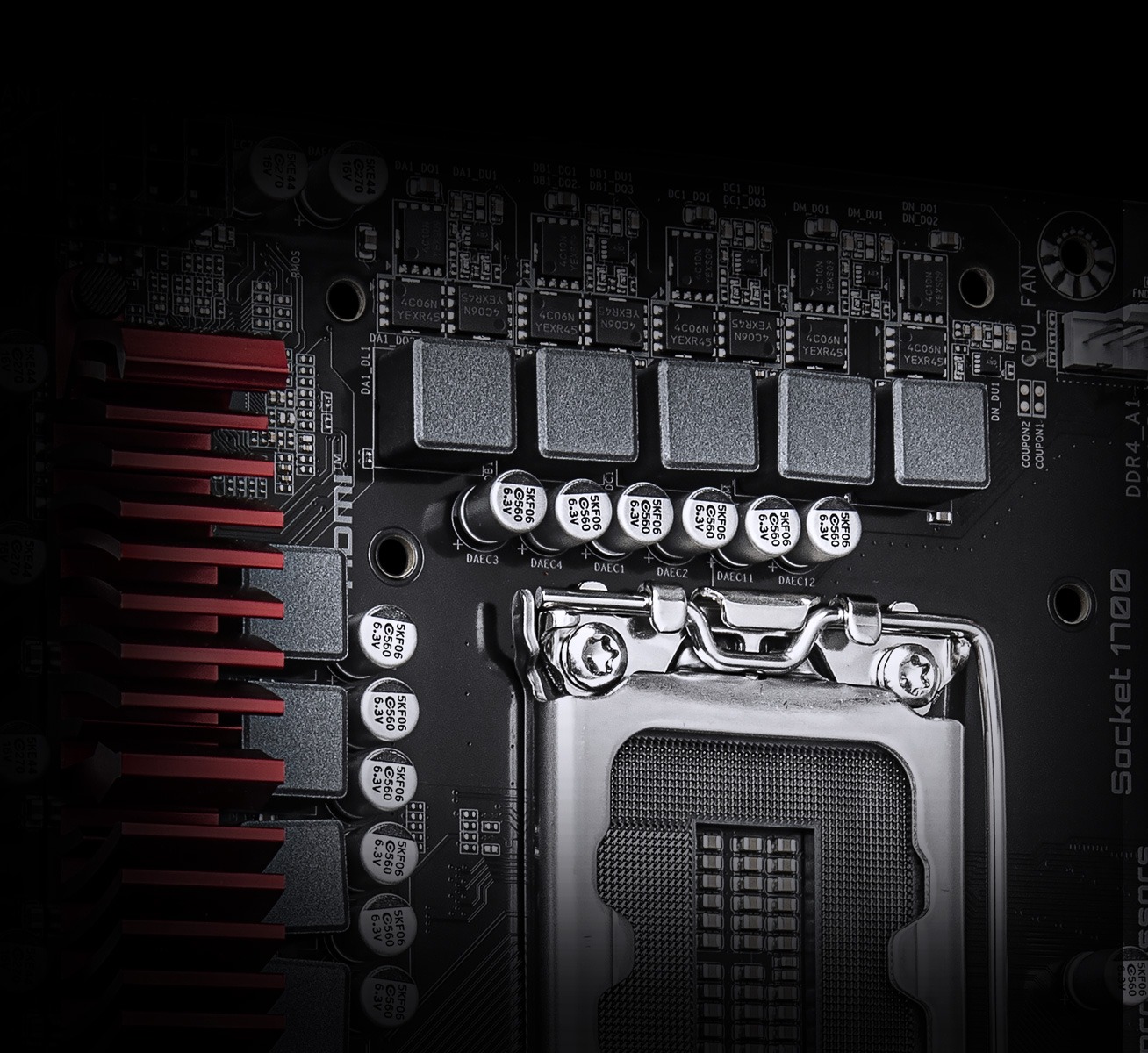

Hybrid VRM Design

The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.

* Photo for reference only

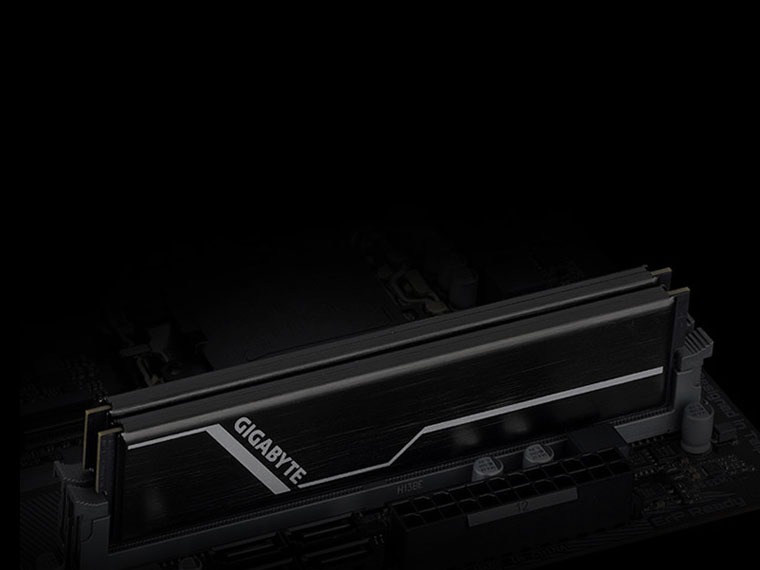

Support for DDR4 XMP Up to 5333MHz and Beyond*

GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.
QVL List

Up to

5333

* XMP Profile support may vary depending on memory module.
* Please see the complete validated memory support list. Product features may vary by model.
* Photos for reference only.

Smart Fan 6

Cool. Quiet. Customized.

Thermal :

• VRM Heatsink

Connectivity :

• 2 x USB 2.0

• Wi-Fi 802.11ac

• WIFI EZ-Plug

• 1 x HDMI

• 1 x D-sub

• 1 x Display Port

• 1 x USB 3.2 Gen 1 Type-C®

• 3 x USB 3.2 Gen 1

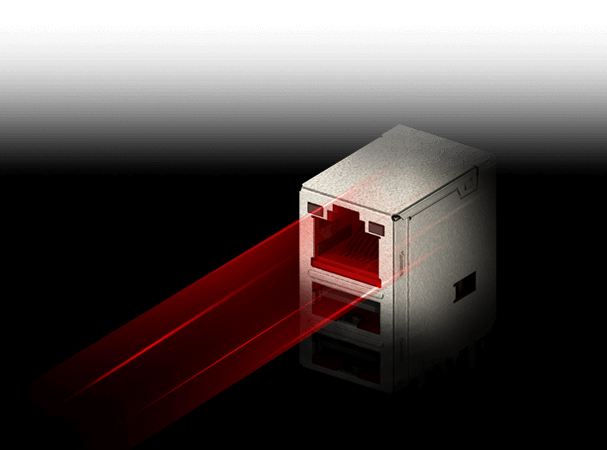

• 2.5 GbE LAN

• 4 x SATA 6Gb/s

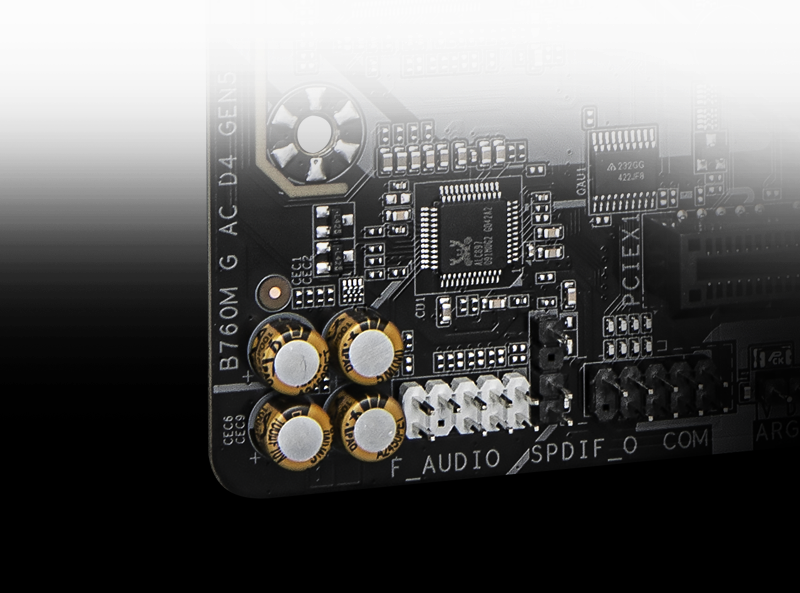

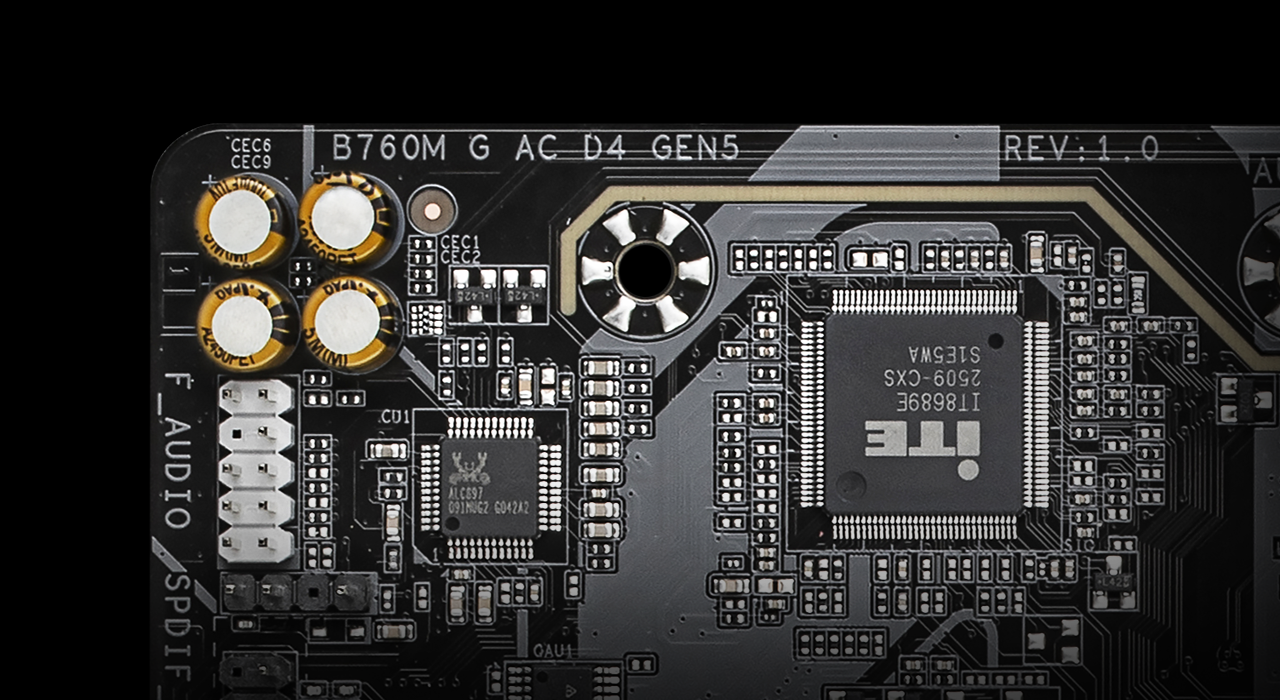

• Hi-Fi Audio

  • 8-CH HD Audio
  • High-End Audio Capacitor

• RGB FUSION

  • 2 x Addressable LED Headers
  • 1 x RGB LED Header

DIY Friendly :

• PCIe EZ-Latch

• Q-Flash Plus

• WIFI EZ-Plug

Key Features

• PCIe Gen5 Performance : Perfect Sync to Win
• Supports Intel® Core™ 14th/ 13th /12th processors

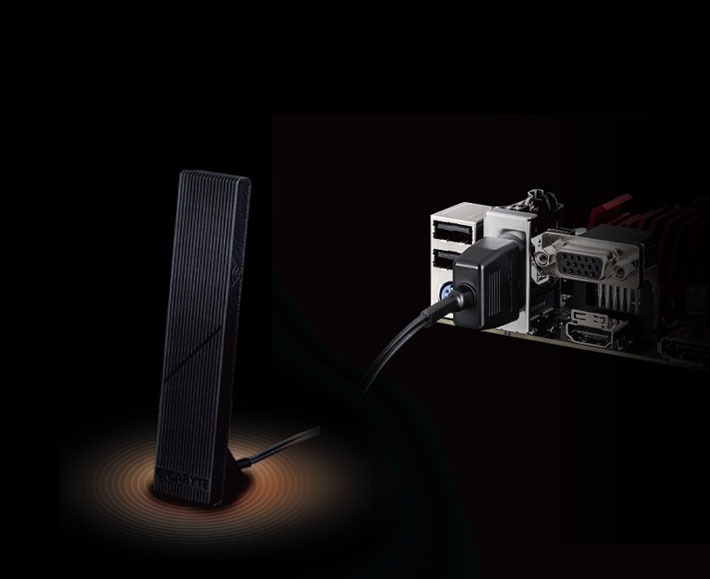

• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal.
• EZ-Latch : PCIe 5.0×16 Slot with Quick Release Design
• Ultra Durable™ SMD PCIe 5.0 Armor for enhanced graphics card support
• Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution
• Dual Channel DDR4 : 2*DIMMs XMP Memory Module Support
• Fast Networks : 2.5GbE LAN & Wi-Fi 802.11ac
• Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors

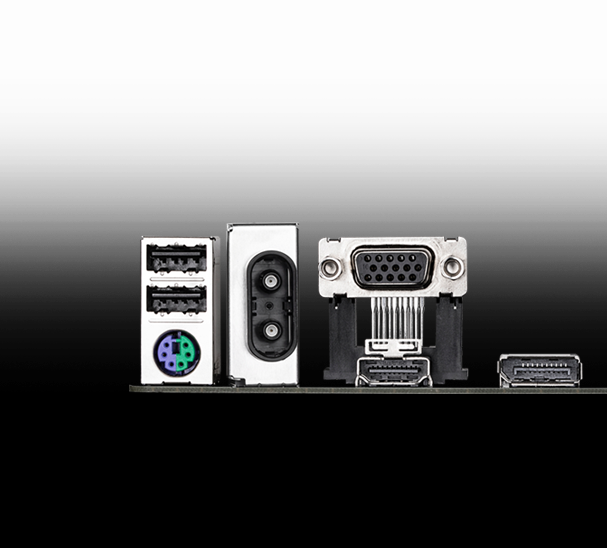

• Extended Connectivity : Rear USB-C® 5Gb/s, DP, HDMI, D-Sub
• Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

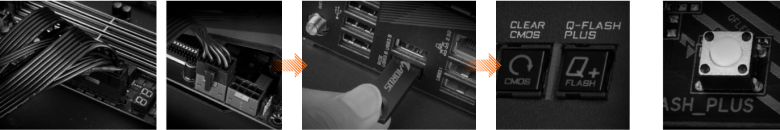

• Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
