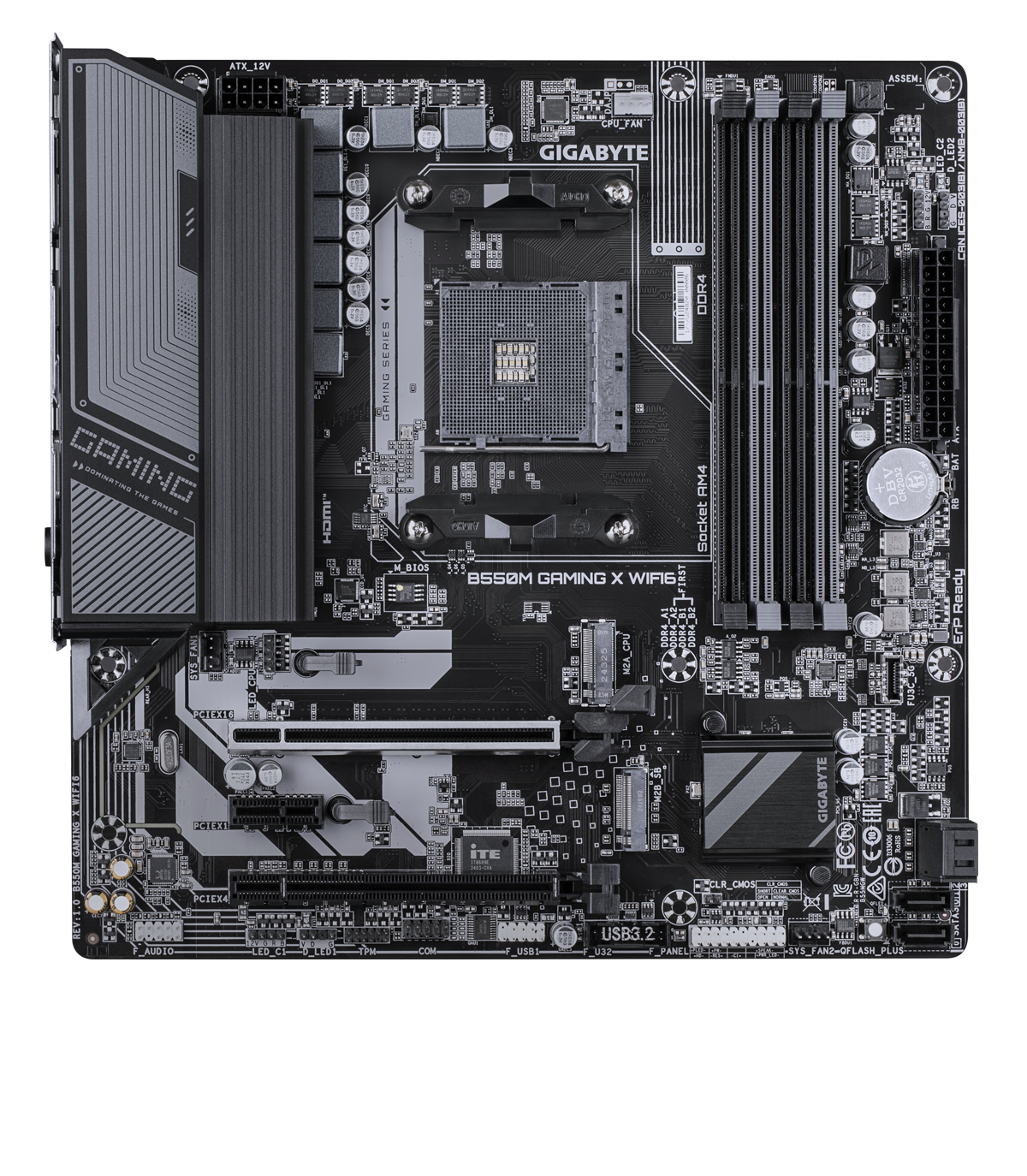

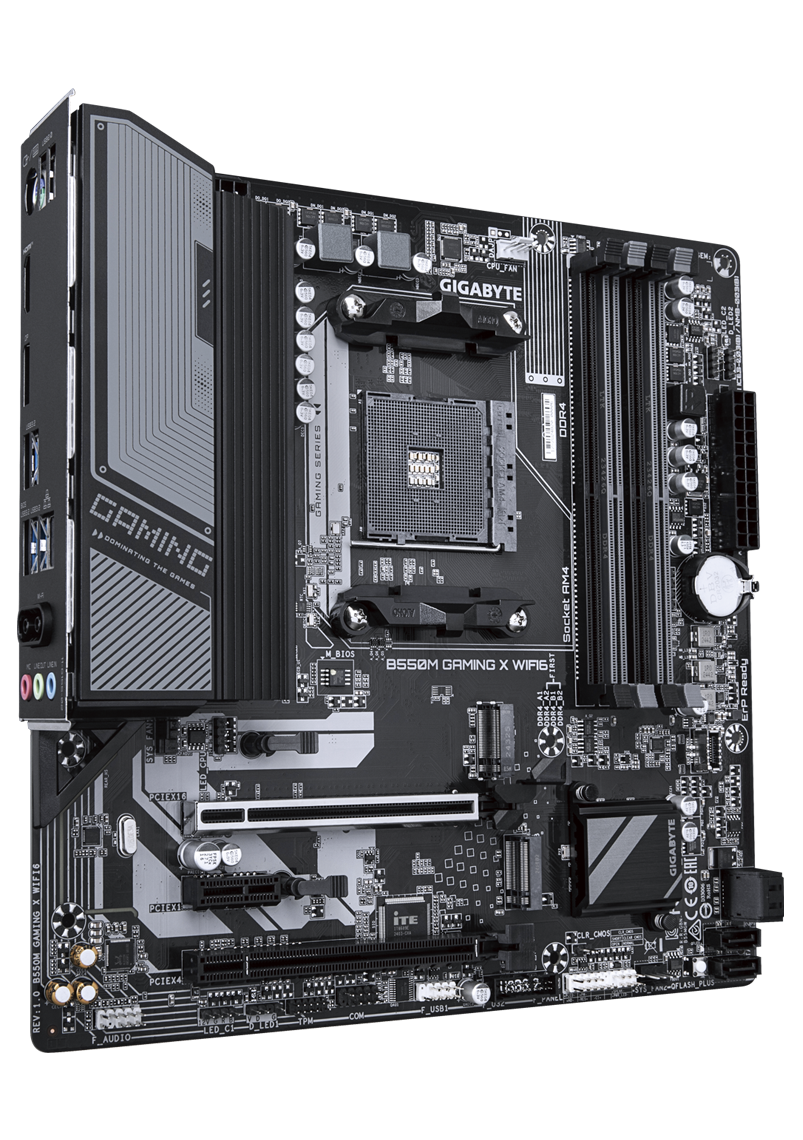

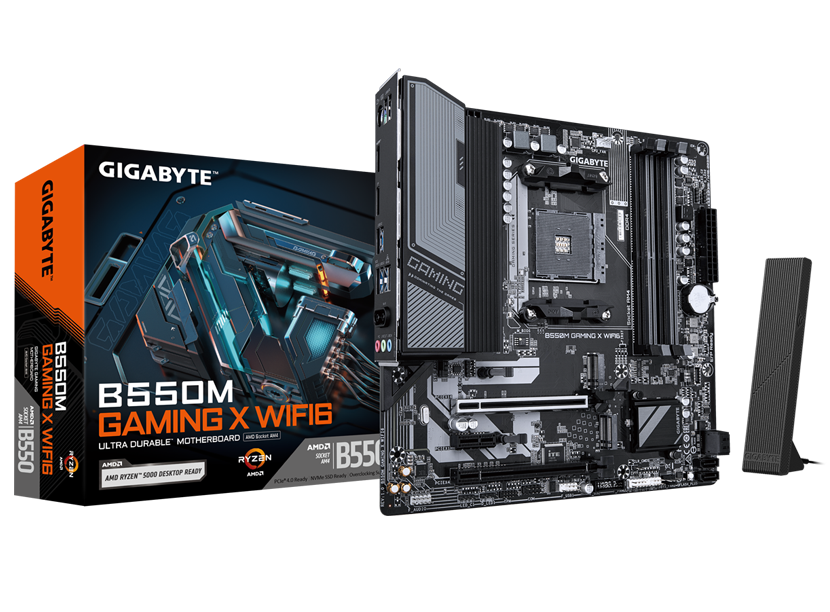

B550M GAMING X WIFI6

Description

OVERVIEW

Performance :

• 5+3 Digital VRM Design

  • 4-Layer PCB
  • Premium Choke and Capacitor

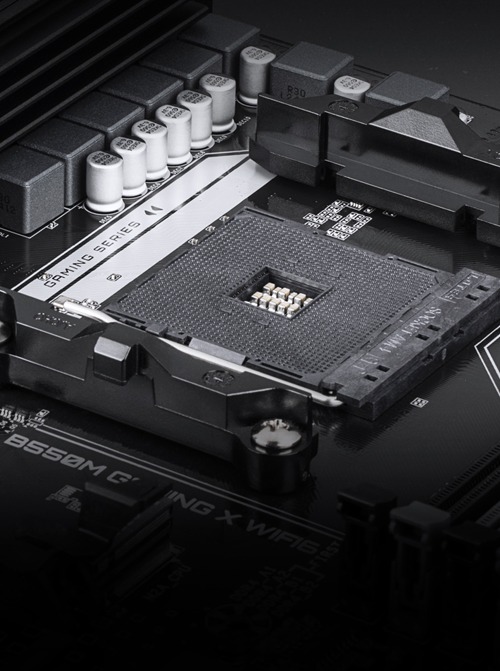

• Socket AM4 Supports AMD Ryzen™ Series Processors

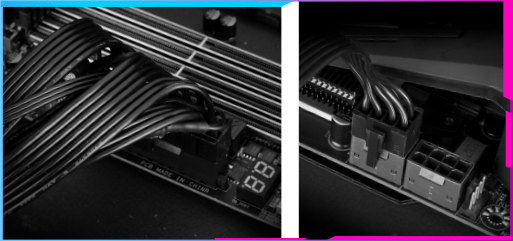

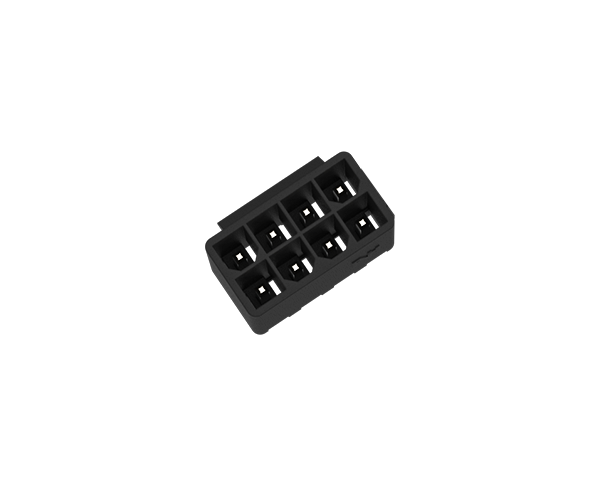

• UD Power Connector

  • 24-pin ATX Power Connector
  • 8-pin CPU with UD Solid Pin

• 4 x DIMMs

• 2 x M.2 Slots

  • 1 x PCIe 4.0 M.2 Slot
  • 1 x PCIe 3.0 M.2 Slot

• Full-length PCIe slots

  • 1 x PCIe 4.0 x16 with PCIe UD Slot
  • 1 x PCIe 3.0 x16 Slot (running x4)
  • 1 x PCIe 3.0 x1

Thermal :

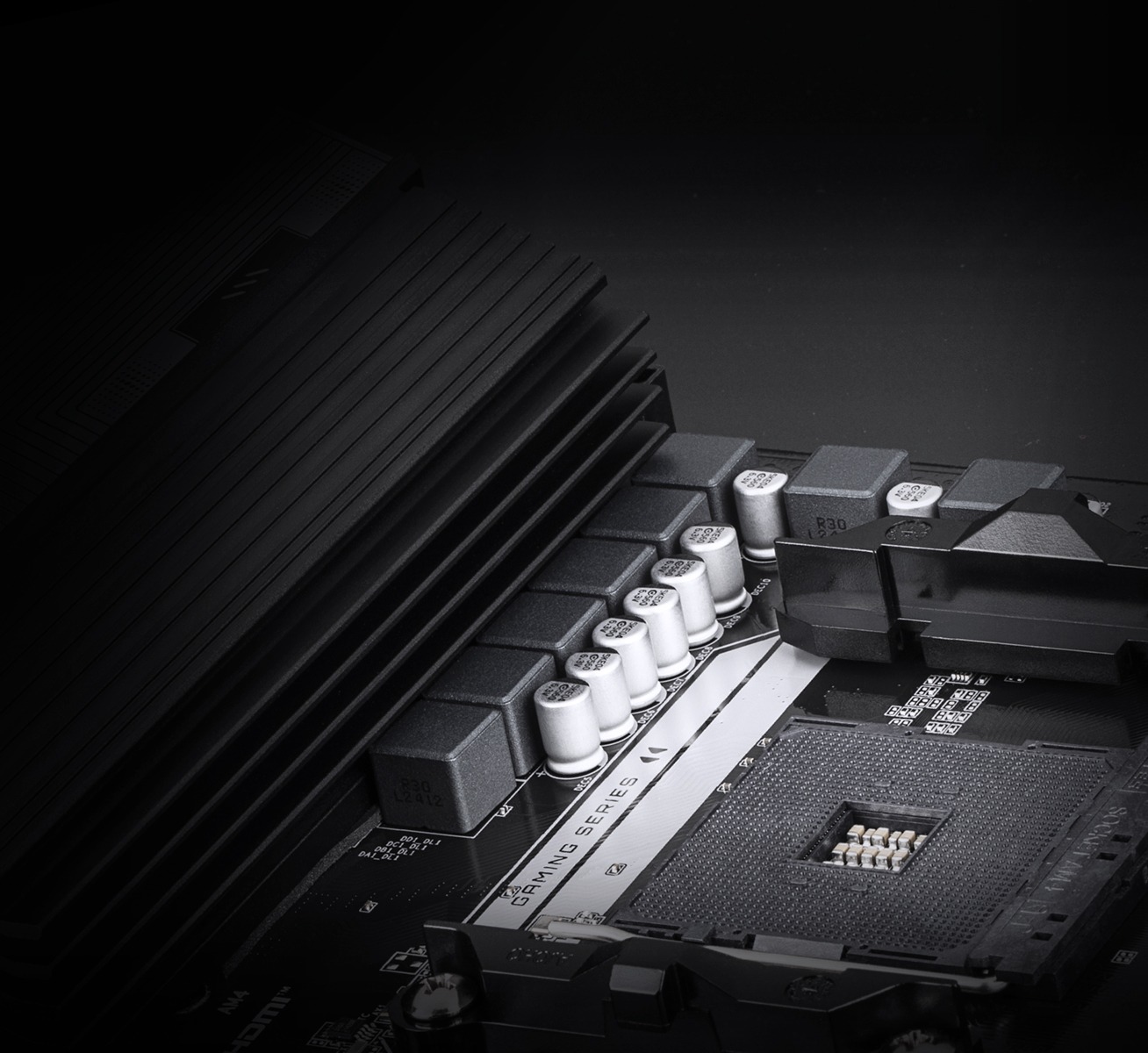

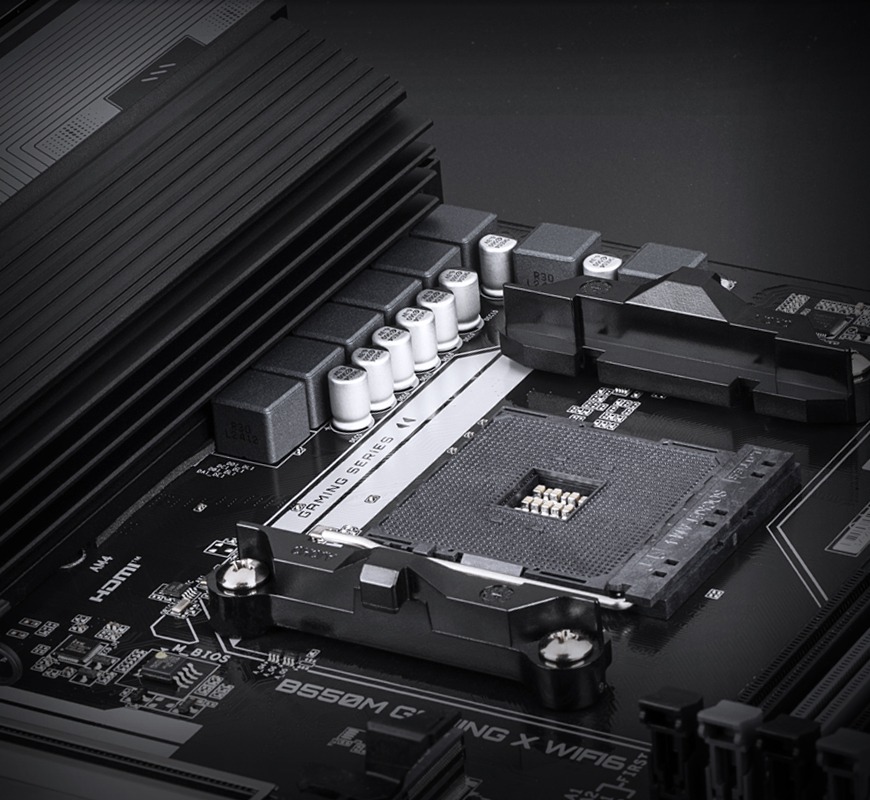

• VRM Thermal Armor Advanced

  • 5 W/mK Thermal Pad
  • Integrated I/O Shield

• Smart Fan 6

  • Total 3* PWM / DC Fan Headers
  • Dual Fan Curve Mode

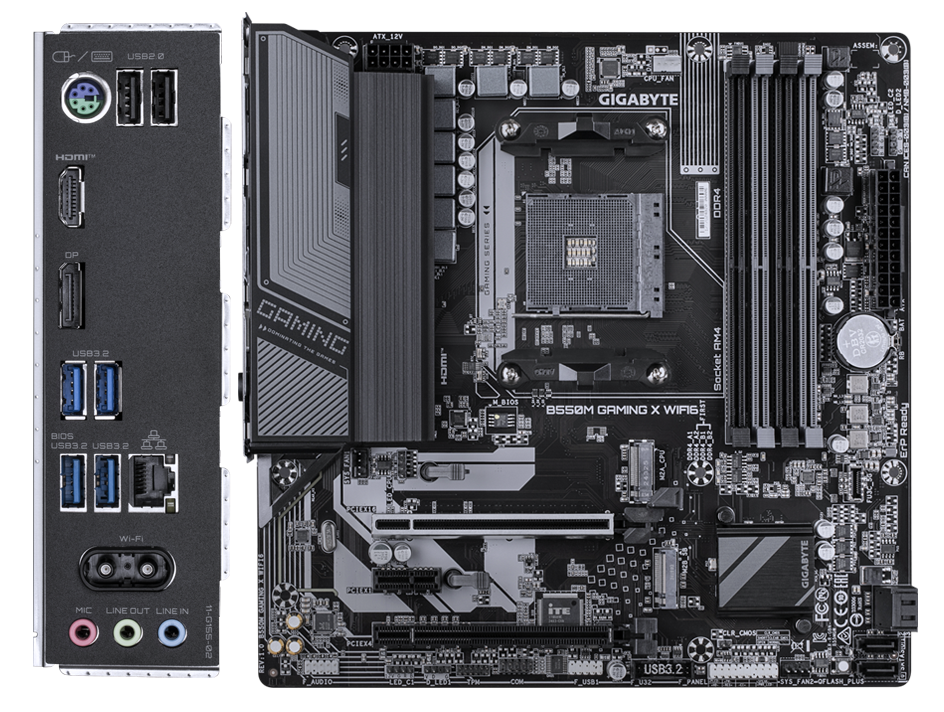

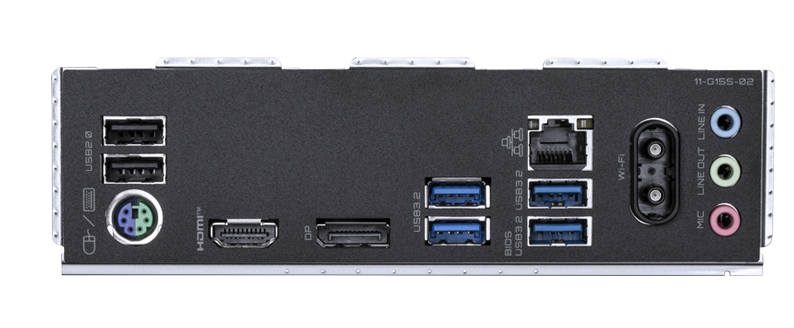

Connectivity :

• 2 x USB 2.0

• 1 x HDMI

• 1 x DisplayPort

• 2x USB3.2 Gen 1

• GbE LAN

• Wi-Fi 6 & Antenna

• 4 x SATA 6Gb/s

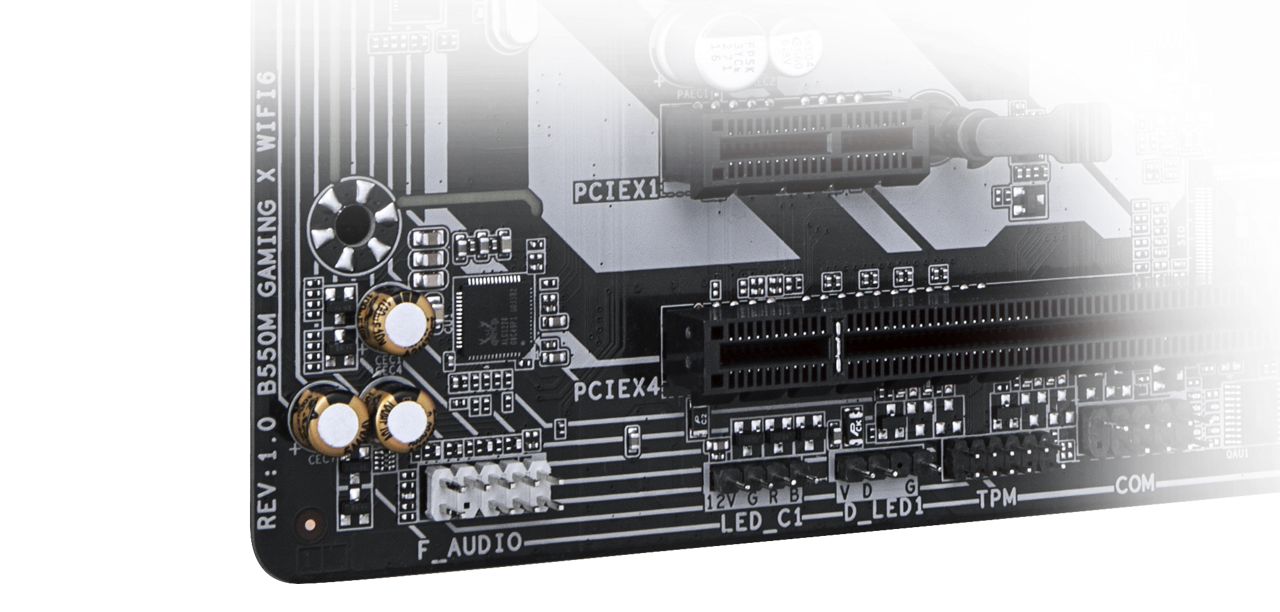

• Hi-Fi Audio

  • 8-CH HD Audio
  • High-End Audio Capacitor

• RGB FUSION

  • 3 x RGB LED Header
  • 2 x ARGB LED Headers

DIY Friendly :

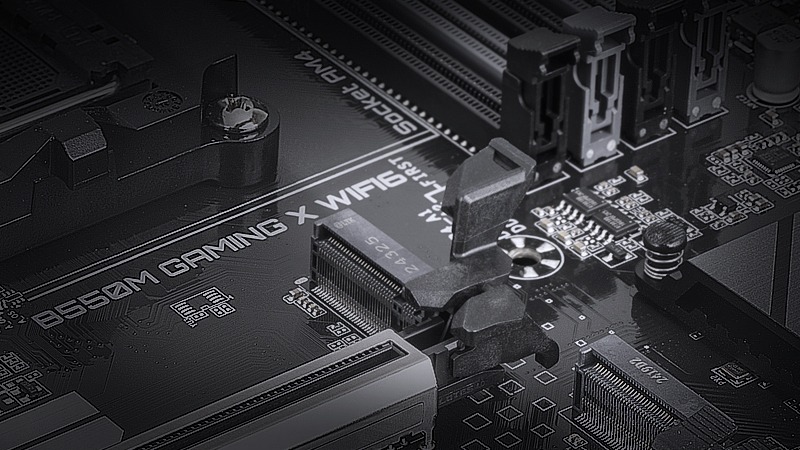

• WIFI EZ-Plug

• PCIe EZ-Latch

Key Features

• AMD Socket AM4 : Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors

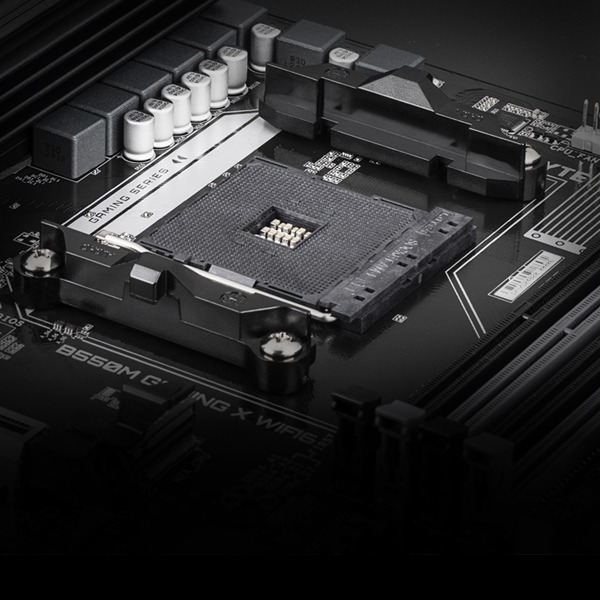

• Digital twin 5+3 phases VRM solution

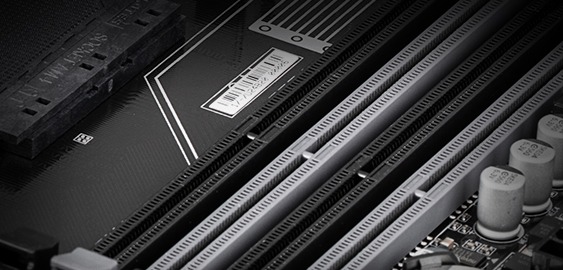

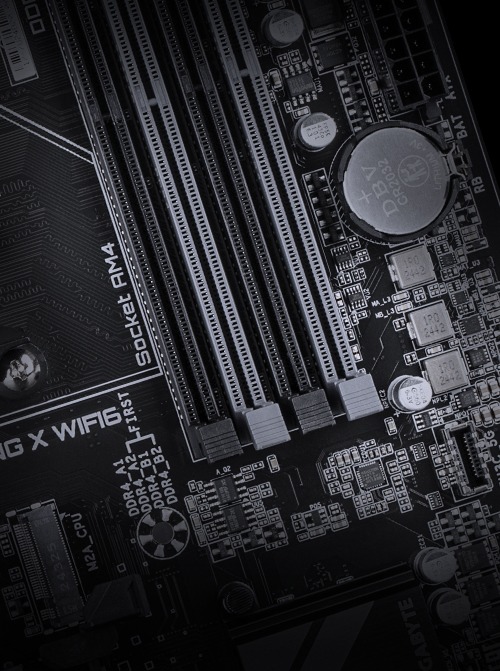

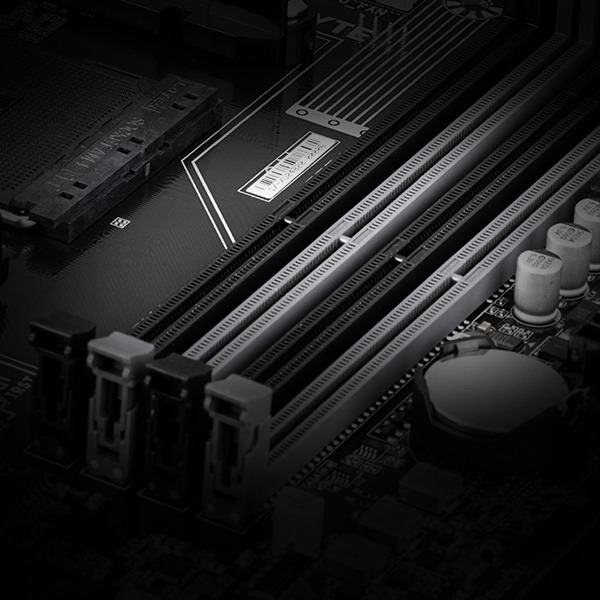

• Dual Channel DDR : 4*DIMMs

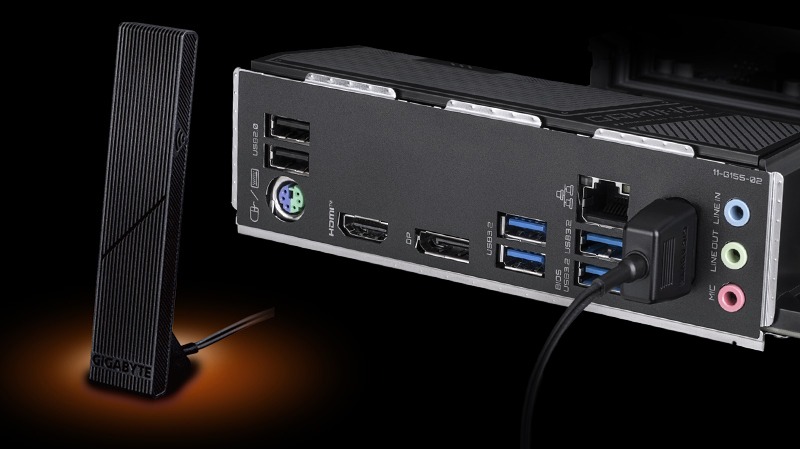

• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• EZ-Latch : PCIe slots with Quick Release Design
• Ultra-Fast Storage : 2*M.2 slots, including PCIe 4.0 x1
• Efficient Thermal : VRM Thermal Armor Advanced
• Fast Networking : GbE LAN & Wi-Fi 6
• Extended Connectivity : HDMI, Displayport
• PCIe UD Slot : PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
