Description
Engineered for high-performance computing needs

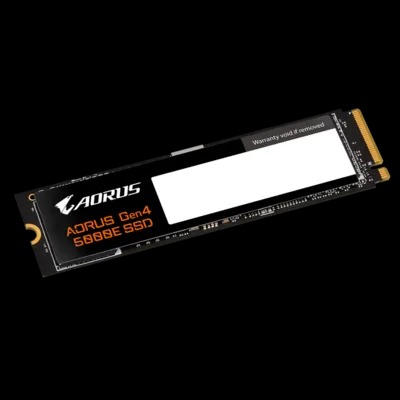

AORUS Gen4 5000E SSD
AORUS Gen4 5000E SSD
Built with a high-quality controller and high quality NAND flash, AORUS Gen4 5000E SSD delivers up to 6,500MB/s sequential read and 6,000MB/s sequential write performance. By utilizing Host Memory Buffer technology, the SSD controller can access the host DRAM without performance loss. As for features, AORUS Gen4 5000E SSD supports TRIM, SMART, and Over-Provision technologies to improve the reliability and durability of SSDs. AORUS Gen4 5000E SSD allows users to enjoy a smoother and faster gaming experience with more power efficiency.
- + PCIe 4.0 x4, NVMe 1.4 interface
- + Sequential Read Speed : up to 6,500MB/s**
- + Sequential Write speed : up to 6,000MB/s**
- + HMB (Host Memory Buffer) supported
- + TRIM & S.M.A.R.T supported
- + Energy-efficient
Selected High Speed and high quality 3D NAND Flash
The ultra high speed 3D NAND Flash, are selected by critical criteria, combined with the AORUS Gen4 5000E SSD’s firmware optimizations, lead to superior performance.
Extreme Performance
Comes From High Standard Test
Comes From High Standard Test
Equipped with a robust combination of controller and new generation 3D NAND flash, AORUS Gen4 5000E SSD delivers blazing speeds: up to 6,500 MB/s for sequential read, and up to 6,000MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is more than 1.8 times faster than PCIe 3.0 SSDs. AORUS Gen4 5000E SSD puts you in the computing fast lane.
Sequential Read Speed
AORUS Gen4 5000E SSD
General PCIe 3.0 SSD
Performance (MB/s)
6500
3500

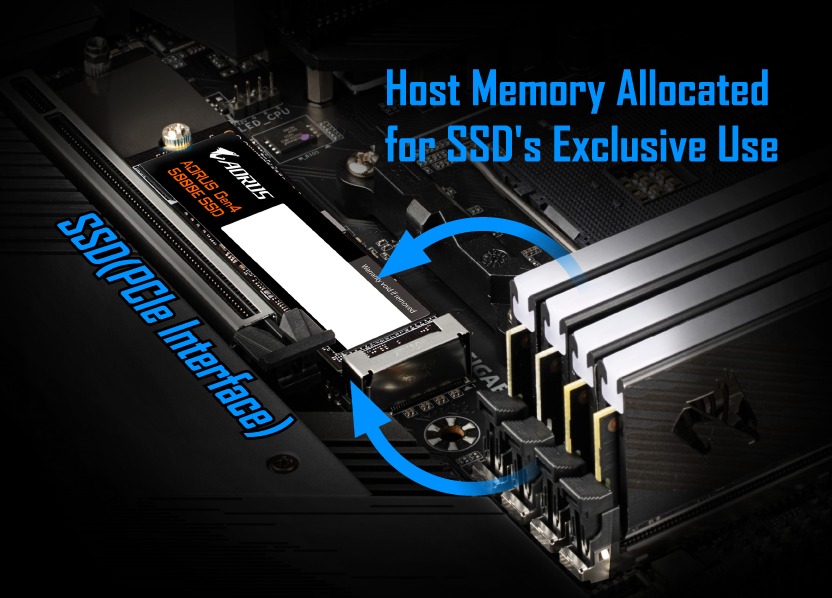

The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM.
* HMB feature is only supported by Windows 10 & 11.
The GIGABYTE exclusive technology uses special algorithm to enable Intelligent NAND Flash management, and enhance decoding capability. This optimize error recovery in NAND flash for superior storage reliability.
OPTIMIZED READ LEVEL
OPTIMIZED DECODE (Decode Capability Enhancement)
AORUS ERROR RECOVERY TECHNOLOGY
GIGABYTE exclusive Media Scan technology can automatically monitor the health status of NAND flash in the background and handle unhealthy flash blocks without disrupting regular operation.
CHECK
MOVE
MARK
HEALTHY (NO RISK)
UNHEALTHY (RISK)
* CHECK ALL STORAGE BLOCKS IN THE BACKGROUND EVERY 7 DAYS
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularized control components only for installed hardware
- Auto update function to keep system up to date and support future products
The newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link.
SSD tool box function may vary by model
| Capacity* | Model | Sequential Read MB/s** (Up to) | Sequential Write MB/s** (Up to) |
|---|---|---|---|
| 500GB | AORUS Gen4 5000E SSD 500GB (AG450E500G-G) | 5,000 MB/s | 3,800 MB/s |
| 1000GB | AORUS Gen4 5000E SSD 1TB (AG450E1TB-G) | 5,000 MB/s | 4,600 MB/s |
| 1TB (1024GB) | AORUS Gen4 5000E SSD 1TB (AG450E1024-G) | 5,000 MB/s | 4,600 MB/s |
| 2000GB | AORUS Gen4 5000E SSD 2TB (AG450E2TB-G) | 6,500 MB/s | 6,000 MB/s |
* Note: 1GB = 1 billion bytes. Real useable capacity may vary by models.
** Speeds based on internal testing. Real performance may vary by models.
** Speeds based on internal testing. Real performance may vary by models.

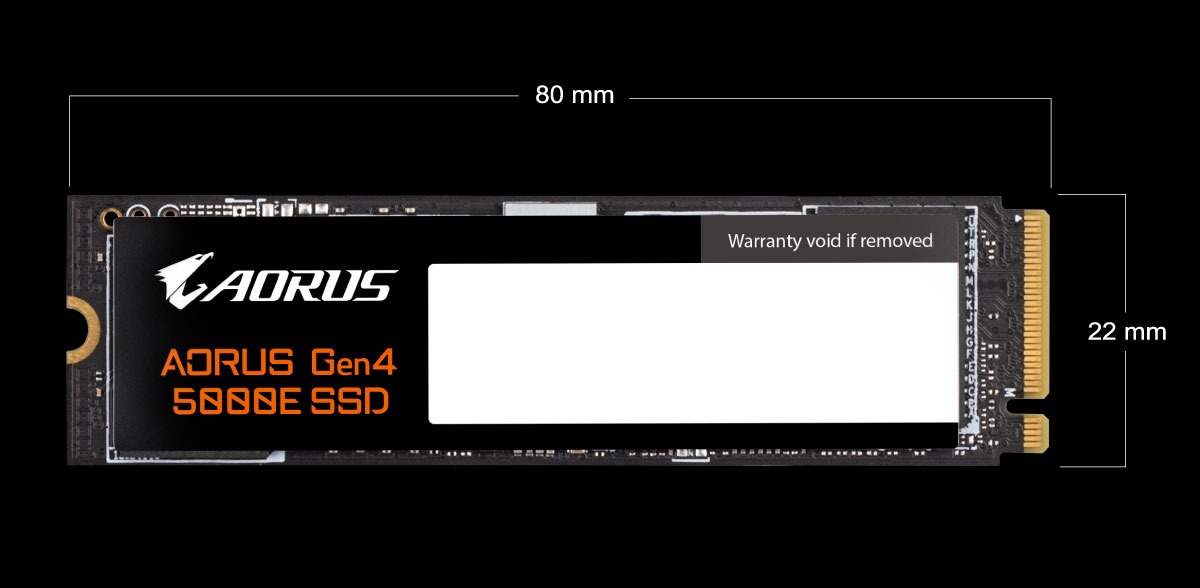

- Form Factor: M.2 2280
- Interface: PCI-Express 4.0 x4, NVMe 1.4
- Total Capacity: 2TB (2000GB)*
- Sequential Read Speed : up to 6,500 MB/s**
- Sequential Write speed : up to 6,000 MB/s**
- HMB (Host Memory Buffer) supported
- TRIM & S.M.A.R.T supported
- Energy-efficient
- Warranty: Limited 5-years
*Note: 1GB = 1 billion bytes. Actual useable capacity may vary.
**Speeds based on internal testing. Actual performance may vary.
**Speeds based on internal testing. Actual performance may vary.
