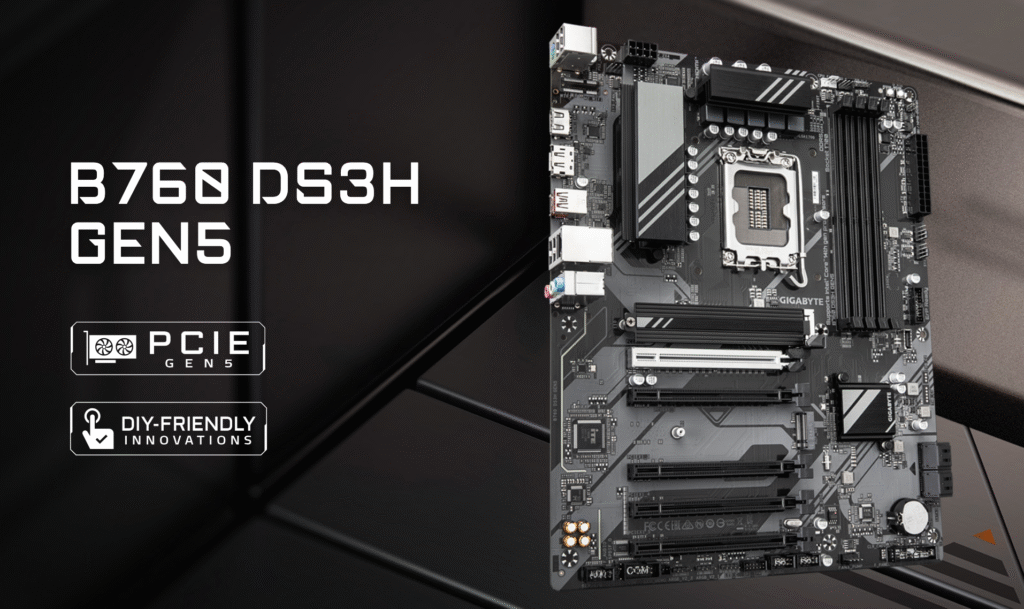

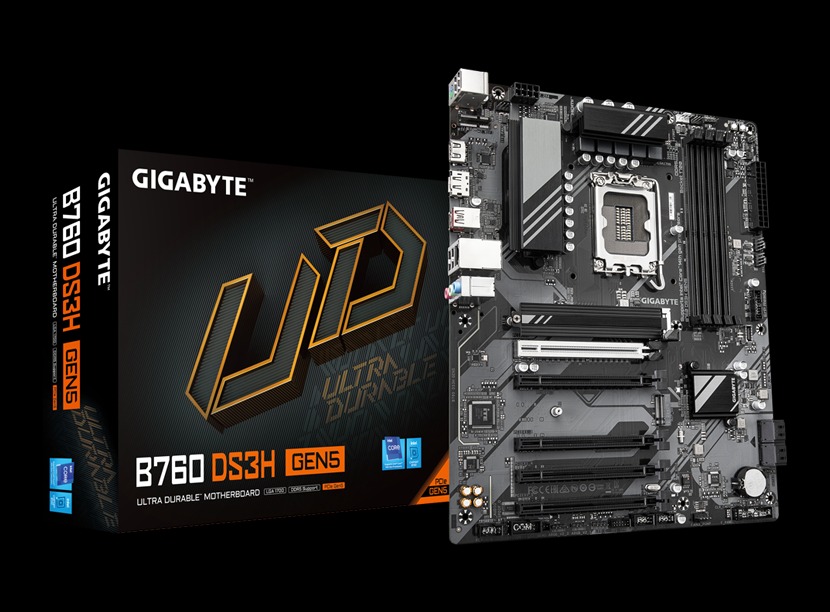

B760 DS3H GEN5

Description

OVERVIEW

Performance :

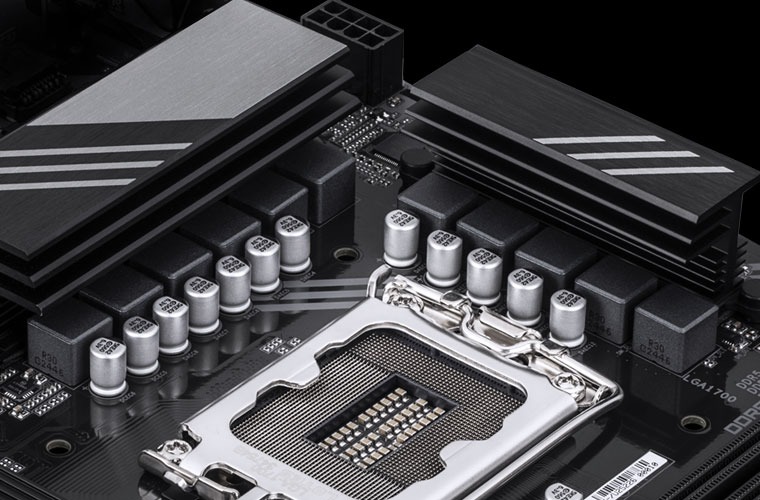

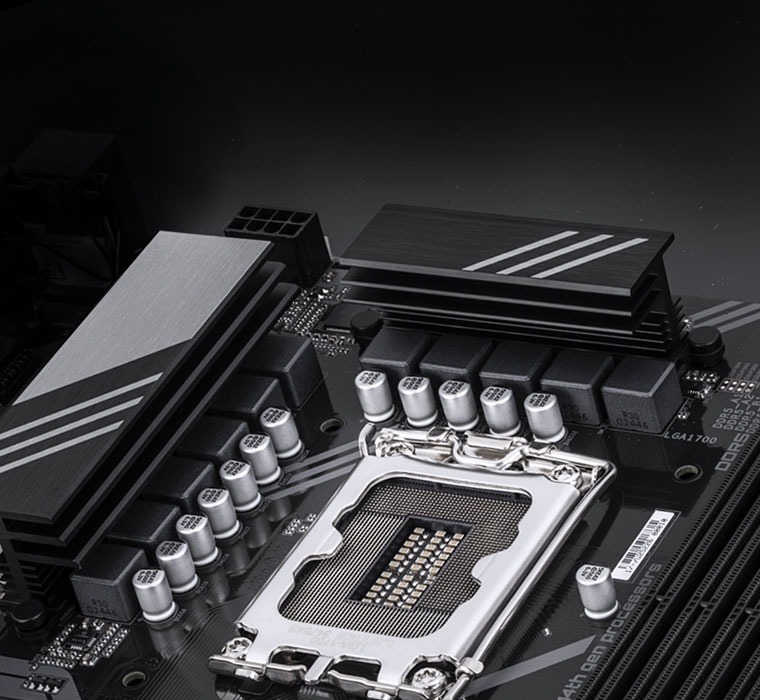

• 8+2+1 Phases Hybrid VRM Design

  • 6-Layer & PCIe 5.0 Ready PCB
  • Premium Choke and Capacitor

• Support 14th and 13th Gen. Intel® Core™ Processors

• UD Power Connector

  • 24 pin ATX Power Connector

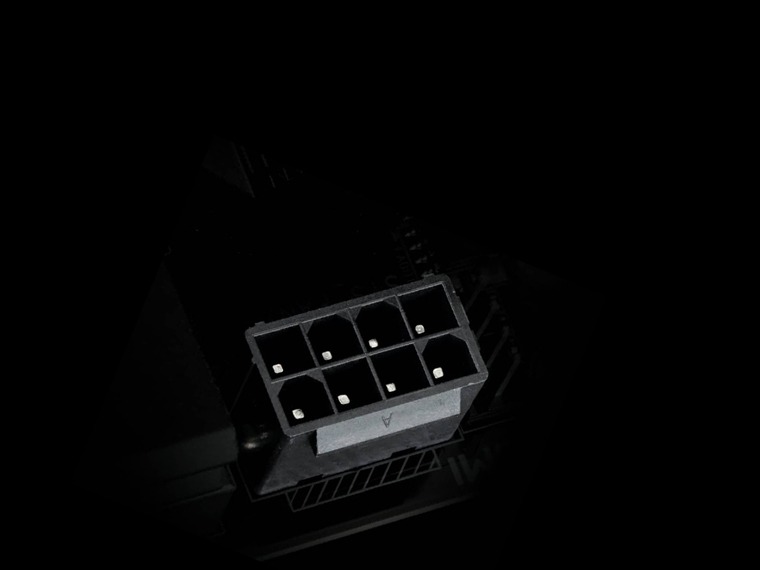

  • 8 pin CPU with UD Solid Pin

• 4 x DIMMs, Dual Channel DDR5

• 2 x M.2 Slots

  • 2 x PCIe 4.0 M.2 Slots

• Full-length PCIe slots

  • 1 x PCIe 5.0 x16 with PCIe UD Slot
  • 4 x PCIe 3.0 x1

Thermal :

• VRM Thermal Armor Advanced

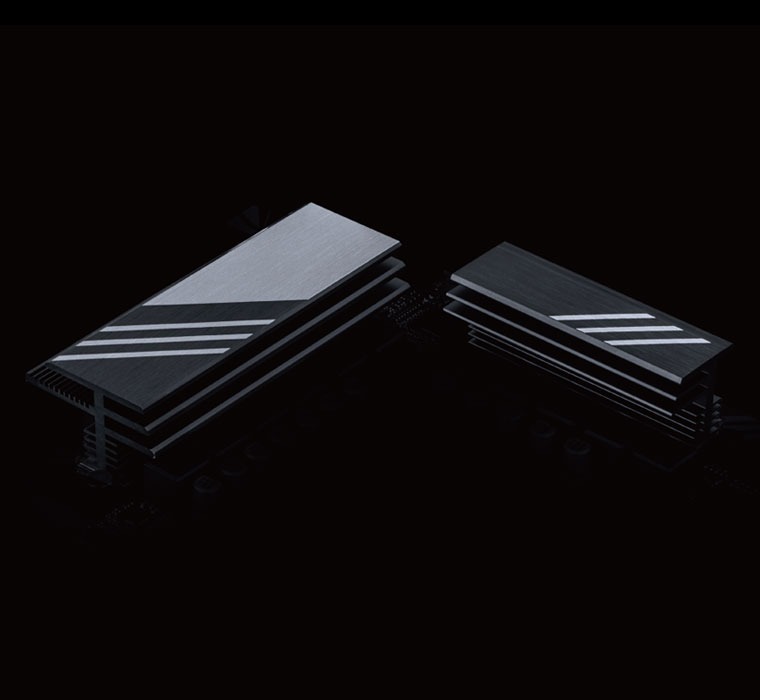

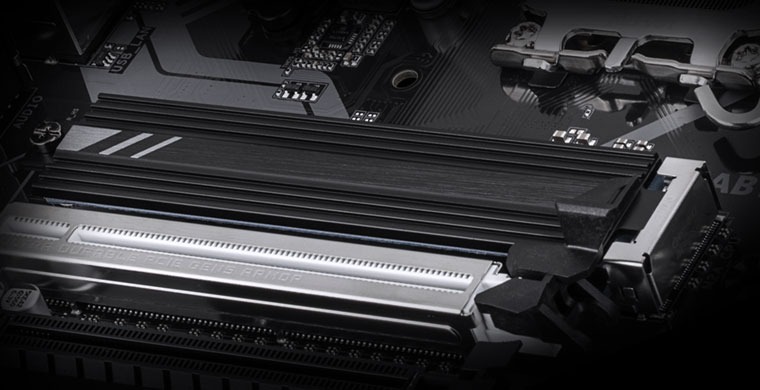

• M.2 Thermal Guard

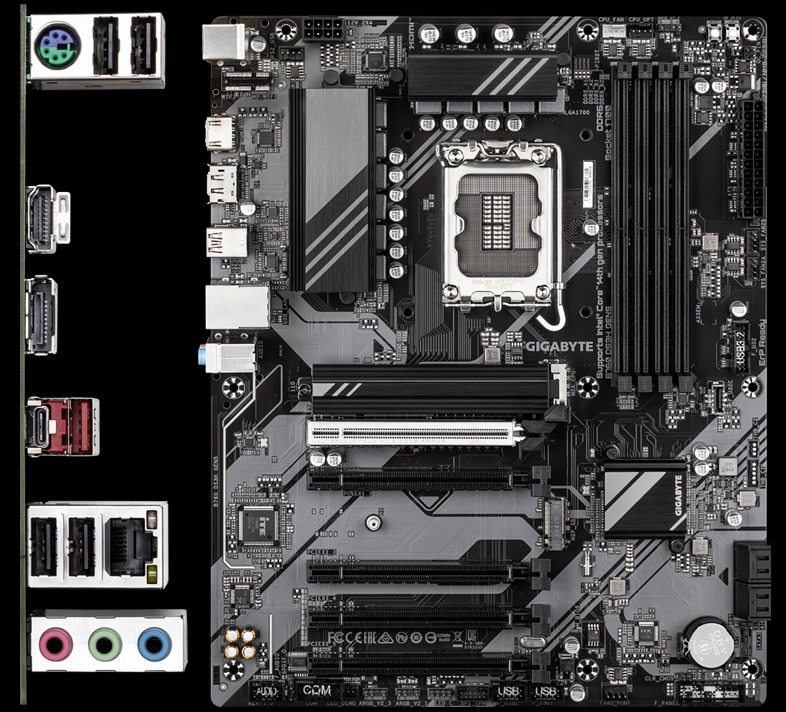

Connectivity :

• 4 x USB 2.0

• 1 x HDMI

• 1 x Display Port

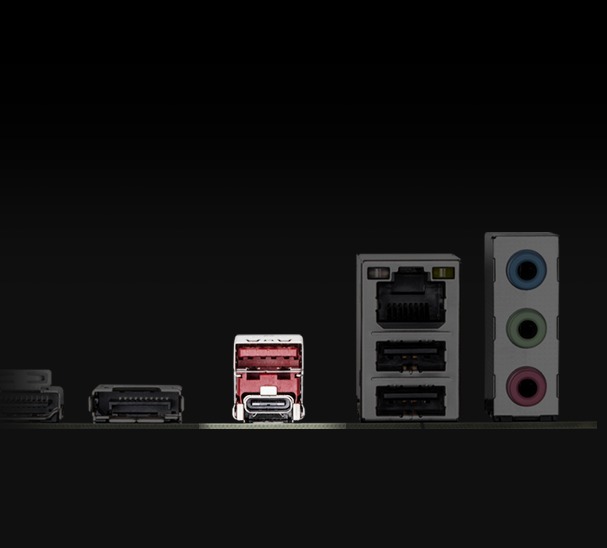

• 1 x USB 3.2 Gen 2×2 Type-C®

• 1 x USB 3.2 Gen 2

• GbE LAN

• Front USB-C 5Gb/s

• 4 x SATA 6Gb/s

• Hi-Fi Audio

  • 8-CH HD Audio

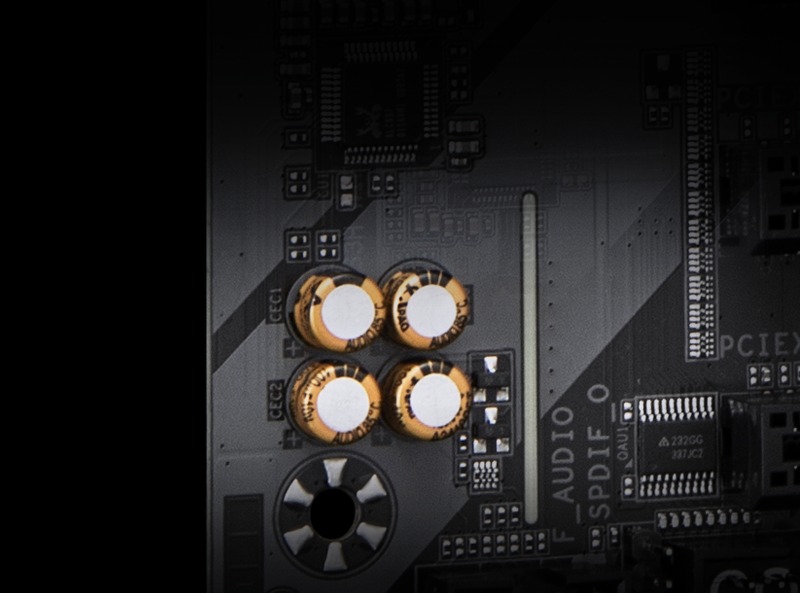

  • High-End Audio Capacitor

• RGB FUSION

  • 3 x Addressable LED Headers
  • 1 x RGB LED Header

DIY Friendly :

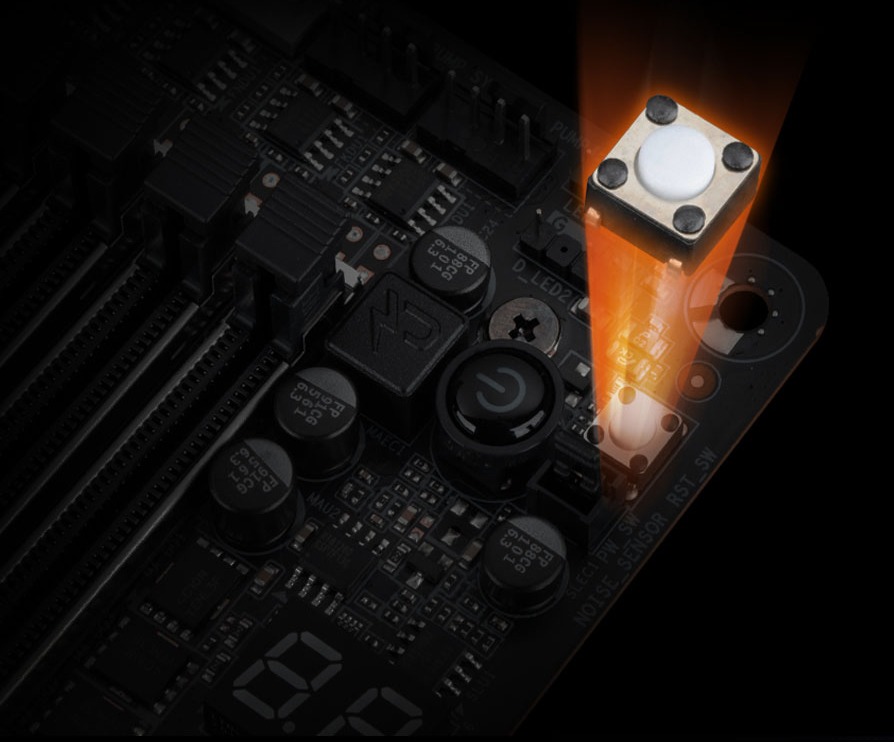

• Q-FLASH PLUS Button

• PCIe EZ-Latch

Key Features

• PCIe Gen5 Performance : Perfect Sync to Win
• Supports Intel® Core™ 14th/ 13th /12th processors
• EZ-Latch : PCIe 5.0×16 Slot with Quick Release Design

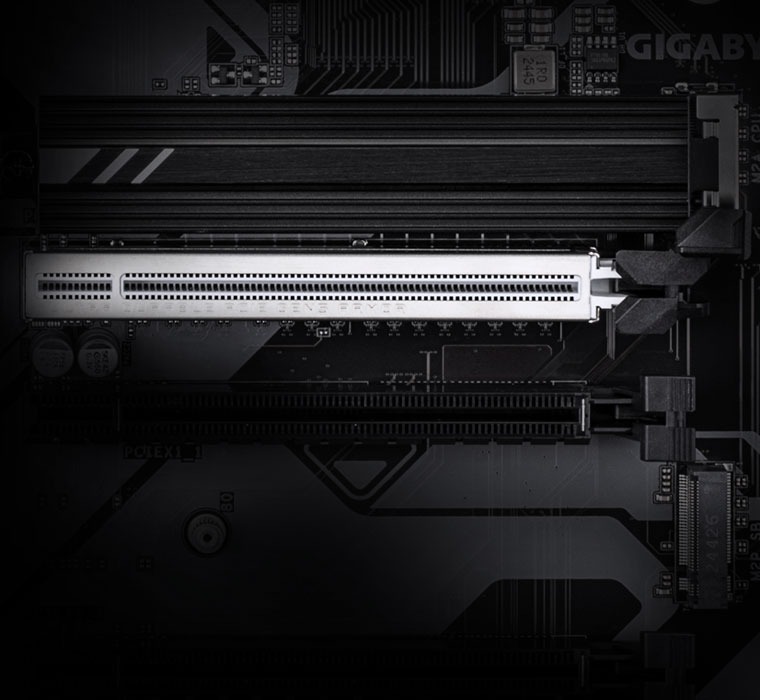

• PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
• Unparalleled Performance : Hybrid 8+2+1 Phases VRM Solution

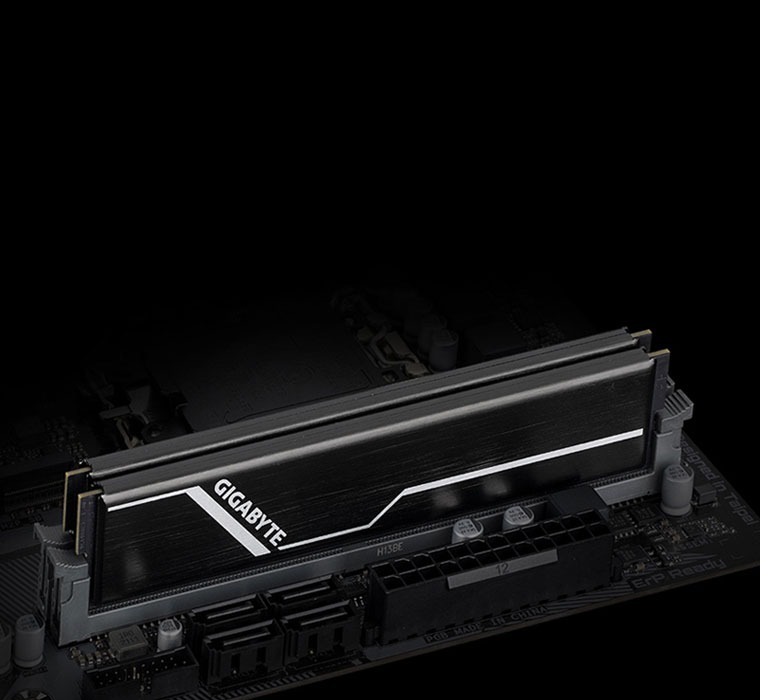

• Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support
• Fast Networks : GbE LAN
• Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
• Extended Connectivity : Rear USB-C® 20Gb/s, DP, HDMI
• Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
